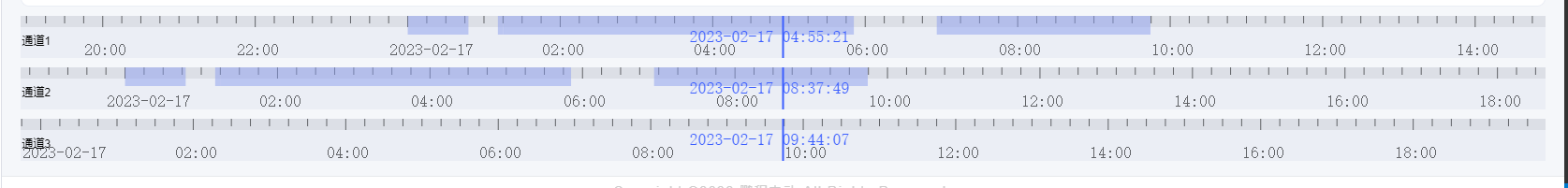

vue组件 canvas实现可滑动时间刻度轴

--canvas组件页面



<template>

  <div className="time_line_container" ref="containerRef">

    <canvas ref="canvasRef" height="40" width="100" />

  </div>

</template>

<script setup>

import { onMounted, onUnmounted, ref, watchEffect } from "vue";

import { formatTimeLine } from "@/utils";

import "./index.scss";

import { throttle } from "lodash";

import moment, { now } from "moment";

const props = defineProps({

  timeParts: {

    type: Array,

    default: [],

  },

  isMove: {

    type: Boolean,

    default: false,

  },

  currentTime: {

    type: Number,

    default: new Date().getTime(),

  },

});

const emits = defineEmits(["changeCallback"]);

const getPixelRatio = function (context) {

  const backingStore =

    context.backingStorePixelRatio ||

    context.webkitBackingStorePixelRatio ||

    context.mozBackingStorePixelRatio ||

    context.msBackingStorePixelRatio ||

    context.oBackingStorePixelRatio ||

    context.backingStorePixelRatio ||

    1;

  return (window.devicePixelRatio || 1) / backingStore;

};

const ratio = getPixelRatio(window);

const canvasRef = ref(null);

const containerRef = ref(null);

const ctxRef = ref(null);

// 可选的每个间隔代表多少分钟

const minutePerStep = ref([

  1, 2, 5, 10, 15, 20, 30, 60, 120, 180, 240, 360, 720, 1440,

]);

// 最小刻度间距

const minScaleSpacing = ref(20);

// 整个时间轴表示的时间长度

const totalRulerHours = ref(20);

// 允许的最小大格长度px值 如果调小 大格会变密集

const minLargeScaleSpacing = ref(100);

// 缩放层级

const zoom = ref(24);

const currentTime = ref(props.currentTime);

const timeParts = ref(props.timeParts);

const isMove = ref(false);

// 游标颜色

const drawCursorColor = "#3B5EFF";

// 刻度处背景颜色

const fillScaleBgColor = "#DCDFE6";

// 刻度颜色

const drawScaleColor = "#606266";

// 鼠标悬浮移动 游标颜色

const hoverMoveColor = "#5674fd";

// 录像时间块颜色

const fillTimePartsColor = "rgba(140, 158, 238 , .5)";

const moveTimer = ref(null);

const startTimestamp = ref(0);

// 鼠标是否被按下 用来确认时hover事件还是拖拽事件

const isMouseDownFlag = ref(false);

// 是否拖拽 用来确认mouseup时是点击事件还是拖拽事件

const isDragFlag = ref(false);

// 鼠标按下时鼠标x位置 在处理拖拽事件中用来比对

const mousedownX = ref(0);

const refreshStartTimestamp = () => {

  // 当currentTime改变或者整条时间轴代表的totalHours改变的时候 就刷新左边开始时间

  startTimestamp.value =

    currentTime.value - (totalRulerHours.value * 60 * 60 * 1000) / 2;

};

const clearcanvas = () => {

  if (!ctxRef.value || !canvasRef.value) return;

  ctxRef.value.clearRect(

    0,

    0,

    canvasRef.value.width || 0,

    canvasRef.value.height || 0

  );

};

const fillScaleBg = () => {

  if (ctxRef.value) {

    ctxRef.value.fillStyle = fillScaleBgColor;

    ctxRef.value.fillRect(0, 0, canvasRef.value?.width || 0, 12);

  }

};

const createScaleText = (time) => {

  if (

    time.getHours() === 0 &&

    time.getMinutes() === 0 &&

    time.getMilliseconds() === 0

  ) {

    return moment(time).format("YYYY-MM-DD");

  }

  return moment(time).format("HH:mm");

};

const drawScale = () => {

  if (!canvasRef.value || !ctxRef.value) return;

  // 一分钟多少像素

  let oneMinutePx = canvasRef.value.width / (totalRulerHours.value * 60);

  // 一毫秒多少像素

  let oneMSPx = oneMinutePx / (60 * 1000);

  // 刻度间隔 默认20px

  let scaleSpacing = minScaleSpacing.value;

  // 每格代表多少分钟

  let scaleUnit = scaleSpacing / oneMinutePx;

  let len = minutePerStep.value.length;

  for (let i = 0; i < len; i += 1) {

    if (scaleUnit < minutePerStep.value[i]) {

      // 选择正确的刻度单位分钟

      scaleUnit = minutePerStep.value[i];

      // 每刻度之间的距离 = 一分钟多少像素 * 刻度单位

      // 即 scaleUnit = scaleSpacing / oneMinutePx 的变形

      // 主要是 totalRulerHours 会变化 需要根据这个的变化来计算...

      scaleSpacing = oneMinutePx * scaleUnit;

      break;

    }

  }

  // 有刻度文字的大格相当于多少分钟 相当于直尺上的1cm

  let mediumStep = 30;

  for (let i = 0; i < len; i++) {

    if (minLargeScaleSpacing.value / oneMinutePx <= minutePerStep.value[i]) {

      mediumStep = minutePerStep.value[i];

      break;

    }

  }

  let totalScales = canvasRef.value.width / scaleSpacing;

  // 某个刻度距离最左端得距离

  let graduationLeft;

  // 某个刻度得时间

  let graduationTime;

  let lineHeight;

  // 开始时间 = 中间时间 - 一半得整条时间

  startTimestamp.value =

    currentTime.value - (totalRulerHours.value * 60 * 60 * 1000) / 2;

  // 因为中间点是currentTime.value是固定的 最右边不一定在某个刻度上 会有一定的偏移量

  let leftOffsetMs =

    scaleUnit * 60 * 1000 - (startTimestamp.value % (scaleUnit * 60 * 1000));

  // 开始时间偏移距离(px)

  let leftOffsetPx = leftOffsetMs * oneMSPx;

  // 一刻度多少毫秒

  let oneScalesMS = scaleSpacing / oneMSPx;

  // 文字颜色

  ctxRef.value.fillStyle = drawScaleColor;

  ctxRef.value.font = "17px serif";

  // 刻度线颜色

  ctxRef.value.strokeStyle = drawScaleColor;

  ctxRef.value.beginPath();

  // 画刻度线

  function drawScaleLine(left, height) {

    ctxRef.value.moveTo(left, 0);

    ctxRef.value.lineTo(left, height);

    ctxRef.value.lineWidth = 1;

  }

  for (let i = 0; i < totalScales; i++) {

    // 距离 = 开始得偏移距离 + 格数 * 每格得px;

    graduationLeft = leftOffsetPx + i * scaleSpacing;

    // 时间 = 左侧开始时间 + 偏移时间 + 格数 * 一格多少毫秒

    graduationTime = startTimestamp.value + leftOffsetMs + i * oneScalesMS;

    let date = new Date(graduationTime);

    if ((graduationTime / (60 * 1000)) % mediumStep == 0) {

      // 大格刻度

      lineHeight = 12;

      let scaleText = createScaleText(date);

      ctxRef.value.fillText(scaleText, graduationLeft - 20, 42);

    } else {

      // 小格刻度

      lineHeight = 8;

    }

    drawScaleLine(graduationLeft, lineHeight);

  }

  ctxRef.value.stroke();

};

const fillTimeParts = (part) => {

  let onePxsMS =

    canvasRef.value.width / (totalRulerHours.value * 60 * 60 * 1000);

  let beginX = (part.start - startTimestamp.value) * onePxsMS;

  let partWidth = (part.end - part.start) * onePxsMS;

  if (part.style && part.style.background) {

    ctxRef.value.fillStyle = part.style.background;

  } else {

    ctxRef.value.fillStyle = fillTimePartsColor;

  }

  ctxRef.value.fillRect(beginX, 0, partWidth, 20);

};

const drawCursor = () => {

  if (!canvasRef.value || !ctxRef.value) return;

  ctxRef.value.beginPath();

  ctxRef.value.moveTo(canvasRef.value.width / 2, 0);

  ctxRef.value.lineTo(canvasRef.value.width / 2, 110);

  ctxRef.value.strokeStyle = drawCursorColor;

  ctxRef.value.lineWidth = 2;

  ctxRef.value.stroke();

  ctxRef.value.fillStyle = drawCursorColor;

  ctxRef.value.font = "18px serif";

  ctxRef.value.fillText(

    formatTimeLine(currentTime.value),

    canvasRef.value.width / 2 - 100,

    canvasRef.value.height - 17

  );

};

const init = () => {

  refreshStartTimestamp();

  // 清空画布

  clearcanvas();

  // 画刻度处背景

  fillScaleBg();

  // 画刻度

  drawScale();

  if (timeParts.value.length) {

    timeParts.value.forEach((element) => {

      fillTimeParts(element);

    });

  }

  // 画游标

  drawCursor();

};

const addTimeParts = (timeParts) => {

  setTimeParts(timeParts.value.concat(timeParts));

};

const setIsMove = (Move) => {

  if (isMove.value === Move) return;

  isMove.value = Move;

  const clearTimer = () => {

    if (moveTimer.value) {

      clearInterval(moveTimer.value);

      moveTimer.value = null;

    }

  };

  if (isMove.value) {

    // 先清除之前得timer 否则会有两个timer通知进行...

    if (moveTimer.value) {

      clearTimer();

    }

    moveTimer.value = setInterval(() => {

      currentTime.value += 1000;

      init();

    }, 1000);

  } else {

    clearTimer();

  }

};

const dragMove = (event) => {

  let posX = getMouseXRelativePos(event);

  let diffX = posX - mousedownX.value;

  let onePxsMS =

    canvasRef.value.width / (totalRulerHours.value * 60 * 60 * 1000);

  currentTime.value = currentTime.value - Math.round(diffX / onePxsMS);

  init();

  // 👇因为重新设置了currentTime 所以要重新设置鼠标按下位置

  // 否则偏移时间会进行累加 越拖越快越拖越快...

  mousedownX.value = posX;

};

const hoverMove = (event) => {

  const posX = getMouseXRelativePos(event);

  const t = getMousePosTime(event);

  init();

  ctxRef.value.beginPath();

  ctxRef.value.moveTo(posX * ratio + 1, 0);

  ctxRef.value.lineTo(posX * ratio + 1, canvasRef.value.height);

  ctxRef.value.strokeStyle = hoverMoveColor;

  ctxRef.value.lineWidth = 1;

  ctxRef.value.stroke();

  ctxRef.value.fillStyle = hoverMoveColor;

  ctxRef.value.fillText(

    formatTimeLine(t),

    posX * ratio - 125,

    canvasRef.value.height - 5

  );

};

const eventListener = {

  wheel(event) {

    wheelEvent(event);

    hoverMove(event);

  },

  mousedown(event) {

    isMouseDownFlag.value = true;

    mousedownX.value = getMouseXRelativePos(event);

  },

  mousemove(event) {

    if (isMouseDownFlag.value) {

      isDragFlag.value = true;

      dragMove(event);

    } else {

      hoverMove(event);

    }

  },

  mouseup(event) {

    if (!isDragFlag.value) {

      clickEvent(event);

      hoverMove(event);

    }

    emits("changeCallback", new Date(currentTime.value));

    // 初始化这俩值以免影响下次事件判断

    isMouseDownFlag.value = false;

    isDragFlag.value = false;

  },

  mouseleave(event) {

    init();

    // 初始化这俩值以免影响下次事件判断

    isMouseDownFlag.value = false;

    isDragFlag.value = false;

  },

};

const getMousePosTime = (event) => {

  let posX = getMouseXRelativePos(event);

  // 每像素多少毫秒

  let onePxsMS =

    canvasRef.value.width / (totalRulerHours.value * 60 * 60 * 1000);

  let time = new Date(startTimestamp.value + posX / onePxsMS);

  return time;

};

const clickEvent = (event) => {

  let time = getMousePosTime(event).getTime();

};

const wheelEvent = (event) => {

  event.preventDefault();

  // 是放大一倍还是缩小一倍

  let delta = Math.max(-1, Math.min(1, event.wheelDelta));

  if (delta < 0) {

    zoom.value = zoom.value + 4;

    if (zoom.value >= 24) {

      //放大最大24小时

      zoom.value = 24;

    }

    totalRulerHours.value = zoom.value;

  } else if (delta > 0) {

    // 放大

    zoom.value = zoom.value - 4;

    if (zoom.value <= 1) {

      //缩小最小1小时

      zoom.value = 1;

    }

    totalRulerHours.value = zoom.value;

  }

  init();

};

const getMouseXRelativePos = (event) => {

  let scrollX = document.documentElement.scrollLeft || document.body.scrollLeft;

  let x = event.pageX || event.clientX + scrollX;

  // canvasRef.value元素距离窗口左侧距离

  let baseLeft = canvasRef.value.getBoundingClientRect().x;

  return x - baseLeft;

};

const setCanvasWH = throttle(() => {

  if (canvasRef.value && containerRef.value) {

    canvasRef.value.width = containerRef.value.clientWidth * ratio;

    canvasRef.value.height = containerRef.value.clientHeight * ratio;

  }

  init();

}, 1000);

watchEffect(() => {

  if (props.currentTime) {

    //currentTime.value = props.currentTime;

  }

  if (props.timeParts) {

    timeParts.value = props.timeParts;

  }

  setIsMove(props.isMove);

});

onMounted(() => {

  ctxRef.value = canvasRef.value.getContext("2d");

  init();

  setCanvasWH();

  window.addEventListener("resize", setCanvasWH);

  canvasRef.value.addEventListener("wheel", eventListener.wheel);

  canvasRef.value.addEventListener("mousedown", eventListener.mousedown);

  canvasRef.value.addEventListener("mousemove", eventListener.mousemove);

  canvasRef.value.addEventListener("mouseup", eventListener.mouseup);

  canvasRef.value.addEventListener("mouseleave", eventListener.mouseleave);

});

onUnmounted(() => {

  destroy();

});

const destroy = () => {

  window.removeEventListener("resize", setCanvasWH);

  if (canvasRef.value) {

    canvasRef.value.removeEventListener("wheel", eventListener.wheel);

    canvasRef.value.removeEventListener("mousedown", eventListener.mousedown);

    canvasRef.value.removeEventListener("mousemove", eventListener.mousemove);

    canvasRef.value.removeEventListener("mouseup", eventListener.mouseup);

    canvasRef.value.removeEventListener("mouseleave", eventListener.mouseleave);

    clearcanvas();

  }

  if (moveTimer.value) {

    clearInterval(moveTimer.value);

    moveTimer.value = null;

  }

};



defineExpose({

  currentTime

})

</script>



//--css样式页面：

.time_line_container {

  height: 100%;

  overflow: hidden;

  // height: 50px;

  canvas {

    width: 100%;

    height: 100%;

    background: #ebeef5;

  }

}

//---



//--调用组件页面 通过循环加载显示 clickVehicleItem.videoCount数量循环显示



    <div

      class="channel_timeline_wrap1"

      v-for="(item, index) in [...Array(+clickVehicleItem.videoCount || 0)]"

      :key="index"

    >

      <!-- @click="changeVIdeoTimeLine(timeFileData[form.channelNo[index]])" -->

 　 <!--  :timeParts="timeFileData[form.channelNo[index]]&&timeFileData[form.channelNo[index]].fileData||[] "  -->

      <div class="label">通道{{ index + 1 }}</div>

      <VideoTimeLine

 　　:timeParts="[{

                    start: new Date().getTime() - 3 * 3600 * 1000,

                    end: new Date().getTime() - 1 * 3600 * 1000,

                  },

                  {

                    start: new Date().getTime() - 6 * 3600 * 1000,

                    end: new Date().getTime() - 4 * 3600 * 1000,

                  }]"

        :isMove="true"

        @changeCallback="(val) => changeCallback(val, index)"

　　 :ref="(el) => (videoTimeRefObj[index] = el)"

      />

    </div>



const timelinechangeTimes = ref([]);

///--changeCallback 拖动事件_获取时间

const changeCallback = (time, index) => {

  console.log(11111, formatTimeLine(time));

  timelinechangeTimes.value[index] = formatTimeLine(time);

};



 //存储刻度尺上实时时间,通过下标获取

const videoTimeRefObj = ref([])

//参考示例 index下标

const changeChannel = (index)=>{

  console.log(formatTimeLine(videoTimeRefObj.value[index].currentTime) );

};



const timeFormat = "YYYY-MM-DD HH:mm:ss";

// 转时间格式

const formatTimeLine = (time, format) => {

  return moment(time || new Date()).format(format || timeFormat);

};



css样式:

  .channel_timeline_wrap1 {

    position: relative;

    margin-top: 10px;

    height: 45px;

    background: #ebeef5;

    border-radius: 0px 0px 0px 0px;

    opacity: 1;

    .label {

      position: absolute;

      left: 2px;

      top: 18px;

      font-size: 12px;

    }

  }

//---



////-- timeFileData字段说明_查询录像时间

    timeFileData: {

      // 1: {

      //   deviceId: "100100100018", //终端id

      //   fileCount: 50, //fileData中文件数量

      //   fileData: [

      //     {

      //       channelNo: "1", //通道号，从1 开始

      //       beginTime: "2020-11-16 00:00:00", //开始时间

      //       endTime: "2020-11-17 00:00:00", //结束时间

      //       fileType: 0, //查询文件类型，0：音视频,1；音频，2：视频，3：音频或视频

      //       videoType: 1, //  1；主码流，2：子码流

      //       storageType: 1, // 1：主存储器，2：备份存储器

      //       fileSize: 1024000, //文件大小 单位字节（Byte）

　  //      start:1672989813770, //刻度尺对应的开始时间显示背景颜色

　  //      end:1672997100403, //刻度尺对应的结束时间显示背景颜色

      //     },

      //     {

      //       channelNo: "2", //通道号，从2 开始

      //       beginTime: "2020-11-16 00:00:00", //开始时间

      //       endTime: "2020-11-17 00:00:00", //结束时间

      //       fileType: 0, //查询文件类型，0：音视频,1；音频，2：视频，3：音频或视频

      //       videoType: 1, //  1；主码流，2：子码流

      //       storageType: 1, // 1：主存储器，2：备份存储器

      //       fileSize: 1024000, //文件大小 单位字节（Byte）

　  //       start:1672979121562, //刻度尺对应的开始时间显示背景颜色

　  //       end:1672986333548, //刻度尺对应的结束时间显示背景颜色

      //     },

      //   ],

      // },

    },

////----

----效果图
