k8s动态存储类的部署

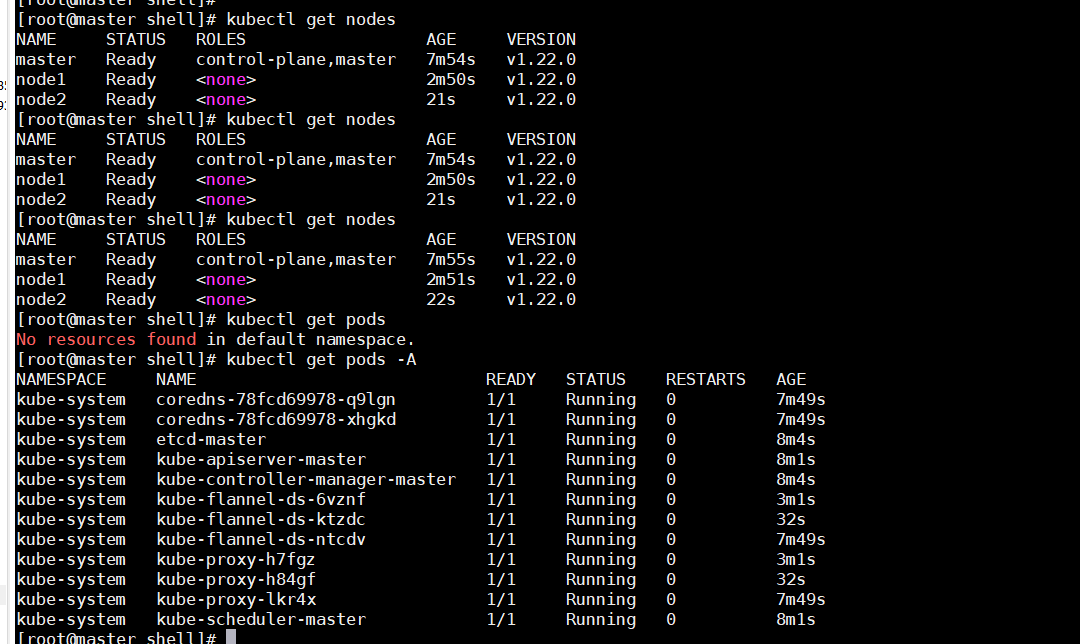

第一步，需要一个安装好的k8s集群，这里省略





第二步，搭建nfs存储，把/share目录共享出来

[root@master active_pvc]# vim /etc/exports
/share *(insecure,rw,sync,fsid=0,crossmnt,no_subtree_check,anonuid=666,anongid=666,no_root_squash)

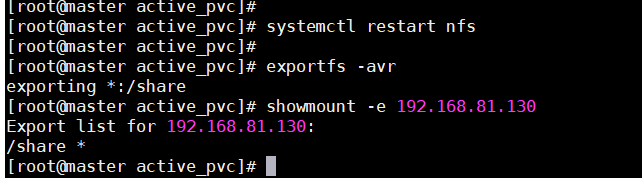

第三步，重启nfs服务，然后验证





第四步，因为我的k8s用的是nfs存储，不支持动态补给，如果需要动态补给，就需要插件

nfs-client-provisioner

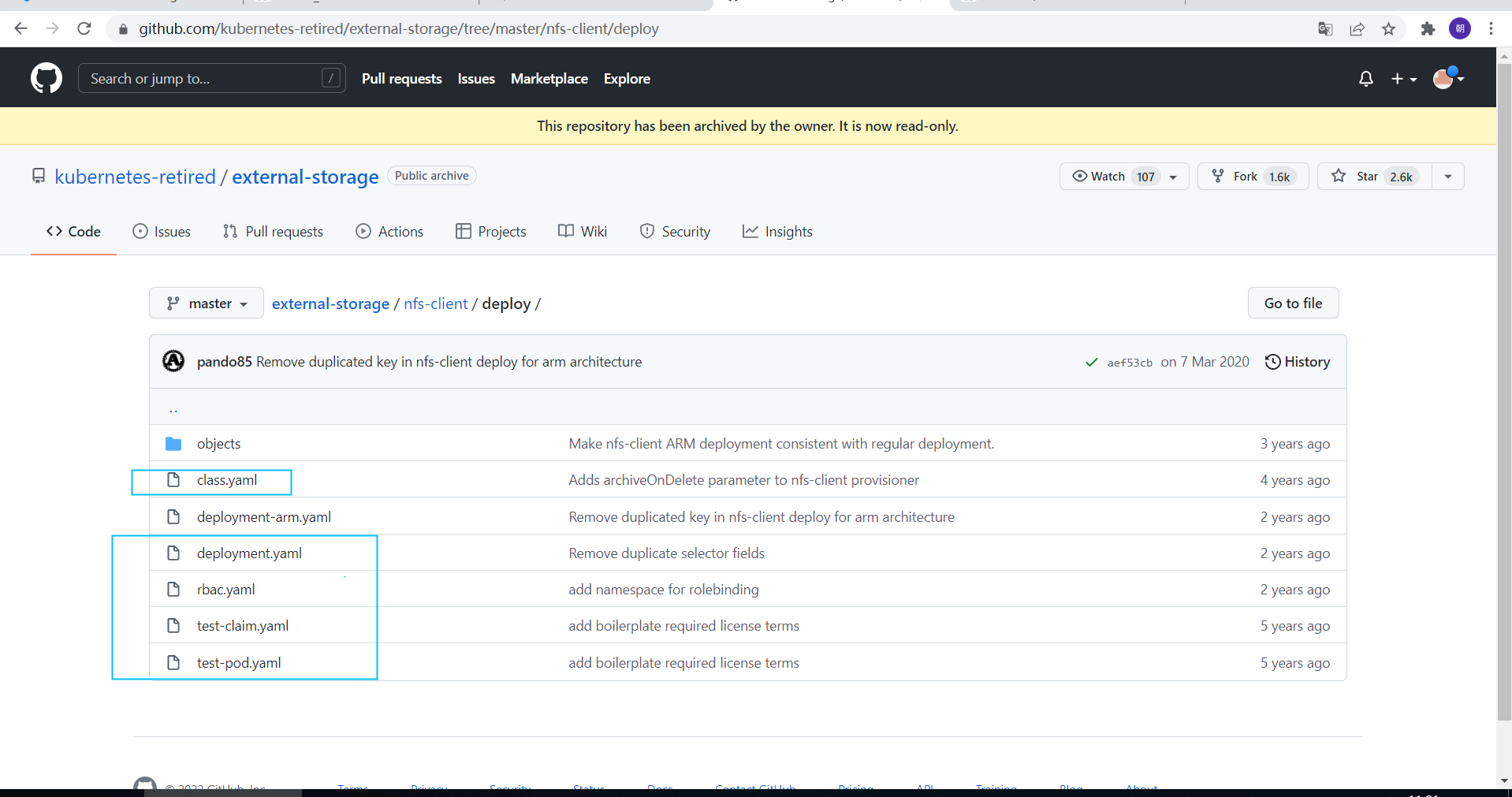

网址：https://github.com/kubernetes-retired/external-storage/tree/master/nfs-client/deploy









 需要这些k8s配置清单来部署，我们现在下载下来，如果github上下载很慢，可以去gitee，搜索external-storage也可以，很快

[root@master active_pvc]#uri="https://raw.githubusercontent.com/kubernetes-retired/external-storage/master/nfs-client/deploy/"

[root@master active_pvc]#for i in class.yaml deployment.yaml test-claim.yaml test-pod.yaml;do wget -c $uri$i;done

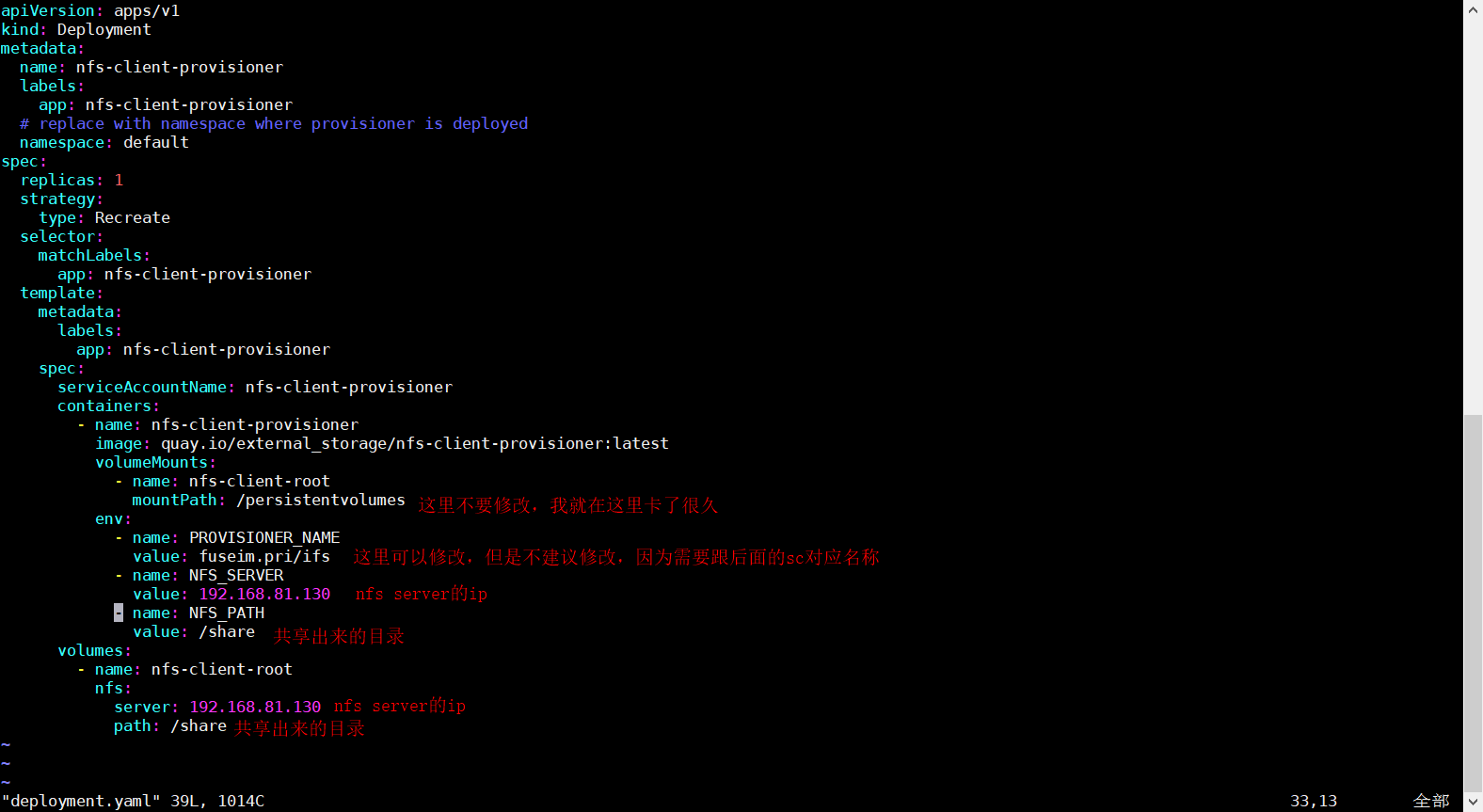

第五步，修改deployment.yaml



 应用deployment

[root@master active_pvc]# kubectl apply -f deployment.yaml
deployment.apps/nfs-client-provisioner created

应用rbac，需要给deploy权限，否则，pod创建不出来

[root@master active_pvc]# kubectl apply -f rbac.yaml
serviceaccount/nfs-client-provisioner created
clusterrole.rbac.authorization.k8s.io/nfs-client-provisioner-runner created
clusterrolebinding.rbac.authorization.k8s.io/run-nfs-client-provisioner created
role.rbac.authorization.k8s.io/leader-locking-nfs-client-provisioner created
rolebinding.rbac.authorization.k8s.io/leader-locking-nfs-client-provisioner created

应用sc

[root@master active_pvc]# kubectl apply -f class.yaml
storageclass.storage.k8s.io/managed-nfs-storage created

至于test-claim和test-pod可以不用，我这里直接给一个真实环境elasticsearch集群

es-cluster.yaml

---
kind: Service
apiVersion: v1
metadata:
  name: es
  namespace: bigdata
  labels:
    app: elasticsearch
spec:
  selector:
    app: elasticsearch
  type: NodePort
  ports:
    - port: 9200
      nodePort: 30080
      name: rest
    - port: 9300
      nodePort: 30070
      name: inter-node
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: es-cluster
  namespace: bigdata
spec:
  serviceName: es
  replicas: 3
  selector:
    matchLabels:
      app: elasticsearch
  template:
    metadata:
      labels:
        app: elasticsearch
    spec:
      affinity:
        podAntiAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            - labelSelector:
                matchExpressions:
                  - key: "app"
                    operator: In
                    values:
                      - elasticsearch
                  - key: "kubernetes.io/hostname"
                    operator: NotIn
                    values:
                      - master
              topologyKey: "kubernetes.io/hostname"
      containers:
        - name: elasticsearch
          image: elasticsearch:7.2.0
          imagePullPolicy: IfNotPresent
          resources:
            limits:
              cpu: 1000m
            requests:
              cpu: 100m
          ports:
            - containerPort: 9200
              name: rest
              protocol: TCP
            - containerPort: 9300
              name: inter-node
              protocol: TCP
          volumeMounts:
            - name: data
              mountPath: /usr/share/elasticsearch/data
          env:
            - name: cluster.name
              value: k8s-logs
            - name: node.name
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: discovery.seed_hosts
              value: "es-cluster-0.es,es-cluster-1.es,es-cluster-2.es"
            - name: cluster.initial_master_nodes
              value: "es-cluster-0,es-cluster-1,es-cluster-2"
            - name: ES_JAVA_OPTS
              value: "-Xms512m -Xmx512m"
      initContainers:
        - name: fix-permissions
          image: busybox
          imagePullPolicy: IfNotPresent
          command: ["sh", "-c", "chown -R 1000:1000 /usr/share/elasticsearch/data"]
          securityContext:
            privileged: true
          volumeMounts:
            - name: pvc01
              mountPath: /usr/share/elasticsearch/data
        - name: increase-vm-max-map
          image: busybox
          imagePullPolicy: IfNotPresent
          command: ["sysctl", "-w", "vm.max_map_count=262144"]
          securityContext:
            privileged: true
        - name: increase-fd-ulimit
          image: busybox
          imagePullPolicy: IfNotPresent
          command: ["sh", "-c", "ulimit -n 65536"]
          securityContext:
            privileged: true
  volumeClaimTemplates:
    - metadata:
        name: pvc01
        labels:
          app: elasticsearch
      spec:
        accessModes: [ "ReadWriteMany" ]
        storageClassName: es
        resources:
          requests:
            storage: 10Gi

redis-cluster.yaml

[root@master active_pvc]# cat redis-cluster.yaml
---
apiVersion: v1
kind: Service
metadata:
  namespace: redis
  name: redis-cluster
spec:
  clusterIP: None
  ports:
  - port: 6379
    targetPort: 6379
    name: client
  - port: 16379
    targetPort: 16379
    name: gossip
  selector:
    app: redis-cluster
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  namespace: redis
  name: redis-cluster
spec:
  serviceName: redis-cluster
  podManagementPolicy: OrderedReady
  replicas: 6
  selector:
    matchLabels:
      app: redis-cluster
  template:
    metadata:
      labels:
        app: redis-cluster
    spec:
      containers:
      - name: redis
        image: redis:5.0.0
        ports:
        - containerPort: 6379
          name: client
        - containerPort: 16379
          name: gossip
        command: ["/etc/redis/fix-ip.sh", "redis-server", "/etc/redis/redis.conf"]
        env:
        - name: POD_IP
          valueFrom:
            fieldRef:
              fieldPath: status.podIP
        volumeMounts:
        - name: conf
          mountPath: /etc/redis/
          readOnly: false
        - name: data
          mountPath: /data
          readOnly: false
      volumes:
      - name: conf
        configMap:
          name: redis-cluster
          defaultMode: 0755
  volumeClaimTemplates:
  - metadata:
      name: data
    spec:
      storageClassName: managed-nfs-storage
      accessModes:
        - ReadWriteMany
      resources:
        requests:
          storage: 1Gi

 redis-configmap.yaml

[root@master active_pvc]# cat redis-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: redis-cluster
  namespace: redis
data:
  fix-ip.sh: |
    #!/bin/sh
    CLUSTER_CONFIG="/data/nodes.conf"
    if [ -f ${CLUSTER_CONFIG} ]; then
      if [ -z "${POD_IP}" ]; then
        echo "Unable to determine Pod IP address!"
        exit 1
      fi
      echo "Updating my IP to ${POD_IP} in ${CLUSTER_CONFIG}"
      sed -i.bak -e '/myself/ s/[0-9]\{1,3\}\.[0-9]\{1,3\}\.[0-9]\{1,3\}\.[0-9]\{1,3\}/'${POD_IP}'/' ${CLUSTER_CONFIG}
    fi
    exec "$@"
  redis.conf: |
    cluster-enabled yes
    cluster-config-file /data/nodes.conf
    cluster-node-timeout 10000
    protected-mode no
    daemonize no
    pidfile /var/run/redis.pid
    port 6379
    tcp-backlog 511
    bind 0.0.0.0
    timeout 3600
    tcp-keepalive 1
    loglevel verbose
    logfile /data/redis.log
    databases 16
    save 900 1
    save 300 10
    save 60 10000
    stop-writes-on-bgsave-error yes
    rdbcompression yes
    rdbchecksum yes
    dbfilename dump.rdb
    dir /data
    appendonly yes
    appendfilename "appendonly.aof"
    appendfsync everysec
    no-appendfsync-on-rewrite no
    auto-aof-rewrite-percentage 100
    auto-aof-rewrite-min-size 64mb
    lua-time-limit 20000
    slowlog-log-slower-than 10000
    slowlog-max-len 128
    latency-monitor-threshold 0
    notify-keyspace-events ""
    hash-max-ziplist-entries 512
    hash-max-ziplist-value 64
    list-max-ziplist-entries 512
    list-max-ziplist-value 64
    set-max-intset-entries 512
    zset-max-ziplist-entries 128
    zset-max-ziplist-value 64
    hll-sparse-max-bytes 3000
    activerehashing yes
    client-output-buffer-limit normal 0 0 0
    client-output-buffer-limit slave 256mb 64mb 60
    client-output-buffer-limit pubsub 32mb 8mb 60
    hz 10
    aof-rewrite-incremental-fsync yes

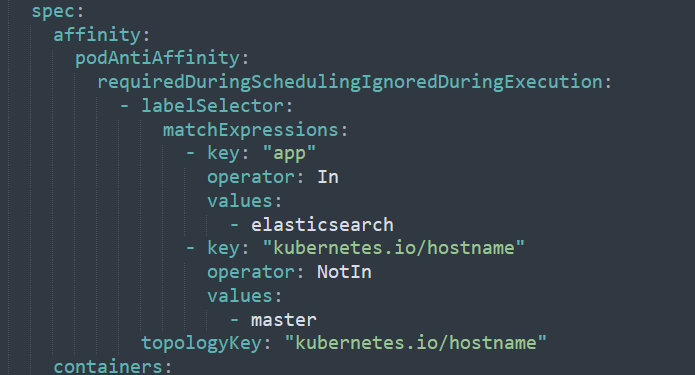

 这里需要注意的是亲和性这块，如果你没有3个node节点的话，有一个会pending，如果2个node想运行3个es集群的话，需要把亲和性这块删除掉

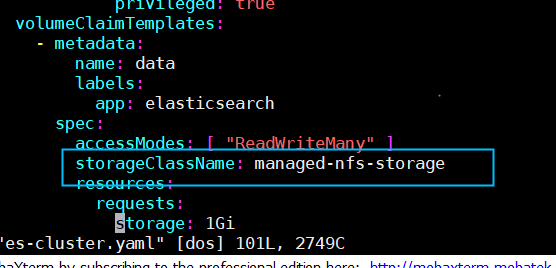

这里要注意的是，蓝色筐里需要填写sc，存储类的名称，否则无法分配pv和pvc



 应用es-cluster.yaml

[root@master active_pvc]# kubectl apply -f es-cluster.yaml
service/es created
statefulset.apps/es-cluster created

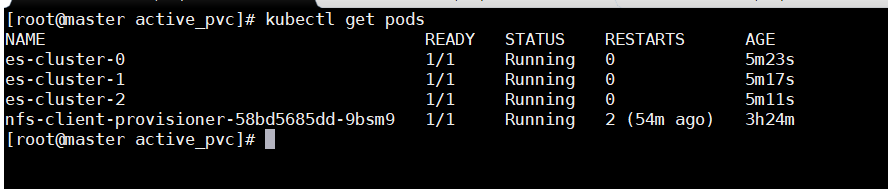

最后可以看到3个es全部都启动起来了

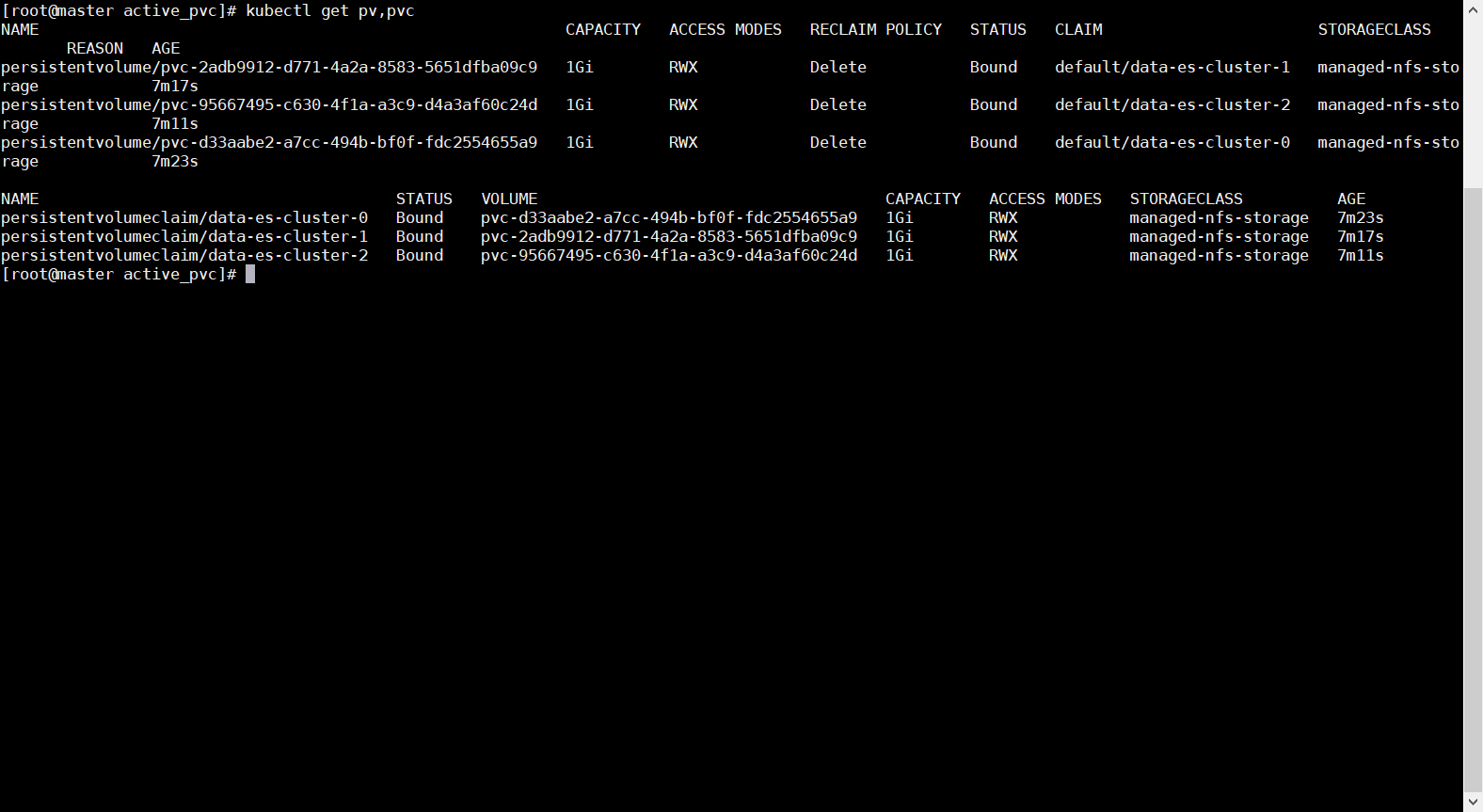

 再看是否自动绑定pv和pvc相关联



 可以看到，没有问题



补充

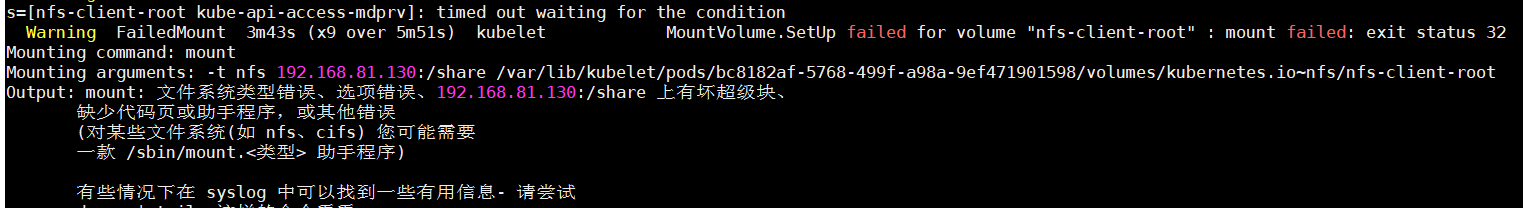

如果遇到这种报错



 那么需要在所在的节点安装nfs-utils包，最好是每一个节点都安装

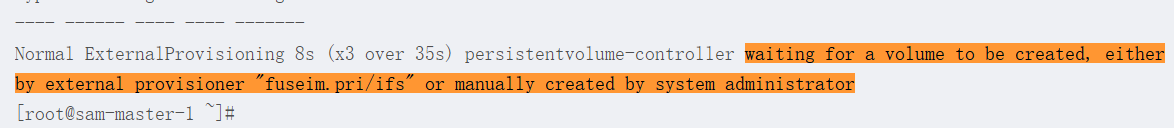

如果遇到以下报错：





 可以将镜像更改为:vbouchaud/nfs-client-provisioner







 监控

[root@master active_pvc]# cat components.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    k8s-app: metrics-server
    rbac.authorization.k8s.io/aggregate-to-admin: "true"
    rbac.authorization.k8s.io/aggregate-to-edit: "true"
    rbac.authorization.k8s.io/aggregate-to-view: "true"
  name: system:aggregated-metrics-reader
rules:
- apiGroups:
  - metrics.k8s.io
  resources:
  - pods
  - nodes
  verbs:
  - get
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    k8s-app: metrics-server
  name: system:metrics-server
rules:
- apiGroups:
  - ""
  resources:
  - nodes/metrics
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - pods
  - nodes
  verbs:
  - get
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server-auth-reader
  namespace: kube-system
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: extension-apiserver-authentication-reader
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server:system:auth-delegator
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:auth-delegator
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    k8s-app: metrics-server
  name: system:metrics-server
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:metrics-server
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system
---
apiVersion: v1
kind: Service
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server
  namespace: kube-system
spec:
  ports:
  - name: https
    port: 443
    protocol: TCP
    targetPort: https
  selector:
    k8s-app: metrics-server
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server
  namespace: kube-system
spec:
  selector:
    matchLabels:
      k8s-app: metrics-server
  strategy:
    rollingUpdate:
      maxUnavailable: 0
  template:
    metadata:
      labels:
        k8s-app: metrics-server
    spec:
      containers:
      - args:
        - --cert-dir=/tmp
        - --secure-port=4443
        - --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
        - --kubelet-use-node-status-port
        - --metric-resolution=15s
        - --kubelet-insecure-tls
        image: registry.cn-hangzhou.aliyuncs.com/google_containers/metrics-server:v0.6.1
        imagePullPolicy: IfNotPresent
        livenessProbe:
          failureThreshold: 3
          httpGet:
            path: /livez
            port: https
            scheme: HTTPS
          periodSeconds: 10
        name: metrics-server
        ports:
        - containerPort: 4443
          name: https
          protocol: TCP
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /readyz
            port: https
            scheme: HTTPS
          initialDelaySeconds: 20
          periodSeconds: 10
        resources:
          requests:
            cpu: 100m
            memory: 200Mi
        securityContext:
          allowPrivilegeEscalation: false
          readOnlyRootFilesystem: true
          runAsNonRoot: true
          runAsUser: 1000
        volumeMounts:
        - mountPath: /tmp
          name: tmp-dir
      nodeSelector:
        kubernetes.io/os: linux
      priorityClassName: system-cluster-critical
      serviceAccountName: metrics-server
      volumes:
      - emptyDir: {}
        name: tmp-dir
---
apiVersion: apiregistration.k8s.io/v1
kind: APIService
metadata:
  labels:
    k8s-app: metrics-server
  name: v1beta1.metrics.k8s.io
spec:
  group: metrics.k8s.io
  groupPriorityMinimum: 100
  insecureSkipTLSVerify: true
  service:
    name: metrics-server
    namespace: kube-system
  version: v1beta1
  versionPriority: 100
