three.js 使用 getWorldPosition 获取世界坐标
记录一下项目中的需求,组合后旋转,解组后需要模型位置为旋转后位置
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 | disCombinationModel (ModelArry, type) { // 判断是否有选中 if (ModelArry.length === 1) { const ob = ModelArry[0] // 判断是否是组合 if (ob.typeName === 'combination' ) { const { position, rotation } = ob // 历史记录,用于上一步、下一步 let nudoHistory = { operation: [], type: 'DisCombinationModel' // 解组动作 } // 循环组合内的children while (ob.children.length > 0) { const children = ob.children[0] // 调用updateMatrixWorld()保证图形矩阵正确 scene.scene.updateMatrixWorld( true ) // 模型的.getWorldPosition()方法获得该模型在世界坐标下的三维坐标 var worldPosition = new THREE.Vector3() children.getWorldPosition(worldPosition) // 设置children的坐标 children.position.set(worldPosition.x, worldPosition.y, worldPosition.z) // 设置children旋转角为 组合旋转角 children.rotateY(rotation.y) nudoHistory.operation.push(children) InitializeModel.geometryGropu.add(children) ob.remove(children) } if (type) { this .addHistory(nudoHistory) } else { this .addRedoHistory(nudoHistory) } InitializeModel.geometryGropu.remove(ob) this .removeAllHelperLine() // 移除组合的选中状态辅助线 this .clearCheckEdModelArry() // 清除选中数组 } else { this .$Msg( 'error' , '只有组合才能进行解组!' ) } } }, |

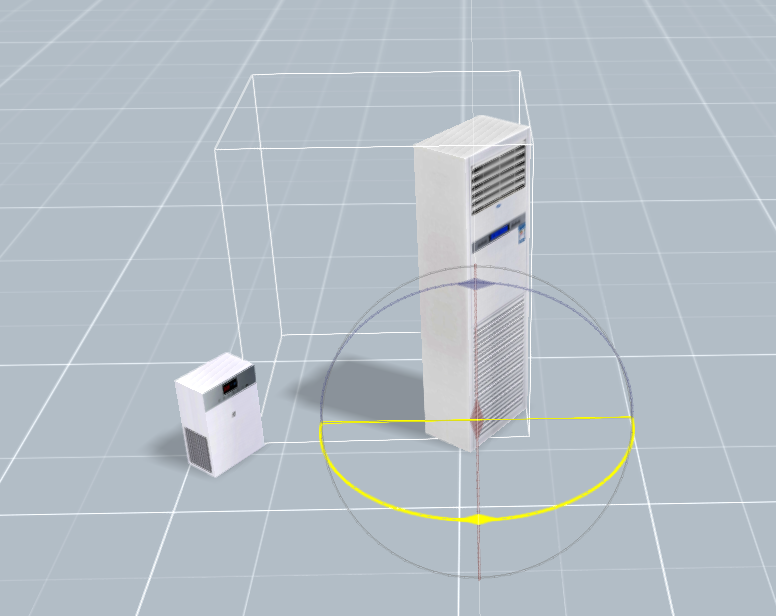

实现效果
旋转前
旋转后
解组后
