数据结构——图的邻接矩阵创建(java版本)
邻接矩阵的概念:
所谓邻接矩阵,就是用两个数组来表示图的相关信息,其中用一个一维的顶点数组来表示图的顶点信息,用一个二维的边数组来表示图的边或者弧信息。

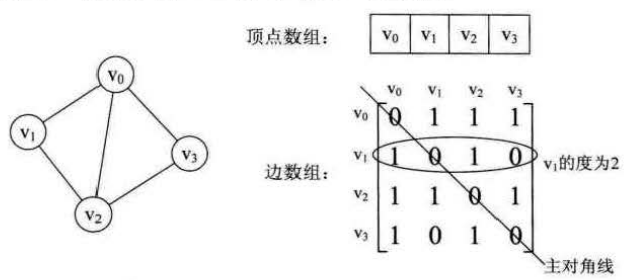

如下图是一个无向图的邻接矩阵表示,两个顶点之间若联通则二维数组对应位置为1,否则为0。

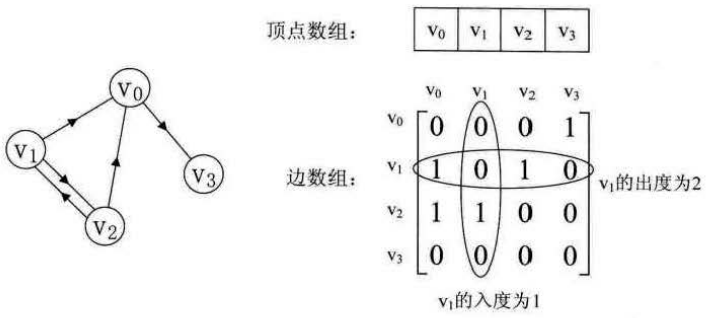

下图是一个有向图的邻接矩阵表示。

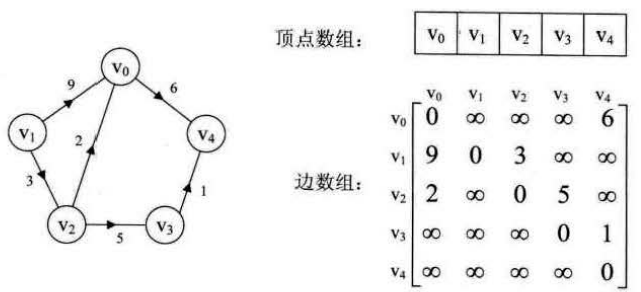

下图是一个带权值的有向图(又称为有向网)的邻接矩阵表示,两个顶点之间若连通则二维数组 对应位置为边上的权值,否则为无穷大,并且二维矩阵的对角线为0(当然也可以设置为无穷大)
代码部分:
该代码用一个类去实现邻接矩阵,其中类中含有一个一维顶点数组和一个二维边数组字段,并且 包含无向图、有向图、带权值的无向图(无向网)、带权值的有向图(有向网)的创建方法
public class MGraph01 { public int numNodes; //图的顶点数目 public int numEdges; //图的边数 public Object[] vexs; //一维顶点数组 public int[][] arcs; //二维边数组 public static final int INF = Integer.MAX_VALUE; //无穷大 /** * 创建无向图的邻接矩阵 */ public void createUDG() { Scanner sc = null; try { sc = new Scanner(System.in); System.out.println("请输入图的顶点数、图的边数:"); numNodes = Integer.parseInt(sc.nextLine()); numEdges = Integer.parseInt(sc.nextLine()); vexs = new Object[numNodes]; //录入顶点信息 System.out.println("请输入图中的顶点:"); vexs = sc.nextLine().split(" "); //录入边的信息 arcs = new int[numNodes][numNodes]; for (int i = 0; i < numEdges; i++) { System.out.println("请输入第" + (i + 1) + "条边上的一个顶点:"); //locate方法用来定位某个顶点在数组中的索引 int index1 = locate(sc.nextLine()); System.out.println("请输入第" + (i + 1) + "条边上的另一个顶点:"); int index2 = locate(sc.nextLine()); //无向图是个对称矩阵 arcs[index1][index2] = arcs[index2][index1] = 1; } } catch (Exception e) { e.printStackTrace(); } finally { sc.close(); } } /** * 创建有向图的邻接矩阵 */ public void createDG() { Scanner sc = null; try { sc = new Scanner(System.in); System.out.println("请输入图的顶点数、图的边数:"); numNodes = Integer.parseInt(sc.nextLine()); numEdges = Integer.parseInt(sc.nextLine()); vexs = new Object[numNodes]; //录入顶点信息 System.out.println("请输入图中的顶点:"); String str = sc.nextLine(); vexs = str.split(" "); //录入边的信息 arcs = new int[numNodes][numNodes]; for (int i = 0; i < numEdges; i++) { System.out.println("请输入第" + (i + 1) + "条弧上的弧尾:"); int index1 = locate(sc.nextLine()); System.out.println("请输入第" + (i + 1) + "条弧上的弧头:"); int index2 = locate(sc.nextLine()); arcs[index1][index2] = 1; } } catch (Exception e) { e.printStackTrace(); } finally { sc.close(); } } /** * 创建无向网的邻接矩阵 */ public void createUDN() { Scanner sc = null; try { sc = new Scanner(System.in); System.out.println("请输入图的顶点数、图的边数:"); numNodes = Integer.parseInt(sc.nextLine()); numEdges = Integer.parseInt(sc.nextLine()); vexs = new Object[numNodes]; //录入顶点信息 System.out.println("请输入图中的顶点:"); String str = sc.nextLine(); vexs = str.split(" "); //矩阵初始化,有向网中 arcs = new int[numNodes][numNodes]; for (int i = 0; i < numNodes; i++) { for (int j = 0; j < numNodes; j++) { arcs[i][j] = INF; } } //录入边的信息 for (int i = 0; i < numEdges; i++) { System.out.println("请输入第" + (i + 1) + "条边上的一个顶点:"); int index1 = locate(sc.nextLine()); System.out.println("请输入第" + (i + 1) + "条边上的另一个顶点:"); int index2 = locate(sc.nextLine()); System.out.println("请输入第" + (i + 1) + "条边上的权值:"); arcs[index1][index2] = arcs[index2][index1] = Integer.parseInt(sc.nextLine()); } } catch (Exception e) { e.printStackTrace(); } finally { sc.close(); } } /** * 创建有向网的邻接矩阵 */ public void createDN() { Scanner sc = null; try { sc = new Scanner(System.in); System.out.println("请输入图的顶点数、图的边数:"); numNodes = Integer.parseInt(sc.nextLine()); numEdges = Integer.parseInt(sc.nextLine()); vexs = new Object[numNodes]; //录入顶点信息 System.out.println("请输入图中的顶点:"); String str = sc.nextLine(); vexs = str.split(" "); //录入边的信息 arcs = new int[numNodes][numNodes]; for (int i = 0; i < numEdges; i++) { System.out.println("请输入第" + (i + 1) + "条弧上的弧尾:"); int index1 = locate(sc.nextLine()); System.out.println("请输入第" + (i + 1) + "条弧上的弧头:"); int index2 = locate(sc.nextLine()); System.out.println("请输入第" + (i + 1) + "条弧上的权值:"); arcs[index1][index2] = Integer.parseInt(sc.nextLine()); } } catch (Exception e) { e.printStackTrace(); } finally { sc.close(); } } /** * 通过顶点信息来定位其在顶点数组中的索引 * * @param s * @return */ public int locate(Object s) { for (int i = 0; i < vexs.length; i++) { if (s.equals(vexs[i])) { return i; } } return -1; } }
