国标GB28181协议视频平台EasyGBS二次开发过程中如何使用录像轴组件？

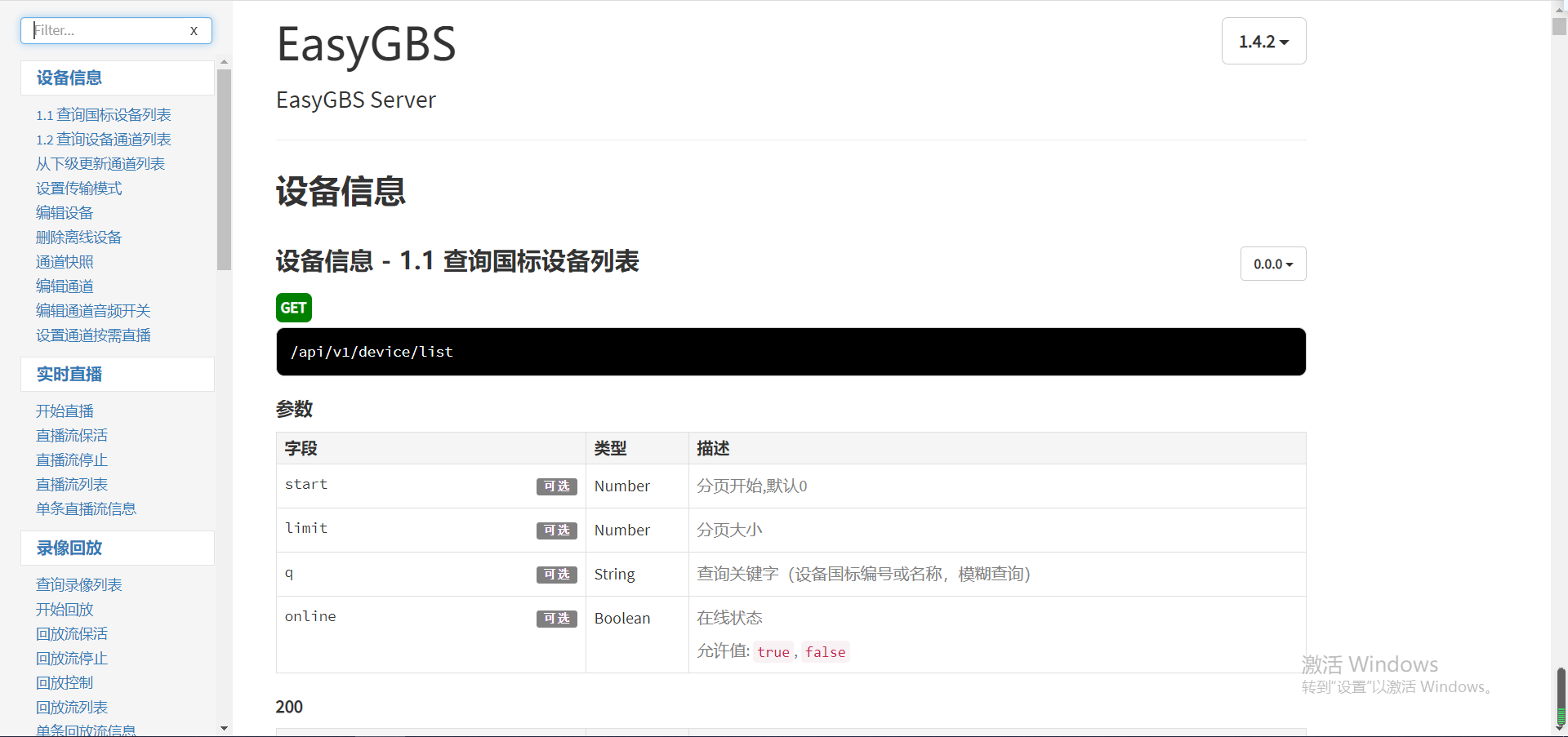

国标平台EasyGBS支持用户根据自己的需求自由进行二次开发，即便是试用版本也支持调用二次开发接口，接口丰富全面，可以满足大多数用户的需求。

本文我们要讲的是二次开发中的录像轴组件，由于有用户问到，所以讲一下这个组件是怎么使用的。

1.在项目导入PlayTimeAxis.vue组件

import PlayTimeAxis from "./PlayTimeAxis.vue";

export default {
  components: {
    PlayTimeAxis
  }
}

2.在项目中引入PlayTimeAxis组件。组件中有两个属性videos是用来接收录像段，然后展示接收到对应的时间段录像。timeChange是返回点击某一点时间的回调。
videos需要传入一个数组对象，格式如下：

let videos = [{
          currentVideoIndex: 0,
          dayTime: "20210603",
          duration: 9367,
          endAt: "2021-06-03T02:37:29",
          hmsTime: "0:1:22",
          startAt: "2021-06-03T00:01:22",
        }]
timeChange会返回一个对象，格式如下：
    onTimeChange(data) {
      //data 的数据格式
      // {
      //   currentTime: 862,
      //   currentVideoIndex: 20,
      //   dayTime: "20210606",
      //   duration: 1127,
      //   endAt: "2021-06-06T11:42:25",
      //   hmsTime: "11:23:38",
      //   startAt: "2021-06-06T11:23:38",
      // }
    }

<PlayTimeAxis :videos="videos" @timeChange="onTimeChange">
</PlayTimeAxis>

PlayTimeAxis.vue组件完整代码：

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

<template>
    <div class="time-rule">
        <div class="time-day" ref="day" :style="{ left: timeDayX + 'px'}">
            <div :class="['time-minute', minuteActiveClass(n - 1)]" :title="minuteTitle(n - 1)" v-for="n in 1440"
                 :key="n"
                 @click.prevent="clickMinute(n - 1)"></div>
            <div :class="[ n==1 ? 'time-text-first' : 'time-text']" v-for="n in 24" :key="n">{{hourText(n - 1)}}</div>
        </div>
        <div class="time-cursor" :style="{ left: timeCursorX + 'px'}" ref="cursor">
            <div class="time-cursor-text">{{timeCursorText}}</div>
        </div>
    </div>
</template>

<script>
    import moment from 'moment'

    export default {
        data() {
            return {
                timeCursorX: 0,
                timeDayX: 0,
                bMoving: false,
            }
        },
        props: {
            videos: {
                type: Array,
                default: []
            }
        },
        mounted() {

            let cursor = this.$refs.cursor;
            let day = this.$refs.day;
            let rule = this.$el;
            let _this = this;

            function moveCursor(e) {
                let originPageX = $(cursor).data("originPageX");
                let dx = e.pageX - originPageX;
                _this.timeCursorX = $(cursor).position().left + dx;
                $(cursor).data("originPageX", e.pageX);
            }

            function touchMoveCursor(e) {
                let touch = e.originalEvent.targetTouches[0];
                let originPageX = $(cursor).data("originPageX");
                let dx = touch.pageX - originPageX;
                _this.timeCursorX = $(cursor).position().left + dx;
                $(cursor).data("originPageX", touch.pageX);
            }

            function moveDay(e) {
                let originPageX = $(day).data("originPageX");
                let dx = e.pageX - originPageX;
                _this.timeDayX = $(day).position().left + dx;
                $(day).data("originPageX", e.pageX);
            }

            function touchMoveDay(e) {
                let touch = e.originalEvent.targetTouches[0];
                let originPageX = $(day).data("originPageX");
                let dx = touch.pageX - originPageX;
                _this.timeDayX = $(day).position().left + dx;
                $(day).data("originPageX", touch.pageX);
            }

            $(cursor).on("mousedown", function (e) {
                $(cursor).data("originPageX", e.pageX);
                _this.bMoving = true;
                $(document).on("mousemove", moveCursor).one("mouseup", function (e) {
                    $(document).off("mousemove", moveCursor);
                    $(cursor).removeData("originPageX");
                    _this.triggerTimeChange();
                    _this.bMoving = false;
                })
            }).on("touchstart", function (e) {
                let touch = e.originalEvent.targetTouches[0];
                $(cursor).data("originPageX", touch.pageX);
                _this.bMoving = true;
                $(document).on("touchmove", touchMoveCursor).one("touchend", function (e) {
                    $(document).off("touchmove", touchMoveCursor);
                    $(cursor).removeData("originPageX");
                    _this.triggerTimeChange();
                    _this.bMoving = false;
                })
            })
            $(day).on("mousedown", function (e) {
                $(day).data("originPageX", e.pageX);
                _this.bMoving = true;
                $(document).on("mousemove", moveDay).one("mouseup", function (e) {
                    $(document).off("mousemove", moveDay);
                    $(day).removeData("originPageX");
                    _this.triggerTimeChange(1);
                    _this.bMoving = false;
                })
            }).on("touchstart", function (e) {
                let touch = e.originalEvent.targetTouches[0];
                $(day).data("originPageX", touch.pageX);
                _this.bMoving = true;
                $(document).on("touchmove", touchMoveDay).one("touchend", function (e) {
                    $(document).off("touchmove", touchMoveDay);
                    $(day).removeData("originPageX");
                    _this.triggerTimeChange();
                    _this.bMoving = false;
                })
            })

        },
        watch: {
            videos: function (val) {
                this.triggerTimeChange();
            }
        },
        methods: {
            hourText(n) {
                let h = moment().hour(n).minute(0).second(0);
                return h.format("HH:mm");
            },
            minuteActiveClass(n) {
                let m = moment().hour(0).minute(n);
                let mtext = m.format("HH:mm");
                return Object.keys(this.activeMinutes).indexOf(mtext) >= 0 ? "active" : "";
            },
            minuteTitle(n) {
                let m = moment().hour(0).minute(n);
                let mtext = m.format("HH:mm");
                return Object.keys(this.activeMinutes).indexOf(mtext) >= 0 ? mtext : "";
            },
            clickMinute(n, bTrigger = true) {
                if (this.bMoving) return;
                this.timeCursorX = n + this.timeDayX;
                if (bTrigger) {
                    this.triggerTimeChange();
                }
            },
            dataTime(value) { //'01:01:60' out:Number
                let arr = value.split(':').map((i) => {
                    return +i
                });
                return ((arr[0] * 60 * 60) + (arr[1] * 60) + (arr[2]));
            },
            triggerTimeChange(r) {
                if (r === 1) return
                this.$emit("timeChange", this.activeMinutes[this.timeCursorText]);
            }
        },
        computed: {
            timeCursorText() {
                if (this.timeCursorX >= $(this.$el).innerWidth()) {
                    this.timeCursorX = $(this.$el).innerWidth() - 1;
                }
                if (this.timeCursorX < 0) {
                    this.timeCursorX = 0;
                }
                if (this.timeDayX < $(this.$el).innerWidth() - $(this.$refs.day).outerWidth()) {
                    this.timeDayX = $(this.$el).innerWidth() - $(this.$refs.day).outerWidth();
                }
                if (this.timeDayX > 0) {
                    this.timeDayX = 0;
                }
                if (this.timeCursorX - this.timeDayX >= 1440) {
                    this.timeDayX = $(this.$el).innerWidth() - $(this.$refs.day).outerWidth();
                    this.timeCursorX = $(this.$el).innerWidth() - 1;
                }
                if (this.timeCursorX === 0) {
                    let lenTx = this.videos.length
                    if (lenTx !== 0) {
                        lenTx = lenTx - 1
                        let strTx = this.videos[lenTx].endAt
                        strTx = strTx.substring(strTx.length - 8);
                        let entTx = this.dataTime(strTx)
                        this.timeCursorX = entTx * 100 / 6000 - 60000
                    }
                }
                var m = moment().hour(0).minute(this.timeCursorX - this.timeDayX);
                return m.format("HH:mm");
            },
            activeMinutes() {
                let minutes = {};
                for (let video of this.videos) {
                    let m = moment(video.startAt, "YYYYMMDDHHmmss");
                    let s = parseInt(video.duration);
                    if (s > 8640000) {
                        this.$message({
                            type: 'error',
                            message: "录像" + video.start_time + "时间戳错误"
                        })
                        continue
                    }
                    let mtext = m.format("HH:mm");
                    minutes[mtext] = Object.assign({
                        currentTime: 0
                    }, video);
                    for (let i = 1; i <= s; i++) {
                        m.add(1, "seconds");
                        let _mtext = m.format("HH:mm");
                        if (_mtext != mtext) {
                            mtext = _mtext;
                            minutes[mtext] = Object.assign({
                                currentTime: i
                            }, video);
                        }
                    }
                }
                return minutes;
            }
        }
    }

</script>

<style lang="less" scoped>

    .time-rule {
        overflow: hidden;
        position: relative;
        height: 50px;
        margin: 0 auto;
        width: 100%;
        font-size: 12px;
        max-width: 1440px;
        background-color: #e5e5e5;
    }

    .time-day {
        position: absolute;
        left: 0;
        top: 0;
        height: 100%;
        width: 1440px;
        cursor: pointer;
        -ms-user-select: none;
        user-select: none;
    }

    .time-minute {
        float: left;
        width: 1px;
        height: 8px;
        margin: 0;
        cursor: default;
    }

    .time-minute.active {
        background-color: red;
        cursor: pointer;
    }

    .time-text {
        float: left;
        width: 60px;
        border-left: 1px solid #999;
        border-top: 1px solid #999;
        box-sizing: border-box;
        -ms-user-select: none;
        user-select: none;
        text-align: center;
        height: 25px;
        line-height: 25px;
    }

    .time-text-first  {
    .time-text;
        border-left: 0;
    }

    .time-cursor {
        position: absolute;
        left: 0;
        top: 0;
        height: 30px;
        width: 2px;
        background-color: red;
        text-align: center;
    }

    .time-cursor-text {
        position: absolute;
        padding: 0 5px;
        width: 60px;
        left: -30px;
        top: 30px;
        border: 1px solid red;
        height: 15px;
        line-height: 15px;
        cursor: move;
        background-color: white;
        -ms-user-select: none;
        user-select: none;
    }

</style>
