rt1050 BootROM启动



https://blog.51cto.com/henjay724/2711903

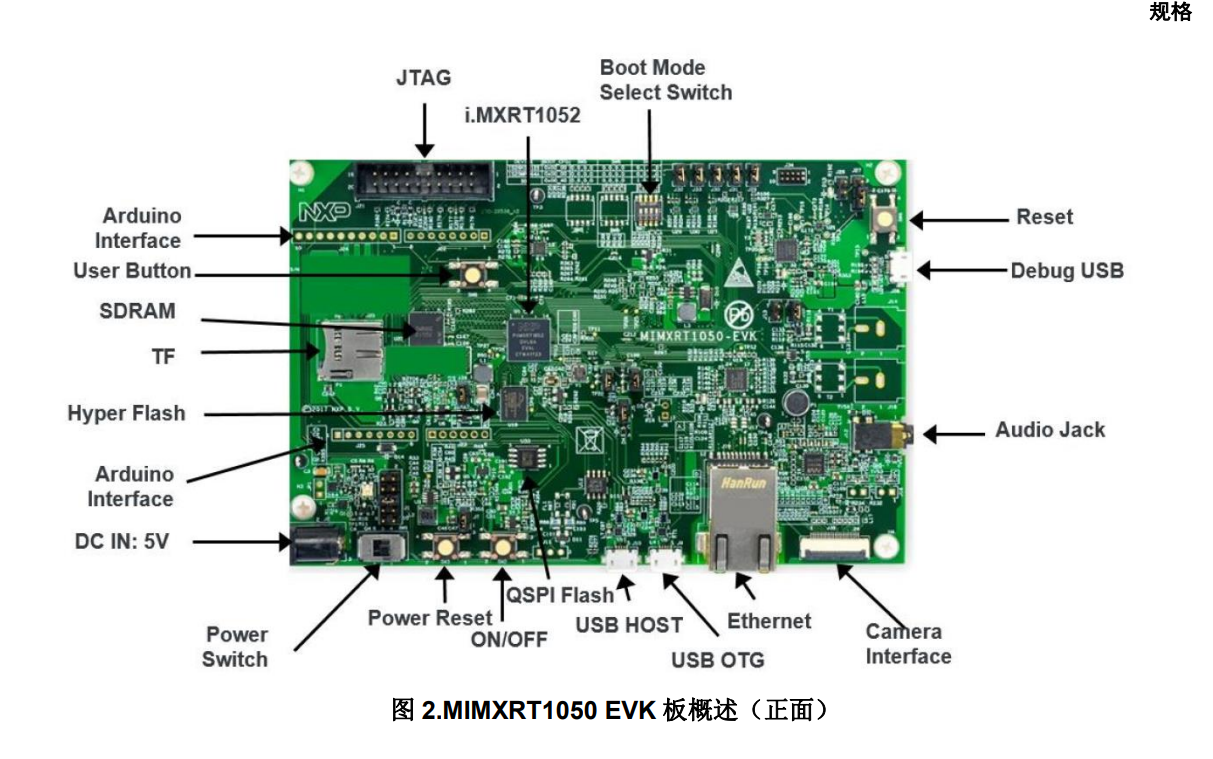

usb 线接otg1, sw7 3 off 4 on,串行模式



烧写完从qspi 启动

https://blog.chinaaet.com/jihceng0622/p/5100053101





Executing flash operation 'Program' (Program file into flash: evkmimxrt1050_hello_world_xip.axf) - Wed Oct 09 23:14:14 CST 2024

Checking MCU info...

Scanning for targets...

Executing flash action...

MCUXpresso IDE RedlinkMulti Driver v24.9 (Sep 19 2024 19:34:05 - crt_emu_cm_redlink.exe build 802)

( 0) Reading remote configuration

Wc(03). No cache support.

Found chip XML file in C:/Users/Administrator/Documents/MCUXpressoIDE_24.9.25/workspace/evkmimxrt1050_hello_world_xip/Debug\MIMXRT1052xxxxx.xml

( 5) Remote configuration complete

Reconnected to existing LinkServer process.

Probe Firmware: CMSIS-DAP (ARM)

Serial Number: 0227000041114e450001300cc403002e5ab1000097969900

VID:PID: 0D28:0204

USB Path: \\?\hid#vid_0d28&pid_0204&mi_03#7&8204c17&0&0000#{4d1e55b2-f16f-11cf-88cb-001111000030}

Using memory from core 0 after searching for a good core

( 30) Emulator Connected

( 40) Debug Halt

( 50) CPU ID

debug interface type = CoreSight DP (DAP DP ID 0BD11477) over SWD TAP 0

processor type = Cortex-M7 (CPU ID 00000C27) on DAP AP 0

number of h/w breakpoints = 8

number of flash patches = 0

number of h/w watchpoints = 4

Probe(0): Connected&Reset. DpID: 0BD11477. CpuID: 00000C27. Info: <None>

Debug protocol: SWD. RTCK: Disabled. Vector catch: Disabled.

Content of CoreSight Debug ROM(s):

RBASE E00FD000: CID B105100D PID 000008E88C ROM (type 0x1)

ROM 1 E00FE000: CID B105100D PID 04000BB4C8 ROM (type 0x1)

ROM 2 E00FF000: CID B105100D PID 04000BB4C7 ROM (type 0x1)

ROM 3 E000E000: CID B105E00D PID 04000BB00C Gen SCS (type 0x0)

ROM 3 E0001000: CID B105E00D PID 04000BB002 Gen DWT (type 0x0)

ROM 3 E0002000: CID B105E00D PID 04000BB00E Gen (type 0x0)

ROM 3 E0000000: CID B105E00D PID 04000BB001 Gen ITM (type 0x0)

ROM 2 E0041000: CID B105900D PID 04001BB975 CSt ARM ETMv4.0 type 0x13 Trace Source - Core

ROM 2 E0042000: CID B105900D PID 04004BB906 CSt type 0x14 Debug Control - Trigger, e.g. ECT

ROM 1 E0040000: CID B105900D PID 04000BB9A9 CSt type 0x11 Trace Sink - TPIU

ROM 1 E0043000: CID B105F00D PID 04001BB101 Sys (type 0x0)

NXP: MIMXRT1052xxxxx

DAP stride is 1024 bytes (256 words)

Inspected v.2 External Flash Device on SPI MIMXRT1050-EVK_IS25WP064A.cfx

Image 'MIMXRT1050-EVK_IS25WP064A Sep 19 2024 18:28:04'

( 65) Chip Setup Complete

Connected: was_reset=true. was_stopped=false

( 70) License Check Complete

Loading 'evkmimxrt1050_hello_world_xip.axf' ELF 0x60000000 len 0x56E0

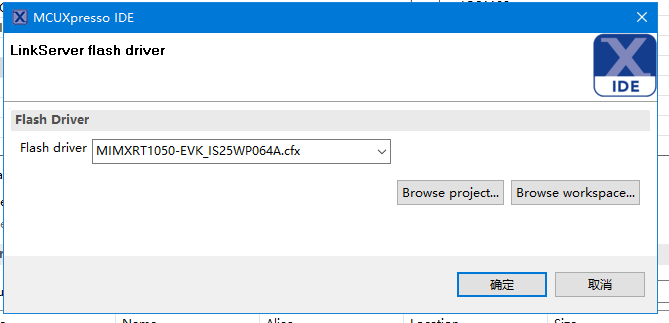

Opening flash driver MIMXRT1050-EVK_IS25WP064A.cfx

Sending VECTRESET to run flash driver

Flash device supported (8MB = 128*64K at 0x60000000)

Writing 22240 bytes to address 0x60000000 in Flash

1 of 1 ( 0) Writing sectors 0-0 at 0x60000000 with 22240 bytes

( 0) at 60000000: 0 bytes - 0/22240

(100) at 60000000: 65536 bytes - 65536/22240

Sectors written: 0, unchanged: 1, total: 1

Erased/Wrote sector 0-0 with 22240 bytes in 21msec

Closing flash driver MIMXRT1050-EVK_IS25WP064A.cfx

(100) Finished writing Flash successfully.

Flash Write Done

Loaded 0x56E0 bytes in 605ms (about 36kB/s)

Reset target (system)

Starting execution using system reset





长安1s sw4开机，进入opensda 升级模式，拖入opensda固件即可。
