nginx服务之配置https和监控状态页面

1. 配置https
2. zabbix监控状态界面
3 安装zabbix（客户端）

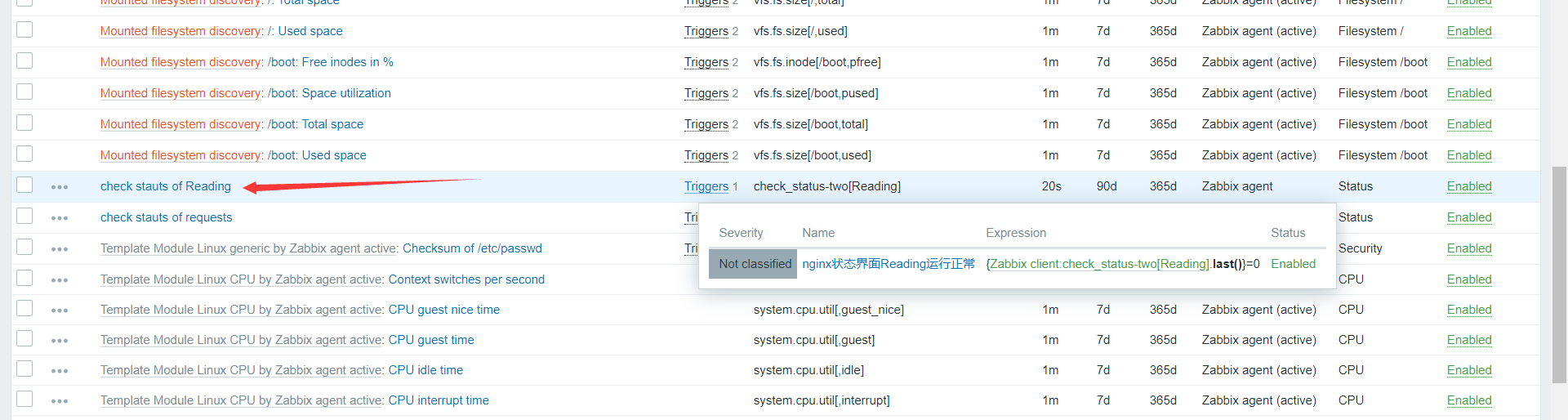

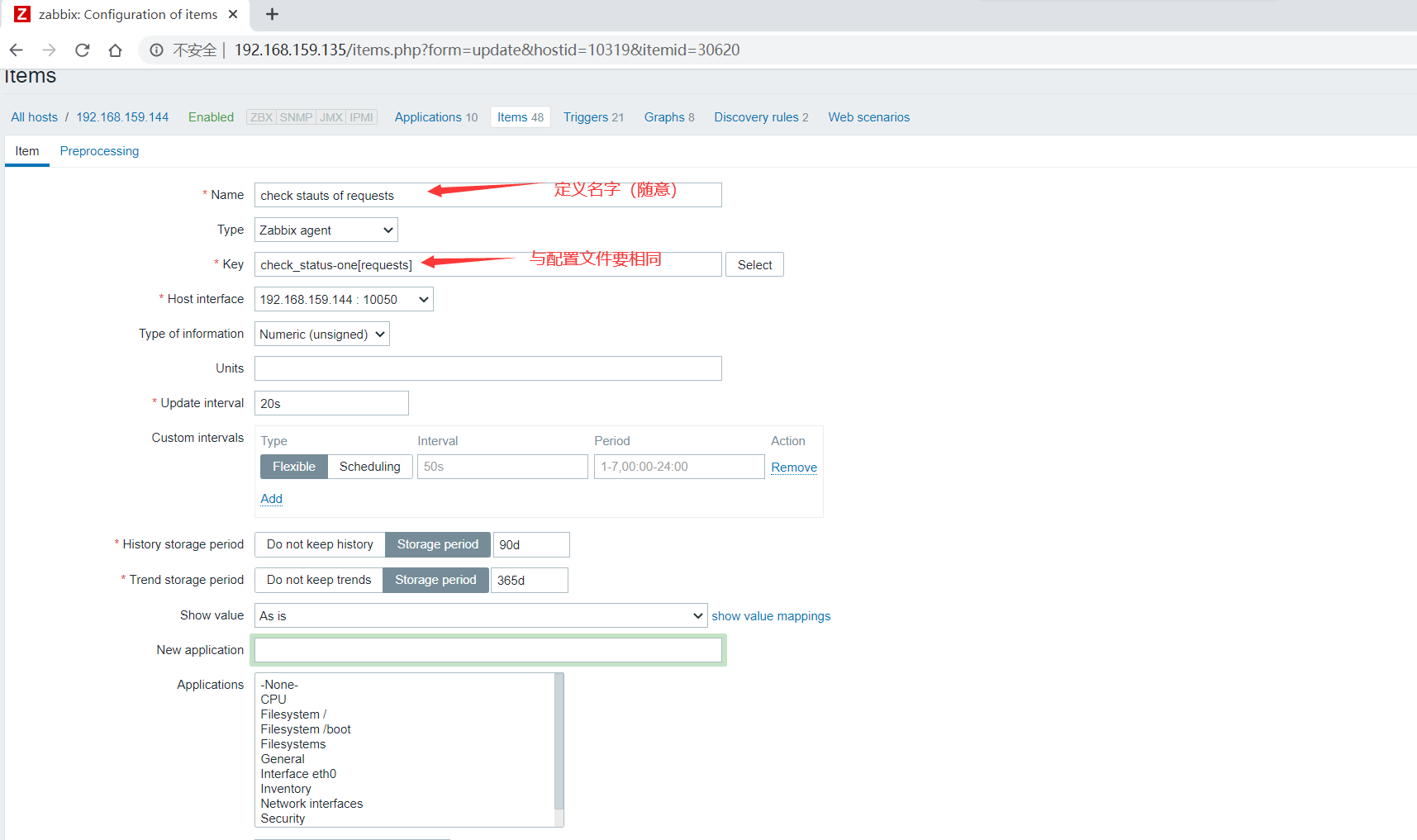

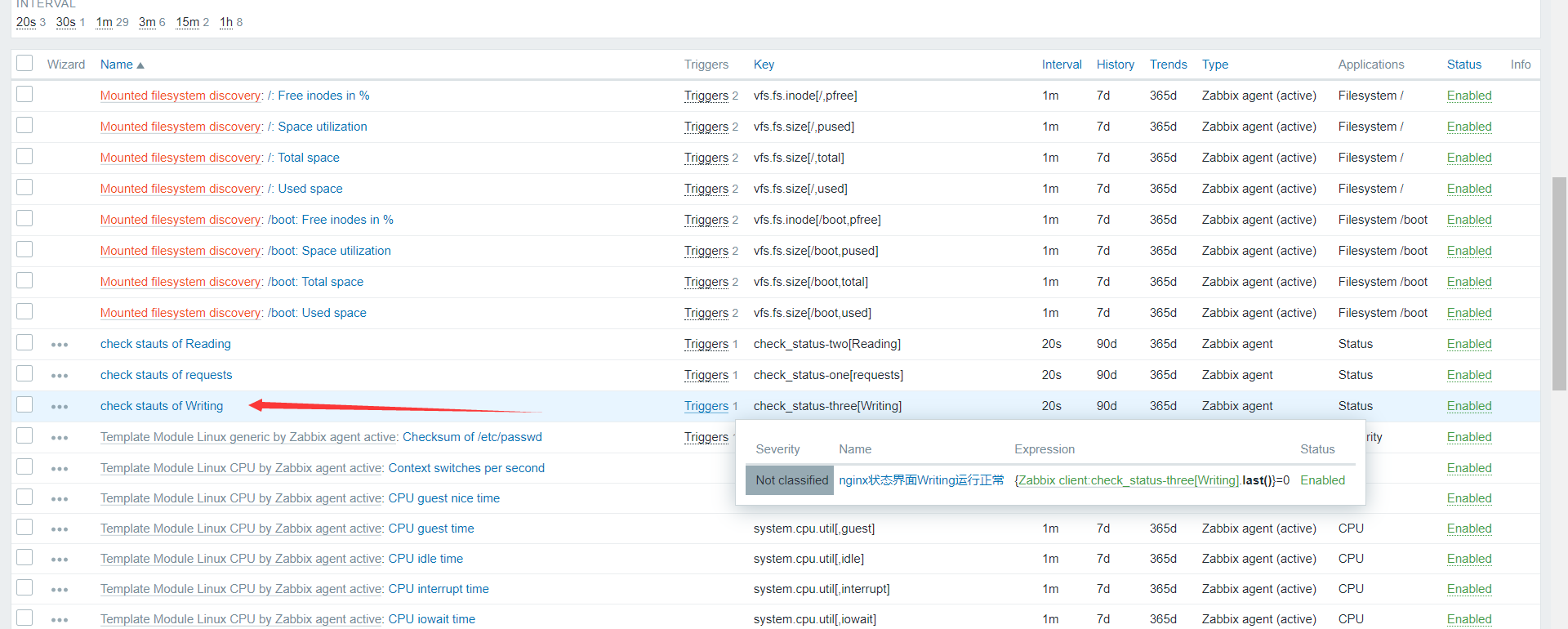

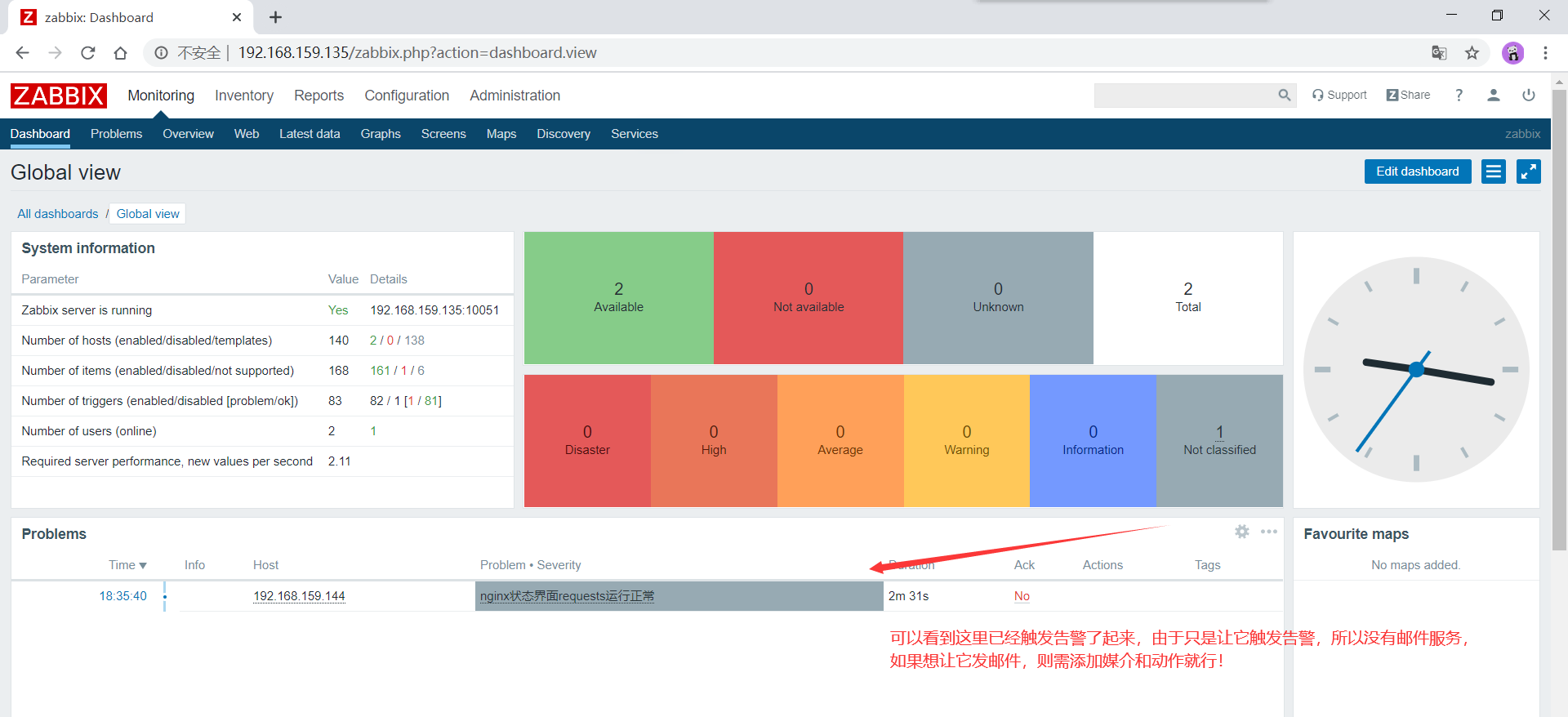

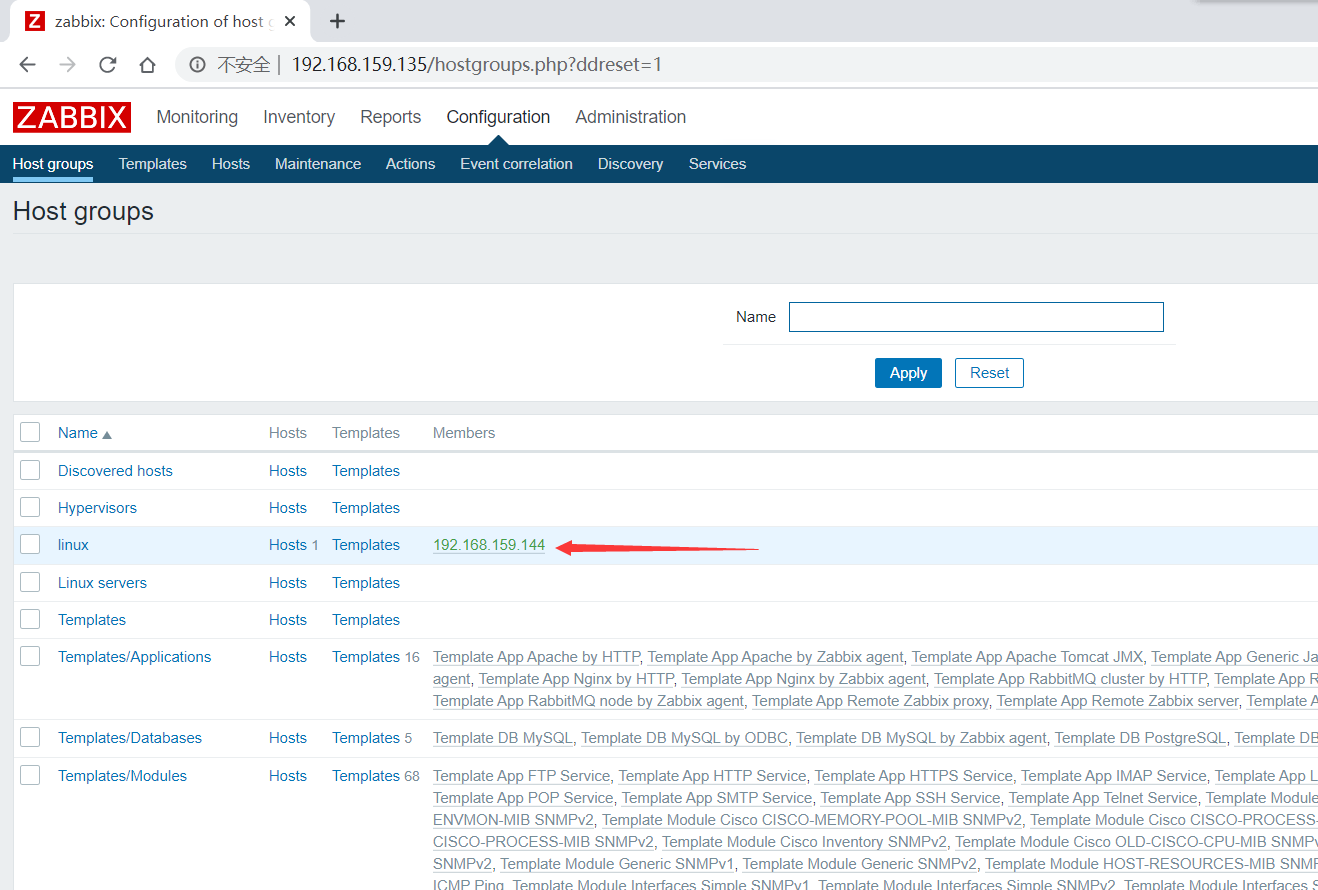

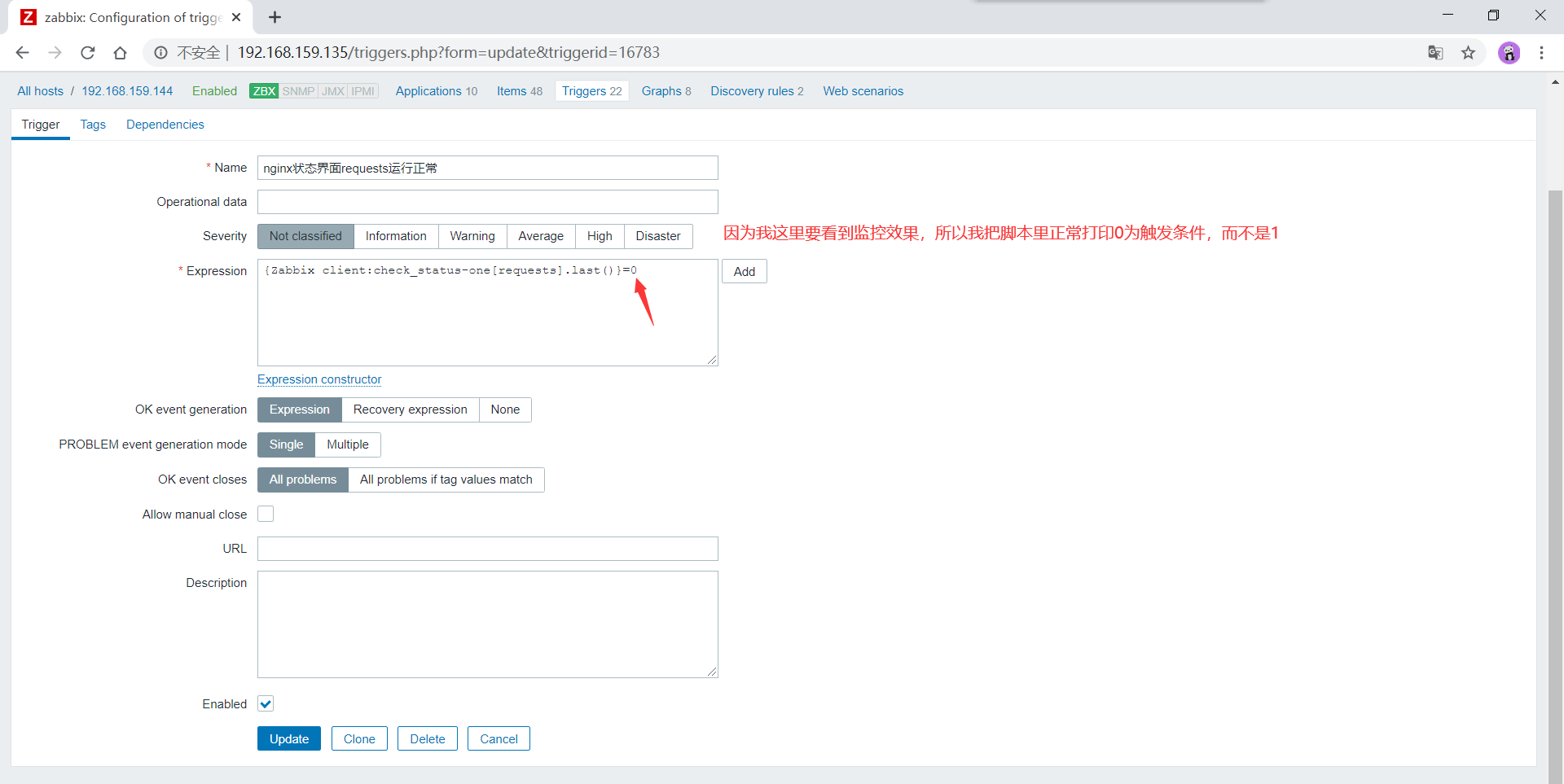

4. 配置监控

1. 配置https

生成证书的操作，这里就不详细操作了，有疑问的可以看看这篇nat模式搭建http和https负载均衡集群，里面有提到怎么生成证书！

生成证书后的配置

[root@longnian ssl]# pwd
/usr/local/nginx/ssl      //证书存放的位置
[root@longnian ssl]# ls
nginx.crt  nginx.csr  nginx.key

//修改配置文件
[root@longnian ssl]# vim /usr/local/nginx/conf/nginx.conf
//修改server
..............
server {
        listen        443 ssl;
        server_name  www.a.com;
        ssl_certificate      /usr/local/nginx/ssl/nginx.crt;
        ssl_certificate_key  /usr/local/nginx/ssl/nginx.key;
        ssl_session_cache    shared:SSL:1m;
        ssl_session_timeout  5m;
        ssl_ciphers  HIGH:!aNULL:!MD5;
        ssl_prefer_server_ciphers  on;
..............

//修改好了，重读下配置文件
[root@longnian ssl]# nginx -s reload

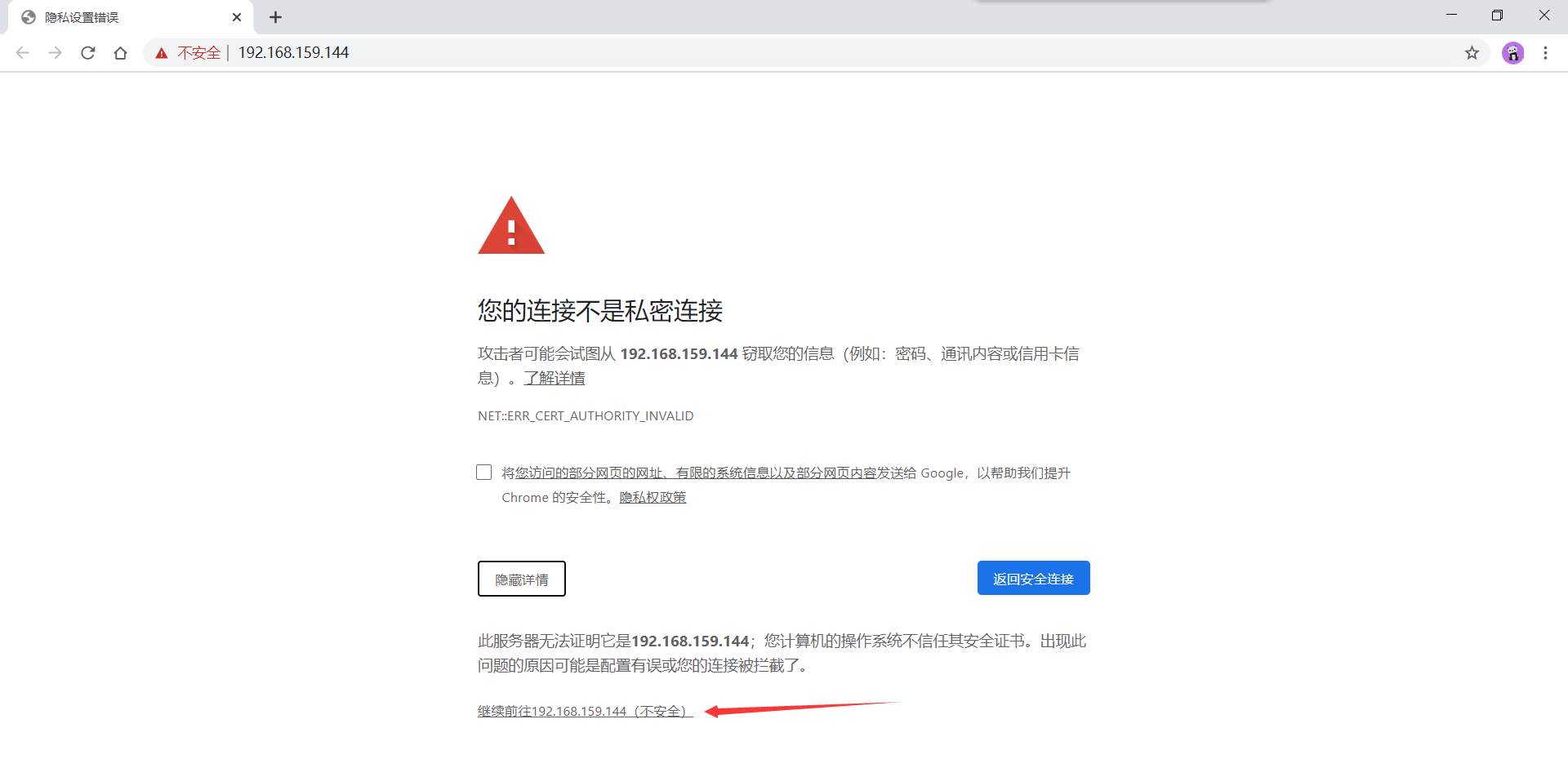

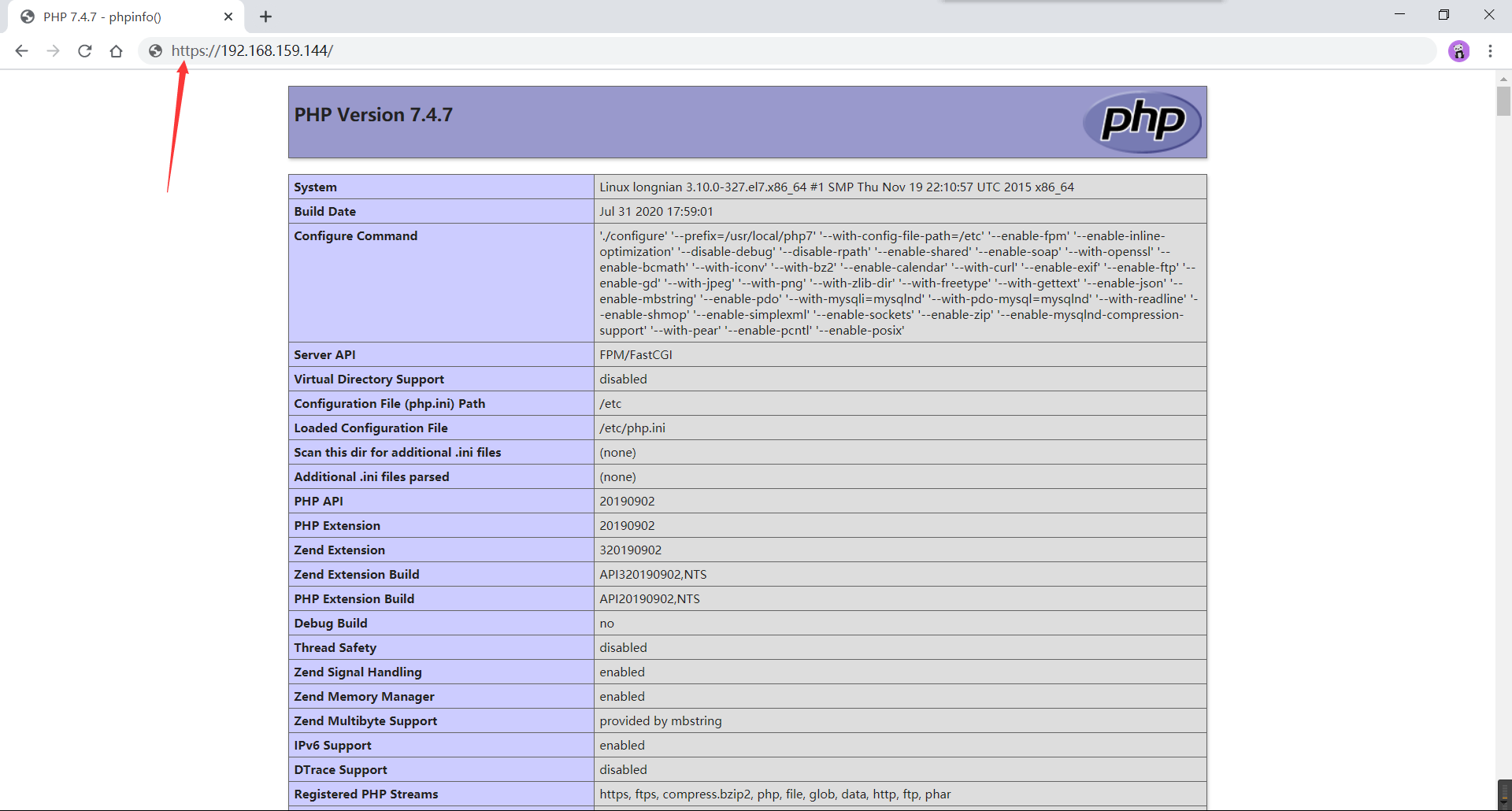

访问网页
在这里插入图片描述

在这里插入图片描述

成功访问到了网页，到此https就配置完了！

2. zabbix监控状态界面

2.1 开启状态界面

//修改配置文件
//添加以下内容:
..............
        location /status {
            stub_status on;     //开启
            allow 192.168.159.0/24;   //允许159网段的可以访问！
            deny all;
        }
..............

//重读配置文件
[root@longnian ssl]# nginx -s reload

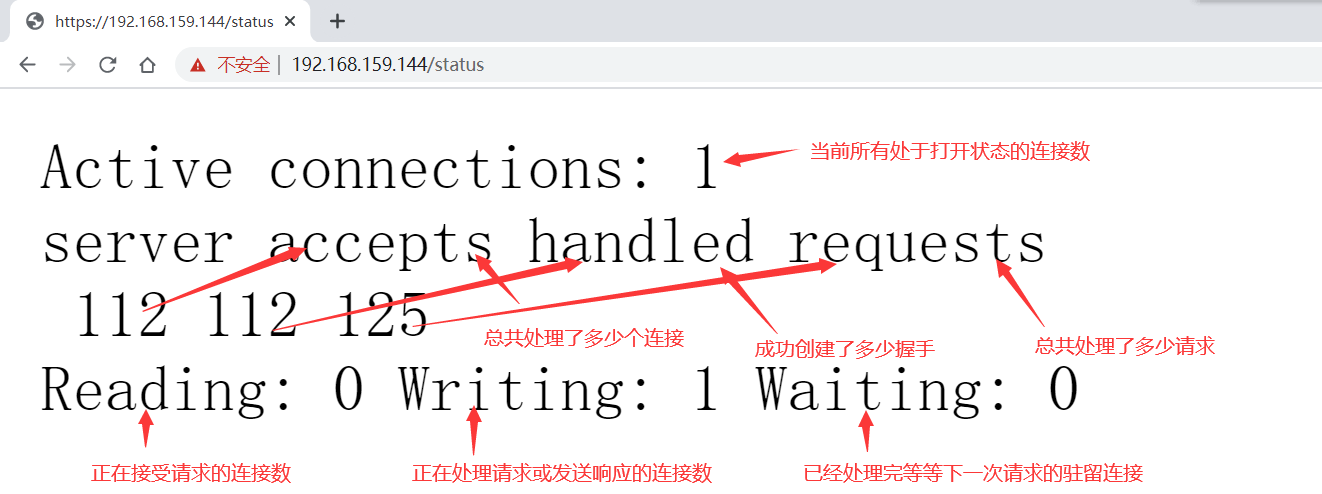

在网页上访问
在这里插入图片描述

2.2 取出状态的值

在服务器上用curl来访问

[root@longnian ~]# curl -k https://192.168.159.144/status
Active connections: 2
server accepts handled requests
 132 132 132
Reading: 0 Writing: 1 Waiting: 1

因为我这里想监控的是requests的值、Reading的值和Writing的值，所以得先取出它们的值，然后写到脚本里去

//取出requests的值
[root@longnian ~]# curl -k https://192.168.159.144/status
Active connections: 1
server accepts handled requests
 134 134 134
Reading: 0 Writing: 1 Waiting: 0
[root@longnian ~]# curl -k -s https://192.168.159.144/status | awk 'NR==3{print $3}'
135

//取出Reading的值
[root@longnian ~]# curl -k https://192.168.159.144/status
Active connections: 1
server accepts handled requests
 138 138 138
Reading: 0 Writing: 1 Waiting: 0
[root@longnian ~]# curl -k -s https://192.168.159.144/status | awk 'NR==4{print $2}'
0

//取出Writing的值
[root@longnian ~]# curl -k https://192.168.159.144/status
Active connections: 1
server accepts handled requests
 140 140 140
Reading: 0 Writing: 1 Waiting: 0
[root@longnian ~]# curl -k -s https://192.168.159.144/status | awk 'NR==4{print $4}'
1

2.3 创建监控脚本

//创建个脚本目录
//创建监控requests的脚本
[root@longnian ~]# mkdir /script
[root@longnian ~]# cd /script/
[root@longnian script]# vim check_requests.sh
[root@longnian script]# cat check_requests.sh
#!/bin/bash

if [ `curl -k -s https://192.168.159.144/status | awk 'NR==3{print \$3}'` -ne 0 ];then
    echo "0"
else
    echo "1"
fi
[root@longnian script]# ls
check_requests.sh
//执行下脚本，看有没有问题
[root@longnian script]# ./check_requests.sh
0


//创建监控Reading的脚本
[root@longnian script]# vim check_Reading.sh
[root@longnian script]# cat check_Reading.sh
#!/bin/bash

if [ `curl -k -s https://192.168.159.144/status | awk 'NR==4{print \$2}'` -eq 0 ];then
    echo "0"
else
    echo "1"
fi
[root@longnian script]# ls
check_Reading.sh  check_requests.sh
//执行下脚本，看有没有问题
[root@longnian script]# ./check_Reading.sh
0

//创建监控Writing的脚本
[root@longnian script]# vim check_Writing.sh
[root@longnian script]# cat check_Writing.sh
#!/bin/bash

if [ `curl -k -s https://192.168.159.144/status | awk 'NR==4{print \$4}'` -ne 0 ];then
    echo "0"
else
    echo "1"
fi
[root@longnian script]# chmod +x check_*
[root@longnian script]# ll
total 12
-rwxr-xr-x 1 root root 134 Jul 31 21:06 check_Reading.sh
-rwxr-xr-x 1 root root 134 Jul 31 21:01 check_requests.sh
-rwxr-xr-x 1 root root 134 Jul 31 21:11 check_Writing.sh
//执行下脚本，看有没有问题
[root@longnian script]# ./check_Writing.sh
0

3 安装zabbix（客户端）

主机	IP地址	所需服务
Server端	192.168.159.135	lnmp、zabbix
Client端	192.168.159.144	zabbix (agent)

配置server端的lnmp和zabbix，我这里就不过多阐述了，有疑问可以参考Linux项目之部署lnmp架构和Linux监控服务之zabbix

Client端zabbix安装和配置

//安装zabbix
//安装一些常用的工具
[root@longnian ~]# yum -y install vim wget gcc gcc-c++ net-snmp-devel libevent-devel

//下载zabbix安装包，进行编译、安装
[root@longnian ~]# cd /usr/src/
[root@longnian src]# ls
debug  kernels  zabbix-4.4.7  zabbix-4.4.7.tar.gz
[root@longnian src]# cd zabbix-4.4.7
[root@longnian zabbix-4.4.7]# ./configure --enable-agent
[root@longnian zabbix-4.4.7]# make install

//修改配置文件
[root@longnian ~]# cd /usr/local/etc/
[root@longnian etc]# ls
zabbix_agentd.conf  zabbix_agentd.conf.d
[root@longnian etc]# vim zabbix_agentd.conf
..........
Server=192.168.159.135
..........
ServerActive=192.168.159.135
..........
Hostname=Zabbix client
..........
UnsafeUserParameters=1
..........


//创建zabbix用户
[root@longnian ~]# useradd -r -M -s /sbin/nologin zabbix
[root@longnian ~]# id zabbix
uid=996(zabbix) gid=994(zabbix) groups=994(zabbix)
[root@longnian ~]# zabbix_agentd
[root@longnian ~]# ss -anlt
State      Recv-Q Send-Q Local Address:Port               Peer Address:Port
LISTEN     0      128             *:9000                        *:*
LISTEN     0      128             *:22                          *:*
LISTEN     0      100     127.0.0.1:25                          *:*
LISTEN     0      128             *:443                         *:*
LISTEN     0      128             *:10050                       *:*
LISTEN     0      80             :::3306                       :::*
LISTEN     0      100            :::8080                       :::*
LISTEN     0      128            :::22                         :::*
LISTEN     0      100           ::1:25                         :::*
LISTEN     0      1        ::ffff:127.0.0.1:8005                       :::*

//添加脚本信息到配置文件中去
[root@longnian ~]# vim /usr/local/etc/zabbix_agentd.conf
.............
UserParameter=check_status-one[*],/bin/bash /script/check_requests.sh $1
UserParameter=check_status-two[*],/bin/bash /script/check_Reading.sh $1
UserParameter=check_status-three[*],/bin/bash /script/check_Writing.sh $1

//在server端，手动测试脚本有没有问题
[root@longnian ~]# zabbix_get -s 192.168.159.144 -k check_status-one
0
[root@longnian ~]# zabbix_get -s 192.168.159.144 -k check_status-two
0
[root@longnian ~]# zabbix_get -s 192.168.159.144 -k check_status-three
0
//能看到0就是没错的！！
