数字孪生| 初始巴比伦 | babylonjs

Posted on 2022-05-27 22:28 董锡振阅读(927) 评论(0) 编辑收藏举报

创建世界上最强大、最漂亮、最简单的 Web 渲染引擎之一，对所有人完全开放和免费。微软团队打造。

官网： https://www.babylonjs.com/

入门参考链接： https://blog.csdn.net/qq_40407998/article/details/108599954

This creates a basic Babylon Scene object (non-mesh) 这将创建基本的巴比伦场景对象（非网格）

This creates and positions a free camera (non-mesh) 这将创建并定位自由摄影机（非网格）

This targets the camera to scene origin 这会将摄影机定位到场景原点

This attaches the camera to the canvas 这会将相机连接到画布

This creates a light, aiming 0,1,0 - to the sky (non-mesh) 这将创建灯光，将0,1,0-对准天空（非网格）

Default intensity is 1. Let's dim the light a small amount 默认强度为1。让我们把灯调暗一点

Our built-in 'sphere' shape 我们内置的“球体”形状。

Move the sphere upward 1/2 its height 将球体向上移动其高度的1/2

Our built-in 'ground' shape. 我们的内置“地面”形状。

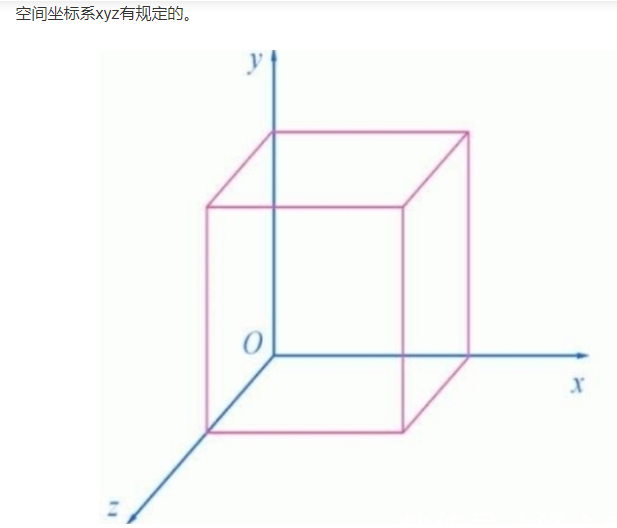

总是忘记xyz坐标系走向直接上图忘记了顺带看一眼下图。

  1 <!DOCTYPE html>
  2 <html>
  3     <head>
  4         <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
  5         <title>Babylon.js sample code</title>
  6         <!-- Babylon.js -->
  7         <script src="https://cdnjs.cloudflare.com/ajax/libs/dat-gui/0.6.2/dat.gui.min.js"></script>
  8         <script src="https://assets.babylonjs.com/generated/Assets.js"></script>
  9         <script src="https://preview.babylonjs.com/ammo.js"></script>
 10         <script src="https://preview.babylonjs.com/cannon.js"></script>
 11         <script src="https://preview.babylonjs.com/Oimo.js"></script>
 12         <script src="https://preview.babylonjs.com/earcut.min.js"></script>
 13         <script src="https://preview.babylonjs.com/babylon.js"></script>
 14         <script src="https://preview.babylonjs.com/materialsLibrary/babylonjs.materials.min.js"></script>
 15         <script src="https://preview.babylonjs.com/proceduralTexturesLibrary/babylonjs.proceduralTextures.min.js"></script>
 16         <script src="https://preview.babylonjs.com/postProcessesLibrary/babylonjs.postProcess.min.js"></script>
 17         <script src="https://preview.babylonjs.com/loaders/babylonjs.loaders.js"></script>
 18         <script src="https://preview.babylonjs.com/serializers/babylonjs.serializers.min.js"></script>
 19         <script src="https://preview.babylonjs.com/gui/babylon.gui.min.js"></script>
 20         <script src="https://preview.babylonjs.com/inspector/babylon.inspector.bundle.js"></script>
 21
 22         <style>
 23             html, body {
 24                 overflow: hidden;
 25                 width: 100%;
 26                 height: 100%;
 27                 margin: 0;
 28                 padding: 0;
 29             }
 30             #renderCanvas {
 31                 width: 100%;
 32                 height: 100%;
 33                 touch-action: none;
 34             }
 35         </style>
 36     </head>
 37 <body>
 38     <canvas id="renderCanvas"></canvas>
 39     <script>
 40         var canvas = document.getElementById("renderCanvas");
 41         var startRenderLoop = function (engine, canvas) {
 42             engine.runRenderLoop(function () {
 43                 if (sceneToRender && sceneToRender.activeCamera) {
 44                     sceneToRender.render();
 45                 }
 46             });
 47         }
 48
 49         var engine = null;
 50         var scene = null;
 51         var sceneToRender = null;
 52         var createDefaultEngine = function() { return new BABYLON.Engine(canvas, true, { preserveDrawingBuffer: true, stencil: true,  disableWebGL2Support: false}); };
 53         var createScene = function () {
 54             // This creates a basic Babylon Scene object (non-mesh)
 55             var scene = new BABYLON.Scene(engine);
 56
 57             // This creates and positions a free camera (non-mesh)
 58             var camera = new BABYLON.FreeCamera("camera", new BABYLON.Vector3(0, 5, -10), scene);
 59
 60             // This targets the camera to scene origin
 61             camera.setTarget(BABYLON.Vector3.Zero());
 62
 63             // This attaches the camera to the canvas
 64             camera.attachControl(canvas, true);
 65
 66             // This creates a light, aiming 0,1,0 - to the sky (non-mesh)
 67             var light = new BABYLON.HemisphericLight("light", new BABYLON.Vector3(0, 1, 0), scene);
 68
 69             // Default intensity is 1. Let's dim the light a small amount
 70             light.intensity = 1;
 71
 72             // Our built-in 'sphere' shape.
 73             var sphere = BABYLON.MeshBuilder.CreateSphere("sphere", {diameter: 2, segments: 32}, scene);
 74
 75             // Move the sphere upward 1/2 its height
 76             sphere.position.y = 1;
 77
 78             // Our built-in 'ground' shape.
 79             var ground = BABYLON.MeshBuilder.CreateGround("ground", {width: 6, height: 6}, scene);
 80
 81             return scene;
 82         };
 83         window.initFunction = async function() {
 84
 85
 86                     var asyncEngineCreation = async function() {
 87                         try {
 88                         return createDefaultEngine();
 89                         } catch(e) {
 90                         console.log("the available createEngine function failed. Creating the default engine instead");
 91                         return createDefaultEngine();
 92                         }
 93                     }
 94
 95                     window.engine = await asyncEngineCreation();
 96         if (!engine) throw 'engine should not be null.';
 97         startRenderLoop(engine, canvas);
 98         window.scene = createScene();};
 99         initFunction().then(() => {sceneToRender = scene
100         });
101
102         //Resize
103         window.addEventListener("resize", function () {
104             engine.resize();
105         });
106     </script>
107 </body>
108 </html>
