平行坐标系、桑基图

平行坐标系

参考
代码如下

 <!--
	此示例下载自 https://echarts.apache.org/examples/zh/editor.html?c=parallel-simple
-->
<!DOCTYPE html>
<html lang="en" style="height: 100%">
<head>
  <meta charset="utf-8">
</head>
<body style="height: 100%; margin: 0">
  <div id="container" style="width: 400px;height: 350px"></div>

  <script type="text/javascript" src="https://registry.npmmirror.com/echarts/5.4.3/files/dist/echarts.min.js"></script>
  <!-- Uncomment this line if you want to dataTool extension
  <script type="text/javascript" src="https://registry.npmmirror.com/echarts/5.4.3/files/dist/extension/dataTool.min.js"></script>
  -->
  <!-- Uncomment this line if you want to use gl extension
  <script type="text/javascript" src="https://registry.npmmirror.com/echarts-gl/2/files/dist/echarts-gl.min.js"></script>
  -->
  <!-- Uncomment this line if you want to echarts-stat extension
  <script type="text/javascript" src="https://registry.npmmirror.com/echarts-stat/latest/files/dist/ecStat.min.js"></script>
  -->
  <!-- Uncomment this line if you want to use map
  <script type="text/javascript" src="https://registry.npmmirror.com/echarts/4.9.0/files/map/js/china.js"></script>
  <script type="text/javascript" src="https://registry.npmmirror.com/echarts/4.9.0/files/map/js/world.js"></script>
  -->
  <!-- Uncomment these two lines if you want to use bmap extension
  <script type="text/javascript" src="https://api.map.baidu.com/api?v=3.0&ak=YOUR_API_KEY"></script>
  <script type="text/javascript" src="https://registry.npmmirror.com/echarts/5.4.3/files/dist/extension/bmap.min.js"></script>
  -->

  <script type="text/javascript">
    var dom = document.getElementById('container');
    var myChart = echarts.init(dom, null, {
      renderer: 'canvas',
      useDirtyRect: false
    });
    var app = {};

    var option;

    option = {
  parallelAxis: [
    { dim: 0, name: 'Price' },
    { dim: 1, name: 'Net Weight' },
    { dim: 2, name: 'Amount' },
    {
      dim: 3,
      name: 'Score',
      type: 'category',
      data: ['Excellent', 'Good', 'OK', 'Bad']
    }
  ],
  series: {
    type: 'parallel',
    lineStyle: {
      width: 4
    },
    data: [
      [12.99, 100, 82, 'Good'],
      [9.99, 80, 77, 'OK'],
      [20, 120, 60, 'Excellent']
    ]
  }
};

    if (option && typeof option === 'object') {
      myChart.setOption(option);
    }

    window.addEventListener('resize', myChart.resize);
  </script>
</body>
</html>

效果图

桑基图

参考
代码如下

 <!--
	此示例下载自 https://echarts.apache.org/examples/zh/editor.html?c=sankey-simple
-->
<!DOCTYPE html>
<html lang="en" style="height: 100%">
<head>
  <meta charset="utf-8">
</head>
<body style="height: 100%; margin: 0">
  <div id="container" style="width: 400px;height: 350px"></div>

  <script type="text/javascript" src="https://registry.npmmirror.com/echarts/5.4.3/files/dist/echarts.min.js"></script>
  <!-- Uncomment this line if you want to dataTool extension
  <script type="text/javascript" src="https://registry.npmmirror.com/echarts/5.4.3/files/dist/extension/dataTool.min.js"></script>
  -->
  <!-- Uncomment this line if you want to use gl extension
  <script type="text/javascript" src="https://registry.npmmirror.com/echarts-gl/2/files/dist/echarts-gl.min.js"></script>
  -->
  <!-- Uncomment this line if you want to echarts-stat extension
  <script type="text/javascript" src="https://registry.npmmirror.com/echarts-stat/latest/files/dist/ecStat.min.js"></script>
  -->
  <!-- Uncomment this line if you want to use map
  <script type="text/javascript" src="https://registry.npmmirror.com/echarts/4.9.0/files/map/js/china.js"></script>
  <script type="text/javascript" src="https://registry.npmmirror.com/echarts/4.9.0/files/map/js/world.js"></script>
  -->
  <!-- Uncomment these two lines if you want to use bmap extension
  <script type="text/javascript" src="https://api.map.baidu.com/api?v=3.0&ak=YOUR_API_KEY"></script>
  <script type="text/javascript" src="https://registry.npmmirror.com/echarts/5.4.3/files/dist/extension/bmap.min.js"></script>
  -->

  <script type="text/javascript">
    var dom = document.getElementById('container');
    var myChart = echarts.init(dom, null, {
      renderer: 'canvas',
      useDirtyRect: false
    });
    var app = {};

    var option;

    option = {
  series: {
    type: 'sankey',
    layout: 'none',
    emphasis: {
      focus: 'adjacency'
    },
    data: [
      {
        name: 'a'
      },
      {
        name: 'b'
      },
      {
        name: 'a1'
      },
      {
        name: 'a2'
      },
      {
        name: 'b1'
      },
      {
        name: 'c'
      }
    ],
    links: [
      {
        source: 'a',
        target: 'a1',
        value: 5
      },
      {
        source: 'a',
        target: 'a2',
        value: 3
      },
      {
        source: 'b',
        target: 'b1',
        value: 8
      },
      {
        source: 'a',
        target: 'b1',
        value: 3
      },
      {
        source: 'b1',
        target: 'a1',
        value: 1
      },
      {
        source: 'b1',
        target: 'c',
        value: 2
      }
    ]
  }
};

    if (option && typeof option === 'object') {
      myChart.setOption(option);
    }

    window.addEventListener('resize', myChart.resize);
  </script>
</body>
</html>

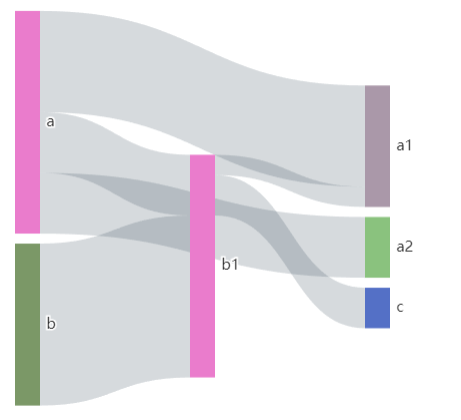

效果图
