入门

• 父工程依赖

    <!-- 依赖版本号 -->
    <properties>
        <mybatis-plus.version>3.2.0</mybatis-plus.version>
        <druid.version>1.1.12</druid.version>
        <oauth2-autoconfigure.version>2.1.3.RELEASE</oauth2-autoconfigure.version>
        <kaptcha.version>2.3.2</kaptcha.version>
        <fastjson.version>1.2.8</fastjson.version>
        <commons-lang.version>2.6</commons-lang.version>
        <commons-collections.version>3.2.2</commons-collections.version>
        <commons-io.version>2.6</commons-io.version>
    </properties>

    <!-- 集中式管理依赖版本号,并没有真实依赖 -->
    <dependencyManagement>
        <dependencies>
            <!--mybatis-plus启动器-->
            <dependency>
                <groupId>com.baomidou</groupId>
                <artifactId>mybatis-plus-boot-starter</artifactId>
                <version>${mybatis-plus.version}</version>
            </dependency>
            <!--druid连接池-->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid</artifactId>
                <version>${druid.version}</version>
            </dependency>

            <!--spring-security-oauth2、spring-security-jwt等-->
            <dependency>
                <groupId>org.springframework.security.oauth.boot</groupId>
                <artifactId>spring-security-oauth2-autoconfigure</artifactId>
                <version>${oauth2-autoconfigure.version}</version>
            </dependency>
            <!-- kaptcha 用于图形验证码 -->
            <dependency>
                <groupId>com.github.penggle</groupId>
                <artifactId>kaptcha</artifactId>
                <version>${kaptcha.version}</version>
            </dependency>
            <!-- 工具类依赖 -->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>fastjson</artifactId>
                <version>${fastjson.version}</version>
            </dependency>
            <dependency>
                <groupId>commons-lang</groupId>
                <artifactId>commons-lang</artifactId>
                <version>${commons-lang.version}</version>
            </dependency>
            <dependency>
                <groupId>commons-collections</groupId>
                <artifactId>commons-collections</artifactId>
                <version>${commons-collections.version}</version>
            </dependency>
            <dependency>
                <groupId>commons-io</groupId>
                <artifactId>commons-io</artifactId>
                <version>${commons-io.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.7.0</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
        </plugins>
    </build>

• base子模块依赖

    <dependencies>
        <!--类中setter/getter,使用注解-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <!-- 工具类依赖 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
        </dependency>
        <dependency>
            <groupId>commons-lang</groupId>
            <artifactId>commons-lang</artifactId>
        </dependency>
        <dependency>
            <groupId>commons-collections</groupId>
            <artifactId>commons-collections</artifactId>
        </dependency>
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
        </dependency>
    </dependencies>

• resources文件夹下编写logback.xml

<?xml version="1.0" encoding="UTF-8"?>
<configuration>
    <!-- 彩色日志 -->
    <!-- 彩色日志依赖的渲染类 -->
    <conversionRule conversionWord="clr" converterClass="org.springframework.boot.logging.logback.ColorConverter" />
    <conversionRule conversionWord="wex" converterClass="org.springframework.boot.logging.logback.WhitespaceThrowableProxyConverter" />
    <conversionRule conversionWord="wEx" converterClass="org.springframework.boot.logging.logback.ExtendedWhitespaceThrowableProxyConverter" />
    <!-- 彩色日志格式 -->
    <property name="CONSOLE_LOG_PATTERN" value="${CONSOLE_LOG_PATTERN:-%clr(%d{HH:mm:ss.SSS}){faint} %clr(${LOG_LEVEL_PATTERN:-%5p}) %clr(${PID:- }){magenta} %clr(---){faint} %clr([%15.15t]){faint} %clr(%-40.40logger{39}){cyan} %clr(:){faint} %m%n${LOG_EXCEPTION_CONVERSION_WORD:-%wEx}}"/>
    <!-- ch.qos.logback.core.ConsoleAppender 表示控制台输出 -->
    <appender name="stdout" class="ch.qos.logback.core.ConsoleAppender">
        <layout class="ch.qos.logback.classic.PatternLayout">
                <pattern>${CONSOLE_LOG_PATTERN}</pattern>
        </layout>
    </appender>
    <root level="info">
        <appender-ref ref="stdout" />
    </root>
</configuration>

• core子模块依赖

    <dependencies>
        <!--依赖base基础模块 -->
        <dependency>
            <groupId>com.ychen.security</groupId>
            <version>1.0-SNAPSHOT</version>
            <artifactId>base</artifactId>
        </dependency>
        <!-- 认证依赖 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <!-- 解决过滤器错误 -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.5</version>
        </dependency>
    </dependencies>

• 配置类

@Configuration
@EnableWebSecurity // 开启springsecurity过滤链 filter
public class SpringSecurityConfig extends WebSecurityConfigurerAdapter {

    Logger logger = LoggerFactory.getLogger(getClass());

    @Bean
    public PasswordEncoder passwordEncoder() {
        // 明文+随机盐值》加密存储
        return new BCryptPasswordEncoder();
    }

    /**
     * 认证管理器：
     * 1. 认证信息（用户名，密码）
     * @param auth
     * @throws Exception
     */
    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        // 数据库存储的密码必须是加密后的，不然会报错：There is no PasswordEncoder mapped for the id "null"
        String password = passwordEncoder().encode("admin");
        logger.info("加密之后存储的密码：" + password);
        auth.inMemoryAuthentication().withUser("admin")
                .password(password).authorities("ADMIN");
    }

    /**
     * 资源权限配置：
     * 1. 被拦截的资源
     * @param http
     * @throws Exception
     */
    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.formLogin()
                // 登录的url
                .loginProcessingUrl("/login")
                // 登录成功后跳转url
                .defaultSuccessUrl("/success").permitAll()
                // 不需要认证就能访问
                .and().authorizeRequests()
                .antMatchers("/test").permitAll()
                // 其他请求需要认证
                .anyRequest().authenticated()
                // 关闭csrf
                .and().csrf().disable();
    }

}

• web子模块依赖

    <dependencies>
        <!-- web启动器, 对springmvc, servlet等支持 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--权限核心模块, 注意：要放到 web启动器下面-->
        <dependency>
            <groupId>com.ychen.security</groupId>
            <version>1.0-SNAPSHOT</version>
            <artifactId>core</artifactId>
        </dependency>
        <!-- application.yml 配置处理器-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
            <optional>true</optional>
        </dependency>
        <!-- springboot 单元测试 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>
        <!--热部署 ctrl+f9-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
        </dependency>
    </dependencies>

• 启动类

@SpringBootApplication
public class WebApplication {

    public static void main(String[] args) {
        SpringApplication.run(WebApplication.class, args);
    }

}

• 测试接口

@Controller
public class TestController {

    // 需要认证才能访问的路径
    @RequestMapping({"/index", "/", ""})
    @ResponseBody
    public String index() {
        return "index";
    }

    // 不需要认证就能访问的路径
    @RequestMapping("/test")
    @ResponseBody
    public String test() {
        return "test";
    }

    // 认证成功后跳转的路径
    @GetMapping("/success")
    @ResponseBody
    public String success(){
        return "success";
    }

}

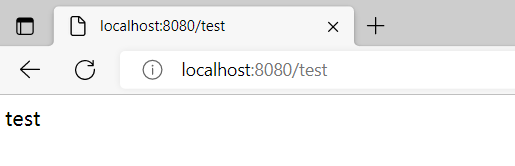

• 未认证时，直接访问test接口，访问成功

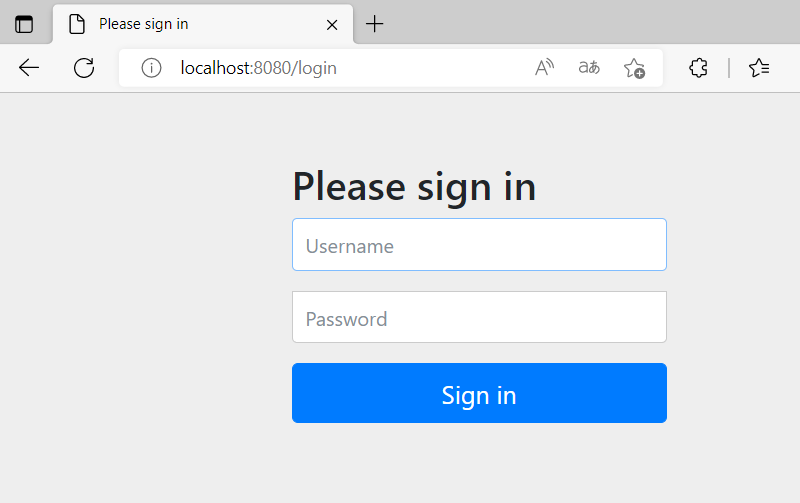

• 未认证时，直接访问index接口，跳转到认证页面

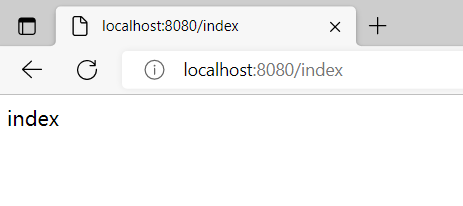

• 输入用户名和密码，跳转到index
