gitlab & jenkins & tomcat

　　

JDK:

1. jdk下载网址：https://www.oracle.com/java/technologies/javase-jdk14-downloads.html
2. JAVA_HOME ==> C:\Program Files\Java\jdk-14.0.1
3. CLASSPATH ==> .,%JAVA_HOME%\lib
4. PATH ==> %JAVA_HOME%\bin
5. IDEA部署tomcat

https://blog.csdn.net/czc9309/article/details/80304074





Tomcat:

1. CATALINA_HOME ==> C:\Program Files\apache-tomcat-9.0.36
2. PATH ==> %CATALINA_HOME%\bin
3. apache-tomcat-9.0.36 ==> Properties ==> security ==> Users ==> Full control    否则404
4. catalina.bat start





gitlab:

1. /etc/gitlab/gitlab.rb
2. external_url 'http://IP:888'
3. nginx['listen_port']=888
4. gitlab-ctl reconfigure
5. gitlab-ctl restart
6. firewall-cmd --zone=public --permanent --add-port=82/tcp
7. firewall-cmd reload
8. root   ==>   password
9. create group ==> notary_group
10. create project ==> notary_group/web_demo(private)
11. create user ==> artifact1(regular)
    add artifact1 to web_demo
    • Guest: create issue,leave comment,can not clone or download the project code
    • Reporter: clone download the project code,can not submit
    • Developer: normal developer
    • Maintainer: core developer
13. VCS ==> Enable Version Control Intergration ==> git
14. project ==> git ==> add(本地缓存区)
15. project ==> git ==> commit(本地仓库)
16. project ==> git ==> Repository ==> Remotes ==> Add gitlab http://192.168.8.6:888/notary_group/web_demo.git
17. project ==> git ==> Repository ==> Push







Jenkins:

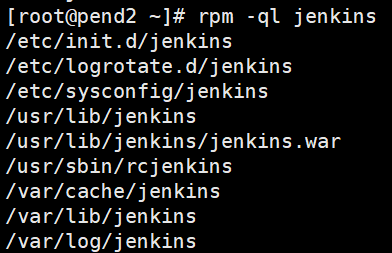

配置文件/etc/sysconfig/jenkins

启动脚本/etc/rc.d/init.d/jenkins

JENKINS_USER="jenkins"

JENKINS_PORT="8080"

镜像加速:

sed -ri -e 's@http://updates.jenkins-ci.org/download@https://mirrors.tuna.tsinghua.edu.cn/jenkins@g' -e 's@http://www.google.com@http://www.baidu.com@g' default.json

Update Site:      https://mirrors.tuna.tsinghua.edu.cn/jenkins/updates/update-center.json



Plugin1: Role-based Authorization Strategy



Configure Global Security ==> Authorization ==> Role-Based Strategy

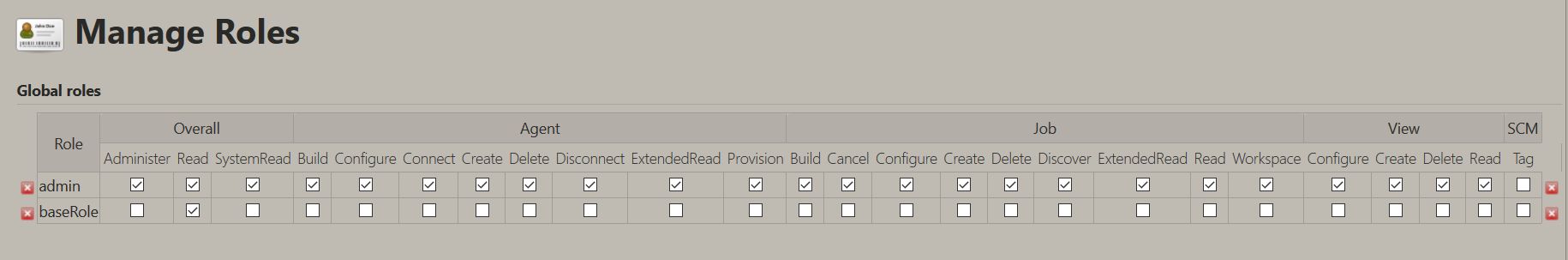

Manage and Assign Roles ==> Manage Roles:













?

1 2 3 4 5

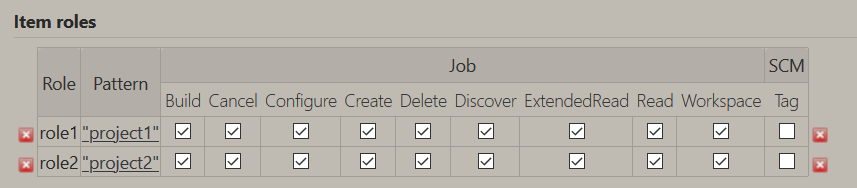

Global roles:  baseRole (Overall => read)   Item roles:      role1(Pattern:  project1.*)   Item roles:      role2(Pattern:  project2.*)

Manager Users ==> create user ==> user1 & user2　　

Manage and Assign Roles ==> Assign Roles　　　







Plugin2: Credentials Binding



Plugin3: git

Plugin4:

1. JAVA_HOME=/usr/lib/jvm/java





1. MAVEN_HOME=/usr/local/maven
2. PATH=$PATH:$JAVA_HOME/bin:$MAVEN_HOME/bin
3. mvn -v && java -version
4. Global Tool Configuration:   JDK && MAVEN
5. Confiugre System ==> Global properties ==> Environmen variables

?

1 2 3 4 5

JAVA_HOME ==> /usr/lib/jvm/java   M2_HOME ==> /usr/local/maven   PATH+EXTRA ==> $M2_HOME/bin

　　

?

1 2 3 4 5 6 7

<mirror> <id>alimaven</id> <name>aliyun maven</name> <url>https://maven.aliyun.com/repository/public</url> <mirrorOf>*</mirrorOf> </mirror> <localRepository>/usr/local/maven/repo</localRepository>         #注意repo目录权限

https://developer.aliyun.com/mirror/maven?spm=a2c6h.13651102.0.0.3e221b11SMxdFv



Build ==> Execute shell ==> echo 'start build';mvn clean package;echo 'build complete'

Tomcat:

?

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

conf/tomcat-users.xml <tomcat-users> <role rolename="tomcat"/> <role rolename="role1"/> <role rolename="manager-script"/> <role rolename="manager-gui"/> <role rolename="manager-status"/> <role rolename="admin-gui"/> <role rolename="admin-script"/> <user username="tomcat" password="tomcat" roles="manager-gui,manager-script,tomcat,admin-gui,admin-script"/> </tomcat-users>     webapps/manager/META-INF/context.xml   <!--   <Valve className="org.apache.catalina.valves.RemoteAddrValve"          allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1" />   -->

　　

Plugin:5 Deploy To Container

Post-build Actions:

Deploy war/ear to a container ==> WAR/EAR ==> target/*.war ==> Containers ==> TomcatURL ==> http://IP:8080



Plugin:6 Maven intergration

build ==> Goals and options ==> clean package (无需加maven)



Plugin:7 pipeline

示例一:

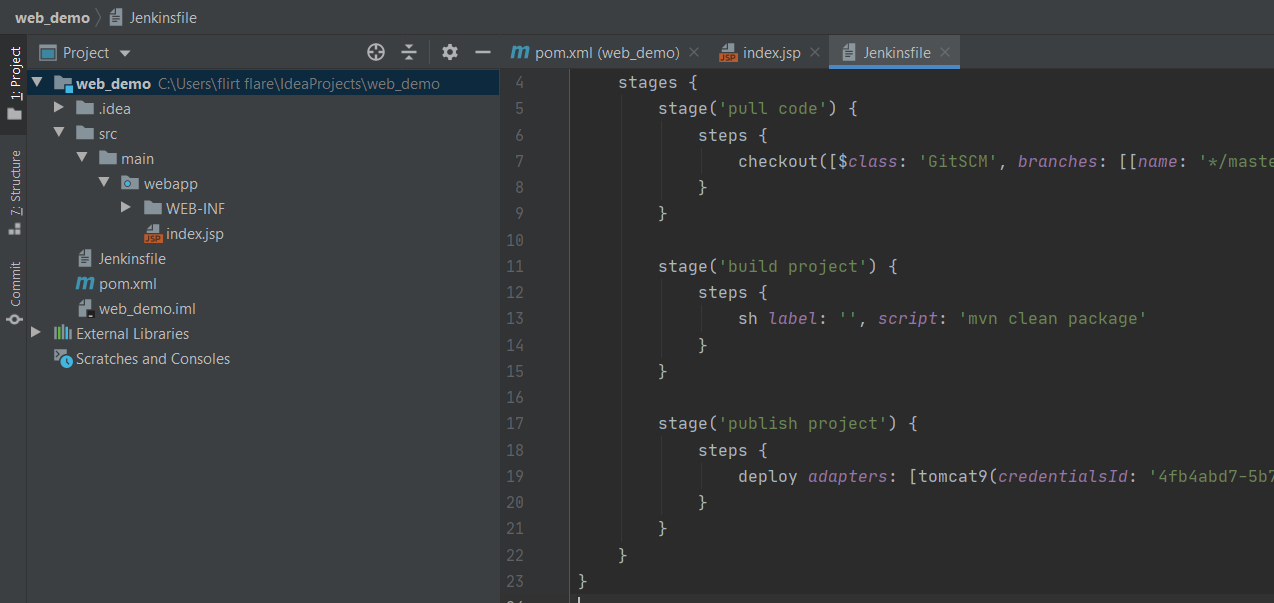

pipeline {
    agent any

    stages {
        stage('pull code') {
            steps {
                echo 'pull code'
            }
        }
        stage('build project') {
            steps {
                echo 'build project'
            }
        }
        stage('publish project') {
            steps {
                echo 'publish project'
            }
        }

    }
}

Sample Step: pipeline syntax ==> 片段生成器

• checkout: Checkout from version control
• sh: Shell Script ==> mvn clean package
• deploy: Deploy war/ear to a container

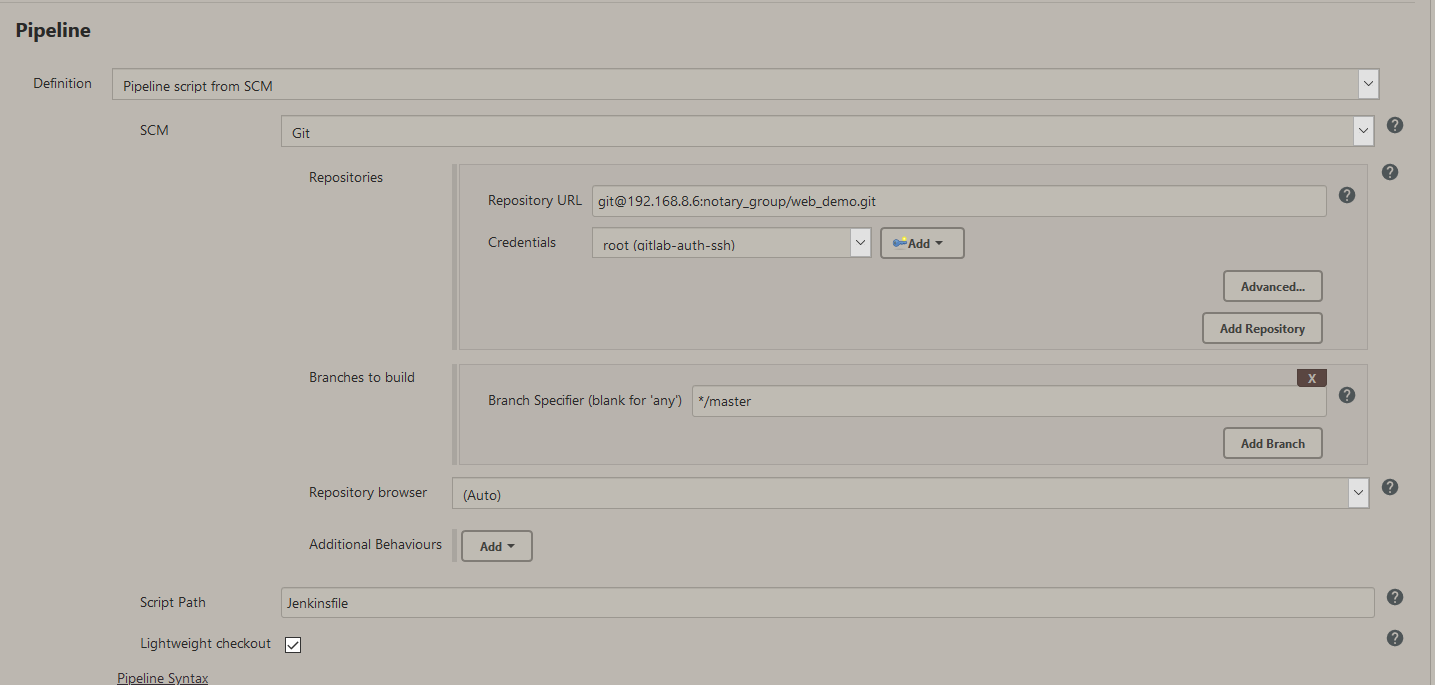

Pipeline ==> Pipeline script from SCM ==> SCM ==> git















构建触发器:

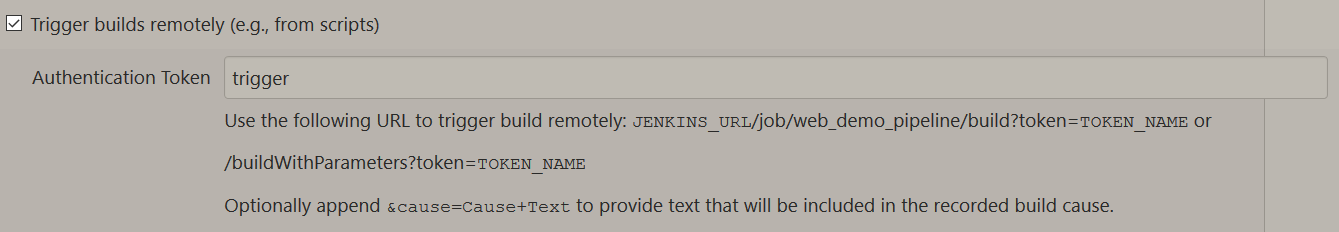

1:Trigger builds remotely

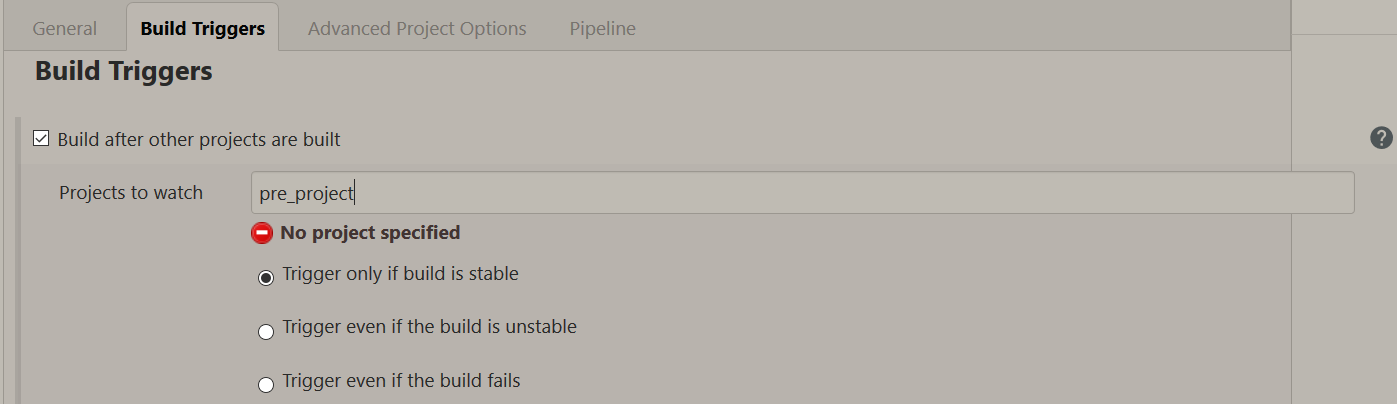

 2:build after other project are built

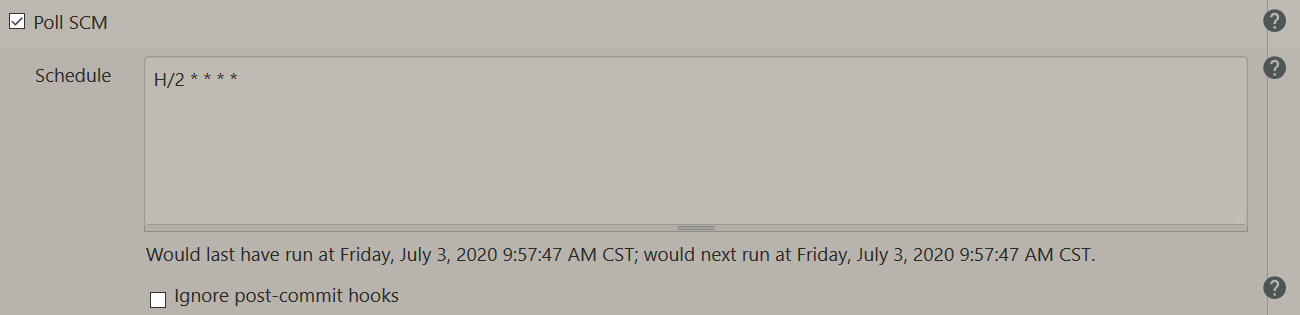

3: Poll SCM

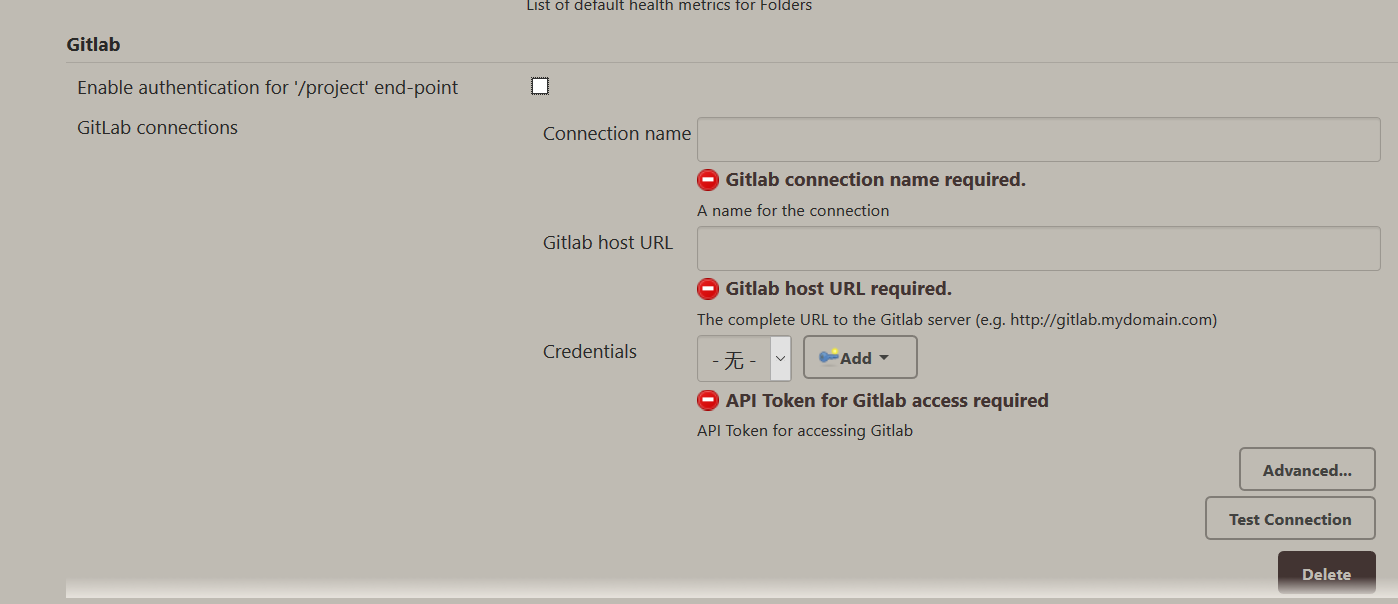

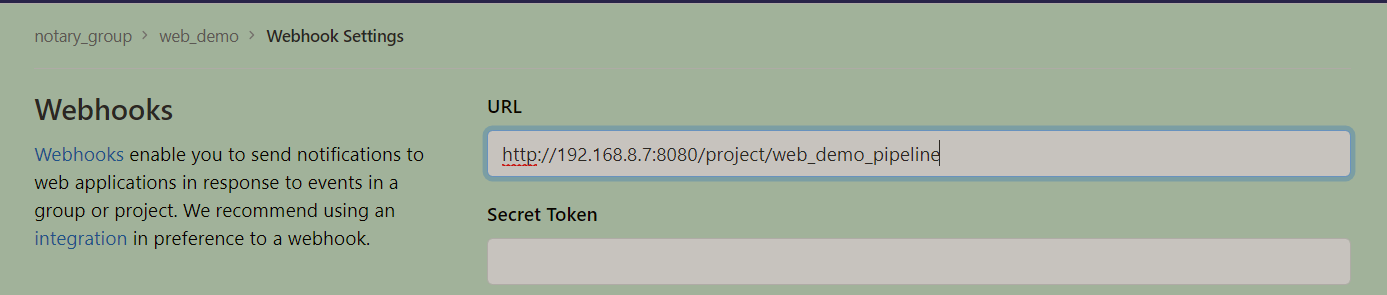

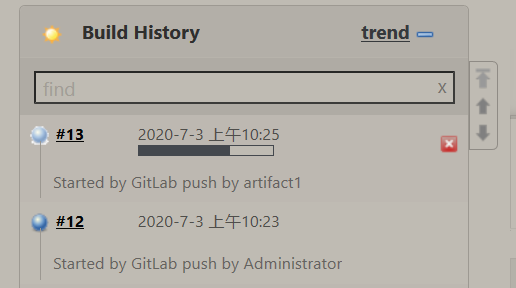

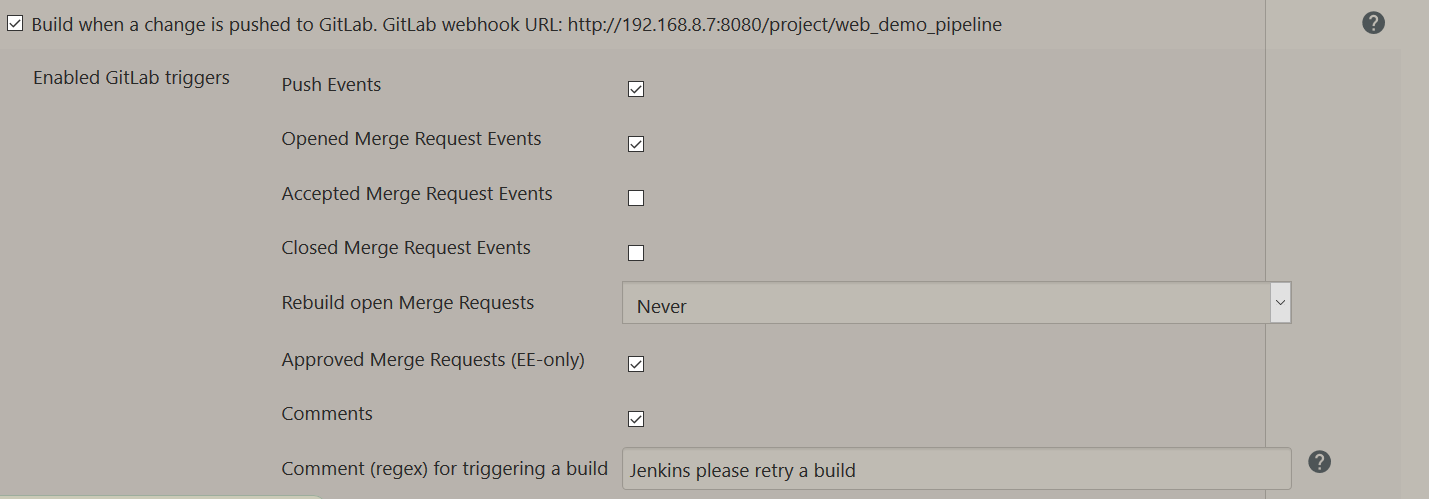

4:  Gitlab webhook     plugin(Gitlab Gitlab Hook)

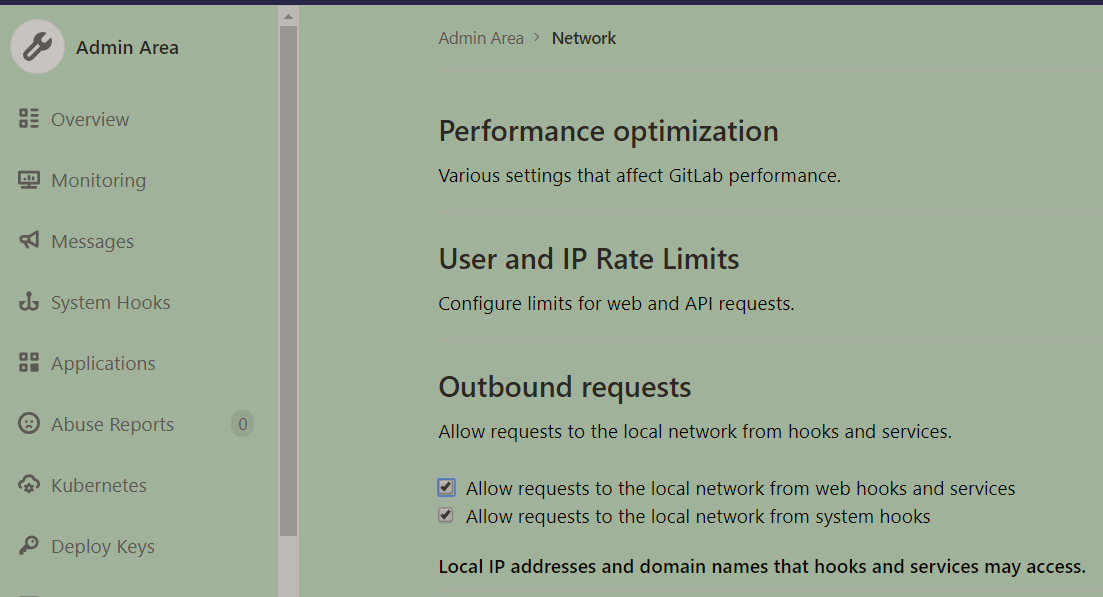

gitlab:
