WireGuard配置教程

Run WireGuard VPN Server in Docker Container with Docker Compose - TechViewLeo -- 主要参考这个
基于Wireguard技术的虚拟个人网络搭建: 基于wireguard的内网穿透技术~
搭建WireGuard-腾讯云开发者社区-腾讯云

• 公网机器: IP=100.101.102.103, Name=TencentVM1
• 私网机器: IP=192.168.123.189, Name=LocalMint1

1.服务端配置

1.1.安装wg-easy镜像

wg-easy/wg-easy: The easiest way to run WireGuard VPN + Web-based Admin UI.
基于Wireguard技术的虚拟个人网络搭建: 基于wireguard的内网穿透技术~
Wireguard 全互联模式（full mesh）配置指南 – 云原生实验室 - Kubernetes|Docker|Istio|Envoy|Hugo|Golang|云原生

这个新建的容器内会多一个wg0网卡，IP地址是10.0.8.1，而且网卡只在容器内可见。
server的配置文件会放在/opt/wg-easy目录下。TCP的51821端口用于访问WebUI。

docker run -d \
  --name=wg-easy \
  -e WG_HOST=123.123.123.123 (这里输入服务器的公网IP) \
  -e PASSWORD=passwd123 (这里输入你的密码) \
  -e WG_DEFAULT_ADDRESS=10.0.8.x （默认IP地址）\
  -e WG_DEFAULT_DNS=114.114.114.114 （默认DNS）\
  -e WG_ALLOWED_IPS=10.0.8.0/24 （允许连接的IP段）\
  -e WG_PERSISTENT_KEEPALIVE=25 （重连间隔）\
  -v /opt/wg-easy:/etc/wireguard \
  -p 51820:51820/udp \
  -p 51821:51821/tcp \
  --cap-add=NET_ADMIN \
  --cap-add=SYS_MODULE \
  --sysctl="net.ipv4.conf.all.src_valid_mark=1" \
  --sysctl="net.ipv4.ip_forward=1" \
  --restart unless-stopped \
  weejewel/wg-easy

1.2.安装linuxserver/wireguard镜像(建议使用wg-easy)

# 安装docker-compose
sudo curl -L "https://github.com/docker/compose/releases/download/v2.19.1/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
sudo chmod 755 /usr/local/bin/docker-compose
docker-compose version

sudo mkdir /opt/wireguard-server
vim docker-compose.yaml # yaml里需要配置容器的名字，server的地址
docker compose up -d
# 检查WireGuard服务器的状态
docker exec -it wireguard wg
docker exec -it wireguard /bin/bash
# 其他docker compose命令
docker compose start wireguard
docker compose restart wireguard
docker compose ps

1.2.1.配置文件的目录结构

ubuntu@VM-4-3-ubuntu:/opt/wireguard-server $ tree
.
├── config
│   ├── coredns
│   │   └── Corefile
│   ├── peer1
│   │   ├── peer1.conf
│   │   ├── peer1.png
│   │   ├── presharedkey-peer1
│   │   ├── privatekey-peer1
│   │   └── publickey-peer1
│   ├── server
│   │   ├── privatekey-server
│   │   └── publickey-server
│   ├── templates
│   │   ├── peer.conf
│   │   └── server.conf
│   └── wg0.conf
└── docker-compose.yaml

5 directories, 12 files

1.2.2.服务端配置文件

#/opt/wireguard-server/config/wg0.conf

[Interface]
Address = 10.13.13.1
ListenPort = 51820
PrivateKey = UIx5/v...
PostUp = iptables -A FORWARD -i %i -j ACCEPT; iptables -A FORWARD -o %i -j ACCEPT; iptables -t nat -A POSTROUTING -o eth+ -j MASQUERADE
PostDown = iptables -D FORWARD -i %i -j ACCEPT; iptables -D FORWARD -o %i -j ACCEPT; iptables -t nat -D POSTROUTING -o eth+ -j MASQUERADE

[Peer]
# peer1
PublicKey = x4iD6...
PresharedKey = OCjHe...
AllowedIPs = 10.13.13.2/32

[Peer]
# peer2
PublicKey = 91rwZ...
PresharedKey = /lOtI...
AllowedIPs = 10.13.13.3/32

Interface
这个配置项为本地接口的配置，其中：
Address 为 VPN 连接的本地 IP 地址
ListenPort 作为服务端需要声明一个监听的端口，WireGuard 使用 UDP 协议，这个端口可以任意填写。需要保证防火墙已开放 UDP 的这个端口
PrivateKey 为上一步生成的私钥

Peer
这个为对端的配置，如果有多个，则需添加多个 Peer 配置，服务端的 Peer 配置项即定义了各个可连接的客户端。其中：
PublicKey 为对端的公钥
AllowedIPs 在配置路由会讲到

1.2.3.客户端配置文件

#/opt/wireguard-server/config/peer1/peer1.conf

[Interface]
Address = 10.13.13.2
PrivateKey = kGaLz...
ListenPort = 51820
DNS = 10.13.13.1

[Peer]
PublicKey = T2i88...
PresharedKey = OCjHe...
Endpoint = 100.101.102.103:51820
AllowedIPs = 0.0.0.0/0

客户端与服务端不同的地方在于：
Interface 配置中没有了 ListenPort
Peer 即为服务端，与服务端不同的地方在于多了一个 Endpoint

1.2.4.Docker Compose配置文件

#/opt/wireguard-server/docker-compose.yaml
#需要修改`SERVERURL`字段
#`PEERS=8`时会生成8个peer的配置文件

version: '3.7'
services:
  wireguard:
    image: linuxserver/wireguard
    container_name: wireguard
    cap_add:
      - NET_ADMIN
      - SYS_MODULE
    environment:
      - PUID=1000
      - PGID=1000
      - TZ=Africa/Nairobi #set correct timezone
      - SERVERPORT=51820 #optional
      - PEERS=1 #optional
      - PEERDNS=auto #optional
      - ALLOWEDIPS=0.0.0.0/0 #Peer addresses allowed
      - INTERNAL_SUBNET=10.13.13.0/24 #Subnet used in VPN tunnel
      - SERVERURL=100.101.102.103 #Wireguard VPN server address
    volumes:
      - /opt/wireguard-server/config:/config
      - /usr/src:/usr/src # location of kernel headers
      - /lib/modules:/lib/modules
    ports:
      - 51820:51820/udp
    sysctls:
      - net.ipv4.conf.all.src_valid_mark=1
    restart: always

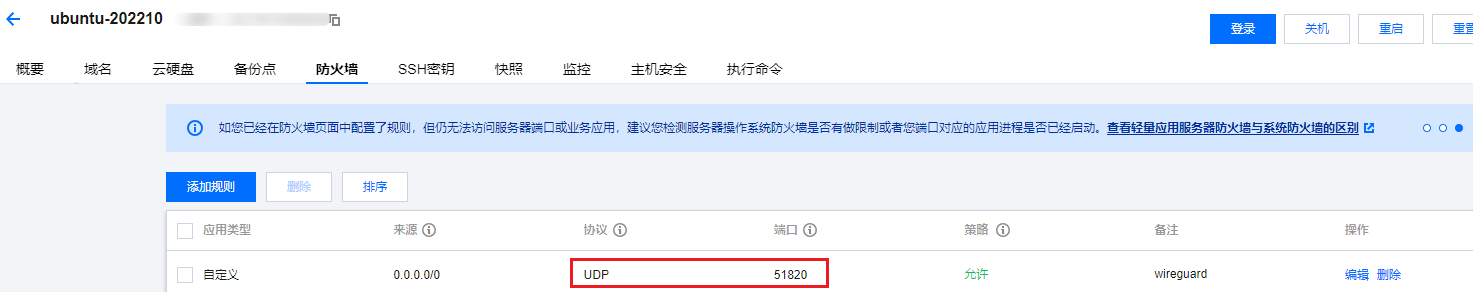

1.3.防火墙设置

下面这个好像非必须？

### on Redhat Based ###
sudo firewall-cmd --permanent --add-port=51820/udp
sudo firewall-cmd --reload
### On Debian Based ###
sudo apt install ufw
sudo ufw allow 51820/udp

2.客户端配置

2.1.安装wireguard

2.1.1.内核版本大于5.6

sudo apt install -y wireguard openresolv

2.1.2.内核版本4.19

WireGuard 白皮书带读3 - 知乎

sudo apt-get install -y wireguard-dkms wireguard-tools linux-headers-$(uname -r)
sudo ip link add dev wg0 type wireguard
sudo ip address add dev wg0 192.168.1.1/32
sudo wg set wg0 listen-port 6789 private-key /etc/wireguard/privatekey
sudo ip link set wg0 up
sudo wg-quick up wg0

实际测试时报错如下，未解决:

$ sudo ip link add dev wg0 type wireguard
RTNETLINK answers: Operation not supported

2.2.拷贝配置文件并启动

2.2.1.VM类型客户端

# 拷贝配置文件
scp /opt/wireguard-server/config/peer1/peer1.conf username@serverIP:~/peer1.conf
sudo mv ~/peer1.conf /etc/wireguard/wg0.conf
# 设置服务开机自启动
sudo systemctl enable wg-quick@wg0
sudo reboot
# 检查状态
systemctl status wg-quick@wg0
ip ad
ifconfig
ping 10.13.13.1
# 这时候可以在server段检查下状态，会发现peer已经连接上去了
docker exec -it wireguard wg

wg-quick up wg0会自动去找配置文件/etc/wireguard/wg0.conf

$ systemctl cat wg-quick@wg0
# /lib/systemd/system/wg-quick@.service
[Unit]
Description=WireGuard via wg-quick(8) for %I
After=network-online.target nss-lookup.target
Wants=network-online.target nss-lookup.target
PartOf=wg-quick.target
Documentation=man:wg-quick(8)
Documentation=man:wg(8)
Documentation=https://www.wireguard.com/
Documentation=https://www.wireguard.com/quickstart/
Documentation=https://git.zx2c4.com/wireguard-tools/about/src/man/wg-quick.8
Documentation=https://git.zx2c4.com/wireguard-tools/about/src/man/wg.8

[Service]
Type=oneshot
RemainAfterExit=yes
ExecStart=/usr/bin/wg-quick up %i
ExecStop=/usr/bin/wg-quick down %i
Environment=WG_ENDPOINT_RESOLUTION_RETRIES=infinity

[Install]
WantedBy=multi-user.target

2.2.2.容器类型客户端

无法设置一些服务开机自启，比如无法执行systemctl enable wg-quikc@wg0

## 配置VPN，从wg-easy的WebUI下载配置文件
vim ~/wg0.conf
sudo wg-quick up ~/wg0.conf
#如果提示wg0存在时(wg-quick: `wg0' already exists)执行下面一行
#sudo ip link delete dev wg0

网卡相关的一些命令

sudo ip link add wg0 type wireguard
sudo ip link delete dev wg0
sudo ip link set up dev wg0
sudo ifconfig wg0 up
ifconfig

3.添加更多的节点

# Edit on the server side
$ sudo vim /opt/wireguard-server/config/wg0.conf
# peer2
PublicKey = 7ANB0SuBUsnetjqHrL99YIhpbqetJ9yYy0CRsNiuzls=
PresharedKey = gbMDUgQM7levlYLcwhyf1E1dHF/PG489UGeeSHr7tro=
AllowedIPs = 10.13.13.3/32
