构建适用于 MinGW 的 CEF3

由于 CEF3 二进制发行版（以下简称 CEF3） 并没有提供用于 MinGW 编译器（以下简称 MinGW） 的构建配置，且由 MSVC 编译器 构建出的 libcef_dll_wrapper 静态库 无法在 MinGW 上链接使用（ABI 不兼容），因此我们需要自行编辑一份用于 MinGW 的构建配置，以构建出可用于其上的 libcef_dll_wrapper 静态库。

MinGW 是 GCC 的 Windows 版本，因此我们对 CEF3 所提供的用于 GCC 的构建配置稍加修改，就能够用于 MinGW。

以 CEF3 4280 版本举例：

  1. 打开 CEF3 的 cmake 子目录下的 cef_variables.cmake 文件（在较老的版本中则是打开根目录下的 CMakeLists.txt 文件）：

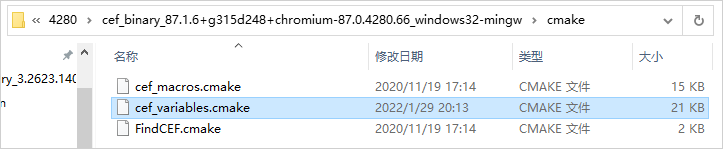

    cef_variables.cmake

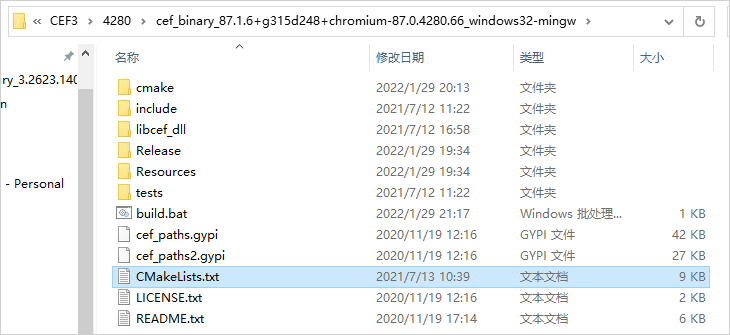

    CMakeLists.txt

  2. 找到 Linux configuration 段，复制 if(OS_LINUX) 块下的内容：
    Linux configuration

  3. 找到 Windows configuration 段，将先前复制的内容与 if(OS_WINDOWS) 块下的内容做合并。
    合并的准则为：编译器及链接器等参数信息以 Linux 为准，文件名信息以 Windows 为准，将针对 MSVC 或 Linux 平台才有的内容直接删除。
    以下是一个合并完成的示例：

    点击查看代码
    #
# Windows configuration.
#

if(OS_WINDOWS)
  # Platform-specific compiler/linker flags.
  set(CEF_LIBTYPE STATIC)
  set(USE_SANDBOX OFF)

  list(APPEND CEF_COMPILER_FLAGS
    -fno-strict-aliasing            # Avoid assumptions regarding non-aliasing of objects of different types
    -funwind-tables                 # Support stack unwinding for backtrace()
    -fvisibility=hidden             # Give hidden visibility to declarations that are not explicitly marked as visible
    --param=ssp-buffer-size=4       # Set the minimum buffer size protected by SSP (security feature, related to stack-protector)
    -pipe                           # Use pipes rather than temporary files for communication between build stages
    -pthread                        # Use the pthread library
    -Wall                           # Enable all warnings
    -Wno-missing-field-initializers # Don't warn about missing field initializers
    -Wno-unused-parameter           # Don't warn about unused parameters
    -Wno-error=comment              # Don't warn about code in comments
    -Wno-comment                    # Don't warn about code in comments
    )
    # 需要注意的是, 我们不能启用 -fstack-protector 和 -Werror 参数, 因为前者在此处并不适用, 后者会将警告作为错误处理

  list(APPEND CEF_C_COMPILER_FLAGS
    -std=c99                        # Use the C99 language standard
    )
  list(APPEND CEF_CXX_COMPILER_FLAGS
    -fno-exceptions                 # Disable exceptions
    -fno-rtti                       # Disable real-time type information
    -fno-threadsafe-statics         # Don't generate thread-safe statics
    -fvisibility-inlines-hidden     # Give hidden visibility to inlined class member functions
    -std=gnu++11                    # Use the C++11 language standard including GNU extensions
    -Wsign-compare                  # Warn about mixed signed/unsigned type comparisons
    )
  list(APPEND CEF_COMPILER_FLAGS_DEBUG
    -O0                             # Disable optimizations
    -g                              # Generate debug information
    )
  list(APPEND CEF_COMPILER_FLAGS_RELEASE
    -O2                             # Optimize for maximum speed
    -fdata-sections                 # Enable linker optimizations to improve locality of reference for data sections
    -ffunction-sections             # Enable linker optimizations to improve locality of reference for function sections
    -fno-ident                      # Ignore the #ident directive
    -U_FORTIFY_SOURCE               # Undefine _FORTIFY_SOURCE in case it was previously defined
    -D_FORTIFY_SOURCE=2             # Add memory and string function protection (security feature, related to stack-protector)
    )
  list(APPEND CEF_LINKER_FLAGS
    -fPIC                           # Generate position-independent code for shared libraries
    -pthread                        # Use the pthread library
    -Wl,--disable-new-dtags         # Don't generate new-style dynamic tags in ELF
    -Wl,--fatal-warnings            # Treat warnings as errors
    -Wl,-rpath,.                    # Set rpath so that libraries can be placed next to the executable
    -Wl,-z,noexecstack              # Mark the stack as non-executable (security feature)
    -Wl,-z,now                      # Resolve symbols on program start instead of on first use (security feature)
    -Wl,-z,relro                    # Mark relocation sections as read-only (security feature)
    )
  list(APPEND CEF_LINKER_FLAGS_RELEASE
    -Wl,-O1                         # Enable linker optimizations
    -Wl,--as-needed                 # Only link libraries that export symbols used by the binary
    -Wl,--gc-sections               # Remove unused code resulting from -fdata-sections and -function-sections
    )
  list(APPEND CEF_COMPILER_DEFINES
    _FILE_OFFSET_BITS=64            # Allow the Large File Support (LFS) interface to replace the old interface
    )
  list(APPEND CEF_COMPILER_DEFINES_RELEASE
    NDEBUG                          # Not a debug build
    )

  include(CheckCCompilerFlag)
  include(CheckCXXCompilerFlag)

  CHECK_CXX_COMPILER_FLAG(-Wno-undefined-var-template COMPILER_SUPPORTS_NO_UNDEFINED_VAR_TEMPLATE)
  if(COMPILER_SUPPORTS_NO_UNDEFINED_VAR_TEMPLATE)
    list(APPEND CEF_CXX_COMPILER_FLAGS
      -Wno-undefined-var-template   # Don't warn about potentially uninstantiated static members
      )
  endif()

  CHECK_C_COMPILER_FLAG(-Wno-unused-local-typedefs COMPILER_SUPPORTS_NO_UNUSED_LOCAL_TYPEDEFS)
  if(COMPILER_SUPPORTS_NO_UNUSED_LOCAL_TYPEDEFS)
    list(APPEND CEF_C_COMPILER_FLAGS
      -Wno-unused-local-typedefs  # Don't warn about unused local typedefs
      )
  endif()

  CHECK_CXX_COMPILER_FLAG(-Wno-literal-suffix COMPILER_SUPPORTS_NO_LITERAL_SUFFIX)
  if(COMPILER_SUPPORTS_NO_LITERAL_SUFFIX)
    list(APPEND CEF_CXX_COMPILER_FLAGS
      -Wno-literal-suffix         # Don't warn about invalid suffixes on literals
      )
  endif()

  CHECK_CXX_COMPILER_FLAG(-Wno-narrowing COMPILER_SUPPORTS_NO_NARROWING)
  if(COMPILER_SUPPORTS_NO_NARROWING)
    list(APPEND CEF_CXX_COMPILER_FLAGS
      -Wno-narrowing              # Don't warn about type narrowing
      )
  endif()

  if ("${CMAKE_CXX_COMPILER_ID}" STREQUAL "GNU")
    list(APPEND CEF_CXX_COMPILER_FLAGS
      -Wno-attributes             # The cfi-icall attribute is not supported by the GNU C++ compiler
      )
  endif()

  if(PROJECT_ARCH STREQUAL "x86_64")
    # 64-bit architecture.
    list(APPEND CEF_COMPILER_FLAGS
      -m64
      -march=x86-64
      )
    list(APPEND CEF_LINKER_FLAGS
      -m64
      )
  elseif(PROJECT_ARCH STREQUAL "x86")
    # 32-bit architecture.
    list(APPEND CEF_COMPILER_FLAGS
      -msse2
      -mfpmath=sse
      -mmmx
      -m32
      )
    list(APPEND CEF_LINKER_FLAGS
      -m32
      )
  endif()

  # CEF directory paths.
  set(CEF_RESOURCE_DIR        "${_CEF_ROOT}/Resources")
  set(CEF_BINARY_DIR          "${_CEF_ROOT}/${CMAKE_BUILD_TYPE}")
  set(CEF_BINARY_DIR_DEBUG    "${_CEF_ROOT}/Debug")
  set(CEF_BINARY_DIR_RELEASE  "${_CEF_ROOT}/Release")

  # CEF library paths.
  set(CEF_LIB_DEBUG   "${CEF_BINARY_DIR_DEBUG}/libcef.lib")
  set(CEF_LIB_RELEASE "${CEF_BINARY_DIR_RELEASE}/libcef.lib")

  # List of CEF binary files.
  set(CEF_BINARY_FILES
    chrome_elf.dll
    d3dcompiler_47.dll
    libcef.dll
    libEGL.dll
    libGLESv2.dll
    snapshot_blob.bin
    v8_context_snapshot.bin
    swiftshader
    )

  # List of CEF resource files.
  set(CEF_RESOURCE_FILES
    cef.pak
    cef_100_percent.pak
    cef_200_percent.pak
    cef_extensions.pak
    devtools_resources.pak
    icudtl.dat
    locales
    )

  if(USE_SANDBOX)
    list(APPEND CEF_COMPILER_DEFINES
      PSAPI_VERSION=1   # Required by cef_sandbox.lib
      CEF_USE_SANDBOX   # Used by apps to test if the sandbox is enabled
      )

    # Libraries required by cef_sandbox.lib.
    set(CEF_SANDBOX_STANDARD_LIBS
      dbghelp.lib
      Delayimp.lib
      PowrProf.lib
      Propsys.lib
      psapi.lib
      SetupAPI.lib
      version.lib
      wbemuuid.lib
      winmm.lib
      )

    # CEF sandbox library paths.
    set(CEF_SANDBOX_LIB_DEBUG "${CEF_BINARY_DIR_DEBUG}/cef_sandbox.lib")
    set(CEF_SANDBOX_LIB_RELEASE "${CEF_BINARY_DIR_RELEASE}/cef_sandbox.lib")
  endif()
endif()

  4. 接着我们还需要对 libcef_dll_wrapper 库的源码做一些修改，因为其中为特定平台编写的代码并不适配 MinGW 。
    以下是一个修改内容的补丁示例（不同 CEF3 版本需要修改的内容可能不同，那时读者根据编译时的错误信息进行修改即可）：

    点击查看代码
    diff -r -u source/include/base/cef_atomicops.h modified/include/base/cef_atomicops.h
--- source/include/base/cef_atomicops.h	2020-11-19 12:16:38.000000000 +0800
+++ modified/include/base/cef_atomicops.h	2021-07-12 19:06:35.142175100 +0800
@@ -176,7 +176,7 @@
 }  // namespace base

 // Include our platform specific implementation.
-#if defined(OS_WIN) && defined(COMPILER_MSVC) && defined(ARCH_CPU_X86_FAMILY)
+#if defined(OS_WIN) && (defined(COMPILER_MSVC) || defined(__MINGW32__)) && defined(ARCH_CPU_X86_FAMILY)
 #include "include/base/internal/cef_atomicops_x86_msvc.h"
 #elif defined(OS_WIN) && (defined(__ARM_ARCH_ISA_A64) || defined(_M_ARM64))
 #include "include/base/internal/cef_atomicops_arm64_msvc.h"
diff -r -u source/include/base/internal/cef_atomicops_x86_msvc.h modified/include/base/internal/cef_atomicops_x86_msvc.h
--- source/include/base/internal/cef_atomicops_x86_msvc.h	2020-11-19 12:16:38.000000000 +0800
+++ modified/include/base/internal/cef_atomicops_x86_msvc.h	2021-07-12 19:06:58.852531300 +0800
@@ -79,7 +79,7 @@
   return Barrier_AtomicIncrement(ptr, increment);
 }

-#if !(defined(_MSC_VER) && _MSC_VER >= 1400)
+#if !(defined(_MSC_VER) && _MSC_VER >= 1400) && !defined(__MINGW32__)
 #error "We require at least vs2005 for MemoryBarrier"
 #endif
 inline void MemoryBarrier() {
diff -r -u source/include/internal/cef_export.h modified/include/internal/cef_export.h
--- source/include/internal/cef_export.h	2020-11-19 12:16:38.000000000 +0800
+++ modified/include/internal/cef_export.h	2021-07-12 19:08:16.620979400 +0800
@@ -44,7 +44,7 @@
 #define CEF_EXPORT
 #endif

-#elif defined(COMPILER_GCC)
+#elif defined(COMPILER_GCC) || defined(__MINGW32__)

 #define CEF_EXPORT __attribute__((visibility("default")))

diff -r -u source/include/internal/cef_string_wrappers.h modified/include/internal/cef_string_wrappers.h
--- source/include/internal/cef_string_wrappers.h	2020-11-19 12:16:38.000000000 +0800
+++ modified/include/internal/cef_string_wrappers.h	2021-07-12 19:09:30.971232000 +0800
@@ -34,6 +34,10 @@
 #include <memory.h>
 #include <string>

+#if defined(__MINGW32__)
+    #include <cstring>
+#endif
+
 #include "include/base/cef_string16.h"
 #include "include/internal/cef_string_types.h"

diff -r -u source/libcef_dll/base/cef_logging.cc modified/libcef_dll/base/cef_logging.cc
--- source/libcef_dll/base/cef_logging.cc	2020-11-19 12:16:38.000000000 +0800
+++ modified/libcef_dll/base/cef_logging.cc	2021-07-12 19:05:43.059196200 +0800
@@ -9,7 +9,7 @@
 #include <windows.h>
 #include <algorithm>
 #include <sstream>
-#elif defined(OS_POSIX)
+#elif defined(OS_POSIX) || defined(__MINGW32__)
 #include <errno.h>
 #include <stdio.h>
 #include <string.h>

  5. 然后在 CEF3 根目录下创建如下所示的构建脚本 build.bat：

    @echo OFF

mkdir build
cd build

::!!!设置你的 Qt MinGW 安装路径至环境变量!!!
set PATH=D:\IDE\Qt\Qt5.6.3\Tools\mingw492_32\bin;%PATH%

cmake -G "MinGW Makefiles" -DPROJECT_ARCH="x86" -DCMAKE_BUILD_TYPE="Release" ..
cmake --build ./ --target libcef_dll_wrapper -- -j4

pause

  6. 执行脚本，等待构建完成后，读者可在 build\libcef_dll_wrapper 目录下找到 libcef_dll_wrapper 静态库。至此，整个构建工作已完毕。
