利用Kafaka发送系统通知（二十七）

事件驱动的方式

1 需求分析

需求：当用户评论帖子，点赞或关注其他用户时，系统给对应的用户发送通知。

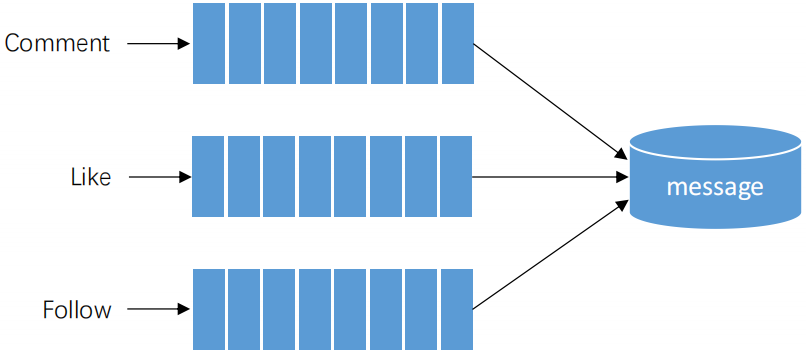

思路：封装好一个通用的事件类，保存事件的发送者，接受者、事件主题（评论、点赞、关注）和事件内容。当用户有评论点赞等行为时，构造事件类。通过Kafaka，生产者将事件发布不同的主题，同时消费者监听不同的主题并作出相应的处理（这里为了简单起见将不同的主题一起监听）。

2 处理事件

• 封装事件对象
  event.java

set方法返回this，方便连续调用set方法

import java.util.HashMap;
import java.util.Map;

public class Event {

    private String topic;
    // 发送者
    private int userId;
    private int entityType;
    private int entityId;
    // 接收者
    private int entityUserId;
    private Map<String, Object> data = new HashMap<>();

    public String getTopic() {
        return topic;
    }

    public Event setTopic(String topic) {
        this.topic = topic;
        return this;
    }

    public int getUserId() {
        return userId;
    }

    public Event setUserId(int userId) {
        this.userId = userId;
        return this;
    }

    public int getEntityType() {
        return entityType;
    }

    public Event setEntityType(int entityType) {
        this.entityType = entityType;
        return this;
    }

    public int getEntityId() {
        return entityId;
    }

    public Event setEntityId(int entityId) {
        this.entityId = entityId;
        return this;
    }

    public int getEntityUserId() {
        return entityUserId;
    }

    public Event setEntityUserId(int entityUserId) {
        this.entityUserId = entityUserId;
        return this;
    }

    public Map<String, Object> getData() {
        return data;
    }

    public Event setData(String key, Object value) {
        this.data.put(key, value);
        return this;
    }
}

• 开发事件的生产者

主动触发

import com.alibaba.fastjson.JSONObject;
import com.nowcoder.community.entity.Event;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.kafka.core.KafkaTemplate;
import org.springframework.stereotype.Component;

@Component
public class EventProducer {

    @Autowired
    private KafkaTemplate kafkaTemplate;

    // 处理事件
    public void fireEvent(Event event) {
        // 将事件发布到指定的主题
        kafkaTemplate.send(event.getTopic(), JSONObject.toJSONString(event));
    }

}

• 开发事件的消费者

被动触发

主题定义CommunityConstant.java

public interface CommunityConstant {
    /**
     * 主题: 评论
     */
    String TOPIC_COMMENT = "comment";

    /**
     * 主题: 点赞
     */
    String TOPIC_LIKE = "like";

    /**
     * 主题: 关注
     */
    String TOPIC_FOLLOW = "follow";

    /**
     * 系统用户ID
     */
    int SYSTEM_USER_ID = 1;

}

事件消费者EventConsumer.java

import com.alibaba.fastjson.JSONObject;
import com.nowcoder.community.entity.Event;
import com.nowcoder.community.entity.Message;
import com.nowcoder.community.service.MessageService;
import com.nowcoder.community.util.CommunityConstant;
import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.kafka.annotation.KafkaListener;
import org.springframework.stereotype.Component;

import java.util.Date;
import java.util.HashMap;
import java.util.Map;

@Component
public class EventConsumer implements CommunityConstant {

    private static final Logger logger = LoggerFactory.getLogger(EventConsumer.class);

    @Autowired
    private MessageService messageService;

    @KafkaListener(topics = {TOPIC_COMMENT, TOPIC_LIKE, TOPIC_FOLLOW})
    public void handleCommentMessage(ConsumerRecord record) {
        if (record == null || record.value() == null) {
            logger.error("消息的内容为空!");
            return;
        }

        Event event = JSONObject.parseObject(record.value().toString(), Event.class);
        if (event == null) {
            logger.error("消息格式错误!");
            return;
        }

        // 发送站内通知
        Message message = new Message();
        message.setFromId(SYSTEM_USER_ID);
        message.setToId(event.getEntityUserId());
        message.setConversationId(event.getTopic());
        message.setCreateTime(new Date());

        // 构造消息内容
        Map<String, Object> content = new HashMap<>();
        content.put("userId", event.getUserId());
        content.put("entityType", event.getEntityType());
        content.put("entityId", event.getEntityId());

        // 存放额外内容
        if (!event.getData().isEmpty()) {
            for (Map.Entry<String, Object> entry : event.getData().entrySet()) {
                content.put(entry.getKey(), entry.getValue());
            }
        }

        // 将数据存到message表
        message.setContent(JSONObject.toJSONString(content));
        messageService.addMessage(message);
    }
}

3 触发事件

• 评论后，发布通知
• 点赞后，发布通知
• 关注后，发布通知

以评论为例CommentController.java

import com.nowcoder.community.entity.Comment;
import com.nowcoder.community.entity.DiscussPost;
import com.nowcoder.community.entity.Event;
import com.nowcoder.community.event.EventProducer;
import com.nowcoder.community.service.CommentService;
import com.nowcoder.community.service.DiscussPostService;
import com.nowcoder.community.util.CommunityConstant;
import com.nowcoder.community.util.HostHolder;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

import java.util.Date;

@Controller
@RequestMapping("/comment")
public class CommentController implements CommunityConstant {

    @Autowired
    private CommentService commentService;

    @Autowired
    private HostHolder hostHolder;

    @Autowired
    private EventProducer eventProducer;

    @Autowired
    private DiscussPostService discussPostService;

    @RequestMapping(path = "/add/{discussPostId}", method = RequestMethod.POST)
    public String addComment(@PathVariable("discussPostId") int discussPostId, Comment comment) {
        comment.setUserId(hostHolder.getUser().getId());
        comment.setStatus(0);
        comment.setCreateTime(new Date());
        commentService.addComment(comment);

        // 触发评论事件
        Event event = new Event()
                .setTopic(TOPIC_COMMENT)
                .setUserId(hostHolder.getUser().getId())
                .setEntityType(comment.getEntityType())
                .setEntityId(comment.getEntityId())
                .setData("postId", discussPostId);
        if (comment.getEntityType() == ENTITY_TYPE_POST) {
            DiscussPost target = discussPostService.findDiscussPostById(comment.getEntityId());
            event.setEntityUserId(target.getUserId());
        } else if (comment.getEntityType() == ENTITY_TYPE_COMMENT) {
            Comment target = commentService.findCommentById(comment.getEntityId());
            event.setEntityUserId(target.getUserId());
        }
        eventProducer.fireEvent(event);

        return "redirect:/discuss/detail/" + discussPostId;
    }
}

4 显示通知

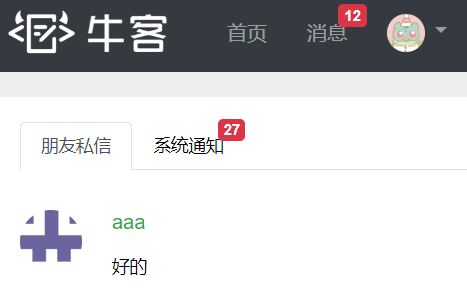

用户进入个人通知页面时，查询该用户的各种通知消息，封装到Map中提供模板使用。具体步骤略。

Message.java

    // ...
    // 查询某个主题下最新的通知
    Message selectLatestNotice(int userId, String topic);

    // 查询某个主题所包含的通知数量
    int selectNoticeCount(int userId, String topic);

    // 查询未读的通知的数量
    int selectNoticeUnreadCount(int userId, String topic);

    // 查询某个主题所包含的通知列表
    List<Message> selectNotices(int userId, String topic, int offset, int limit);

message-mapper.xml

    <select id="selectLatestNotice" resultType="Message">
        select <include refid="selectFields"></include>
        from message
        where id in (
            select max(id) from message
            where status != 2
            and from_id = 1
            and to_id = #{userId}
            and conversation_id = #{topic}
        )
    </select>

    <select id="selectNoticeCount" resultType="int">
        select count(id) from message
        where status != 2
        and from_id = 1
        and to_id = #{userId}
        and conversation_id = #{topic}
    </select>

    <select id="selectNoticeUnreadCount" resultType="int">
        select count(id) from message
        where status = 0
        and from_id = 1
        and to_id = #{userId}
        <if test="topic!=null">
            and conversation_id = #{topic}
        </if>
    </select>
