Cisco Extension Mobility配置步骤详解

实验环境：CUCM 7.X
应用场景：
西三旗CCIE集训营集团卡普公司员工无固定工位，员工选择了工位后，在电话上输入自己的用户信息后，自己的电话号码可以出现在工位任一台phone上；

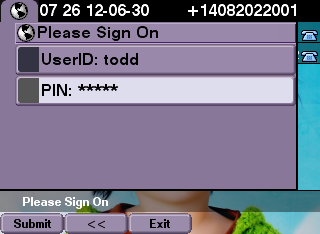

西三旗CCIE集训营集团是一个全球知名跨国公司，员工Todd的base在北京，他去日本或者美国分公司检查工作，在当地电话输入自己的用户名密码后，自己在北京的电话号码和中文信息出现在电话上。
目的：为员工Ｔｏｄｄ．Ｚ建立ＥＭ。
知识背景：

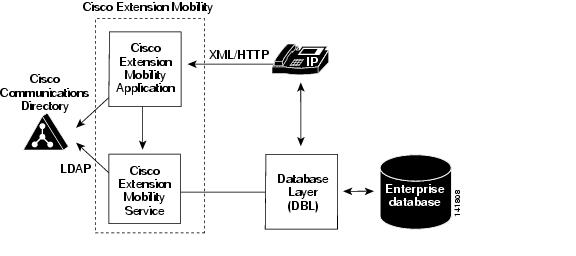

Cisco Extension Mobility (an XML-based authentication feature) comprises the Cisco Extension Mobility application service and the Cisco Extension Mobility service. You need to activate the Cisco Extension Mobility service from Cisco Unified Serviceability to enable EM.

操作步骤：

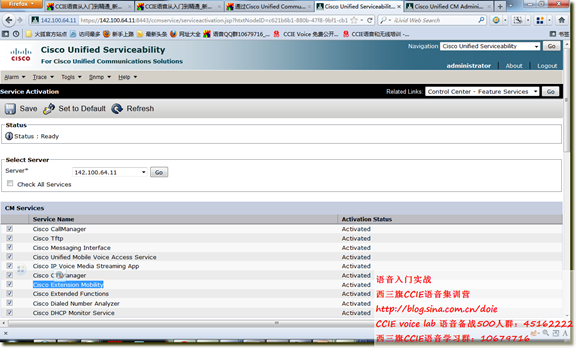

第一步:激活EM服务
Using Cisco Unified Serviceability, choose Tools > Service Activation to activate the Cisco Extension Mobility service.

第二步:创建EM服务

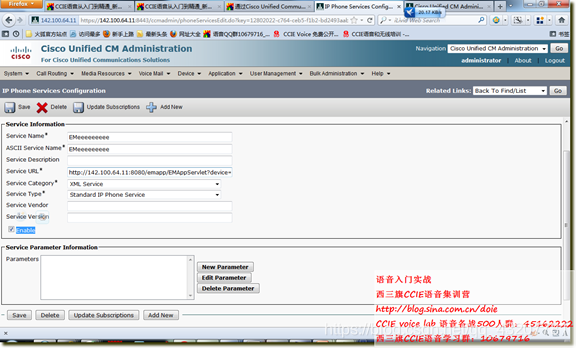

Create the Cisco Extension Mobility Service.
Summary steps include

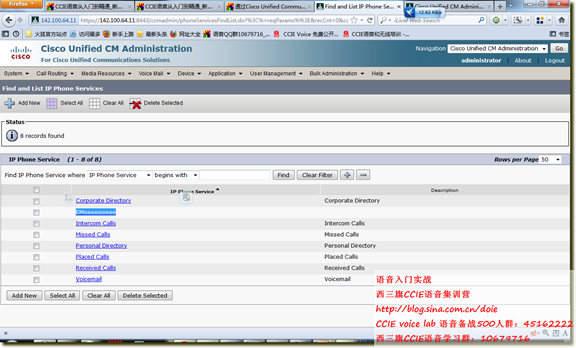

Choose Device > Device Settings > Phone Services.
Enter the service name (such as, Extension Mobility Service or EM).
Enter the following URL: http://142.100.64.11:8080/emapp/EMAppServlet?device=#DEVICENAME#

第三步:配置管理参数

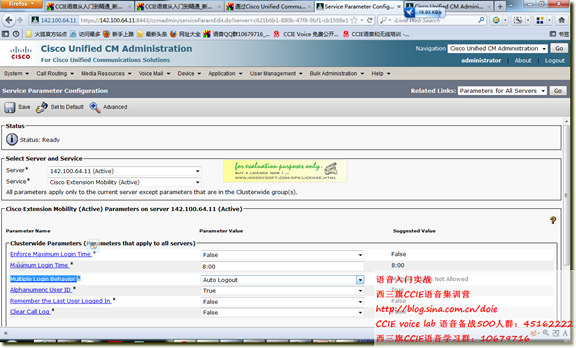

Configure administration parameters.

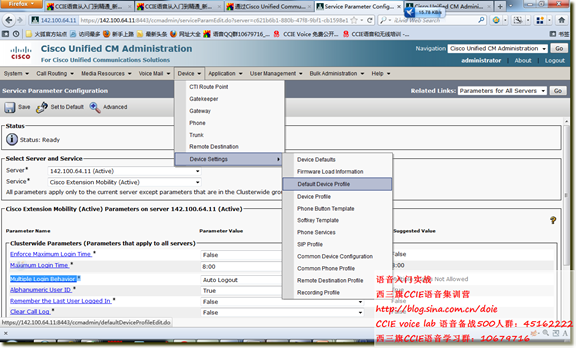

第四步:创建缺省的设备脚本
Create a default device profile for each phone type that you want to support Cisco Extension Mobility.

第五步:创建用户脚本

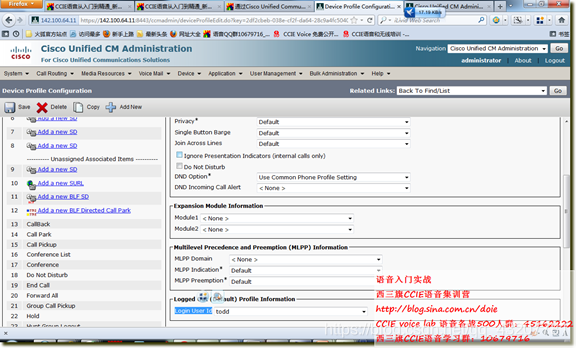

Create the user device profile for a user.
Summary steps include
Choose Device > Device Settings >Device Profile and click Add New.

第六步:关联用户设备脚本和用户

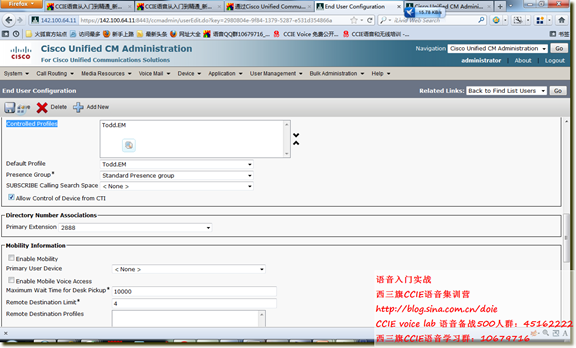

Associate a user device profile to a user.
Summary steps include

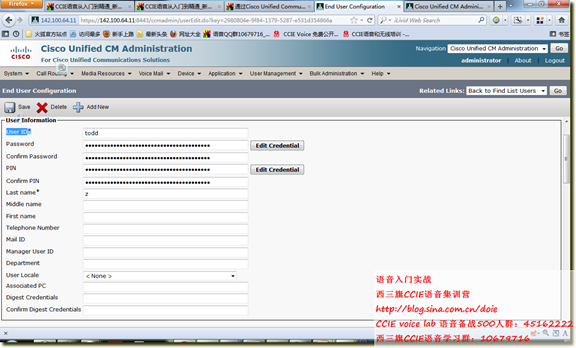

Choose User Management > End User and click Add New; enter user information.

第七步:将EM服务应用到phone，用户设备脚本应用在EM
Configure and subscribe Cisco Unified IP Phone and user device profile to Cisco Extension Mobility.
Summary steps include
Subscribe the phone and the user device profile to Cisco Extension Mobility.

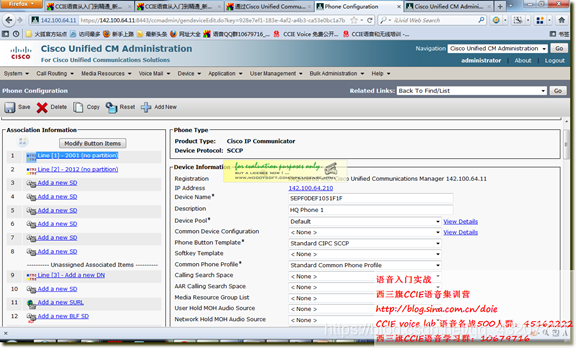

Choose Device > Phone and click Add New.

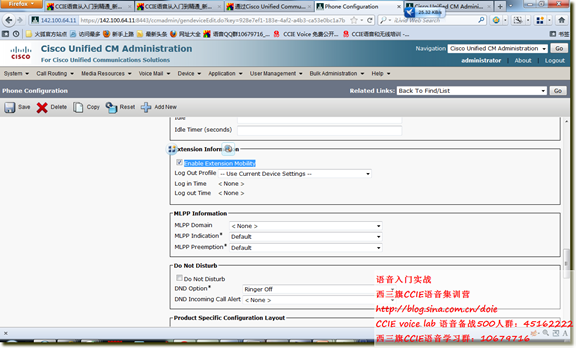

On the Phone Configuration window, in Extension Information, check Enable Extension Mobility.
In the Log Out Profile drop-down list box, choose Use Current Device Settings or a specific configured profile and click Save.

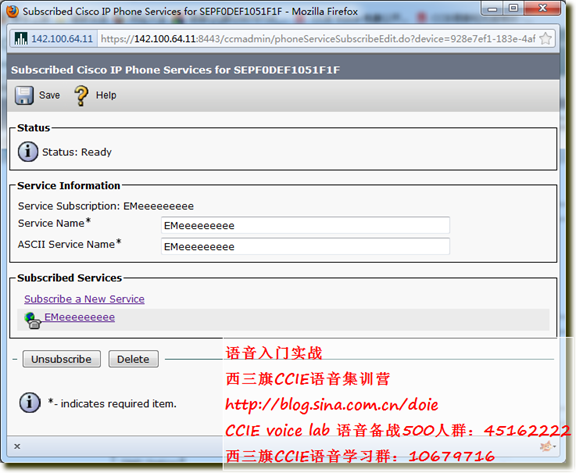

To subscribe Cisco Extension Mobility to the Cisco Unified IP Phone, go to the Related Links drop-down list box in the upper, right corner of the window and choose Subscribe/Unsubscribe Services; then, click Go.
