stm32寄存器版学习笔记外部中断

stm32的每个I/O口都可以作为中断输入，要把I/O口设置为外部中断输入，必须将I/O口设置为上拉/下拉输入或浮空输入

(但浮空的时候外部一定要带上拉或下拉电阻，否则可能导致中断不停的触发)，

干扰大时，上拉/下拉输入模式也建议使用外部上拉/下拉电阻。

①初始化I/O口为输入（上下拉输入）

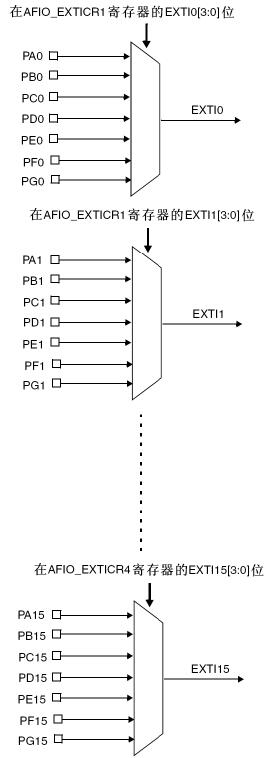

②开启I/O口复用时钟，设置I/O口与中断线的映射关系

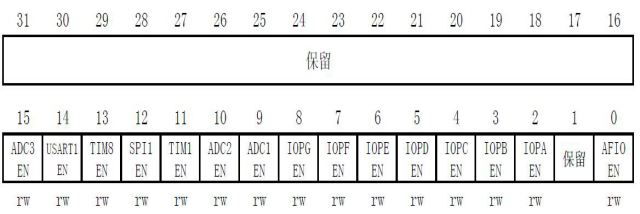

　APB2外设时钟使能寄存器(RCC_APB2ENR)

　Eg：RCC->APB2ENR|=0x01;//使能io复用时钟 AFIO 复用时钟

③开启与该I/O口相对的线上中断/事件，设置触发条件

stm32可以配置成上升沿触发、下降沿触发或任意电平变化触发。

这一步封装在函数void Ex_NVIC_Config(u8 GPIOx,u8 BITx,u8 TRIM) 中，可以直接调用。(有详细说明在第2点)

typedef struct
{
__IO uint32_t IMR; //中断屏蔽寄存器
__IO uint32_t EMR; //事件屏蔽寄存器
__IO uint32_t RTSR; //上升沿触发选择寄存器
__IO uint32_t FTSR; //下降沿触发选择寄存器
__IO uint32_t SWIER; //软件中断事件寄存器
__IO uint32_t PR; //挂起寄存器
} EXTI_TypeDef;

　　Eg：Ex_NVIC_Config(GPIO_A,0,RTIR); //设置PA0上升沿触发

　　 Ex_NVIC_Config(GPIO _C,13,FTIR);//设置PC13下降沿触发

　　　　可以同时设置上升沿触发和下降沿触发，即任意电平变化触发

④配置中断分组(NVIC)，并使能中断

只有配置了NVIC的设置并开启才能被执行，否则不执行到中断服务函数中去。

这一步封装在函数void MY_NVIC_Init(u8 NVIC_PreemptionPriority,u8 NVIC_SubPriority,u8 NVIC_Channel,u8 NVIC_Group) 里面可以直接调用。 (在第3点详细介绍)

　EG：MY_NVIC_Init(2,2,EXTI0_IRQn,2); //抢占2，子优先级2，组2

　　　　MY_NVIC_Init(2,1,EXTI9_5_IRQn,2); //抢占2，子优先级1，组2

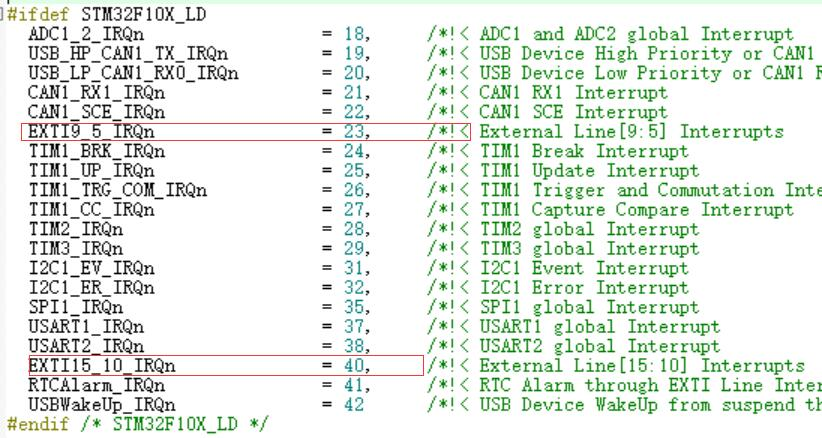

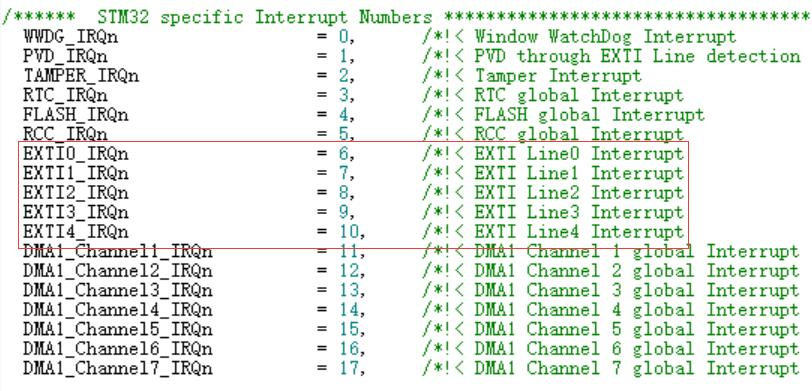

注意：stm32的外部中断0-4都有单独的中断服务函数，但是从5开始就没有单独的服务函数了，而是多个中断共用一个服务函数，比如外部中断5-9的中断服务函数为void EXTI9_5_IRQHandler(void)，外部中断10-15的中断服务函数为void EXTI15_10_IRQHandler(void).

⑤编写中断服务函数

　　Eg://外部中断9~5服务程序

　　　　void EXTI9_5_IRQHandler(void)
　　　　{
　　　　　　//add your code
　　　　　　EXTI->PR=1<<5; //清除LINE5上的中断标志位
　　　　}

2. 关于void Ex_NVIC_Config(u8 GPIOx,u8 BITx,u8 TRIM)函数

  //外部中断配置函数
  //只针对GPIOA~G;不包括PVD,RTC和USB唤醒这三个
  //参数:
  //GPIOx:0~6,代表GPIOA~G
  //BITx:需要使能的位;
  //TRIM:触发模式,1,下升沿;2,上降沿;3，任意电平触发
  //该函数一次只能配置1个IO口,多个IO口,需多次调用
  //该函数会自动开启对应中断,以及屏蔽线
  void Ex_NVIC_Config(u8 GPIOx,u8 BITx,u8 TRIM)
 {
     u8 EXTADDR;
     u8 EXTOFFSET;
     EXTADDR=BITx/4;//得到中断寄存器组的编号
     EXTOFFSET=(BITx%4)*4;
     RCC->APB2ENR|=0x01;//使能io复用时钟
     AFIO->EXTICR[EXTADDR]&=~(0x000F<<EXTOFFSET);//清除原来设置！！！
     AFIO->EXTICR[EXTADDR]|=GPIOx<<EXTOFFSET;//EXTI.BITx映射到GPIOx.BITx
     //自动设置
     EXTI->IMR|=1<<BITx;//  开启line BITx上的中断
     //EXTI->EMR|=1<<BITx;//不屏蔽line BITx上的事件 (如果不屏蔽这句,在硬件上是可以的,但是在软件仿真的时候无法进入中断!)
      if(TRIM&0x01)EXTI->FTSR|=1<<BITx;//line BITx上事件下降沿触发
     if(TRIM&0x02)EXTI->RTSR|=1<<BITx;//line BITx上事件上升降沿触发
 }

程序解析：

① EXTADDR 为计算的中段寄存器组号。AFIO->EXTICR[EXTADDR]。

EXTOFFSET 为偏移地址，就是设置配置寄存器的第几位。

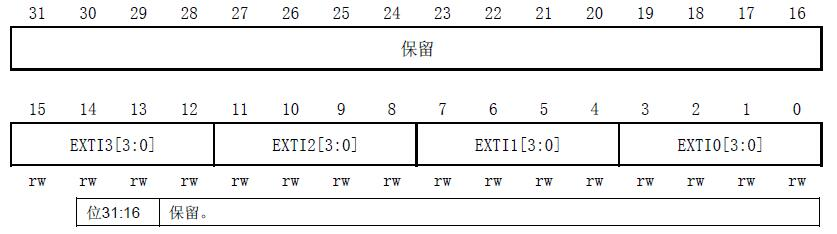

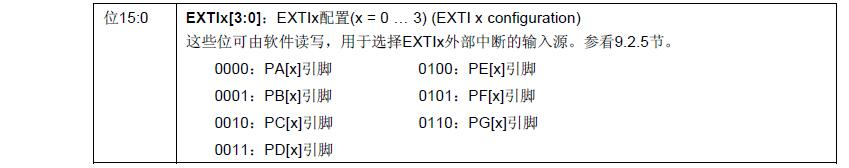

外部中断配置寄存器1(AFIO_EXTICR1)

外部中断配置寄存器2(AFIO_EXTICR2)

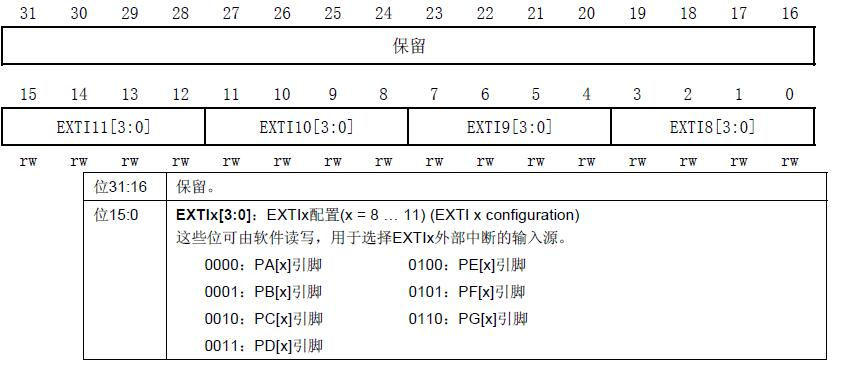

外部中断配置寄存器3(AFIO_EXTICR3)

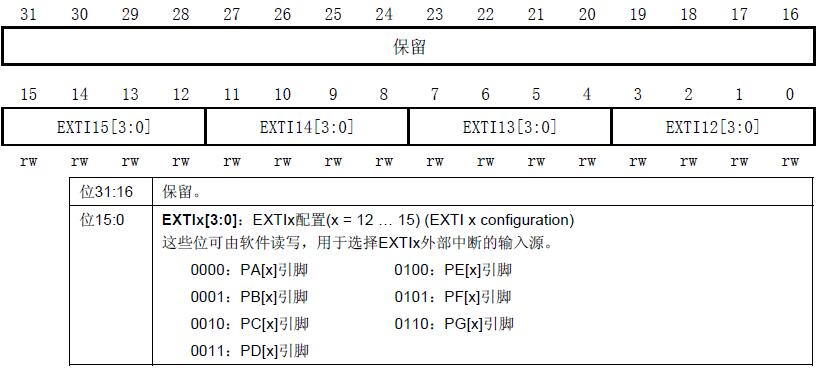

外部中断配置寄存器4(AFIO_EXTICR4)

②中断屏蔽寄存器(EXTI_IMR)

Eg：EXTI->IMR|=1<<BITx;// 开启line BITx上的中断

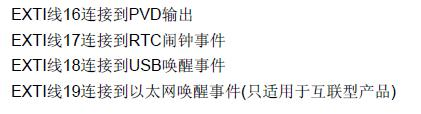

关于 line x

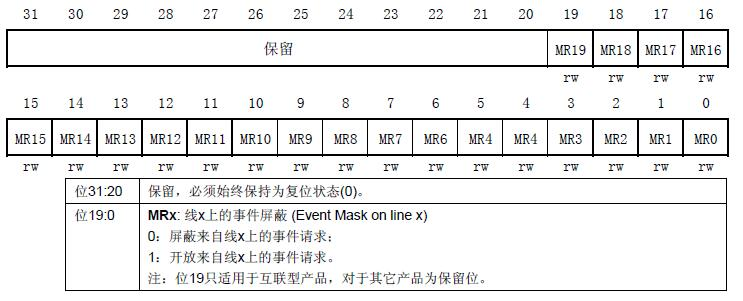

事件屏蔽寄存器(EXTI_EMR)

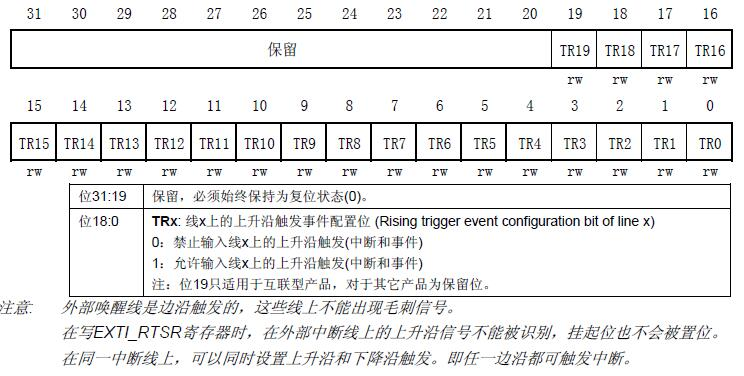

③ 上升沿触发选择寄存器(EXTI_RTSR)

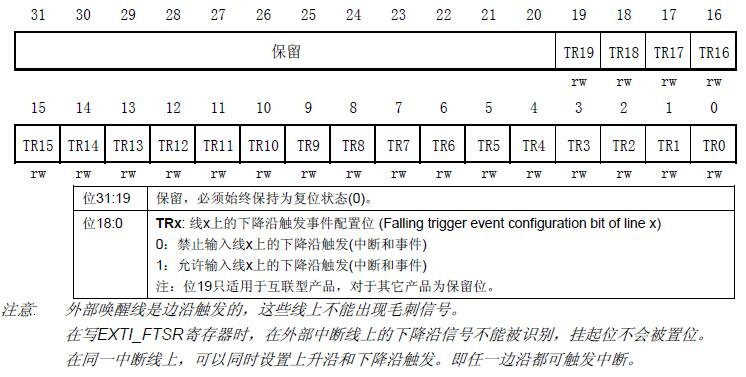

下降沿触发选择寄存器(EXTI_FTSR)

Eg：//TRIM:触发模式,1,下升沿;2,上降沿;3，任意电平触发

if(TRIM&0x01)EXTI->FTSR|=1<<BITx;//line BITx上事件下降沿触发
if(TRIM&0x02)EXTI->RTSR|=1<<BITx;//line BITx上事件上升降沿触发

TRIM = 3,即同时设置上升沿和下降沿触发，即任意电平变化触发。

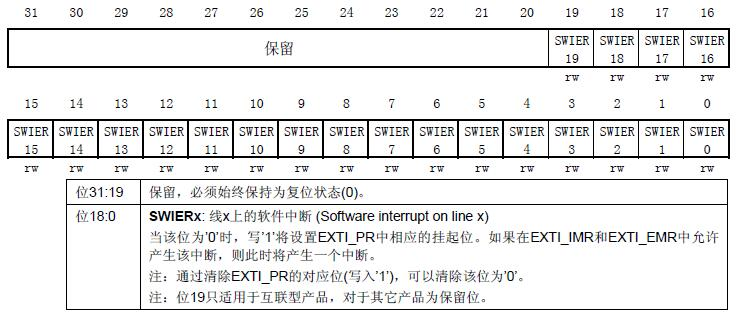

软件中断事件寄存器(EXTI_SWIER)

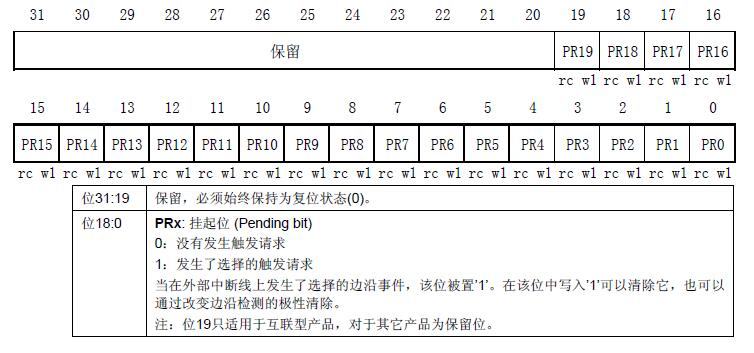

挂起寄存器(EXTI_PR)

3. 关于void MY_NVIC_Init(u8 NVIC_PreemptionPriority,u8 NVIC_SubPriority,u8 NVIC_Channel,u8 NVIC_Group) 函数

//设置向量表偏移地址
//NVIC_VectTab:基址
//Offset:偏移量
void MY_NVIC_SetVectorTable(u32 NVIC_VectTab, u32 Offset)
{
SCB->VTOR = NVIC_VectTab|(Offset & (u32)0x1FFFFF80);//设置NVIC的向量表偏移寄存器
//用于标识向量表是在CODE区还是在RAM区
}
//设置NVIC分组
//NVIC_Group:NVIC分组 0~4 总共5组
void MY_NVIC_PriorityGroupConfig(u8 NVIC_Group)
{
u32 temp,temp1;
temp1=(~NVIC_Group)&0x07;//取后三位
temp1<<=8;
temp=SCB->AIRCR; //读取先前的设置
temp&=0X0000F8FF; //清空先前分组
temp|=0X05FA0000; //写入钥匙
temp|=temp1;
SCB->AIRCR=temp; //设置分组
}
//设置NVIC
//NVIC_PreemptionPriority:抢占优先级
//NVIC_SubPriority :响应优先级
//NVIC_Channel :中断编号
//NVIC_Group :中断分组 0~4
//注意优先级不能超过设定的组的范围!否则会有意想不到的错误
//组划分:
//组0:0位抢占优先级,4位响应优先级
//组1:1位抢占优先级,3位响应优先级
//组2:2位抢占优先级,2位响应优先级
//组3:3位抢占优先级,1位响应优先级
//组4:4位抢占优先级,0位响应优先级
//NVIC_SubPriority和NVIC_PreemptionPriority的原则是,数值越小,越优先
void MY_NVIC_Init(u8 NVIC_PreemptionPriority,u8 NVIC_SubPriority,u8 NVIC_Channel,u8 NVIC_Group)
{
u32 temp;
MY_NVIC_PriorityGroupConfig(NVIC_Group);//设置分组
temp=NVIC_PreemptionPriority<<(4-NVIC_Group);
temp|=NVIC_SubPriority&(0x0f>>NVIC_Group);
temp&=0xf;//取低四位
NVIC->ISER[NVIC_Channel/32]|=(1<<NVIC_Channel%32);//使能中断位(要清除的话,相反操作就OK)
NVIC->IP[NVIC_Channel]|=temp<<4;//设置响应优先级和抢断优先级
}

在Cortex-M3内核支持256个中断(16个内核中断，240外部中断)，并且具有256级的可编程中断设置。stm32并没有使用Cortex-M3内核全部配设。stm32有84个中断(16个内核中断，68可屏蔽中断)，具有16级可编程的中断优先级。68可屏蔽中断在stm32f103系列上只有60个。

/* memory mapping struct for Nested Vectored Interrupt Controller (NVIC) */
typedef struct
{

__IO uint32_t ISER[8]; /*!< Interrupt Set Enable Register */
uint32_t RESERVED0[24];
__IO uint32_t ICER[8]; /*!< Interrupt Clear Enable Register */
uint32_t RSERVED1[24];
__IO uint32_t ISPR[8]; /*!< Interrupt Set Pending Register */
uint32_t RESERVED2[24];
__IO uint32_t ICPR[8]; /*!< Interrupt Clear Pending Register */
uint32_t RESERVED3[24];
__IO uint32_t IABR[8]; /*!< Interrupt Active bit Register */
uint32_t RESERVED4[56];
__IO uint8_t IP[240]; /*!< Interrupt Priority Register, 8Bit wide */
uint32_t RESERVED5[644];
__O uint32_t STIR; /*!< Software Trigger Interrupt Register */

} NVIC_Type;

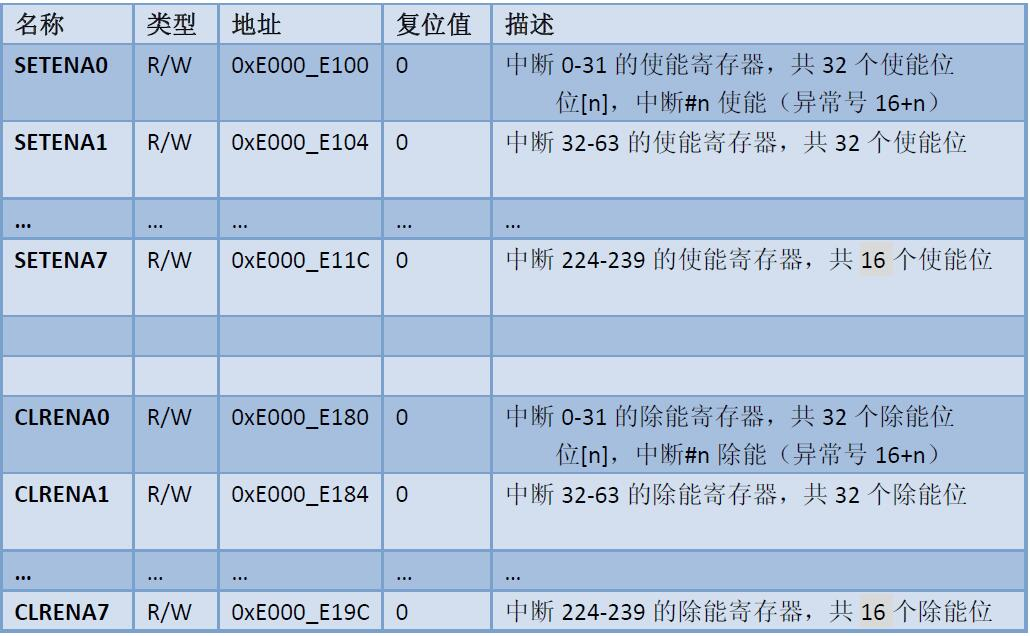

ISER[8]：Interrupt Set-Enable Registers 中断使能寄存器　　

　　Cortex-M3内核支持256个中断，8个32位寄存器控制。stm32只用了前68位。ISER[0]的bit0~31对于中断0~31，ISER[1]的bit0~31对于中断32~63，ISER[2]的bit0~3对应中断64~67；要使能某个中断，必须设置相应的ISER位为1，是该中断被使能。

每一位对应中断

1 typedef enum IRQn
2 {
3 /****** Cortex-M3 Processor Exceptions Numbers ***************************************************/
4 NonMaskableInt_IRQn = -14, /*!< 2 Non Maskable Interrupt */
5 MemoryManagement_IRQn = -12, /*!< 4 Cortex-M3 Memory Management Interrupt */
6 BusFault_IRQn = -11, /*!< 5 Cortex-M3 Bus Fault Interrupt */
7 UsageFault_IRQn = -10, /*!< 6 Cortex-M3 Usage Fault Interrupt */
8 SVCall_IRQn = -5, /*!< 11 Cortex-M3 SV Call Interrupt */
9 DebugMonitor_IRQn = -4, /*!< 12 Cortex-M3 Debug Monitor Interrupt */
10 PendSV_IRQn = -2, /*!< 14 Cortex-M3 Pend SV Interrupt */
11 SysTick_IRQn = -1, /*!< 15 Cortex-M3 System Tick Interrupt */
12
13 /****** STM32 specific Interrupt Numbers *********************************************************/
14 WWDG_IRQn = 0, /*!< Window WatchDog Interrupt */
15 PVD_IRQn = 1, /*!< PVD through EXTI Line detection Interrupt */
16 TAMPER_IRQn = 2, /*!< Tamper Interrupt */
17 RTC_IRQn = 3, /*!< RTC global Interrupt */
18 FLASH_IRQn = 4, /*!< FLASH global Interrupt */
19 RCC_IRQn = 5, /*!< RCC global Interrupt */
20 EXTI0_IRQn = 6, /*!< EXTI Line0 Interrupt */
21 EXTI1_IRQn = 7, /*!< EXTI Line1 Interrupt */
22 EXTI2_IRQn = 8, /*!< EXTI Line2 Interrupt */
23 EXTI3_IRQn = 9, /*!< EXTI Line3 Interrupt */
24 EXTI4_IRQn = 10, /*!< EXTI Line4 Interrupt */
25 DMA1_Channel1_IRQn = 11, /*!< DMA1 Channel 1 global Interrupt */
26 DMA1_Channel2_IRQn = 12, /*!< DMA1 Channel 2 global Interrupt */
27 DMA1_Channel3_IRQn = 13, /*!< DMA1 Channel 3 global Interrupt */
28 DMA1_Channel4_IRQn = 14, /*!< DMA1 Channel 4 global Interrupt */
29 DMA1_Channel5_IRQn = 15, /*!< DMA1 Channel 5 global Interrupt */
30 DMA1_Channel6_IRQn = 16, /*!< DMA1 Channel 6 global Interrupt */
31 DMA1_Channel7_IRQn = 17, /*!< DMA1 Channel 7 global Interrupt */
32
33 #ifdef STM32F10X_LD
34 ADC1_2_IRQn = 18, /*!< ADC1 and ADC2 global Interrupt */
35 USB_HP_CAN1_TX_IRQn = 19, /*!< USB Device High Priority or CAN1 TX Interrupts */
36 USB_LP_CAN1_RX0_IRQn = 20, /*!< USB Device Low Priority or CAN1 RX0 Interrupts */
37 CAN1_RX1_IRQn = 21, /*!< CAN1 RX1 Interrupt */
38 CAN1_SCE_IRQn = 22, /*!< CAN1 SCE Interrupt */
39 EXTI9_5_IRQn = 23, /*!< External Line[9:5] Interrupts */
40 TIM1_BRK_IRQn = 24, /*!< TIM1 Break Interrupt */
41 TIM1_UP_IRQn = 25, /*!< TIM1 Update Interrupt */
42 TIM1_TRG_COM_IRQn = 26, /*!< TIM1 Trigger and Commutation Interrupt */
43 TIM1_CC_IRQn = 27, /*!< TIM1 Capture Compare Interrupt */
44 TIM2_IRQn = 28, /*!< TIM2 global Interrupt */
45 TIM3_IRQn = 29, /*!< TIM3 global Interrupt */
46 I2C1_EV_IRQn = 31, /*!< I2C1 Event Interrupt */
47 I2C1_ER_IRQn = 32, /*!< I2C1 Error Interrupt */
48 SPI1_IRQn = 35, /*!< SPI1 global Interrupt */
49 USART1_IRQn = 37, /*!< USART1 global Interrupt */
50 USART2_IRQn = 38, /*!< USART2 global Interrupt */
51 EXTI15_10_IRQn = 40, /*!< External Line[15:10] Interrupts */
52 RTCAlarm_IRQn = 41, /*!< RTC Alarm through EXTI Line Interrupt */
53 USBWakeUp_IRQn = 42 /*!< USB Device WakeUp from suspend through EXTI Line Interrupt */
54 #endif /* STM32F10X_LD */
55
56 #ifdef STM32F10X_LD_VL
57 ADC1_IRQn = 18, /*!< ADC1 global Interrupt */
58 EXTI9_5_IRQn = 23, /*!< External Line[9:5] Interrupts */
59 TIM1_BRK_TIM15_IRQn = 24, /*!< TIM1 Break and TIM15 Interrupts */
60 TIM1_UP_TIM16_IRQn = 25, /*!< TIM1 Update and TIM16 Interrupts */
61 TIM1_TRG_COM_TIM17_IRQn = 26, /*!< TIM1 Trigger and Commutation and TIM17 Interrupt */
62 TIM1_CC_IRQn = 27, /*!< TIM1 Capture Compare Interrupt */
63 TIM2_IRQn = 28, /*!< TIM2 global Interrupt */
64 TIM3_IRQn = 29, /*!< TIM3 global Interrupt */
65 I2C1_EV_IRQn = 31, /*!< I2C1 Event Interrupt */
66 I2C1_ER_IRQn = 32, /*!< I2C1 Error Interrupt */
67 SPI1_IRQn = 35, /*!< SPI1 global Interrupt */
68 USART1_IRQn = 37, /*!< USART1 global Interrupt */
69 USART2_IRQn = 38, /*!< USART2 global Interrupt */
70 EXTI15_10_IRQn = 40, /*!< External Line[15:10] Interrupts */
71 RTCAlarm_IRQn = 41, /*!< RTC Alarm through EXTI Line Interrupt */
72 CEC_IRQn = 42, /*!< HDMI-CEC Interrupt */
73 TIM6_DAC_IRQn = 54, /*!< TIM6 and DAC underrun Interrupt */
74 TIM7_IRQn = 55 /*!< TIM7 Interrupt */
75 #endif /* STM32F10X_LD_VL */
76
77 #ifdef STM32F10X_MD
78 ADC1_2_IRQn = 18, /*!< ADC1 and ADC2 global Interrupt */
79 USB_HP_CAN1_TX_IRQn = 19, /*!< USB Device High Priority or CAN1 TX Interrupts */
80 USB_LP_CAN1_RX0_IRQn = 20, /*!< USB Device Low Priority or CAN1 RX0 Interrupts */
81 CAN1_RX1_IRQn = 21, /*!< CAN1 RX1 Interrupt */
82 CAN1_SCE_IRQn = 22, /*!< CAN1 SCE Interrupt */
83 EXTI9_5_IRQn = 23, /*!< External Line[9:5] Interrupts */
84 TIM1_BRK_IRQn = 24, /*!< TIM1 Break Interrupt */
85 TIM1_UP_IRQn = 25, /*!< TIM1 Update Interrupt */
86 TIM1_TRG_COM_IRQn = 26, /*!< TIM1 Trigger and Commutation Interrupt */
87 TIM1_CC_IRQn = 27, /*!< TIM1 Capture Compare Interrupt */
88 TIM2_IRQn = 28, /*!< TIM2 global Interrupt */
89 TIM3_IRQn = 29, /*!< TIM3 global Interrupt */
90 TIM4_IRQn = 30, /*!< TIM4 global Interrupt */
91 I2C1_EV_IRQn = 31, /*!< I2C1 Event Interrupt */
92 I2C1_ER_IRQn = 32, /*!< I2C1 Error Interrupt */
93 I2C2_EV_IRQn = 33, /*!< I2C2 Event Interrupt */
94 I2C2_ER_IRQn = 34, /*!< I2C2 Error Interrupt */
95 SPI1_IRQn = 35, /*!< SPI1 global Interrupt */
96 SPI2_IRQn = 36, /*!< SPI2 global Interrupt */
97 USART1_IRQn = 37, /*!< USART1 global Interrupt */
98 USART2_IRQn = 38, /*!< USART2 global Interrupt */
99 USART3_IRQn = 39, /*!< USART3 global Interrupt */
100 EXTI15_10_IRQn = 40, /*!< External Line[15:10] Interrupts */
101 RTCAlarm_IRQn = 41, /*!< RTC Alarm through EXTI Line Interrupt */
102 USBWakeUp_IRQn = 42 /*!< USB Device WakeUp from suspend through EXTI Line Interrupt */
103 #endif /* STM32F10X_MD */
104
105 #ifdef STM32F10X_MD_VL
106 ADC1_IRQn = 18, /*!< ADC1 global Interrupt */
107 EXTI9_5_IRQn = 23, /*!< External Line[9:5] Interrupts */
108 TIM1_BRK_TIM15_IRQn = 24, /*!< TIM1 Break and TIM15 Interrupts */
109 TIM1_UP_TIM16_IRQn = 25, /*!< TIM1 Update and TIM16 Interrupts */
110 TIM1_TRG_COM_TIM17_IRQn = 26, /*!< TIM1 Trigger and Commutation and TIM17 Interrupt */
111 TIM1_CC_IRQn = 27, /*!< TIM1 Capture Compare Interrupt */
112 TIM2_IRQn = 28, /*!< TIM2 global Interrupt */
113 TIM3_IRQn = 29, /*!< TIM3 global Interrupt */
114 TIM4_IRQn = 30, /*!< TIM4 global Interrupt */
115 I2C1_EV_IRQn = 31, /*!< I2C1 Event Interrupt */
116 I2C1_ER_IRQn = 32, /*!< I2C1 Error Interrupt */
117 I2C2_EV_IRQn = 33, /*!< I2C2 Event Interrupt */
118 I2C2_ER_IRQn = 34, /*!< I2C2 Error Interrupt */
119 SPI1_IRQn = 35, /*!< SPI1 global Interrupt */
120 SPI2_IRQn = 36, /*!< SPI2 global Interrupt */
121 USART1_IRQn = 37, /*!< USART1 global Interrupt */
122 USART2_IRQn = 38, /*!< USART2 global Interrupt */
123 USART3_IRQn = 39, /*!< USART3 global Interrupt */
124 EXTI15_10_IRQn = 40, /*!< External Line[15:10] Interrupts */
125 RTCAlarm_IRQn = 41, /*!< RTC Alarm through EXTI Line Interrupt */
126 CEC_IRQn = 42, /*!< HDMI-CEC Interrupt */
127 TIM6_DAC_IRQn = 54, /*!< TIM6 and DAC underrun Interrupt */
128 TIM7_IRQn = 55 /*!< TIM7 Interrupt */
129 #endif /* STM32F10X_MD_VL */
130
131 #ifdef STM32F10X_HD
132 ADC1_2_IRQn = 18, /*!< ADC1 and ADC2 global Interrupt */
133 USB_HP_CAN1_TX_IRQn = 19, /*!< USB Device High Priority or CAN1 TX Interrupts */
134 USB_LP_CAN1_RX0_IRQn = 20, /*!< USB Device Low Priority or CAN1 RX0 Interrupts */
135 CAN1_RX1_IRQn = 21, /*!< CAN1 RX1 Interrupt */
136 CAN1_SCE_IRQn = 22, /*!< CAN1 SCE Interrupt */
137 EXTI9_5_IRQn = 23, /*!< External Line[9:5] Interrupts */
138 TIM1_BRK_IRQn = 24, /*!< TIM1 Break Interrupt */
139 TIM1_UP_IRQn = 25, /*!< TIM1 Update Interrupt */
140 TIM1_TRG_COM_IRQn = 26, /*!< TIM1 Trigger and Commutation Interrupt */
141 TIM1_CC_IRQn = 27, /*!< TIM1 Capture Compare Interrupt */
142 TIM2_IRQn = 28, /*!< TIM2 global Interrupt */
143 TIM3_IRQn = 29, /*!< TIM3 global Interrupt */
144 TIM4_IRQn = 30, /*!< TIM4 global Interrupt */
145 I2C1_EV_IRQn = 31, /*!< I2C1 Event Interrupt */
146 I2C1_ER_IRQn = 32, /*!< I2C1 Error Interrupt */
147 I2C2_EV_IRQn = 33, /*!< I2C2 Event Interrupt */
148 I2C2_ER_IRQn = 34, /*!< I2C2 Error Interrupt */
149 SPI1_IRQn = 35, /*!< SPI1 global Interrupt */
150 SPI2_IRQn = 36, /*!< SPI2 global Interrupt */
151 USART1_IRQn = 37, /*!< USART1 global Interrupt */
152 USART2_IRQn = 38, /*!< USART2 global Interrupt */
153 USART3_IRQn = 39, /*!< USART3 global Interrupt */
154 EXTI15_10_IRQn = 40, /*!< External Line[15:10] Interrupts */
155 RTCAlarm_IRQn = 41, /*!< RTC Alarm through EXTI Line Interrupt */
156 USBWakeUp_IRQn = 42, /*!< USB Device WakeUp from suspend through EXTI Line Interrupt */
157 TIM8_BRK_IRQn = 43, /*!< TIM8 Break Interrupt */
158 TIM8_UP_IRQn = 44, /*!< TIM8 Update Interrupt */
159 TIM8_TRG_COM_IRQn = 45, /*!< TIM8 Trigger and Commutation Interrupt */
160 TIM8_CC_IRQn = 46, /*!< TIM8 Capture Compare Interrupt */
161 ADC3_IRQn = 47, /*!< ADC3 global Interrupt */
162 FSMC_IRQn = 48, /*!< FSMC global Interrupt */
163 SDIO_IRQn = 49, /*!< SDIO global Interrupt */
164 TIM5_IRQn = 50, /*!< TIM5 global Interrupt */
165 SPI3_IRQn = 51, /*!< SPI3 global Interrupt */
166 UART4_IRQn = 52, /*!< UART4 global Interrupt */
167 UART5_IRQn = 53, /*!< UART5 global Interrupt */
168 TIM6_IRQn = 54, /*!< TIM6 global Interrupt */
169 TIM7_IRQn = 55, /*!< TIM7 global Interrupt */
170 DMA2_Channel1_IRQn = 56, /*!< DMA2 Channel 1 global Interrupt */
171 DMA2_Channel2_IRQn = 57, /*!< DMA2 Channel 2 global Interrupt */
172 DMA2_Channel3_IRQn = 58, /*!< DMA2 Channel 3 global Interrupt */
173 DMA2_Channel4_5_IRQn = 59 /*!< DMA2 Channel 4 and Channel 5 global Interrupt */
174 #endif /* STM32F10X_HD */
175
176 #ifdef STM32F10X_HD_VL
177 ADC1_IRQn = 18, /*!< ADC1 global Interrupt */
178 EXTI9_5_IRQn = 23, /*!< External Line[9:5] Interrupts */
179 TIM1_BRK_TIM15_IRQn = 24, /*!< TIM1 Break and TIM15 Interrupts */
180 TIM1_UP_TIM16_IRQn = 25, /*!< TIM1 Update and TIM16 Interrupts */
181 TIM1_TRG_COM_TIM17_IRQn = 26, /*!< TIM1 Trigger and Commutation and TIM17 Interrupt */
182 TIM1_CC_IRQn = 27, /*!< TIM1 Capture Compare Interrupt */
183 TIM2_IRQn = 28, /*!< TIM2 global Interrupt */
184 TIM3_IRQn = 29, /*!< TIM3 global Interrupt */
185 TIM4_IRQn = 30, /*!< TIM4 global Interrupt */
186 I2C1_EV_IRQn = 31, /*!< I2C1 Event Interrupt */
187 I2C1_ER_IRQn = 32, /*!< I2C1 Error Interrupt */
188 I2C2_EV_IRQn = 33, /*!< I2C2 Event Interrupt */
189 I2C2_ER_IRQn = 34, /*!< I2C2 Error Interrupt */
190 SPI1_IRQn = 35, /*!< SPI1 global Interrupt */
191 SPI2_IRQn = 36, /*!< SPI2 global Interrupt */
192 USART1_IRQn = 37, /*!< USART1 global Interrupt */
193 USART2_IRQn = 38, /*!< USART2 global Interrupt */
194 USART3_IRQn = 39, /*!< USART3 global Interrupt */
195 EXTI15_10_IRQn = 40, /*!< External Line[15:10] Interrupts */
196 RTCAlarm_IRQn = 41, /*!< RTC Alarm through EXTI Line Interrupt */
197 CEC_IRQn = 42, /*!< HDMI-CEC Interrupt */
198 TIM12_IRQn = 43, /*!< TIM12 global Interrupt */
199 TIM13_IRQn = 44, /*!< TIM13 global Interrupt */
200 TIM14_IRQn = 45, /*!< TIM14 global Interrupt */
201 TIM5_IRQn = 50, /*!< TIM5 global Interrupt */
202 SPI3_IRQn = 51, /*!< SPI3 global Interrupt */
203 UART4_IRQn = 52, /*!< UART4 global Interrupt */
204 UART5_IRQn = 53, /*!< UART5 global Interrupt */
205 TIM6_DAC_IRQn = 54, /*!< TIM6 and DAC underrun Interrupt */
206 TIM7_IRQn = 55, /*!< TIM7 Interrupt */
207 DMA2_Channel1_IRQn = 56, /*!< DMA2 Channel 1 global Interrupt */
208 DMA2_Channel2_IRQn = 57, /*!< DMA2 Channel 2 global Interrupt */
209 DMA2_Channel3_IRQn = 58, /*!< DMA2 Channel 3 global Interrupt */
210 DMA2_Channel4_5_IRQn = 59, /*!< DMA2 Channel 4 and Channel 5 global Interrupt */
211 DMA2_Channel5_IRQn = 60 /*!< DMA2 Channel 5 global Interrupt (DMA2 Channel 5 is
212 mapped at position 60 only if the MISC_REMAP bit in
213 the AFIO_MAPR2 register is set) */
214 #endif /* STM32F10X_HD_VL */
215
216 #ifdef STM32F10X_XL
217 ADC1_2_IRQn = 18, /*!< ADC1 and ADC2 global Interrupt */
218 USB_HP_CAN1_TX_IRQn = 19, /*!< USB Device High Priority or CAN1 TX Interrupts */
219 USB_LP_CAN1_RX0_IRQn = 20, /*!< USB Device Low Priority or CAN1 RX0 Interrupts */
220 CAN1_RX1_IRQn = 21, /*!< CAN1 RX1 Interrupt */
221 CAN1_SCE_IRQn = 22, /*!< CAN1 SCE Interrupt */
222 EXTI9_5_IRQn = 23, /*!< External Line[9:5] Interrupts */
223 TIM1_BRK_TIM9_IRQn = 24, /*!< TIM1 Break Interrupt and TIM9 global Interrupt */
224 TIM1_UP_TIM10_IRQn = 25, /*!< TIM1 Update Interrupt and TIM10 global Interrupt */
225 TIM1_TRG_COM_TIM11_IRQn = 26, /*!< TIM1 Trigger and Commutation Interrupt and TIM11 global interrupt */
226 TIM1_CC_IRQn = 27, /*!< TIM1 Capture Compare Interrupt */
227 TIM2_IRQn = 28, /*!< TIM2 global Interrupt */
228 TIM3_IRQn = 29, /*!< TIM3 global Interrupt */
229 TIM4_IRQn = 30, /*!< TIM4 global Interrupt */
230 I2C1_EV_IRQn = 31, /*!< I2C1 Event Interrupt */
231 I2C1_ER_IRQn = 32, /*!< I2C1 Error Interrupt */
232 I2C2_EV_IRQn = 33, /*!< I2C2 Event Interrupt */
233 I2C2_ER_IRQn = 34, /*!< I2C2 Error Interrupt */
234 SPI1_IRQn = 35, /*!< SPI1 global Interrupt */
235 SPI2_IRQn = 36, /*!< SPI2 global Interrupt */
236 USART1_IRQn = 37, /*!< USART1 global Interrupt */
237 USART2_IRQn = 38, /*!< USART2 global Interrupt */
238 USART3_IRQn = 39, /*!< USART3 global Interrupt */
239 EXTI15_10_IRQn = 40, /*!< External Line[15:10] Interrupts */
240 RTCAlarm_IRQn = 41, /*!< RTC Alarm through EXTI Line Interrupt */
241 USBWakeUp_IRQn = 42, /*!< USB Device WakeUp from suspend through EXTI Line Interrupt */
242 TIM8_BRK_TIM12_IRQn = 43, /*!< TIM8 Break Interrupt and TIM12 global Interrupt */
243 TIM8_UP_TIM13_IRQn = 44, /*!< TIM8 Update Interrupt and TIM13 global Interrupt */
244 TIM8_TRG_COM_TIM14_IRQn = 45, /*!< TIM8 Trigger and Commutation Interrupt and TIM14 global interrupt */
245 TIM8_CC_IRQn = 46, /*!< TIM8 Capture Compare Interrupt */
246 ADC3_IRQn = 47, /*!< ADC3 global Interrupt */
247 FSMC_IRQn = 48, /*!< FSMC global Interrupt */
248 SDIO_IRQn = 49, /*!< SDIO global Interrupt */
249 TIM5_IRQn = 50, /*!< TIM5 global Interrupt */
250 SPI3_IRQn = 51, /*!< SPI3 global Interrupt */
251 UART4_IRQn = 52, /*!< UART4 global Interrupt */
252 UART5_IRQn = 53, /*!< UART5 global Interrupt */
253 TIM6_IRQn = 54, /*!< TIM6 global Interrupt */
254 TIM7_IRQn = 55, /*!< TIM7 global Interrupt */
255 DMA2_Channel1_IRQn = 56, /*!< DMA2 Channel 1 global Interrupt */
256 DMA2_Channel2_IRQn = 57, /*!< DMA2 Channel 2 global Interrupt */
257 DMA2_Channel3_IRQn = 58, /*!< DMA2 Channel 3 global Interrupt */
258 DMA2_Channel4_5_IRQn = 59 /*!< DMA2 Channel 4 and Channel 5 global Interrupt */
259 #endif /* STM32F10X_XL */
260
261 #ifdef STM32F10X_CL
262 ADC1_2_IRQn = 18, /*!< ADC1 and ADC2 global Interrupt */
263 CAN1_TX_IRQn = 19, /*!< USB Device High Priority or CAN1 TX Interrupts */
264 CAN1_RX0_IRQn = 20, /*!< USB Device Low Priority or CAN1 RX0 Interrupts */
265 CAN1_RX1_IRQn = 21, /*!< CAN1 RX1 Interrupt */
266 CAN1_SCE_IRQn = 22, /*!< CAN1 SCE Interrupt */
267 EXTI9_5_IRQn = 23, /*!< External Line[9:5] Interrupts */
268 TIM1_BRK_IRQn = 24, /*!< TIM1 Break Interrupt */
269 TIM1_UP_IRQn = 25, /*!< TIM1 Update Interrupt */
270 TIM1_TRG_COM_IRQn = 26, /*!< TIM1 Trigger and Commutation Interrupt */
271 TIM1_CC_IRQn = 27, /*!< TIM1 Capture Compare Interrupt */
272 TIM2_IRQn = 28, /*!< TIM2 global Interrupt */
273 TIM3_IRQn = 29, /*!< TIM3 global Interrupt */
274 TIM4_IRQn = 30, /*!< TIM4 global Interrupt */
275 I2C1_EV_IRQn = 31, /*!< I2C1 Event Interrupt */
276 I2C1_ER_IRQn = 32, /*!< I2C1 Error Interrupt */
277 I2C2_EV_IRQn = 33, /*!< I2C2 Event Interrupt */
278 I2C2_ER_IRQn = 34, /*!< I2C2 Error Interrupt */
279 SPI1_IRQn = 35, /*!< SPI1 global Interrupt */
280 SPI2_IRQn = 36, /*!< SPI2 global Interrupt */
281 USART1_IRQn = 37, /*!< USART1 global Interrupt */
282 USART2_IRQn = 38, /*!< USART2 global Interrupt */
283 USART3_IRQn = 39, /*!< USART3 global Interrupt */
284 EXTI15_10_IRQn = 40, /*!< External Line[15:10] Interrupts */
285 RTCAlarm_IRQn = 41, /*!< RTC Alarm through EXTI Line Interrupt */
286 OTG_FS_WKUP_IRQn = 42, /*!< USB OTG FS WakeUp from suspend through EXTI Line Interrupt */
287 TIM5_IRQn = 50, /*!< TIM5 global Interrupt */
288 SPI3_IRQn = 51, /*!< SPI3 global Interrupt */
289 UART4_IRQn = 52, /*!< UART4 global Interrupt */
290 UART5_IRQn = 53, /*!< UART5 global Interrupt */
291 TIM6_IRQn = 54, /*!< TIM6 global Interrupt */
292 TIM7_IRQn = 55, /*!< TIM7 global Interrupt */
293 DMA2_Channel1_IRQn = 56, /*!< DMA2 Channel 1 global Interrupt */
294 DMA2_Channel2_IRQn = 57, /*!< DMA2 Channel 2 global Interrupt */
295 DMA2_Channel3_IRQn = 58, /*!< DMA2 Channel 3 global Interrupt */
296 DMA2_Channel4_IRQn = 59, /*!< DMA2 Channel 4 global Interrupt */
297 DMA2_Channel5_IRQn = 60, /*!< DMA2 Channel 5 global Interrupt */
298 ETH_IRQn = 61, /*!< Ethernet global Interrupt */
299 ETH_WKUP_IRQn = 62, /*!< Ethernet Wakeup through EXTI line Interrupt */
300 CAN2_TX_IRQn = 63, /*!< CAN2 TX Interrupt */
301 CAN2_RX0_IRQn = 64, /*!< CAN2 RX0 Interrupt */
302 CAN2_RX1_IRQn = 65, /*!< CAN2 RX1 Interrupt */
303 CAN2_SCE_IRQn = 66, /*!< CAN2 SCE Interrupt */
304 OTG_FS_IRQn = 67 /*!< USB OTG FS global Interrupt */
305 #endif /* STM32F10X_CL */
306 } IRQn_Type;

每一位对应中断 from stm32f10x.h

示例程序

 1 //外部中断配置函数
 2 //只针对GPIOA~G;不包括PVD,RTC和USB唤醒这三个
 3 //参数:
 4 //GPIOx:0~6,代表GPIOA~G
 5 //BITx:需要使能的位;
 6 //TRIM:触发模式,1,下升沿;2,上降沿;3，任意电平触发
 7 //该函数一次只能配置1个IO口,多个IO口,需多次调用
 8 //该函数会自动开启对应中断,以及屏蔽线
 9 void Ex_NVIC_Config(u8 GPIOx,u8 BITx,u8 TRIM)
10 {
11     u8 EXTADDR;
12     u8 EXTOFFSET;
13     EXTADDR=BITx/4;//得到中断寄存器组的编号
14     EXTOFFSET=(BITx%4)*4;
15     RCC->APB2ENR|=0x01;//使能io复用时钟
16     AFIO->EXTICR[EXTADDR]&=~(0x000F<<EXTOFFSET);//清除原来设置！！！
17     AFIO->EXTICR[EXTADDR]|=GPIOx<<EXTOFFSET;//EXTI.BITx映射到GPIOx.BITx
18     //自动设置
19     EXTI->IMR|=1<<BITx;//  开启line BITx上的中断
20     //EXTI->EMR|=1<<BITx;//不屏蔽line BITx上的事件 (如果不屏蔽这句,在硬件上是可以的,但是在软件仿真的时候无法进入中断!)
21      if(TRIM&0x01)EXTI->FTSR|=1<<BITx;//line BITx上事件下降沿触发
22     if(TRIM&0x02)EXTI->RTSR|=1<<BITx;//line BITx上事件上升降沿触发
23 }

　　根据中断分组情况来设置中断优先级控制寄存器IP 其高四位。

　　用MY_NVIC_PriorityGroupConfig函数分组

　　开启中断，在ISER相应位置1

//key--->led 外部中断
//外部中断0服务程序
void EXTI0_IRQHandler(void)
{
delay_ms(10); //消抖
if(WK_UP==1) //WK_UP按键
{
LED0=!LED0;
LED1=!LED1;
}
EXTI->PR=1<<0; //清除LINE0上的中断标志位
}
//外部中断9~5服务程序
void EXTI9_5_IRQHandler(void)
{
delay_ms(10); //消抖
if(KEY0==0) //按键0
{
LED0=!LED0;
}
EXTI->PR=1<<5; //清除LINE5上的中断标志位
}
//外部中断15~10服务程序
void EXTI15_10_IRQHandler(void)
{
delay_ms(10); //消抖
if(KEY1==0) //按键1
{
LED1=!LED1;
}
EXTI->PR=1<<15; //清除LINE15上的中断标志位
}
//外部中断初始化程序
//初始化PA0,PC5,PA15为中断输入.
void EXTI_Init(void)
{
KEY_Init();
Ex_NVIC_Config(GPIO_A,0,RTIR); //上升沿触发注：外部中断配置函数
Ex_NVIC_Config(GPIO_C,5,FTIR); //下降沿触发注：外部中断配置函数
Ex_NVIC_Config(GPIO_A,15,FTIR); //下降沿触发注：外部中断配置函数

MY_NVIC_Init(2,2,EXTI0_IRQn,2); //抢占2，子优先级2，组2
MY_NVIC_Init(2,1,EXTI9_5_IRQn,2); //抢占2，子优先级1，组2
MY_NVIC_Init(2,0,EXTI15_10_IRQn,2); //抢占2，子优先级0，组2
}

posted @ 2021-04-13 18:28 一个爱搬运的球阅读(1871) 评论(0) 收藏举报

刷新页面返回顶部

stm32寄存器版学习笔记 外部中断

公告

stm32寄存器版学习笔记外部中断
