定时自动备份【脚本】

建立执行脚本

vi /home/Network_Config_Backup/start.sh

#!/bin/bash
#使用该脚本前需要安装tftp,xinetd,expect
#取时间戳
BACKUP_DATA=`date +%Y%m%d`
#创建时间戳的备份目录
mkdir -p /home/Network_Config_Backup/$BACKUP_DATA

#TFTP服务根目录授权
chmod 777 /home/Network_Config_Backup/$BACKUP_DATA

log=/data/log/start_${BACKUP_DATA}.log
#修改TFTP根目录
sed -i "s/Network_Config_Backup\/......../Network_Config_Backup\/$BACKUP_DATA/" /etc/xinetd.d/tftp
echo
echo
echo
echo ------------------------------------------------------------
echo
echo          该脚本适用于Cisco、Huawei、H3C 网络设备使用
echo          Cisco使用tftp方式将配置文件上传到服务器
echo          Huawei、H3C使用窗口记录方式获取配置信息
echo
echo ------------------------------------------------------------
echo
echo 备份文件存放位置： /home/Network_Config_Backup/$BACKUP_DATA
echo
echo
echo
systemctl restart xinetd
sleep 4

#账号密码及IP地址存放在user.passwd中，通过awk获取所有IP并存放在数组IPADDR（大写）
DEVICENAME=(`cat /home/Network_Config_Backup/user.passwd | awk '{print $1}'`)

#for循环，取出所有设备名称devicename(小写)
for devicename in ${DEVICENAME[@]}
do
#输出备份开始时间戳
echo "`date +%H:%M:%S` 开始备份$devicename"

#根据设备名称devicename取出相应交换机的IP地址、用户、密码
IPADDR=(`cat /home/Network_Config_Backup/user.passwd | grep "$devicename" | awk '{print $3}'`)
echo ${IPADDR}
USERNAME=(`cat /home/Network_Config_Backup/user.passwd | grep "$devicename" | awk '{print $4}'`)
echo ${USERNAME}
PASSWORD=(`cat /home/Network_Config_Backup/user.passwd | grep "$devicename" | awk '{print $5}'`)
echo ${PASSWORD}
TABLE=(`cat /home/Network_Config_Backup/user.passwd | grep "$devicename" | awk '{print $2}'`)
echo ${TABLE}
devicename=${devicename}_${BACKUP_DATA}

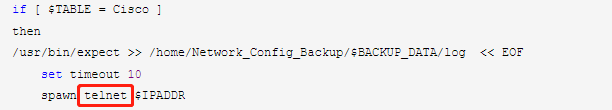

if [ $TABLE = Cisco ]
then
/usr/bin/expect >> /home/Network_Config_Backup/$BACKUP_DATA/log  << EOF
    set timeout 10
    spawn telnet $IPADDR
    expect "*sername:"
    send "$USERNAME\r"
    expect "*assword:"
    send "$PASSWORD\r"
    expect {
    "*>" {
        send "enable\r"
        expect "*assword:"
        send "$PASSWORD\r"
        expect "*#"
        send "copy running-config tftp:\r"
        expect "*remote host*"
        send "tftp服务器IP\r"
        expect "*filename*"
        send "$devicename\n"
        expect "*!*"
        send "\n"
    }
    "*#" {
        send "copy running-config tftp:\r"
        expect "*remote host*"
        send "tftp服务器IP\r"
        expect "*filename*"
        send "$devicename\n"
        expect "*!*"
        send "\n"
    }
}
EOF

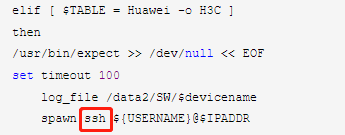

elif [ $TABLE = Huawei -o H3C ]
then
/usr/bin/expect >> /dev/null << EOF
set timeout 100
    log_file /data2/SW/$devicename
    spawn ssh ${USERNAME}@$IPADDR
    expect "*assword:"
    send "$PASSWORD\r"
    expect "*>"
    send "display current-configuration\r"
    while (1) {
    expect {
    "*--- More ----" { send " " }
    "return" { break }
    }
    }
EOF
fi
sleep 3

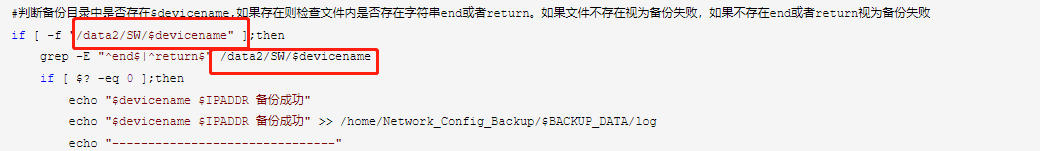

#判断备份目录中是否存在$devicename,如果存在则检查文件内是否存在字符串end或者return。如果文件不存在视为备份失败，如果不存在end或者return视为备份失败
if [ -f "/data2/SW/$devicename" ];then
    grep -E "^end$|^return$" /data2/SW/$devicename
    if [ $? -eq 0 ];then
        echo "$devicename $IPADDR 备份成功"
        echo "$devicename $IPADDR 备份成功" >> /home/Network_Config_Backup/$BACKUP_DATA/log
        echo "-------------------------------"
    else
        echo "$devicename $IPADDR 备份失败"
        echo "$devicename $IPADDR 备份失败" >> /home/Network_Config_Backup/$BACKUP_DATA/log
        echo "-------------------------------"
    fi
else
    echo "$devicename $IPADDR 备份失败"
    echo "$devicename $IPADDR 备份失败" >> /home/Network_Config_Backup/$BACKUP_DATA/log
    echo "-------------------------------"
fi

done

chmod 777 /home/Network_Config_Backup/start.sh
新建user.passwd存放设备信息

vi /home/Network_Config_Backup/user.passwd
*设备名品牌 IP地址用户名密码*

user.passwd()格式
Huawei-TEST-SW01 Huawei 192.168.1.55 admin admin12345 Cisco-TEST-SW01 Cisco 192.168.1.66 admin admin12345

cd /home/Network_Config_Backup

sh start.sh //执行脚本即可自动备份

修改tftp文件储存位置

vi /etc/xinetd.d/tftp
service tftp
{     socket_type            = dgram
      protocol               = udp
      wait                   = yes
      user                   = root
      server                 = /usr/sbin/in.tftpd
      server_args            = -s /data2/SW -c
      disable                = no
      per_source             = 11
      cps                    = 100 2
      flags                  = IPv4
}
