vue3项目引入threeJS预览3mf格式的3D模型

我使用的3d模型文件放在public文件夹里

（1）安装threejs

npm install --save three

 （2） 创建容器

<template>
    <div id="three"></div>
</template>

 （3）创建初始化函数，并在 onMounted生命周期函数里调用

<script setup>
import * as THREE from "three";
import { ThreeMFLoader } from "three/examples/jsm/loaders/3MFLoader.js";
import { OrbitControls } from "three/examples/jsm/controls/OrbitControls.js";


function initScene () {
  let camera, scene, renderer;
  let model, settings;






  // 创建场景
  scene = new THREE.Scene();
  scene.background = new THREE.Color("#000");
  scene.fog = new THREE.Fog(0xa0a0a0, 10, 500);






  // 创建相机，这里创建的是一个透视相机
  camera = new THREE.PerspectiveCamera(35, (window.innerWidth - 201) / window.innerHeight, 1, 500);
  camera.position.set(-100, 80, 100); // 相机的位置
  scene.add(camera);






  // 半球光
  // 天空发出的光的颜色是0xffffff，地面发出的光的颜色是0x444444
  const hemiLight = new THREE.HemisphereLight(0xffffff, 0x444444);
  // 灯光的位置
  hemiLight.position.set(0, 100, 0);
  scene.add(hemiLight);






  // 平行光
  const dirLight = new THREE.DirectionalLight(0xffffff);
  // 平行光的位置
  dirLight.position.set(-0, 40, 50);
  // 是否显示阴影
  dirLight.castShadow = true;
  dirLight.shadow.camera.top = 50;
  dirLight.shadow.camera.bottom = -25;
  dirLight.shadow.camera.left = -25;
  dirLight.shadow.camera.right = 25;
  dirLight.shadow.camera.near = 0.1;
  dirLight.shadow.camera.far = 200;
  dirLight.shadow.mapSize.set(1024, 1024);
  scene.add(dirLight);






  // 渲染器
  renderer = new THREE.WebGLRenderer({ antialias: true });
  const canvasFrame = document.querySelector("#three");
  renderer.setPixelRatio(window.devicePixelRatio);
  renderer.setSize(window.innerWidth - 201, window.innerHeight);
  renderer.outputEncoding = THREE.sRGBEncoding;
  // 是否允许阴影贴图
  renderer.shadowMap.enabled = true;
  renderer.shadowMap.type = THREE.PCFSoftShadowMap;
  canvasFrame.appendChild(renderer.domElement);






  // 地面
  const ground = new THREE.Mesh(
    new THREE.PlaneGeometry(150, 150), // 一个长150，宽150的正方形
    new THREE.MeshPhongMaterial({ color: 0x999999, depthWrite: false })
  );
  // x轴旋转90度
  ground.rotation.x = -Math.PI / 2;
  ground.position.set(0, 0, 0);
  // 地面接收阴影
  ground.receiveShadow = true;
  scene.add(ground);






  // 加载3D模型
  const loader3mf = new ThreeMFLoader();
  loader3mf.load("3dMode/island.3mf", function (object) {
    object.quaternion.setFromEuler(new THREE.Euler(-Math.PI / 2, 0, 0));
    object.position.set(-10, 25, -30);
    object.scale.set(150, 150, 150);
    object.traverse(function (child) {
      child.castShadow = true;
      if (child.material) {
        child.material.transparent = true; // 每个材质都开启透明度设置，这个不开启改了opacity的值也不会生效
        child.material.opacity = 1; // 默认设置透明度为1
      }
    });
    model = object;
    scene.add(model);
    // 渲染
    animate();






    // 添加鼠标控制
    const viewControls2 = new OrbitControls(camera, renderer.domElement);
    // 开启阻尼
    viewControls2.enableDamping = true;
    // 阻尼系数
    viewControls2.dampingFactor = 0.25;
    // 开启缩放
    viewControls2.enableZoom = true;
    // 自动旋转
    viewControls2.autoRotate = true;
    // 开启鼠标右键拖拽
    viewControls2.enablePan = true;
    // 相机离原点的最远距离
    viewControls2.maxDistance = 1000;
  });






  function animate () {
    requestAnimationFrame(animate);
    render();
  }






  function render () {
    renderer.render(scene, camera);
  }
}






onMounted(() => {
  initScene();
});
</script>

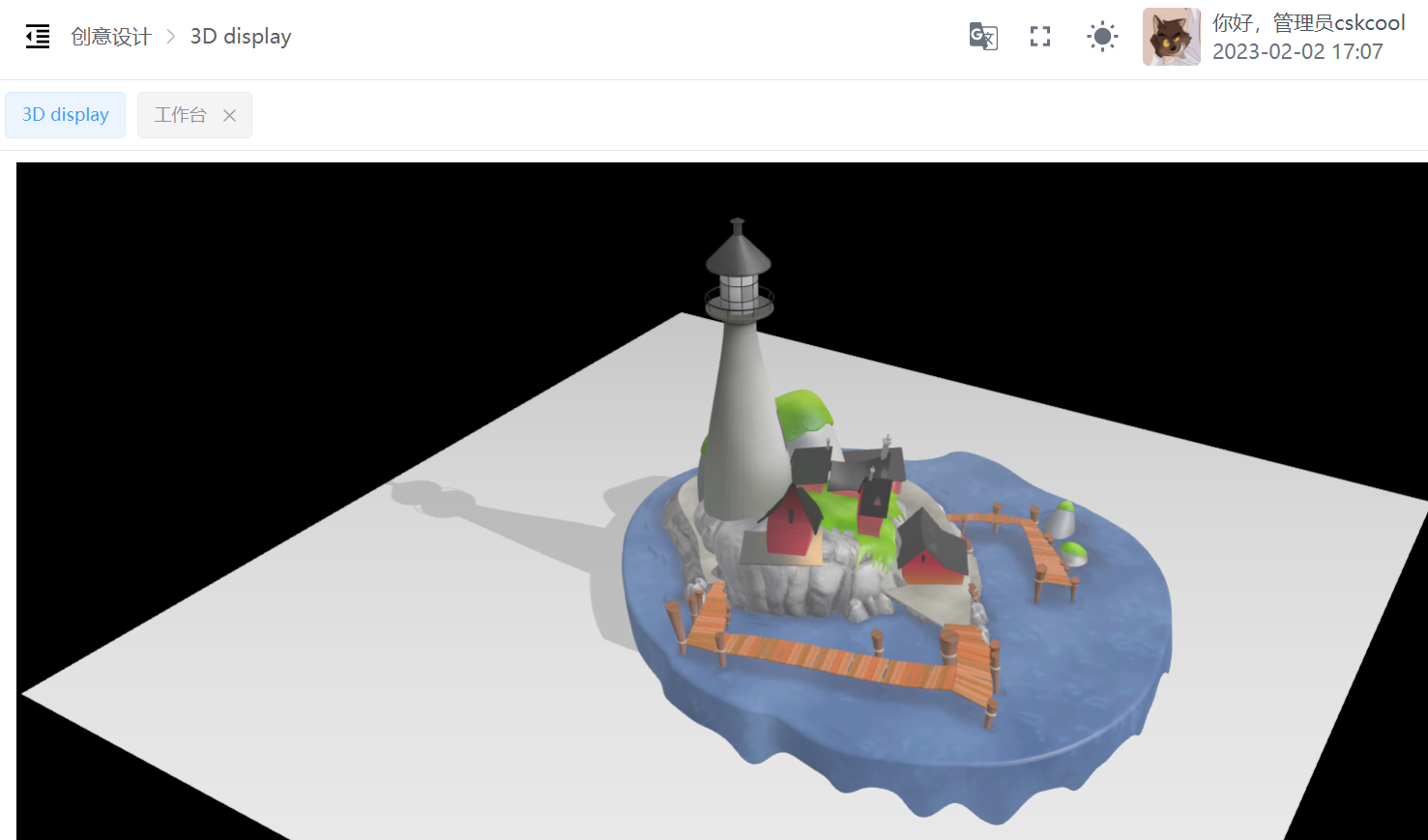

效果图：
