[CU]reg model构建篇-uvm_reg_block

1. uvm_reg_block的特点

(1) 一个寄存器模型必须包含一个reg_block; 一般DUT内具有相同的基地址的所有寄存器,会放在一个reg_block中.

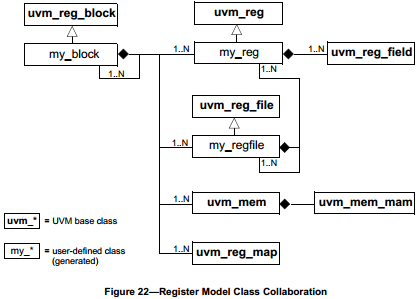

(2) uvm_reg_block可以包含任意数量的uvm_reg, register files, memories以及其他低层次的uvm_reg_block;

(3) uvm_reg block里含有uvm_reg_map类对象default_map,用于地址映射以及完成寄存器前门访问操作;

(4) 一个uvm_reg_block可以包含多个uvm_reg_map,从而实现一个uvm_reg_block应用到不同总线,或不同地址段上;

2. uvm_reg_block源码

virtual class uvm_reg_block extends uvm_object;
     //parent表示此uvm_reg_block所在的uvm_reg_block,即父uvm_reg_block;
   local uvm_reg_block  parent;

   local static bit     m_roots[uvm_reg_block];
     //blks记录加入到此uvm_reg_block中的其他uvm_reg_block信息;
   local int unsigned   blks[uvm_reg_block];
     //regs表示加入到此uvm_reg_block中的其他uvm_reg信息;
   local int unsigned   regs[uvm_reg];
   `ifdef UVM_SPARSE_ARRAY
   local int unsigned   regarrays[uvm_reg_file];
   `endif
   local int unsigned   vregs[uvm_vreg];
     //mems表示加入到此uvm_reg_block中的uvm_mem信息;
   local int unsigned   mems[uvm_mem];
   local bit            maps[uvm_reg_map];

   // Variable: default_path
   // Default access path for the registers and memories in this block.
   uvm_path_e      default_path = UVM_DEFAULT_PATH;

   local string         default_hdl_path = "RTL";
   local uvm_reg_backdoor backdoor;
   local uvm_object_string_pool #(uvm_queue #(string)) hdl_paths_pool;
     ...
endclass

3. uvm_reg_block的函数

3.1 create_map函数

function uvm_reg_map uvm_reg_block::create_map(string name,
                                               uvm_reg_addr_t base_addr,
                                               int unsigned n_bytes,
                                               uvm_endianness_e endian,
                                               bit byte_addressing=1);

   uvm_reg_map  map;

   if (this.locked) begin
      `uvm_error("RegModel", "Cannot add map to locked model");
      return null;
   end

   map = uvm_reg_map::type_id::create(name,,this.get_full_name());
   map.configure(this,base_addr,n_bytes,endian,byte_addressing);

   this.maps[map] = 1;
   if (maps.num() == 1)
     default_map = map;

   return map;
endfunction

3.2 add_reg函数

function void uvm_reg_block::add_reg(uvm_reg rg);
   if (this.is_locked()) begin
      `uvm_error("RegModel", "Cannot add register to locked block model");
      return;
   end

   if (this.regs.exists(rg)) begin
      `uvm_error("RegModel", {"Register '",rg.get_name(),
         "' has already been registered with block '",get_name(),"'"})
       return;
   end

   regs[rg] = id++;
endfunction: add_reg

4. uvm_reg_block的实现

4.1 变量声明

(1) 声明rand类型的uvm_reg;

(2) 可能会声明uvm_reg_map,当然也可能不声明,而是采用已经声明过的default_map;

4.2 实现new函数

4.3 实现build函数

注1:当uvm_reg_block的build()函数执行完成后,整个register model的层次就构建成功了;

4.3.1 调用create_map函数例化default_map

(1.1)如果reg block内有命名的address map: build()函数需要通过调用uvm_reg_block:: create_map例化所有命名的address maps,并指定合适的参数值; 其中一个命名的address map会自动赋值给default_map,当然可以通过调用函数或者直接改变default_map所指向的对象;

class my_blk_type extends uvm_reg_block;
    ...
    virtual function void build();
        this.AHB=create_map();
        this.WSH=create_map();
        this.default_map=this.AHB;
    endfunction
    ...
endclass

(1.2)如果reg block没有任何命名的address map: build函数需要调用create_map函数实例化一个匿名的address map,并将其赋给default_map;

class my_blk_type extends uvm_reg_block;
    ...
    virtual function void build();
        this.default_map=create_map(.name(default_map),
                                    .base_addr('h1000),
                                    .n_bytes(4),
                                    .endian(UVM_LITTLE_ENDIAN)
                                    );
    endfunction
    ...
endclass

(1.3) create_map函数参数的含义:

参数1含义:名字;

参数2含义:该reg_block的基地址;

参数3含义:寄存器所映射到的总线的宽度(单位是byte,不是bit);

4.3.2 build函数需要例化所有的register, register file, memory, sub-register block;

4.3.3 build函数需要调用所有register ,register file, memory, sub-register block的configure函数;

(1)以调用uvm_reg的configure函数为例,解释configure函数参数的含义:

参数1含义:此寄存器所在uvm_reg_block的指针,通常为this;

参数2含义:reg_file指针,参考uvm_reg_file使用方法二;

参数3含义:此寄存器的后门访问路径;

4.3.4 build函数需要调用所有register ,register file, memory, sub-register block的build函数;

4.3.5 build函数需要调用所有register ,register file, memory, sub-register block的add_hdl_path函数;

4.3.6 register或mem例化后,build函数需要调用合适的uvm_reg_map::add_*()函数;

(1) 需要将uvm_reg或uvm_mem添加到uvm_reg_map中,否则无法进行前门访问操作(如果一个寄存器可以通过两个物理总线访问,则需要将其添加到多个address map中);

(2) 以uvm_reg_map的add_reg函数为例,说明其参数的含义:

参数1含义:要加入的寄存器;

参数2含义:寄存器相对于uvm_reg_map base_addr的偏移地址;

参数3含义:寄存器的存取方式(uvm_reg_field是否能进行读写访问,不仅取决于其存取方式,也取决于其所在uvm_reg的存取方式);

virtual function build();
    ...
    map=create_map("map",'h0,4,UVM_LITTLE_ENDIAN);
    map.add_reg(reg1,32'h0,"RW");
    map.add_reg(reg2,32'h4,"RW");
    map.add_reg(reg3,32'h8,"RO");
    map.add_reg(reg4,32'h10,"RO");
    ...
    lock_model();
endfunction

4.3.7 调用add_submap函数建立顶层reg_block于sub_reg_block的reg_map的联系;

(1) sub-uvm_reg_block建成后,对于sub-uvm_reg_block内的每一个address map, parent-uvm_reg_block的build函数都需要调用uvm_reg_map::add_submap函数,并且制定sub address map相对于parent address map的offset;

class my_blk_type extends uvm_reg_block;
    ...
    virtual function void build();
        this.BLK1.build();
        this.BLK2.build();
        this.default_map.add_submap(this.BLK1.default_map,'h8000);
        this.default_map.add_submap(this.BLK2.default_map,'hc000);
    endfunction

endclass

4.3.8 lock_model();

5. uvm_reg_block示例

(1) uvm_reg_map不应该是rand类型的,同样也不能是array;

(2) uvm_reg/uvm_reg_file/sub-uvm_reg_block应该有rand属性,并且可能是array;

(3) uvm_mem不应该是rand类型的,但可能是array;

//示例1
class reg_model extends uvm_reg_block;
    `uvm_object_utils(reg_model)
    rand reg_invert invert;

    function new(input string name="reg_model");
        super.new(name,UVM_NO_COVERAGE);
    endfunction

    virtual function void build();
        default_map=create_map("default_map",0,2,UVM_BIG_ENDIAN,0);

        invert=reg_invert::type_id::create("invert",,get_full_name());
        invert.configure(this,null,"");
        invert.build();

        default_map.add_reg(invert,'h9,"RW");
    endfunction
endclass

//示例2
class my_regmodel extends uvm_reg_block;
    `uvm_object_utils(my_regmodel)

    rand my_reg version;
    function new(input string name="unnamed_my_regmodel");
        super.new(name,UVM_NO_COVERAGE);
    endfunction

    function void build();
        default_map=create_map("default_map",0,2,UVM_LITTLE_ENDIAN);

        version=my_reg::type_id::create("version",,get_full_name());
        version.configure(this,null,"version");
        version.build();

        default_map.add_reg(version,16'h47,"RW");
    endfunction

endclass

//示例3
class my_blk_type extends uvm_reg_block;
    `uvm_object_utils(my_blk_type)

    uvm_reg_map AHB;
    uvm_reg_map WSH;

    rand my_r1_type R1;
    rand my_r2_type R2[3];

    rand my_rf1_type RF1;
    rand my_rf2_type RF2[3];

    my_mem1_type RAM1;
    my_mem2_type RAM2[3];

    rand my_blk1_type BLK1;
    rand my_blk2_type BLK2[3];

    function new(string name="my_blk_type");
        super.new(.name(name),.has_coverage(UVM_NO_COVERAGE));
    endfunction

    virtual function void build();
        this.AHB=create_map();
        this.WSH=create_map();
        this.default_map=this.AHB;

    this.BLK1=my_blk1_type::type_id::create("BLK1",null,get_full_name());
        this.BLK1.configure(this,...);
        this.BLK1.build();
        ...

        this.R1=my_reg1_type::type_id::create("R1",null,get_full_name());
        this.R1.configure(this,...);
        this.R1.build();
        this.default_map.addr_reg(this.R1,'h04,...);
        ..
    endfunction
endclass

//示例4
package pss_reg_pkg;
    import uvm_pkg::*;
    `include "uvm_macros.svh"

    import spi_reg_pkg::*;
    import gpio_reg_pkg::*;

    class pss_reg_block extends uvm_reg_block;
        `uvm_object_utils(pss_reg_block)
        rand spi_reg_block spi;
        rand gpio_reg_block gpio;

        function new(string name="pss_reg_block");
            super.new(name);
        endfunction

        function void build();
            AHB_map=create_map("AHB_map",0,4,UVM_LITTLE_ENDIAN);

            spi=spi_reg_block::type_id::create("spi");
            spi.configure(this);
            spi.build();
            AHB_map.add_submap(this.spi.default_map,0);

            gpio=gpio_reg_block::type_id::create("gpio");
            gpio.configure(this);
            gpio.build();
            AHB_map.add_submap(this.gpio.default_map,32'h100);

            lock_mode();
        endfunction: build

    endclass: pss_reg_block

endpackage: pss_reg_pkg
