k8s启动phpmyadmin

文章目录

• 前言
• 1. configmap
• • 1.1 config.inc.php文件
  • 1.2 创建configmap
• 2. 创建服务
• 3. 测试

前言

phpmyadmin是mysql的一个基于web页面管理工具
容器化方式启动mysql见下边文档：
《docker-compose启动mysql》
《k8s启动单点mysql》
《helm启动单节点mysql》
《helm启动mysql-ha》

1. configmap

说明：从config.inc.php文件创建一个configmap ，为服务提供配置文件

1.1 config.inc.php文件

创建 config.inc.php文件，内容如下：

<?php

require('/etc/phpmyadmin/config.secret.inc.php');

/* Ensure we got the environment */
$vars = array(
    'PMA_ARBITRARY',
    'PMA_HOST',
    'PMA_HOSTS',
    'PMA_VERBOSE',
    'PMA_VERBOSES',
    'PMA_PORT',
    'PMA_PORTS',
    'PMA_SOCKET',
    'PMA_SOCKETS',
    'PMA_USER',
    'PMA_PASSWORD',
    'PMA_ABSOLUTE_URI',
    'PMA_CONTROLHOST',
    'PMA_CONTROLPORT',
    'PMA_PMADB',
    'PMA_CONTROLUSER',
    'PMA_CONTROLPASS',
    'PMA_QUERYHISTORYDB'
);
foreach ($vars as $var) {
    $env = getenv($var);
    if (!isset($_ENV[$var]) && $env !== false) {
        $_ENV[$var] = $env;
    }
}
if (isset($_ENV['PMA_QUERYHISTORYDB'])) {
    $cfg['QueryHistoryDB'] = boolval($_ENV['PMA_QUERYHISTORYDB']);
}

/* Arbitrary server connection */
if (isset($_ENV['PMA_ARBITRARY']) && $_ENV['PMA_ARBITRARY'] === '1') {
    $cfg['AllowArbitraryServer'] = true;
}

/* Play nice behind reverse proxys */
if (isset($_ENV['PMA_ABSOLUTE_URI'])) {
    $cfg['PmaAbsoluteUri'] = trim($_ENV['PMA_ABSOLUTE_URI']);
}

/* Figure out hosts */

/* Fallback to default linked */
$hosts = array('db');

/* Set by environment */
if (!empty($_ENV['PMA_HOST'])) {
    $hosts = array($_ENV['PMA_HOST']);
    $verbose = array($_ENV['PMA_VERBOSE']);
    $ports = array($_ENV['PMA_PORT']);
} elseif (!empty($_ENV['PMA_HOSTS'])) {
    $hosts = array_map('trim', explode(',', $_ENV['PMA_HOSTS']));
    $verbose = array_map('trim', explode(',', $_ENV['PMA_VERBOSES']));
    $ports = array_map('trim', explode(',', $_ENV['PMA_PORTS']));
}
if (!empty($_ENV['PMA_SOCKET'])) {
    $sockets = array($_ENV['PMA_SOCKET']);
} elseif (!empty($_ENV['PMA_SOCKETS'])) {
    $sockets = explode(',', $_ENV['PMA_SOCKETS']);
}

/* Server settings */
for ($i = 1; isset($hosts[$i - 1]); $i++) {
    $cfg['Servers'][$i]['host'] = $hosts[$i - 1];
    if (isset($verbose[$i - 1])) {
        $cfg['Servers'][$i]['verbose'] = $verbose[$i - 1];
    }
    if (isset($ports[$i - 1])) {
        $cfg['Servers'][$i]['port'] = $ports[$i - 1];
    }
    if (isset($_ENV['PMA_USER'])) {
        $cfg['Servers'][$i]['auth_type'] = 'cookie';
        $cfg['Servers'][$i]['user'] = $_ENV['PMA_USER'];
        $cfg['Servers'][$i]['password'] = isset($_ENV['PMA_PASSWORD']) ? $_ENV['PMA_PASSWORD'] : '';
    } else {
        $cfg['Servers'][$i]['auth_type'] = 'cookie';
    }
    if (isset($_ENV['PMA_PMADB'])) {
      $cfg['Servers'][$i]['pmadb'] = $_ENV['PMA_PMADB'];
      $cfg['Servers'][$i]['relation'] = 'pma__relation';
      $cfg['Servers'][$i]['table_info'] = 'pma__table_info';
      $cfg['Servers'][$i]['table_coords'] = 'pma__table_coords';
      $cfg['Servers'][$i]['pdf_pages'] = 'pma__pdf_pages';
      $cfg['Servers'][$i]['column_info'] = 'pma__column_info';
      $cfg['Servers'][$i]['bookmarktable'] = 'pma__bookmark';
      $cfg['Servers'][$i]['history'] = 'pma__history';
      $cfg['Servers'][$i]['recent'] = 'pma__recent';
      $cfg['Servers'][$i]['favorite'] = 'pma__favorite';
      $cfg['Servers'][$i]['table_uiprefs'] = 'pma__table_uiprefs';
      $cfg['Servers'][$i]['tracking'] = 'pma__tracking';
      $cfg['Servers'][$i]['userconfig'] = 'pma__userconfig';
      $cfg['Servers'][$i]['users'] = 'pma__users';
      $cfg['Servers'][$i]['usergroups'] = 'pma__usergroups';
      $cfg['Servers'][$i]['navigationhiding'] = 'pma__navigationhiding';
      $cfg['Servers'][$i]['savedsearches'] = 'pma__savedsearches';
      $cfg['Servers'][$i]['central_columns'] = 'pma__central_columns';
      $cfg['Servers'][$i]['designer_settings'] = 'pma__designer_settings';
      $cfg['Servers'][$i]['export_templates'] = 'pma__export_templates';
    }
    if (isset($_ENV['PMA_CONTROLHOST'])) {
      $cfg['Servers'][$i]['controlhost'] = $_ENV['PMA_CONTROLHOST'];
    }
    if (isset($_ENV['PMA_CONTROLPORT'])) {
      $cfg['Servers'][$i]['controlport'] = $_ENV['PMA_CONTROLPORT'];
    }
    if (isset($_ENV['PMA_CONTROLUSER'])) {
      $cfg['Servers'][$i]['controluser'] = $_ENV['PMA_CONTROLUSER'];
    }
    if (isset($_ENV['PMA_CONTROLPASS'])) {
      $cfg['Servers'][$i]['controlpass'] = $_ENV['PMA_CONTROLPASS'];
    }
    $cfg['Servers'][$i]['compress'] = false;
    $cfg['Servers'][$i]['AllowNoPassword'] = true;
}
for ($i = 1; isset($sockets[$i - 1]); $i++) {
    $cfg['Servers'][$i]['socket'] = $sockets[$i - 1];
    $cfg['Servers'][$i]['host'] = 'localhost';
}
/*
 * Revert back to last configured server to make
 * it easier in config.user.inc.php
 */
$i--;

/* Uploads setup */
$cfg['UploadDir'] = '';
$cfg['SaveDir'] = '';

/* Include User Defined Settings Hook */
if (file_exists('/etc/phpmyadmin/config.user.inc.php')) {
    include('/etc/phpmyadmin/config.user.inc.php');
}


说明：phpmyadmin 默认配置文件认证类型是 ‘config’，需要修改成cookie

$cfg['Servers'][$i]['auth_type'] = 'cookie';

• config 直接登录界面
• http 使用HTTP认证只能在APACHE服务器环境下可用
• cookie 使用Mysql账号密码登录

1.2 创建configmap

# kubectl create configmap config.inc.php --from-file=config.inc.php -n mysql

2. 创建服务

创建 deployment和service的yml文件如下：

kind: Deployment
apiVersion: apps/v1
metadata:
  name: phpmyadmin
  namespace: mysql
spec:
  replicas: 1
  selector:
    matchLabels:
      app: phpmyadmin
  template:
    metadata:
      labels:
        app: phpmyadmin
    spec:
      containers:
      - name: phpmyadmin
        image: 10.252.97.57/public/phpmyadmin
        env:
        - name: PMA_HOST
          value:  mysql
        - name: PMA_PORT
          value: "13306"
        - name: PMA_USER
          value: root
        - name: PMA_PASSWORD
          value:  liubei@2021
        ports:
        - containerPort: 80
          protocol: TCP
        volumeMounts:
        - mountPath: /etc/phpmyadmin/config.inc.php
          name: config-inc-php
          subPath: config.inc.php
      volumes:
      - name: config-inc-php
        configMap:
          name: config.inc.php
---
kind: Service
apiVersion: v1
metadata:
  name: phpmyadmin
  namespace: mysql
  labels:
    name: phpmyadmin
spec:
  type: NodePort
  ports:
  - protocol: TCP
    nodePort: 31003
    targetPort: 80
    port: 80
  selector:
    app: phpmyadmin


3. 测试

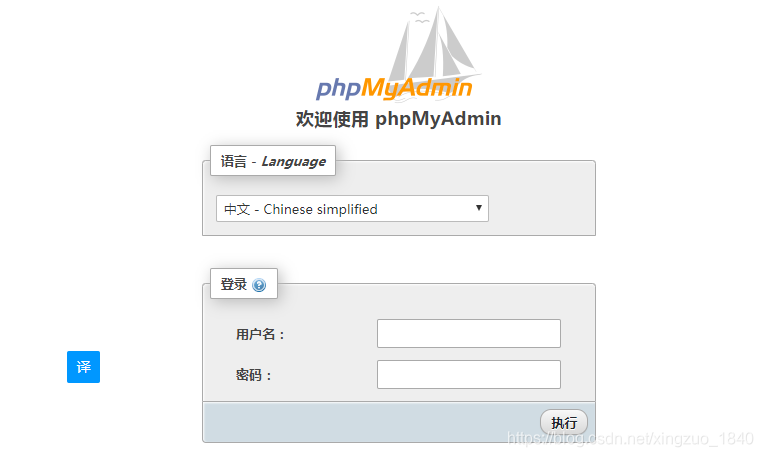

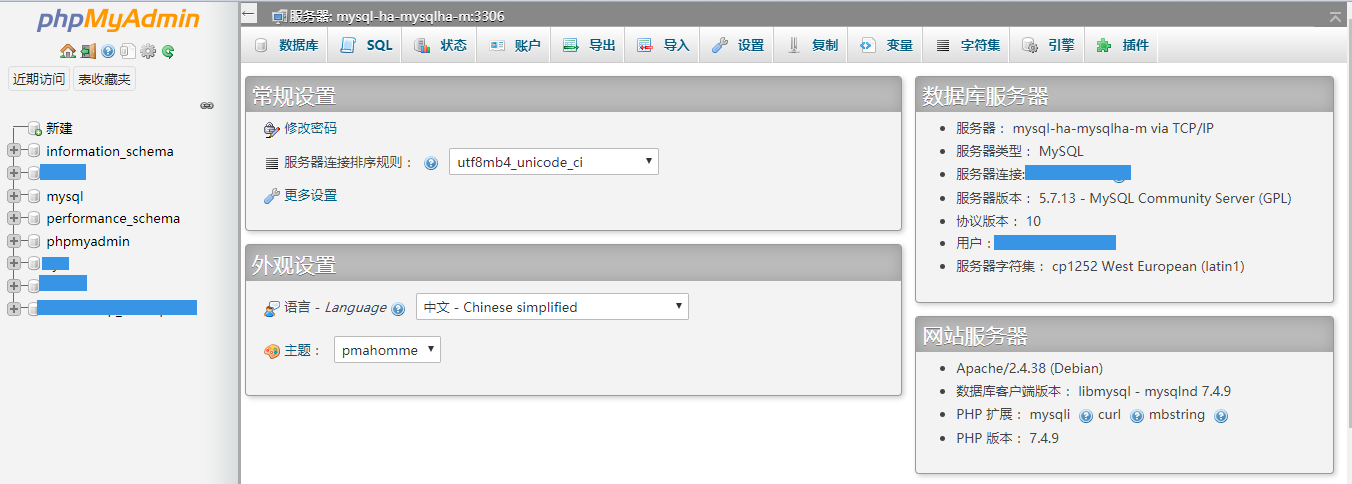

使用mysql的账号密码登录

---
