mybatis源码探索之代理封装阶段
文章目录
版本
mybatis版本3.5.7
背景
我们在使用mybatis进行数据库crud时通常都是通过*Mapper.java对象的方法进行操作的，那sql语句怎么和对应的方法绑定的，mybatis是怎么知道返回结果是多个、单个或者是其他的，*Mapper是个接口，它是怎么实例化调用方法的。这些一系列问题背后怎么实现的，都是跟binding模块相关的。
实现步骤
要实现以上操作有三个步骤：
1、根据sql语句类型和参数选择调用不同的方法
2、通过找到命名空间和方法名
3、传递参数
完成以上三个主要步骤就绑定成功了，要完成以上步骤需要下面几个核心类。
核心类
MapperRegistry
MapperRegistry 是mapper 接口和对应的代理对象工厂的注册中心。MapperRegistry 内部维护着一个Map对象，key是mapper接口的Class对象，value是MapperProxyFactory。
当需要获取mapper接口对象时就需要调用SqlSession#getMapper方法，getMapper是从configuration对象的MapperRegistry获取一个代理对象工厂。
SqlSession#getMapper：
public <T> T getMapper(Class<T> type) {
return configuration.getMapper(type, this);
}
MapperRegistry#getMapper
public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
final MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory<T>) knownMappers.get(type);
if (mapperProxyFactory == null) {
throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
}
try {
return mapperProxyFactory.newInstance(sqlSession);
} catch (Exception e) {
throw new BindingException("Error getting mapper instance. Cause: " + e, e);
}
}
在配置加载阶段会往Configuration对象的属性mapperRegistry中添加mapper接口和代理工厂映射，
添加入口是Configuration#addMappers和Configuration#addMapper，前者是把某个包下的mapper接口添加进去，后者只是添加单独一个mapper接口，最终都是调用MapperRegistry#addMapper。
MapperRegistry#addMapper
/**
* 把mapper 接口添加到 knownMappers 中注册中心
* @param type
* @param <T>
*/
public <T> void addMapper(Class<T> type) {
if (type.isInterface()) {
if (hasMapper(type)) {
throw new BindingException("Type " + type + " is already known to the MapperRegistry.");
}
boolean loadCompleted = false;
try {
// 建立mapper 和 MapperProxyFactory 的连接
knownMappers.put(type, new MapperProxyFactory<>(type));
// It's important that the type is added before the parser is run
// otherwise the binding may automatically be attempted by the
// mapper parser. If the type is already known, it won't try.
// 解析接口上的注解信息并添加到configuration对象中
MapperAnnotationBuilder parser = new MapperAnnotationBuilder(config, type);
parser.parse();
loadCompleted = true;
} finally {
if (!loadCompleted) {
knownMappers.remove(type);
}
}
}
}
MapperProxyFactory
MapperProxyFactory是MapperProxy的工厂类，专门用来生产MapperProxy的。
MapperProxyFactory:
public class MapperProxyFactory<T> {
/**
* mapper接口的Class对象
*/
private final Class<T> mapperInterface;
/**
* key: mapper接口的一个方法的Method对象
* value: 对应的MapperMethodInvoker对象
*/
private final Map<Method, MapperMethodInvoker> methodCache = new ConcurrentHashMap<>();
public MapperProxyFactory(Class<T> mapperInterface) {
this.mapperInterface = mapperInterface;
}
public Class<T> getMapperInterface() {
return mapperInterface;
}
public Map<Method, MapperMethodInvoker> getMethodCache() {
return methodCache;
}
/**
* 创建mapperInterface接口的实现类的代理对象
* @param mapperProxy
* @return
*/
@SuppressWarnings("unchecked")
protected T newInstance(MapperProxy<T> mapperProxy) {
T proxyInstance = (T) Proxy.newProxyInstance(mapperInterface.getClassLoader(), new Class[]{mapperInterface}, mapperProxy);
return proxyInstance;
}
public T newInstance(SqlSession sqlSession) {
//创建MapperProxy对象
final MapperProxy<T> mapperProxy = new MapperProxy<>(sqlSession, mapperInterface, methodCache);
return newInstance(mapperProxy);
}
}

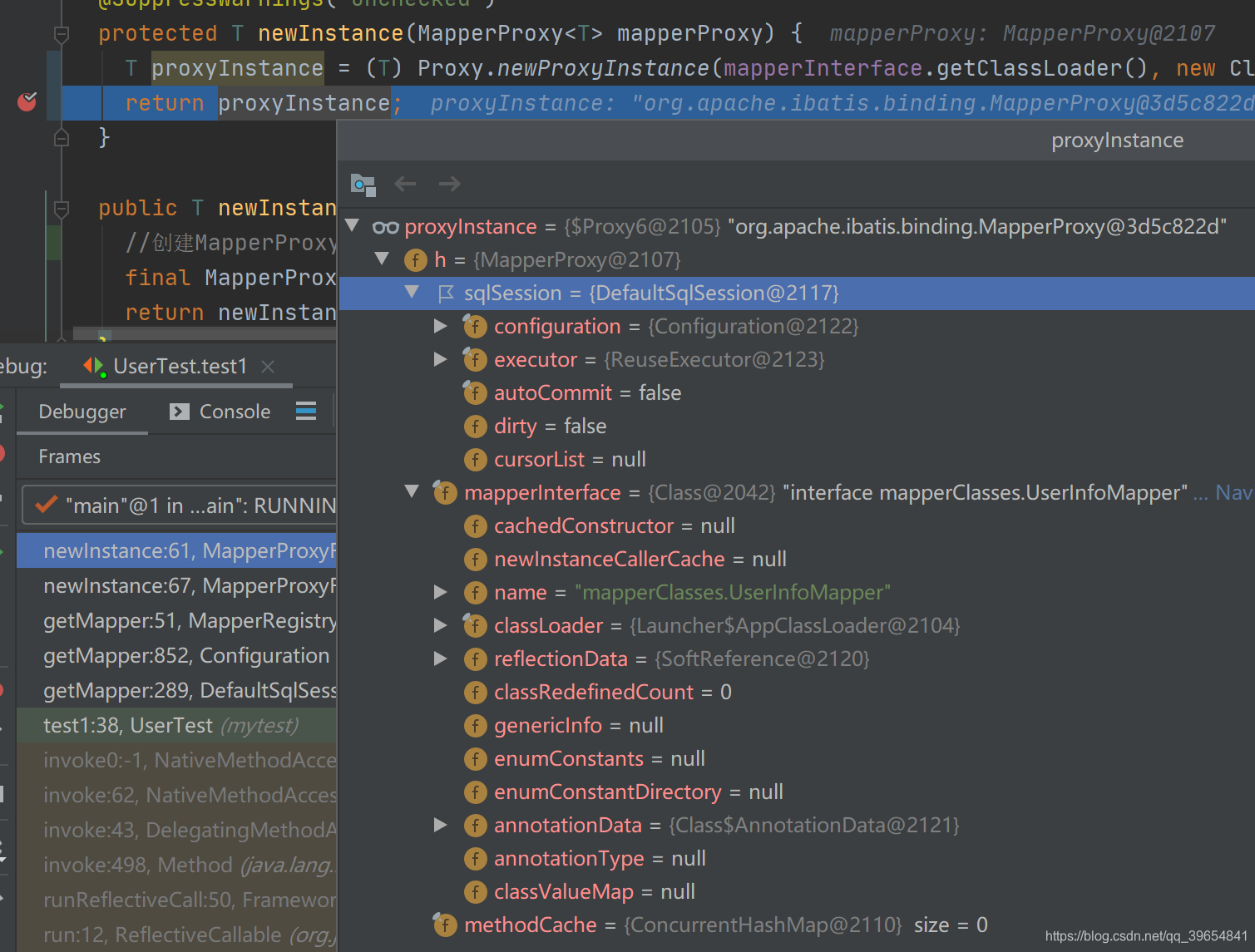

mapper接口的代理类形如org.apache.ibatis.binding.MapperProxy@3d5c822d
MapperProxy
MapperProxy是在MapperProxyFactory#newInstance(SqlSession sqlSession)方法中生成实例对象的。
MapperProxy实现了InvocationHandler，使用的jdk的动态代理，对mapper接口进行了增强。
既然MapperProxy实现了InvocationHandler接口，那就从invoke开始看起。
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
try {
//如果是Object类声明的方法
if (Object.class.equals(method.getDeclaringClass())) {
return method.invoke(this, args);
} else {
return cachedInvoker(method).invoke(proxy, method, args, sqlSession);
}
} catch (Throwable t) {
throw ExceptionUtil.unwrapThrowable(t);
}
}
接下来看cachedInvoker方法：
/**
* 缓存method对应的MapperMethodInvoker对象
* @param method
* @return
* @throws Throwable
*/
private MapperMethodInvoker cachedInvoker(Method method) throws Throwable {
try {
// A workaround for https://bugs.openjdk.java.net/browse/JDK-8161372
// It should be removed once the fix is backported to Java 8 or
// MyBatis drops Java 8 support. See gh-1929
MapperMethodInvoker invoker = methodCache.get(method);
if (invoker != null) {
return invoker;
}
return methodCache.computeIfAbsent(method, m -> {
//如果是接口的default方法生成DefaultMethodInvoker
if (m.isDefault()) {
try {
if (privateLookupInMethod == null) {
return new DefaultMethodInvoker(getMethodHandleJava8(method));
} else {
return new DefaultMethodInvoker(getMethodHandleJava9(method));
}
} catch (IllegalAccessException | InstantiationException | InvocationTargetException
| NoSuchMethodException e) {
throw new RuntimeException(e);
}
} else {
//生成非default方法MethodInvoker
return new PlainMethodInvoker(new MapperMethod(mapperInterface, method, sqlSession.getConfiguration()));
}
});
} catch (RuntimeException re) {
Throwable cause = re.getCause();
throw cause == null ? re : cause;
}
}
MapperMethodInvoker
MapperMethodInvoker是MapperProxy的内部类。
MapperMethodInvoker对于接口中非default方法来说它是MapperMethod的调用者，它的实现PlainMethodInvoker里面维护着一个MapperMethod，真正的执行者还是MapperMethod。
DefaultMethodInvoker内部就直接调用了default方法。重点还是要看PlainMethodInvoker
PlainMethodInvoker
/**
* 接口中非default方法的调用器
*/
private static class PlainMethodInvoker implements MapperMethodInvoker {
private final MapperMethod mapperMethod;
public PlainMethodInvoker(MapperMethod mapperMethod) {
super();
this.mapperMethod = mapperMethod;
}
@Override
public Object invoke(Object proxy, Method method, Object[] args, SqlSession sqlSession) throws Throwable {
//调用mapperMethod对象执行sql
return mapperMethod.execute(sqlSession, args);
}
}
PlainMethodInvoker的invoke方法内部也没有对参数做什么别的逻辑操作而是直接转发给MapperMethod#execute方法，让MapperMethod来执行，MapperMethod也是最后真正的执行者。
MapperMethod
MapperMethod才是binding模块真正的执行者，上述的三个步骤也都是在MapperMethod中实现的。
三个步骤：
1、根据sql语句类型和参数选择调用不同的方法
2、找到命名空间和方法名
3、传递参数
属性
MapperMethod内部有两个属性，SqlCommand和MethodSignature对象，它们也都是MapperMethod的内部类。
//mapper接口中方法的命名空间和sql类型
private final SqlCommand command;
//mapper接口中的方法签名，包括参数、返回类型等信息
private final MethodSignature method;
public MapperMethod(Class<?> mapperInterface, Method method, Configuration config) {
this.command = new SqlCommand(config, mapperInterface, method);
this.method = new MethodSignature(config, mapperInterface, method);
}
SqlCommand
SqlCommand的作用是获取sql命名空间和sql语句的类型。
SqlCommand源码，删除了一些getter方法。
public static class SqlCommand {
//sql的命名空间
private final String name;
//sql语句类型，UNKNOWN, INSERT, UPDATE, DELETE, SELECT, FLUSH
private final SqlCommandType type;
public SqlCommand(Configuration configuration, Class<?> mapperInterface, Method method) {
final String methodName = method.getName();
final Class<?> declaringClass = method.getDeclaringClass();
//从configuration对象获取MappedStatement对象
MappedStatement ms = resolveMappedStatement(mapperInterface, methodName, declaringClass,
configuration);
if (ms == null) {
//判断没有Flush注解
if (method.getAnnotation(Flush.class) != null) {
name = null;
type = SqlCommandType.FLUSH;
} else {
throw new BindingException("Invalid bound statement (not found): "
+ mapperInterface.getName() + "." + methodName);
}
} else {
name = ms.getId();
type = ms.getSqlCommandType();
if (type == SqlCommandType.UNKNOWN) {
throw new BindingException("Unknown execution method for: " + name);
}
}
}
//从configuration对象获取MappedStatement对象
private MappedStatement resolveMappedStatement(Class<?> mapperInterface, String methodName,
Class<?> declaringClass, Configuration configuration) {
//接口全限定名假方法名组成statementId,如 mapperClasses.UserInfoMapper.selectByPrimaryKey
String statementId = mapperInterface.getName() + "." + methodName;
if (configuration.hasStatement(statementId)) {
return configuration.getMappedStatement(statementId);
} else if (mapperInterface.equals(declaringClass)) {
//如果是方法的所在的接口
return null;
}
for (Class<?> superInterface : mapperInterface.getInterfaces()) {
//递归查找直到找到对应MappedStatement对象
if (declaringClass.isAssignableFrom(superInterface)) {
MappedStatement ms = resolveMappedStatement(superInterface, methodName,
declaringClass, configuration);
if (ms != null) {
return ms;
}
}
}
return null;
}
}
MethodSignature
MethodSignature 作用是解析方法的参数、返回值类型等信息。
MethodSignature源码，删除了一些getter方法。
public static class MethodSignature {
//返回结果是集合或者数组
private final boolean returnsMany;
//返回结果是map对象
private final boolean returnsMap;
private final boolean returnsVoid;
private final boolean returnsCursor;
private final boolean returnsOptional;
//返回类型
private final Class<?> returnType;
//@MapKey注解的value，也就是属性名或者列名
private final String mapKey;
private final Integer resultHandlerIndex;
private final Integer rowBoundsIndex;
//方法的参数解析器，将参数转为map
private final ParamNameResolver paramNameResolver;
public MethodSignature(Configuration configuration, Class<?> mapperInterface, Method method) {
//获取方法返回值类型
Type resolvedReturnType = TypeParameterResolver.resolveReturnType(method, mapperInterface);
if (resolvedReturnType instanceof Class<?>) {
this.returnType = (Class<?>) resolvedReturnType;
} else if (resolvedReturnType instanceof ParameterizedType) {
this.returnType = (Class<?>) ((ParameterizedType) resolvedReturnType).getRawType();
} else {
this.returnType = method.getReturnType();
}
this.returnsVoid = void.class.equals(this.returnType);
this.returnsMany = configuration.getObjectFactory().isCollection(this.returnType) || this.returnType.isArray();
this.returnsCursor = Cursor.class.equals(this.returnType);
this.returnsOptional = Optional.class.equals(this.returnType);
this.mapKey = getMapKey(method);
this.returnsMap = this.mapKey != null;
this.rowBoundsIndex = getUniqueParamIndex(method, RowBounds.class);
this.resultHandlerIndex = getUniqueParamIndex(method, ResultHandler.class);
this.paramNameResolver = new ParamNameResolver(configuration, method);
}
public Object convertArgsToSqlCommandParam(Object[] args) {
return paramNameResolver.getNamedParams(args);
}
public boolean hasRowBounds() {
return rowBoundsIndex != null;
}
public RowBounds extractRowBounds(Object[] args) {
return hasRowBounds() ? (RowBounds) args[rowBoundsIndex] : null;
}
public boolean hasResultHandler() {
return resultHandlerIndex != null;
}
public ResultHandler extractResultHandler(Object[] args) {
return hasResultHandler() ? (ResultHandler) args[resultHandlerIndex] : null;
}
/**
* return whether return type is {@code java.util.Optional}.
*
* @return return {@code true}, if return type is {@code java.util.Optional}
* @since 3.5.0
*/
public boolean returnsOptional() {
return returnsOptional;
}
/**
* 获取参数唯一下标
* @param method
* @param paramType
* @return
*/
private Integer getUniqueParamIndex(Method method, Class<?> paramType) {
Integer index = null;
final Class<?>[] argTypes = method.getParameterTypes();
for (int i = 0; i < argTypes.length; i++) {
//判断paramType是否是参数的父类或者superinterface ，true返回下标
if (paramType.isAssignableFrom(argTypes[i])) {
if (index == null) {
index = i;
} else {
throw new BindingException(method.getName() + " cannot have multiple " + paramType.getSimpleName() + " parameters");
}
}
}
return index;
}
/**
* 获取MapKey注解value
* @param method
* @return
*/
private String getMapKey(Method method) {
String mapKey = null;
if (Map.class.isAssignableFrom(method.getReturnType())) {
final MapKey mapKeyAnnotation = method.getAnnotation(MapKey.class);
if (mapKeyAnnotation != null) {
mapKey = mapKeyAnnotation.value();
}
}
return mapKey;
}
}
方法
MapperMethod核心方法是MapperMethod#execute方法
execute
execute方法中的executeFor*方法最终都会根据返回值是集合、void、map等调用sqlSession对象中相应的方法。
public Object execute(SqlSession sqlSession, Object[] args) {
Object result;
//步骤一：根据sql语句类型和参数选择调用不同的方法
switch (command.getType()) {
case INSERT: {
//步骤三：将参数转为map
Object param = method.convertArgsToSqlCommandParam(args);
result = rowCountResult(sqlSession.insert(command.getName(), param));
break;
}
case UPDATE: {
Object param = method.convertArgsToSqlCommandParam(args);
result = rowCountResult(sqlSession.update(command.getName(), param));
break;
}
case DELETE: {
Object param = method.convertArgsToSqlCommandParam(args);
result = rowCountResult(sqlSession.delete(command.getName(), param));
break;
}
case SELECT:
if (method.returnsVoid() && method.hasResultHandler()) { //返回类型是void
executeWithResultHandler(sqlSession, args);
result = null;
} else if (method.returnsMany()) { //返回类型是集合或者数组
result = executeForMany(sqlSession, args);
} else if (method.returnsMap()) {
result = executeForMap(sqlSession, args);
} else if (method.returnsCursor()) {
result = executeForCursor(sqlSession, args);
} else {
Object param = method.convertArgsToSqlCommandParam(args);
result = sqlSession.selectOne(command.getName(), param);
if (method.returnsOptional()
&& (result == null || !method.getReturnType().equals(result.getClass()))) {
result = Optional.ofNullable(result);
}
}
break;
case FLUSH:
result = sqlSession.flushStatements();
break;
default:
throw new BindingException("Unknown execution method for: " + command.getName());
}
if (result == null && method.getReturnType().isPrimitive() && !method.returnsVoid()) {
throw new BindingException("Mapper method '" + command.getName()
+ " attempted to return null from a method with a primitive return type (" + method.getReturnType() + ").");
}
return result;
}
convertArgsToSqlCommandParam
convertArgsToSqlCommandParam是代理封装阶段的最后一个步骤，把参数转为map然后进行传递。它是MethodSignature的对象方法，最终调用的是ParamNameResolver#getNamedParams方法，
/**
* <p>
* A single non-special parameter is returned without a name.
* Multiple parameters are named using the naming rule.
* In addition to the default names, this method also adds the generic names (param1, param2,
* ...).
* </p>
*
* @param args
* the args
* @return the named params
*/
public Object getNamedParams(Object[] args) {
final int paramCount = names.size();
if (args == null || paramCount == 0) {
return null;
} else if (!hasParamAnnotation && paramCount == 1) {
//没有@Param注解并且是单个参数，直接返回参数值
Object value = args[names.firstKey()];
return wrapToMapIfCollection(value, useActualParamName ? names.get(0) : null);
} else {
final Map<String, Object> param = new ParamMap<>();
int i = 0;
for (Map.Entry<Integer, String> entry : names.entrySet()) {
param.put(entry.getValue(), args[entry.getKey()]);
// 生成key是GENERIC_NAME_PREFIX前缀的参数 (param1, param2, ...)，value是参数的entry.getValue()
final String genericParamName = GENERIC_NAME_PREFIX + (i + 1);
// 确保不覆盖以@Param命名的参数
if (!names.containsValue(genericParamName)) {
param.put(genericParamName, args[entry.getKey()]);
}
i++;
}
return param;
}
}
总结
代理封装阶段三个步骤对应的方法
1、根据sql语句类型和参数选择调用不同的方法
MapperMethod#execute中根据sql语句类型和参数选择调用不同的方法
2、找到命名空间和方法名
SqlCommand#resolveMappedStatement中根据方法名和接口获取MappedStatement对象，从而获取到命名空间
3、传递参数
MethodSignature#convertArgsToSqlCommandParam方法调用ParamNameResolver#getNamedParams将参数转为map进行传递
能力一般，水平有限，如有错误，请多指出。
