CentOS 7 搭建Kafka集群

CentOS 7 搭建Kafka集群

服务器环境准备

IP	OS	JDK
192.168.1.25	CentOS 7.9	1.8
192.168.1.28	CentOS 7.9	1.8
192.168.1.22	CentOS 7.9	1.8

下载Kafka包

官网: https://kafka.apache.org/downloads

下载地址：https://downloads.apache.org/kafka/3.4.0/kafka_2.13-3.4.0.tgz

在每台服务器执行已下操作

# 下载文件
wget  https://downloads.apache.org/kafka/3.4.0/kafka_2.13-3.4.0.tgz
# 解压到 /usr/local
tar -zxvf  kafka_2.13-3.4.0.tgz  -C  /usr/local

配置Zookeeper

修改配置文件

vi /usr/local/kafka_2.13-3.4.0/config/zookeeper.properties

修改完成后的配置，将此配置同步到其它两台服务器中

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#    http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
# the directory where the snapshot is stored.
dataDir=/tmp/zookeeper
# the port at which the clients will connect
clientPort=2181
# disable the per-ip limit on the number of connections since this is a non-production config
maxClientCnxns=0
# Disable the adminserver by default to avoid port conflicts.
# Set the port to something non-conflicting if choosing to enable this
admin.enableServer=false
#admin.serverPort=8080
initLimit=10
syncLimit=5
tickTime=2000
server.0=192.168.1.25:12888:13888
server.1=192.168.1.28:12888:13888
server.2=192.168.1.22:12888:13888

创建 myid文件

需要和上面配置文件中 server.0=192.168.1.25:12888:13888 server.1=192.168.1.28:12888:13888 server.2=192.168.1.22:12888:13888 相对应；

192.168.1.25

mkdir  /tmp/zookeeper
echo 0 > /tmp/zookeeper/myid

192.168.1.28

mkdir  /tmp/zookeeper
echo 1 > /tmp/zookeeper/myid

192.168.1.22

mkdir  /tmp/zookeeper
echo 2 > /tmp/zookeeper/myid

配置kafka

vi /usr/local/kafka_2.12-3.4.0/config/server.properties

192.168.1.25

broker.id=0
listeners=PLAINTEXT://192.168.1.25:9092
host.name=192.168.1.25
advertised.listeners=PLAINTEXT://192.168.1.25:9092
zookeeper.connect=localhost:2181,192.168.1.28:2181,192.168.1.22:2181

192.168.1.28

broker.id=1
listeners=PLAINTEXT://192.168.1.28:9092
host.name=192.168.1.28
advertised.listeners=PLAINTEXT://192.168.1.28:9092
zookeeper.connect=localhost:2181,192.168.1.25:2181,192.168.1.22:2181

192.168.1.22

broker.id=2
listeners=PLAINTEXT://192.168.1.22:9092
host.name=192.168.1.22
advertised.listeners=PLAINTEXT://192.168.1.22:9092
zookeeper.connect=localhost:2181,192.168.1.25:2181,192.168.1.28:2181

启动服务

启动zookeeper集群（分别在三台服务器上执行）

# 前台启动（用于测试，无异常使用可使用后台启动）
./bin/zookeeper-server-start.sh  config/zookeeper.properties
# 后台启动
./bin/zookeeper-server-start.sh -daemon config/zookeeper.properties

启动kafka集群（分别在三台服务器上执行，zookeeper集群已启动）

# 前台启动
./bin/kafka-server-start.sh config/server.properties
# 后台启动
./bin/kafka-server-start.sh -daemon config/server.properties

测试一下

我这里用的是GUI工具 Offset Explorer ，也可以安装web 版本Kafka-Manager的

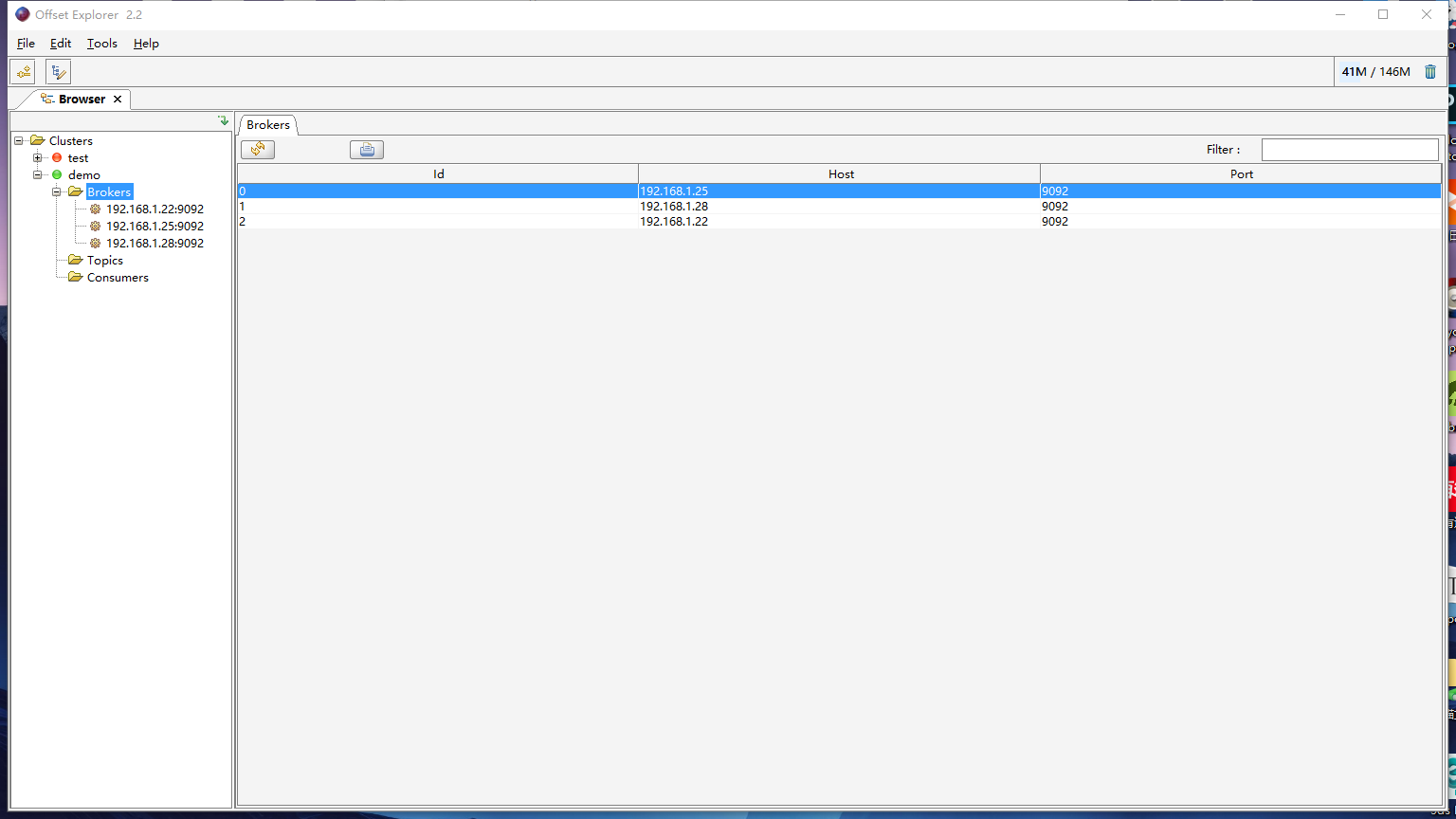

连接

可以看到三个节点

创建一个Topic
