Android使用腾讯浏览服务X5内核

【前期准备】

腾讯X5 jar包下载地址 [点击打开]

本次完整DEMO源码 [打开Github]

【集成步骤】

第一步：下载jar包添加到项目

第二步：添加权限



<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.READ_PHONE_STATE" />



第三步：创建BaseApplication.class



import android.app.Application;
import com.tencent.smtt.sdk.QbSdk;
import com.tencent.smtt.sdk.TbsListener;
import com.xiong.tbs_x5.utils.LogUtil;

/**
 * Created by xiongwenwei@aliyun.com
 * CreateTime: 2017/1/12
 * Note:BaseApplication
 */
public class BaseApplication extends Application {

    private static BaseApplication instance;

    @Override
    public void onCreate() {
        super.onCreate();

        instance = this;
        initTbs();
    }

    private void initTbs() {
        //搜集本地tbs内核信息并上报服务器，服务器返回结果决定使用哪个内核。
        QbSdk.PreInitCallback cb = new QbSdk.PreInitCallback() {

            @Override
            public void onViewInitFinished(boolean arg0) {
                LogUtil.i("onViewInitFinished is " + arg0);
            }

            @Override
            public void onCoreInitFinished() {
            }
        };

        QbSdk.setTbsListener(new TbsListener() {
            @Override
            public void onDownloadFinish(int i) {
                LogUtil.i("onDownloadFinish");
            }

            @Override
            public void onInstallFinish(int i) {
                LogUtil.i("onInstallFinish");
            }

            @Override
            public void onDownloadProgress(int i) {
                LogUtil.i("onDownloadProgress:" + i);
            }
        });

        QbSdk.initX5Environment(getApplicationContext(), cb);
    }

    public static BaseApplication getInstance() {
        return instance;
    }
}

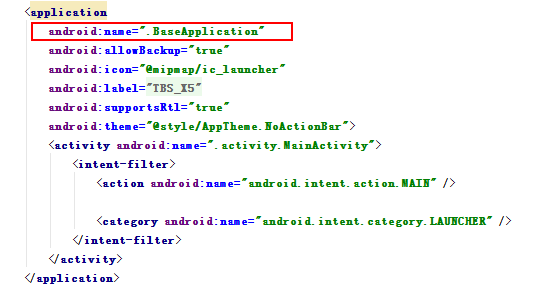

不要忘记添加：



第三步：创建tbs_activity.xml



<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <com.tencent.smtt.sdk.WebView
        android:id="@+id/webView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:background="@color/white" />

</LinearLayout>

第四步：创建TbsActivity.class





import android.graphics.PixelFormat;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.util.Log;
import android.view.KeyEvent;
import android.view.WindowManager;
import com.tencent.smtt.sdk.WebChromeClient;
import com.tencent.smtt.sdk.WebSettings;
import com.tencent.smtt.sdk.WebView;
import com.tencent.smtt.sdk.WebViewClient;
import com.xiong.tbs_x5.R;

/**
 * Created by xiongwenwei@aliyun.com
 * CreateTime: 2017/1/13
 * Note:腾讯浏览服务
 */
public class TbsActivity extends AppCompatActivity{

    private com.tencent.smtt.sdk.WebView webView;
    private String url = "http://3g.qq.com";

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        getWindow().setFormat(PixelFormat.TRANSLUCENT);//（这个对宿主没什么影响，建议声明）
        getWindow().setSoftInputMode(WindowManager.LayoutParams.SOFT_INPUT_ADJUST_RESIZE | WindowManager.LayoutParams.SOFT_INPUT_STATE_HIDDEN);

        initView();
        loadUrl(url);
    }

    private void initView() {
        webView = (com.tencent.smtt.sdk.WebView) findViewById(R.id.webView);
    }

    private void loadUrl(String url) {
        WebSettings webSettings = webView.getSettings();
        webSettings.setJavaScriptEnabled(true);
        webView.loadUrl(url);
        webView.setWebViewClient(new WebViewClient() {
            @Override
            public boolean shouldOverrideUrlLoading(WebView view, String url) {
                view.loadUrl(url);
                return true;
            }

            @Override
            public void onReceivedError(WebView var1, int var2, String var3, String var4) {
                Log.i("打印日志","网页加载失败");
            }
        });
        //进度条
        webView.setWebChromeClient(new WebChromeClient() {
            @Override
            public void onProgressChanged(WebView view, int newProgress) {
                if (newProgress == 100) {
                    Log.i("打印日志","加载完成");
                }
            }
        });
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        if (webView != null) webView.destroy();
    }

    @Override
    public boolean onKeyDown(int keyCode, KeyEvent event) {
        if (keyCode == KeyEvent.KEYCODE_BACK) {
            if (webView != null && webView.canGoBack()) {
                webView.goBack();
                return true;
            }
            return super.onKeyDown(keyCode, event);
        }
        return super.onKeyDown(keyCode, event);
    }

}

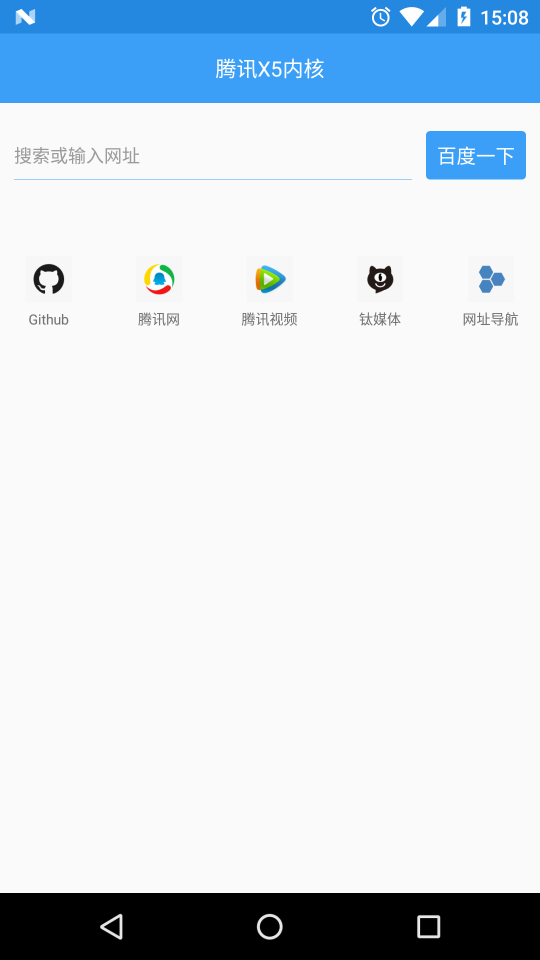

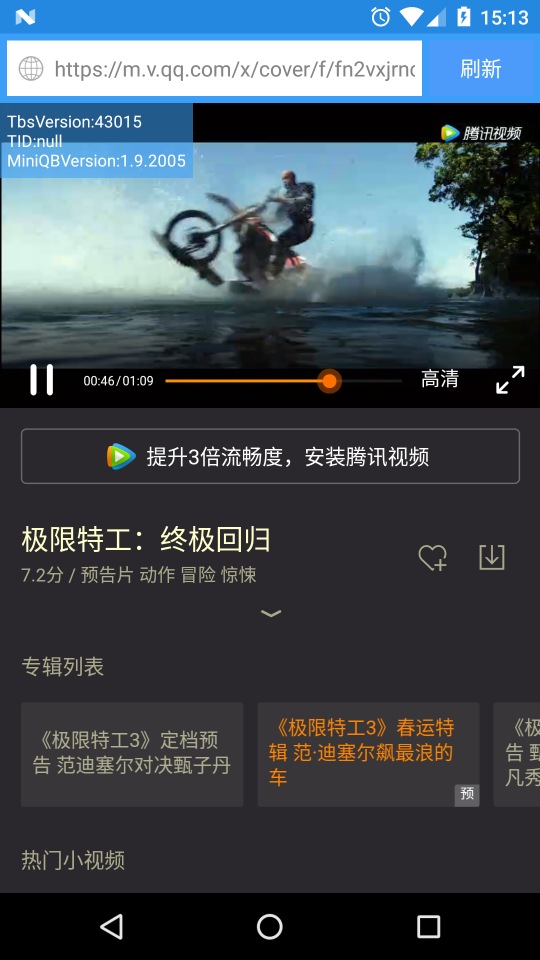

【接入成功效果】

上述代码只是最基础的集成，更多的效果，请移步官网 [官网接入文档]

大概试了下，APP第一次启动好像用的还是自带Webview，猜测是X5内核还没下载完吧

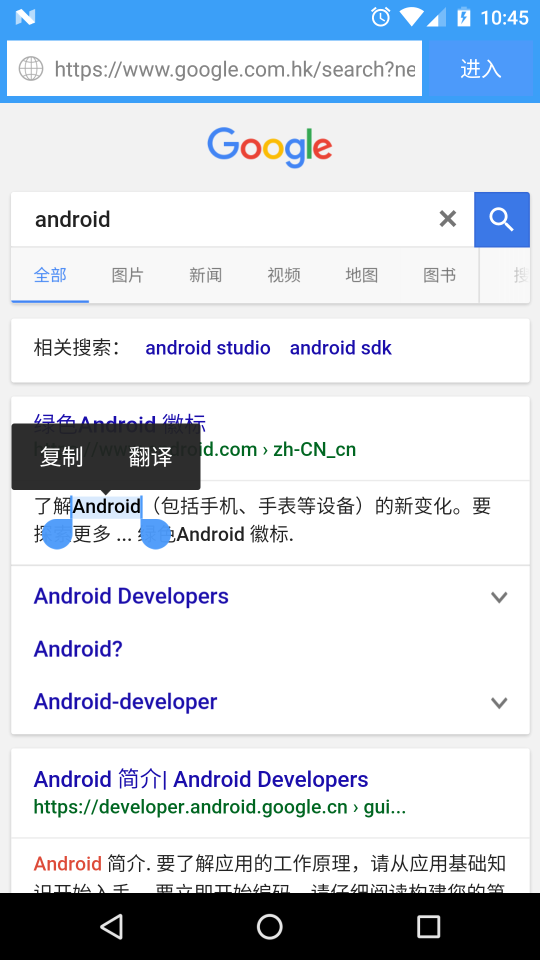

接入成功，标志：1.长按文字会出现"保存离线网页" 2.复制英文会出现"翻译" 3.复制文字会有水滴标志
