Grafana+Loki+Promtail 日志监控

Grafana+Loki+Promtail 日志监控

  • 前置工作

  • 用户组(按需创建)

  • Grafana

  • Loki

  • Loki 配置文件

  • Promtail

  • 配置文件

  • 配置数据源

  • 创建仪表盘

  • 添加查询项



前置工作

  1. Centos 7
  2. 关闭防火墙 (systemctl stop firewalld)
  3. 独立的用户组(可以不创建)

用户组(按需创建)

# 创建用户组groupadd grafana# 新建一个家目录为`/home/grafana`,用户组为`grafana`,用户名为`grafana`的用户useradd -d /home/grafana -g grafana grafana# 切换用户su - grafana# 创建软件目录及按安装包目录mkdir -p softwaremkdir -p packages

Grafana

# 切换目录cd packages# 下载grafanawget https://dl.grafana.com/enterprise/release/grafana-enterprise-11.1.0.linux-amd64.tar.gz# 解压tar -zxf grafana-enterprise-11.1.0.linux-amd64.tar.gz# 移动目录mv grafana-v11.1.0 ../software# 切换目录cd ../software/grafana-v11.1.0# 启动服务(访问地址: http://ip:3000,默认用户名及密码:admin/admin),若出现无法访问,请检查防火墙状态是否为关闭的状态./bin/grafana server

Loki

# 下载地址:https://github.com/grafana/loki/releases,请根据当前系统版本下载相应的文件,并将下载的文件放到packages目录中# 解压并移动目录unzip loki-linux-amd64.zip -d ../software/loki# 创建loki配置文件touch ../software/loki/loki.yaml# 启动loki服务(-config.file 指定配置文件位置)./loki-linux-amd64 -config.file=loki.yaml

Loki 配置文件

auth_enabled: false
server: http_listen_port: 3100 # 服务http监听端口 grpc_listen_port: 9096 # 服务grpc监听端口
common: instance_addr: 127.0.0.1 path_prefix: /tmp/loki storage: filesystem: chunks_directory: /tmp/loki/chunks rules_directory: /tmp/loki/rules replication_factor: 1 ring: kvstore: store: inmemory
query_range: results_cache: cache: embedded_cache: enabled: true max_size_mb: 100
schema_config: configs: - from: 2020-10-24 store: tsdb object_store: filesystem schema: v13 index: prefix: index_ period: 24h
ruler: alertmanager_url: http://localhost:9093
# By default, Loki will send anonymous, but uniquely-identifiable usage and configuration# analytics to Grafana Labs. These statistics are sent to https://stats.grafana.org/## Statistics help us better understand how Loki is used, and they show us performance# levels for most users. This helps us prioritize features and documentation.# For more information on what's sent, look at# https://github.com/grafana/loki/blob/main/pkg/analytics/stats.go# Refer to the buildReport method to see what goes into a report.## If you would like to disable reporting, uncomment the following lines:#analytics:# reporting_enabled: false

Promtail

# 下载地址:https://github.com/grafana/loki/releases,请根据当前系统版本下载相应的文件,并将下载的文件放到packages目录中# 解压并移动目录unzip promtail-linux-amd64.zip -d ../software/promtail# 创建promtail配置文件touch ../software/promtail/promtail.yaml# 启动Promtail服务./promtail-linux-amd64 -config.file=promtail.yaml  -config.expand-env=true

配置文件

Promtail.yaml ,详细配置参考官方文档:https://grafana.com/docs/loki/latest/send-data/promtail/configuration/

server:  http_listen_port: 9080  grpc_listen_port: 0
positions: filename: /home/grafana/software/promtail/pos/positions.yaml sync_period: 10
clients: - url: http://192.168.200.128:3100/loki/api/v1/push # 这里需要修改为loki服务的ip地址
scrape_configs: - job_name: test_1 # 任务名称(可以通过job_name字段区分项目) static_configs: - targets: - localhost labels: # 可以自定义标签,比如主机ip,项目名称,项目环境等等 ip: 192.168.200.128 name: test_1 env: test __path__: /home/grafana/logs/test_1.log # 日志路径 pipeline_stages: - json: expressions: log_level: level msg: msg timestamp: ts uuid: uuid request_data: request_data
{"level":"info","ts":"2024-07-04T22:53:26+08:00","msg":"用户查询函数","uuid":"2613d4a4-719e-488e-80c5-a18076ed041f","request_data":"map[]"}{"level":"info","ts":"2024-07-04T22:53:26+08:00","msg":"用户查询成功","uuid":"2613d4a4-719e-488e-80c5-a18076ed041f"}{"level":"info","ts":"2024-07-04T22:57:28+08:00","msg":"用户查询函数","uuid":"7887f8bf-8c29-407c-8534-d16ac9e779de","request_data":"map[page:1 pageSize:10]"}{"level":"error","ts":"2024-07-04T22:57:28+08:00","msg":"用户查询失败","uuid":"7887f8bf-8c29-407c-8534-d16ac9e779de"}{"level":"info","ts":"2024-07-04T22:57:31+08:00","msg":"用户查询函数","uuid":"d2734fb9-26e5-4828-99b8-1eb68cfb05c4","request_data":"map[page:1 pageSize:1]"}{"level":"info","ts":"2024-07-04T22:57:31+08:00","msg":"用户查询成功","uuid":"d2734fb9-26e5-4828-99b8-1eb68cfb05c4"}

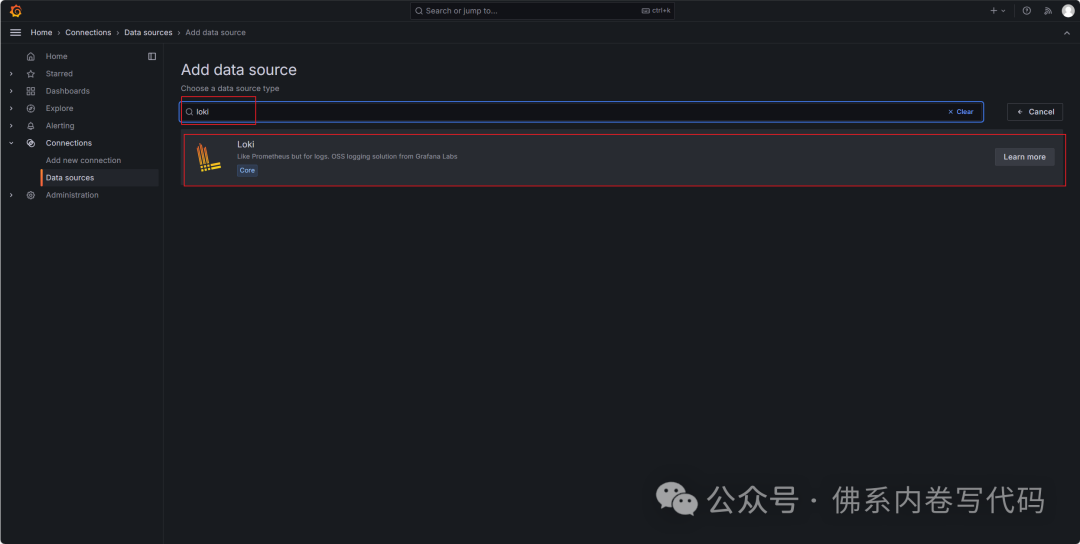

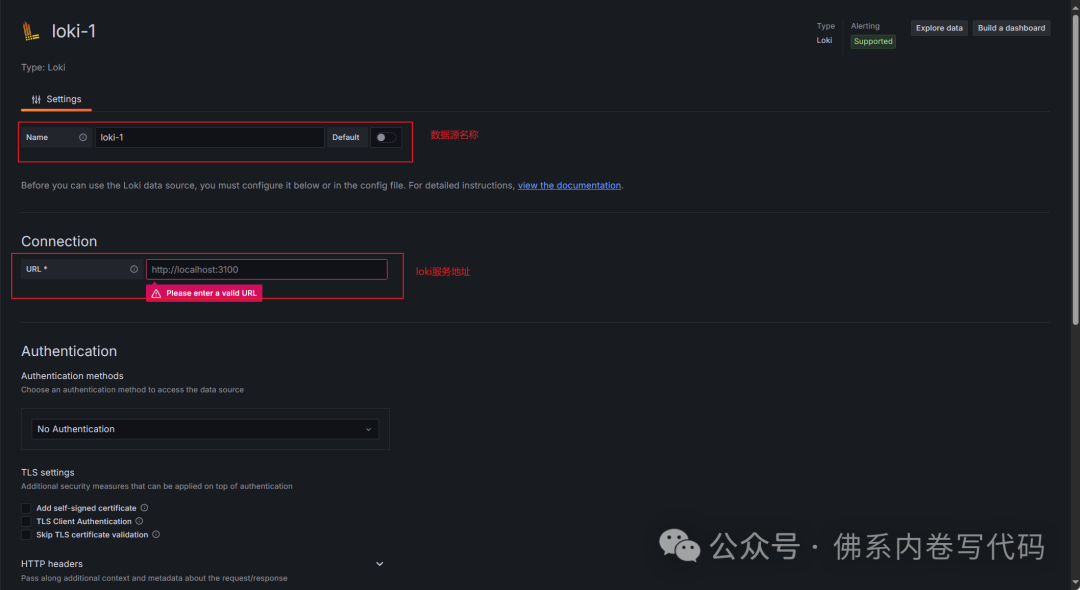

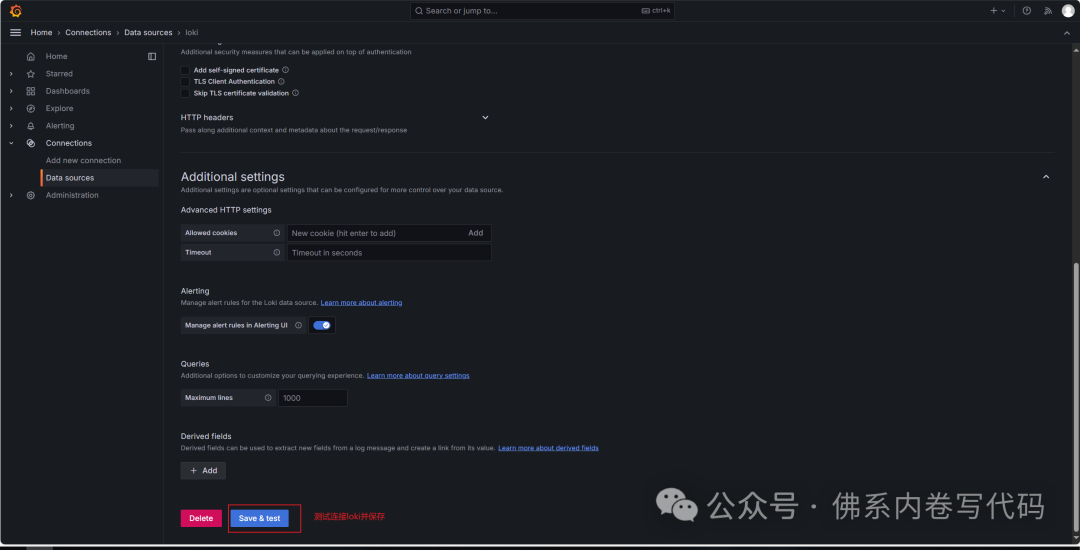

配置数据源

图片image-20240706143157243图片image-20240706143234638图片image-20240706143349698图片image-20240706143444296

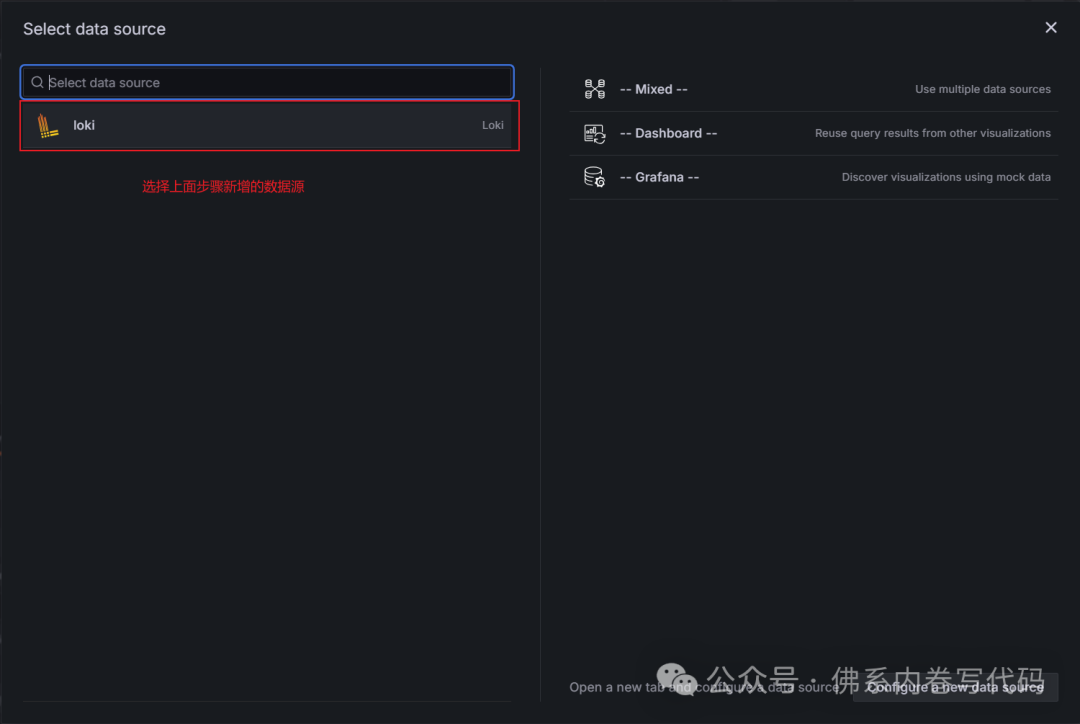

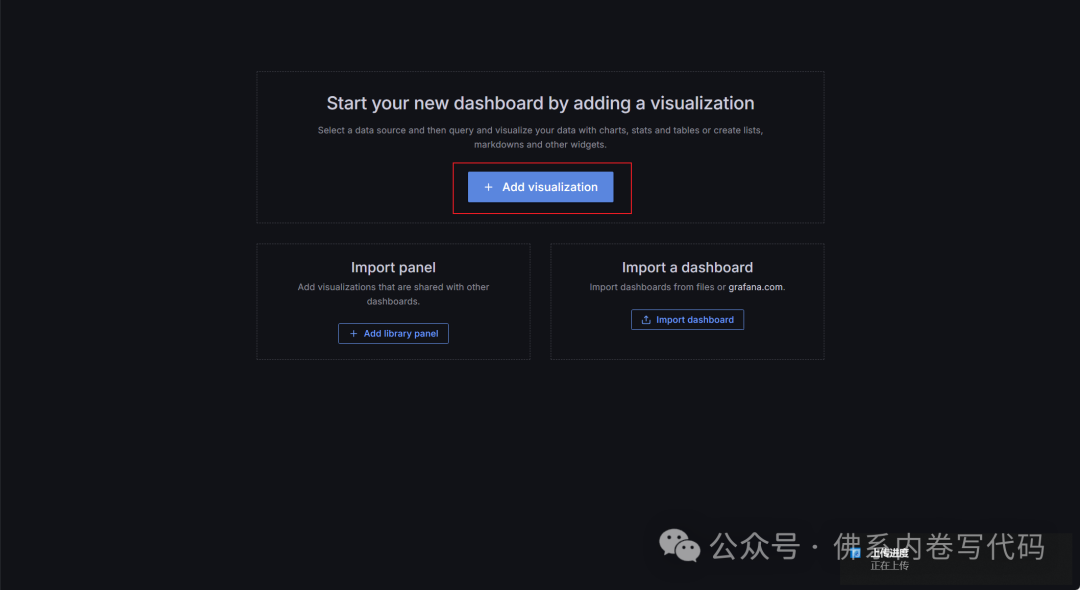

创建仪表盘

图片图片image-20240706163329677图片image-20240706163539478图片image-20240706163658091

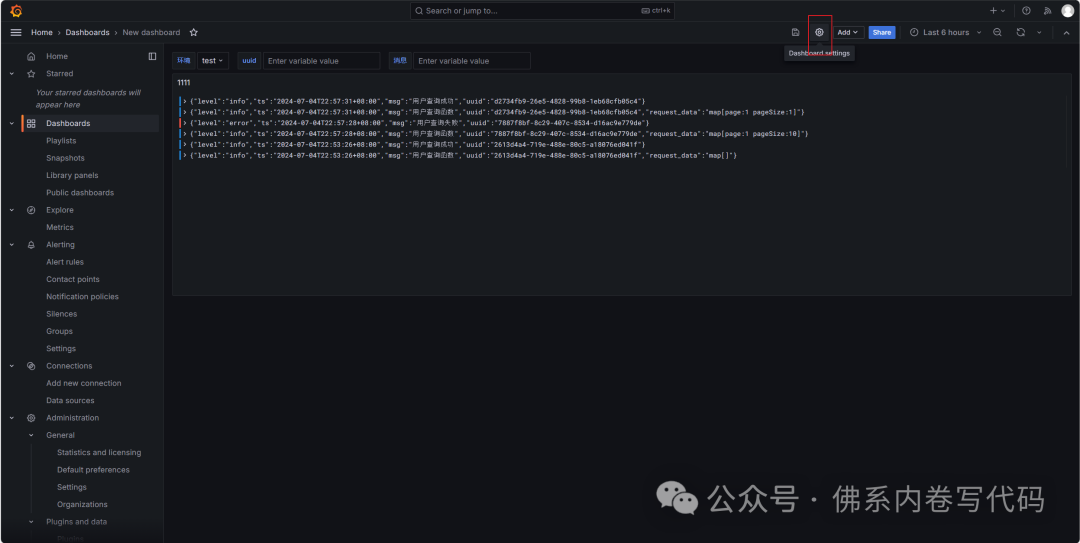

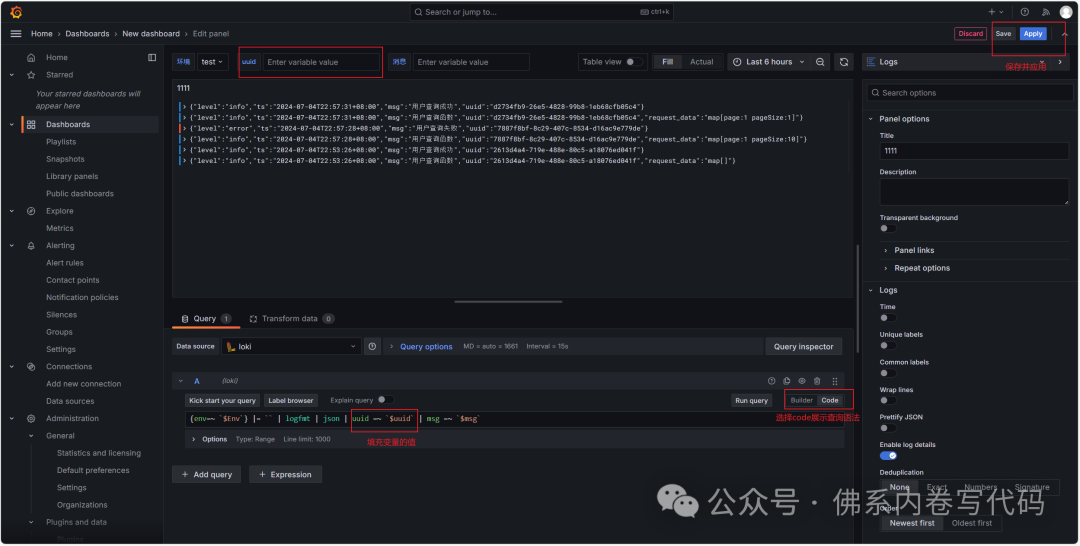

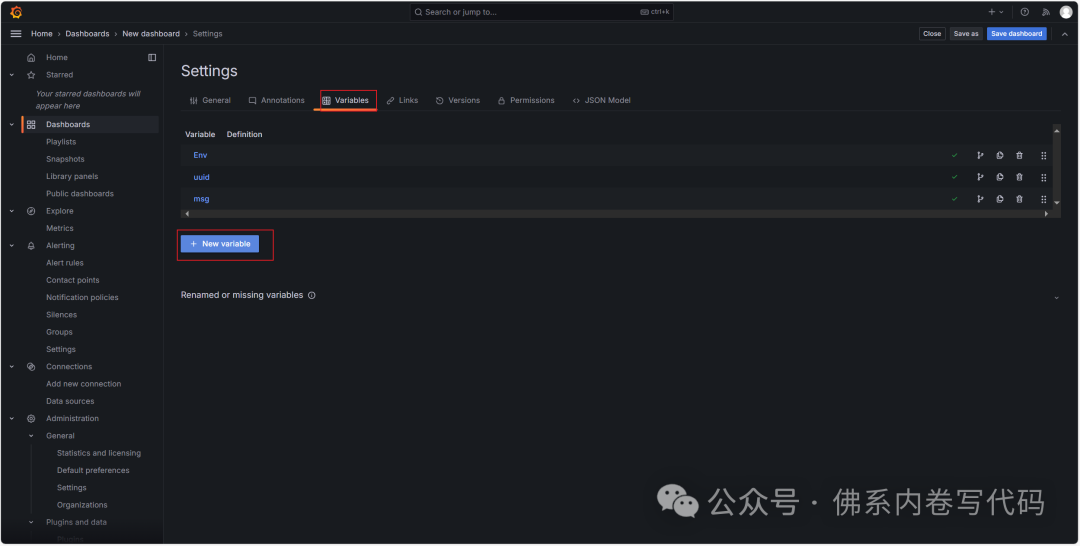

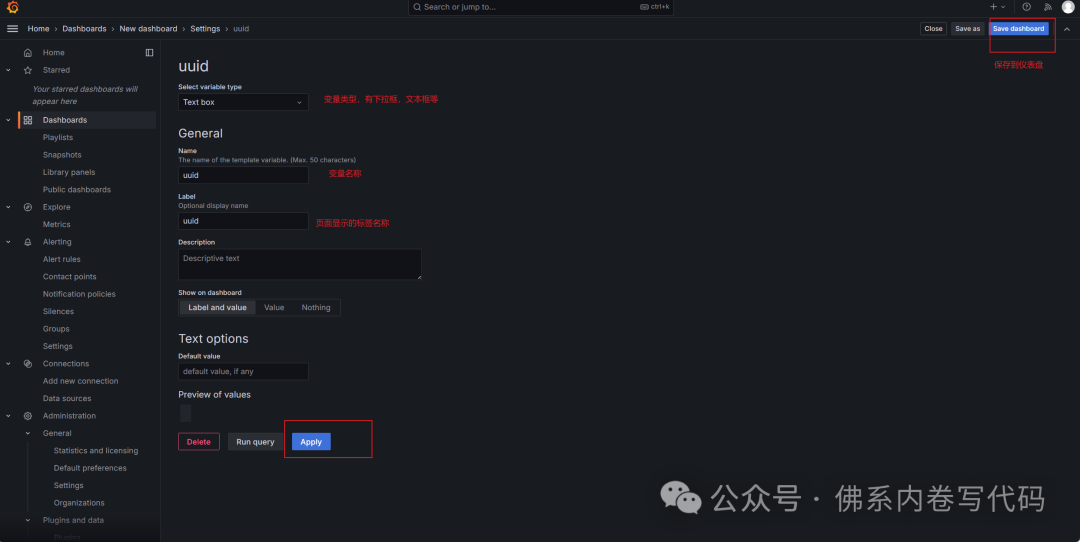

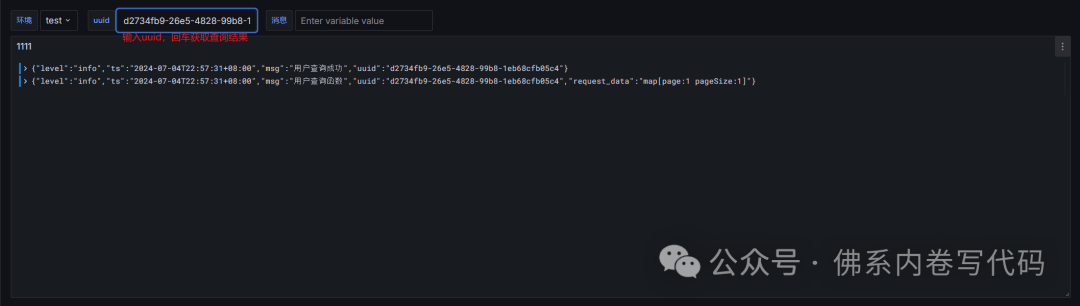

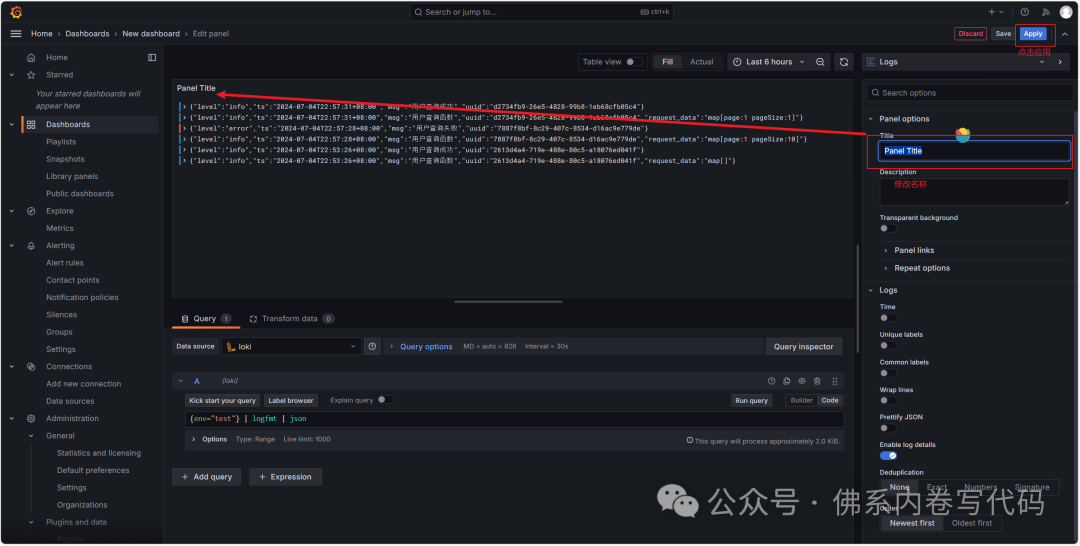

添加查询项

图片image-20240706170323759图片image-20240706170350247图片image-20240706170556009图片image-20240706170744977图片image-20240706170842834



个人观点,仅供参考
