使用UI文件

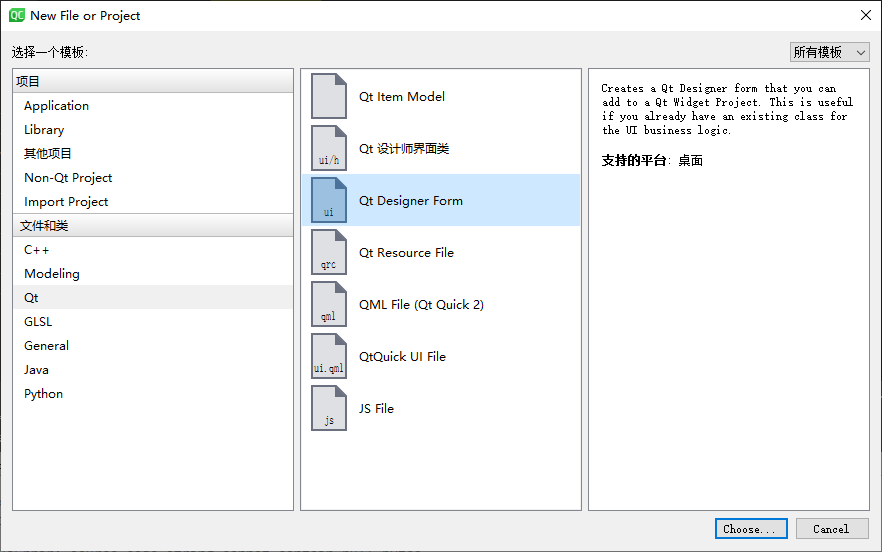

1.创建UI文件 mainwindow.ui，文件内容如下

<?xml version="1.0" encoding="UTF-8"?>
<ui version="4.0">
 <class>MainWindow</class>
 <widget class="QMainWindow" name="MainWindow">
  <property name="geometry">
   <rect>
    <x>0</x>
    <y>0</y>
    <width>400</width>
    <height>300</height>
   </rect>
  </property>
  <property name="windowTitle">
   <string>MainWindow</string>
  </property>
  <widget class="QWidget" name="centralWidget">
   <widget class="QPushButton" name="pushButton">
    <property name="geometry">
     <rect>
      <x>110</x>
      <y>80</y>
      <width>201</width>
      <height>81</height>
     </rect>
    </property>
    <property name="text">
     <string>PushButton</string>
    </property>
   </widget>
  </widget>
  <widget class="QMenuBar" name="menuBar">
   <property name="geometry">
    <rect>
     <x>0</x>
     <y>0</y>
     <width>400</width>
     <height>20</height>
    </rect>
   </property>
  </widget>
  <widget class="QToolBar" name="mainToolBar">
   <attribute name="toolBarArea">
    <enum>TopToolBarArea</enum>
   </attribute>
   <attribute name="toolBarBreak">
    <bool>false</bool>
   </attribute>
  </widget>
  <widget class="QStatusBar" name="statusBar"/>
 </widget>
 <layoutdefault spacing="6" margin="11"/>
 <resources/>
 <connections/>
</ui>

2.在命令行把ui文件转换为py文件

pyside2-uic mainwindow.ui > ui_mainwindow.py

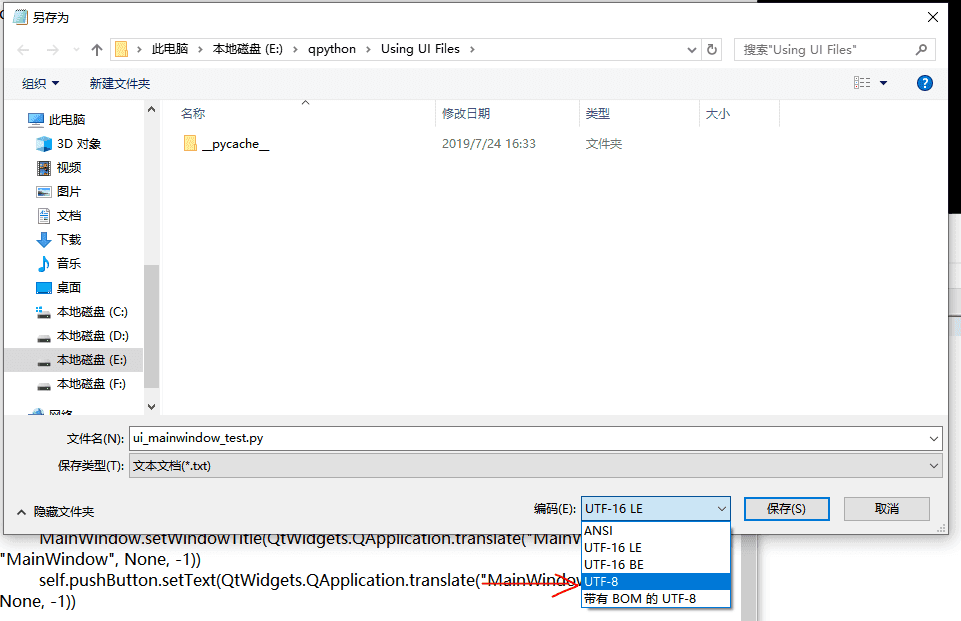

3.注意这个py文件格式是错误的，我们需要用记事本打开，另存为UTF-8格式

4.在main.py里导入这个文件

from ui_mainwindow import *

5.创建MainWindow类，使用Ui_MainWindow作为UI画面

import sys
from PySide2.QtWidgets import QApplication, QMainWindow
from ui_mainwindow import *

class MainWindow(QMainWindow):
    def __init__(self):
        super(MainWindow, self).__init__()
        self.ui = Ui_MainWindow()
        self.ui.setupUi(self)

if __name__ == "__main__":
    app = QApplication(sys.argv)

    window = MainWindow()
    window.show()

    sys.exit(app.exec_())

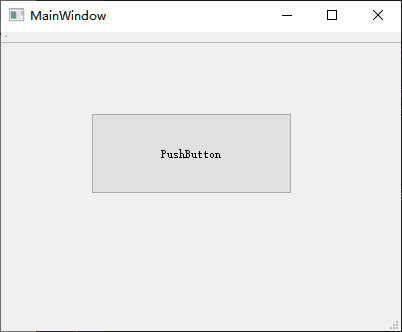

6.运行截图
