Spring cloud微服务与RibbitMQ简单应用

一. 系统架构#

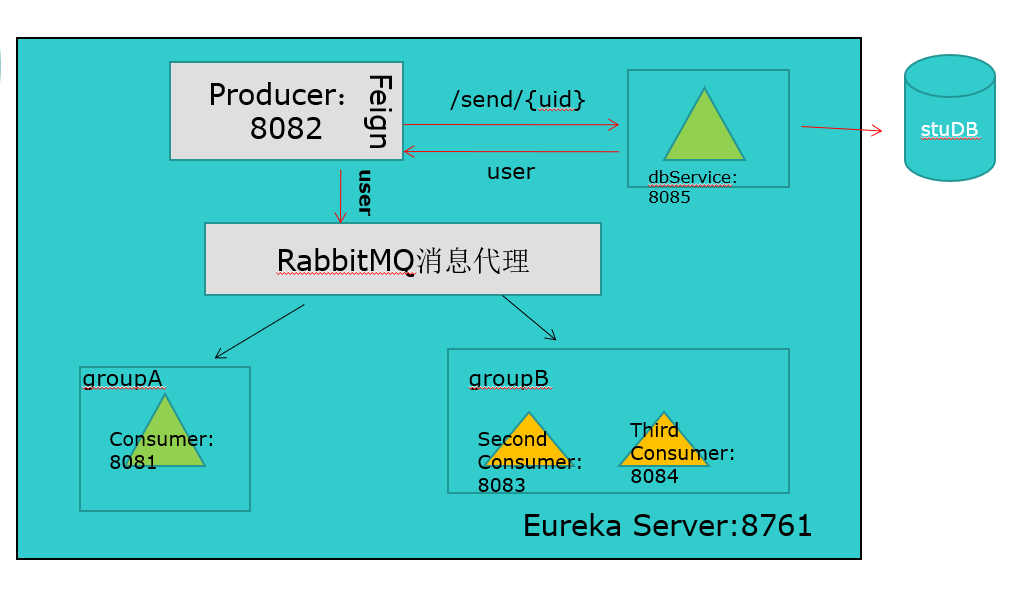

系统架构图：
完成要求：

生产者Producer具备Feign客户端，调用dbService微服务;

增加微服务dbService,通过Spring Data Jpa 访问数据库获取对象user;

生产者Producer将获取对象user通过RabbitMQ,发送给消费组groupA和groupB;

二. 运行环境#

window10
erlan24.0
RabbitMQ3.8.16
mysql8.0

三. 编码实现#

1. 创建注册中心-eurekaServer#

创建springboot项目，导入依赖

Copy
	<dependency>
          <groupId>org.springframework.cloud</groupId>
          <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
      </dependency>

      <dependency>
          <groupId>org.springframework.boot</groupId>
          <artifactId>spring-boot-starter-test</artifactId>
          <scope>test</scope>
      </dependency>

配置文件

Copy
server.port=8761
eureka.client.register-with-eureka=false
eureka.client.fetch-registry=false

启动类加入注解@EnableEurekaServer

Copy
@SpringBootApplication
@EnableEurekaServer
public class EurekaServerApplication {

    public static void main(String[] args) {
        SpringApplication.run(EurekaServerApplication.class, args);
    }
}

2. 创建共有模块-common#

用于定义User共有类

需要使用的依赖

Copy
	<dependency>
      <groupId>org.projectlombok</groupId>
      <artifactId>lombok</artifactId>
      <version>RELEASE</version>
      <scope>compile</scope>
    </dependency>
    <dependency>
      <groupId>jakarta.persistence</groupId>
      <artifactId>jakarta.persistence-api</artifactId>
      <version>2.2.3</version>
      <scope>compile</scope>
    </dependency>
    <dependency>
      <groupId>org.hibernate</groupId>
      <artifactId>hibernate-core</artifactId>
      <version>5.4.31.Final</version>
      <scope>compile</scope>
</dependency>

User类,加入@Entity/@Table等，供服务(dbSerivce)进行数据库表映射

Copy
/**
 * @Author: cailong
 * @Date: 2021/6/4 18:59
 * @Description: User实体类
 */
@Data
@ToString
@AllArgsConstructor
@NoArgsConstructor
@Entity
@Table(name = "tb_user")
public class User implements Serializable {

    private static final long serialVersionUID = 1L;
    @Id
    @GenericGenerator(name = "idGenerator", strategy = "uuid")
    @GeneratedValue(generator = "idGenerator")
    String uid;
    @Column(name = "username",length = 20)
    String userName;
    @Column(name = "password",length = 20)
    String passWord;
}

3. 创建数据库访问服务-DBService#

pox.xml依赖导入

Copy
		<!-- spring data jpa -->
		<dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
		<!-- web -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
		<!-- 引入eureka client,服务发现和注册 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
		<!-- mysql驱动 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.25</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

		<!-- 引入自主创建的公共模块 -->
        <dependency>
            <groupId>org.hcl</groupId>
            <artifactId>common</artifactId>
            <version>1.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>

配置文件

Copy
server.port=8085

spring.application.name=dbService
eureka.instance.hostname=localhost
eureka.client.service-url.defaultZone=http://localhost:8761/eureka/

spring.datasource.url=jdbc:mysql://localhost:3306/spring-cloud?useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull&allowMultiQueries=true&useSSL=false
spring.datasource.username=root
spring.datasource.password=123456

spring.jpa.database=mysql
spring.jpa.database-platform=org.hibernate.dialect.MySQL5InnoDBDialect
spring.jpa.show-sql=false
spring.jpa.hibernate.ddl-auto=update

创建接口UserRepository,继承JpaRepository来实现对User表的操作

Copy
/**
 * @Author: cailong
 * @Date: 2021/6/4 19:13
 * @Description:
 */
@Repository
public interface UserRepository extends JpaRepository<User,String> {
}

控制器创建

Copy
package com.example.dbservice.controller;

import com.example.dbservice.repository.UserRepository;
import lombok.extern.slf4j.Slf4j;
import org.hcl.common.User;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;
import java.util.Optional;

/**
 * @Author: cailong
 * @Date: 2021/6/4 19:18
 * @Description:
 */
@RestController
@Slf4j
public class UserController {

    @Resource
    private UserRepository userRepository;

    /**
     * 根据uid,查询对应的User
     * @param uid
     * @return
     */
    @RequestMapping("/send/{uid}")
    public User send(@PathVariable("uid") String uid){
        log.info("finding uid: "+uid);
        Optional<User> opUser = userRepository.findById(uid);
        if (!opUser.isPresent()) //没有找到对应uid,返回null
            return null;
        log.info(String.valueOf(opUser.get()));
        return opUser.get();
    }

    /**
     * 保存新用户
     * @param username
     * @param password
     * @return
     */
    @RequestMapping(value = "/save")
    public User save(String username,String password){
        User user = new User();
        user.setUserName(username);
        user.setPassWord(password);
        user = userRepository.save(user);
        log.info("save user:"+user);

        return user;
    }
}

启动类配置

Copy
package com.example.dbservice;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.autoconfigure.domain.EntityScan;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;

@SpringBootApplication
@EnableEurekaClient//开启服务发现与注册
@EntityScan(basePackageClasses = org.hcl.common.User.class)//扫描指定实体类
public class DbServiceApplication {

    public static void main(String[] args) {
        SpringApplication.run(DbServiceApplication.class, args);
    }

}

4. 创建生产者服务-producer#

pox.xml,依赖

Copy
		<!-- ribbitMQ -->
		<dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-stream-rabbit</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

		<!-- feign -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.hcl</groupId>
            <artifactId>common</artifactId>
            <version>1.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>

配置文件

Copy
server.port=8082

spring.application.name=producer
eureka.instance.hostname=localhost
eureka.client.service-url.defaultZone=http://localhost:8761/eureka/

spring.rabbitmq.host=localhost
spring.rabbitmq.port=5672
spring.rabbitmq.username=guest
spring.rabbitmq.password=guest

创建FeignClient，用于调用dbService服务

Copy
package com.hcl.producer;

import org.hcl.common.User;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;

/**
 * @Author: cailong
 * @Date: 2021/6/4 22:46
 * @Description: FeignClient，用于调用dbService服务
 */
@FeignClient(value = "dbService")
public interface DBServiceClient {

    @RequestMapping("/send/{uid}")
    User getUser(@PathVariable("uid") String uid);


}

创建接口SendService,用于发送消息到对应的RibbitMQ队列

Copy
package com.hcl.producer;

import org.springframework.cloud.stream.annotation.Output;
import org.springframework.messaging.MessageChannel;

/**
 * @Author: cailong
 * @Date: 2021/6/4 20:34
 * @Description:
 */
public interface SendService {
    //建立myUserChannel队列
    @Output("myUserChannel")
    MessageChannel myUser();
}

启动类，加入@EnableEurekaClient，@EnableFeignClients，@EnableBinding

Copy
package com.hcl.producer;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.openfeign.EnableFeignClients;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.cloud.stream.annotation.EnableBinding;

@SpringBootApplication
@EnableEurekaClient
@EnableFeignClients //feign客户端
@EnableBinding(SendService.class) //绑定消息队列
public class ProducerApplication {

    public static void main(String[] args) {
        SpringApplication.run(ProducerApplication.class, args);
    }

}

控制器类

Copy
package com.hcl.producer;

import lombok.extern.slf4j.Slf4j;
import org.hcl.common.User;
import org.springframework.messaging.Message;
import org.springframework.messaging.support.MessageBuilder;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

/**
 * @Author: cailong
 * @Date: 2021/6/4 22:44
 * @Description:
 */
@RestController
@Slf4j
public class ProducerController {

    @Resource
    private DBServiceClient dbServiceClient;
    @Resource
    SendService sendService;

    /**
     * 查找uid用户，如果找到就发送到消息队列中
     * @param uid
     * @return
     */
    @RequestMapping(value = "/sendUser")
    public String sendUser(String uid){
        User user = dbServiceClient.getUser(uid);
        log.info("user:"+user);
        if (user == null) {
            log.warn("fail ! case by uid=" + uid + " from user is null!");
            return "fail ! case by uid=" + uid + " from user is null!";
        }
        //创建消息
        Message msg = MessageBuilder.withPayload(user).build();
        boolean isSend = sendService.myUser().send(msg);
        log.info(isSend==true?"消息已发送到消息队列":"消息发送失败");
        return "SUCCESS!";
    }
}

5. 创建消费者-consumer#

pox.xml 依赖导入

Copy
		<dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <version>2.4.5</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-stream-rabbit</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.hcl</groupId>
            <artifactId>common</artifactId>
            <version>1.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>

配置文件

Copy
server.port=8081

spring.application.name=consumer
eureka.instance.hostname=localhost
eureka.client.service-url.defaultZone=http://localhost:8761/eureka/

spring.rabbitmq.port=5672
spring.rabbitmq.host=localhost
spring.cloud.stream.bindings.myUserChannel.group=groupA

接口ReceiveService创建，用于获取消息队列

Copy
package com.hcl.consumer;

import org.springframework.cloud.stream.annotation.Input;
import org.springframework.messaging.SubscribableChannel;

/**
 * @Author: cailong
 * @Date: 2021/6/4 23:06
 * @Description:
 */
public interface ReceiveService {

    @Input("myUserChannel")
    SubscribableChannel myUser();
}

启动类，以及消息监听

Copy
package com.hcl.consumer;

import lombok.extern.slf4j.Slf4j;
import org.hcl.common.User;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.stream.annotation.EnableBinding;
import org.springframework.cloud.stream.annotation.StreamListener;

@SpringBootApplication
@EnableEurekaClient
@EnableBinding(ReceiveService.class)
@Slf4j
public class ConsumerApplication {

    @Value("${spring.application.name}")
    String applicationName;

    public static void main(String[] args) {
        SpringApplication.run(ConsumerApplication.class, args);
    }

    /**
     * 接受消息队列中的消息
     * @param user
     */
    @StreamListener("myUserChannel")
    public void receive(User user){
        log.info("I'm "+applicationName);
        log.info("myUserChannel.groupA接收到消息："+user);
    }
}

second Consumer和Third Consumer 同consumer 几乎相同，不同在于配置文件中的
Copy
spring.cloud.stream.bindings.myUserChannel.group=groupA

consumer是groupA,而另外两个是groupB

四. 运行结果#

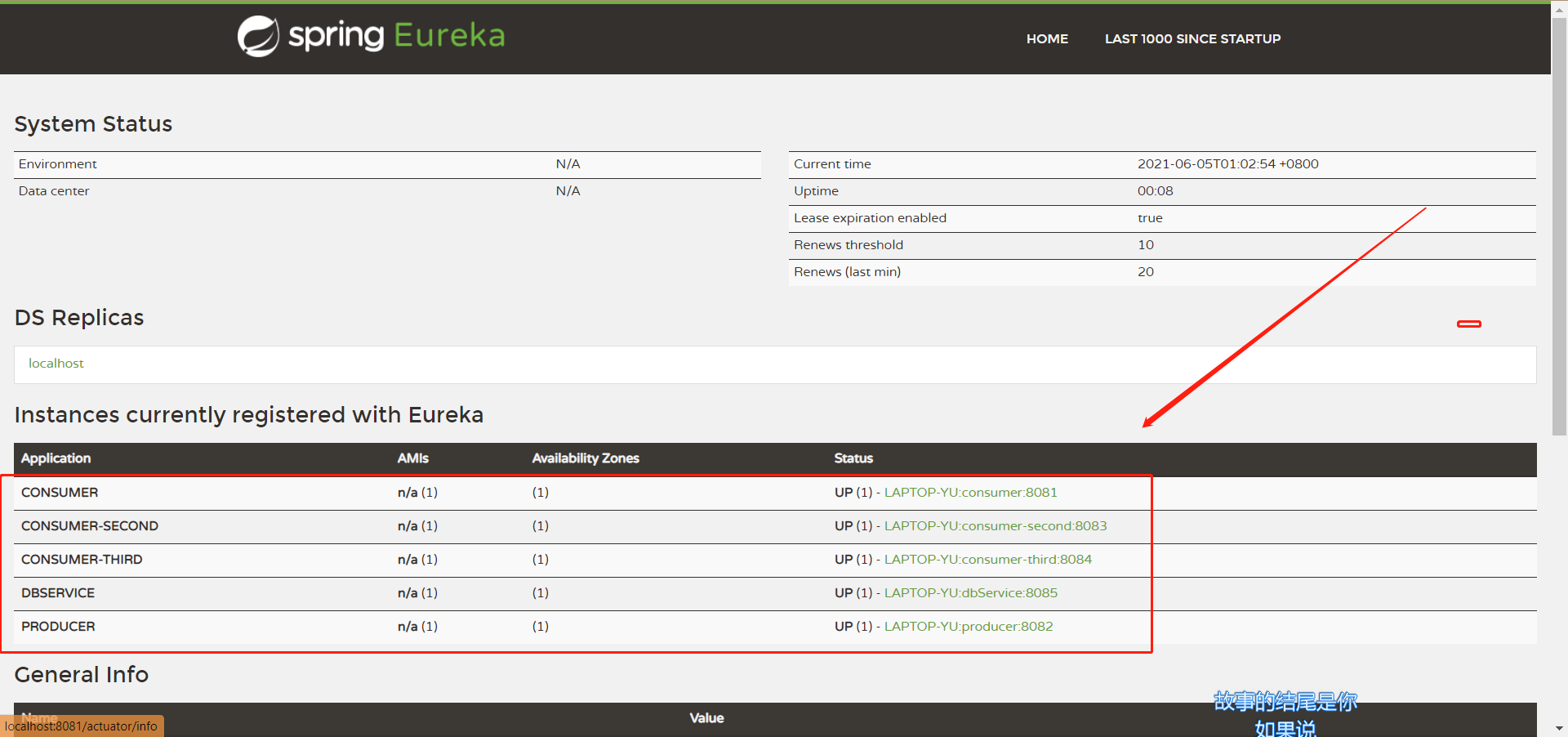

访问Eureka查看服务启动情况

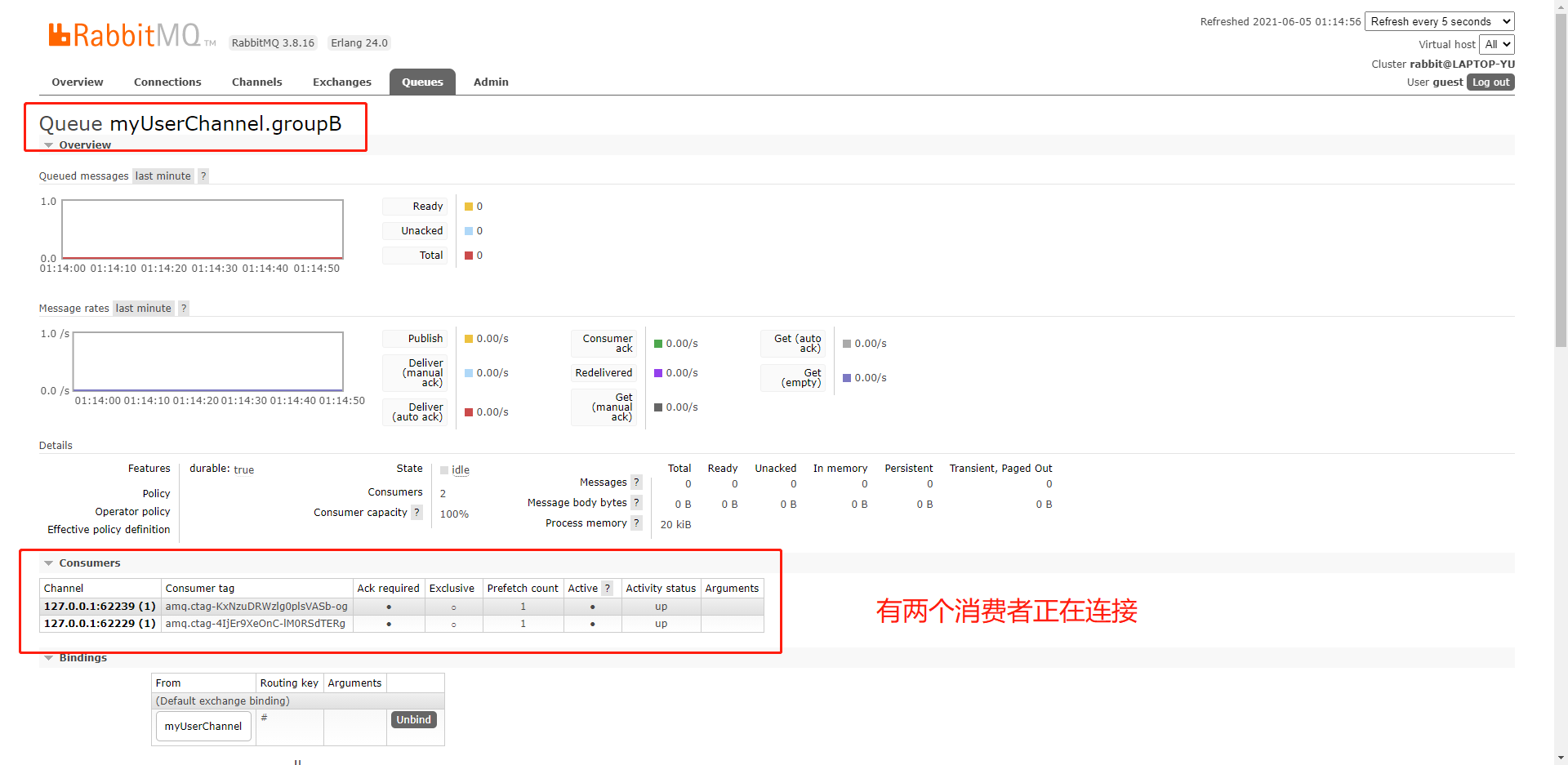

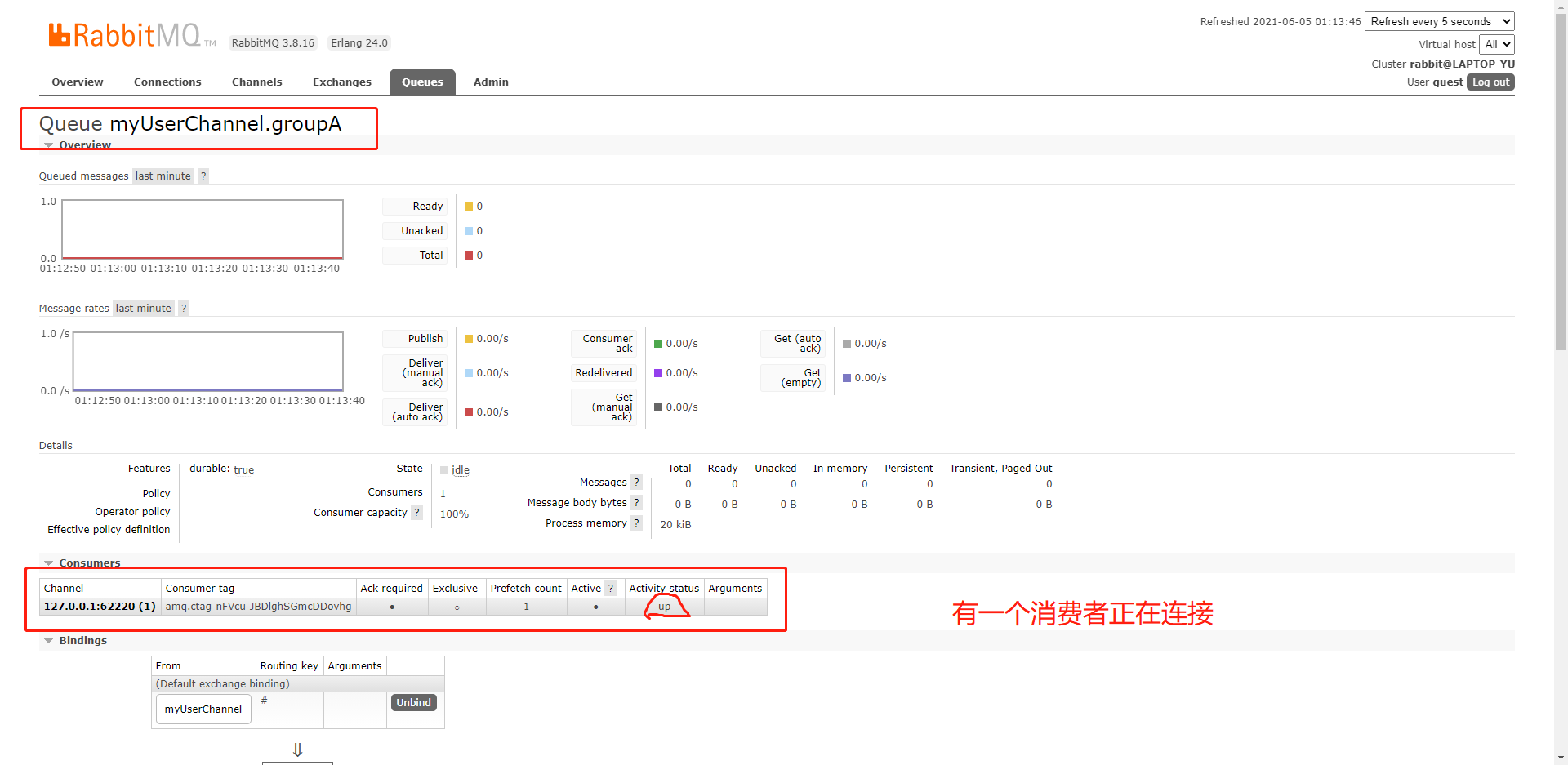

查看RibbitMQ界面，myUserChannel.groupA和myUserChannel.groupB队列的消费者状态和绑定信息
访问 localhost:8082/sendUser?uid=s1

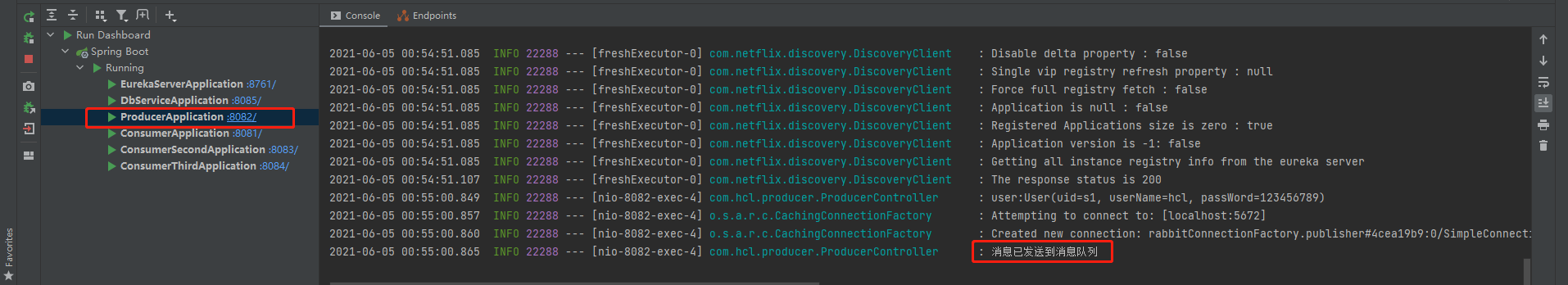

producer控制台输出

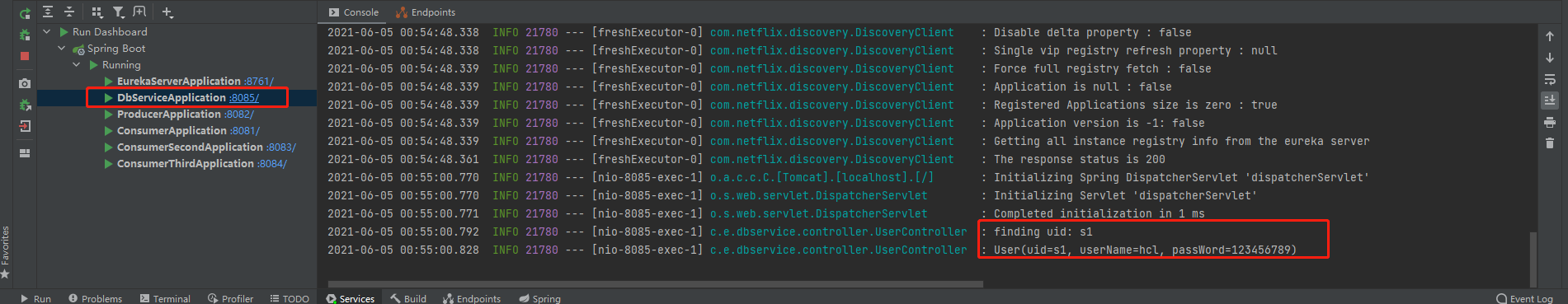

dbservice控制台输出

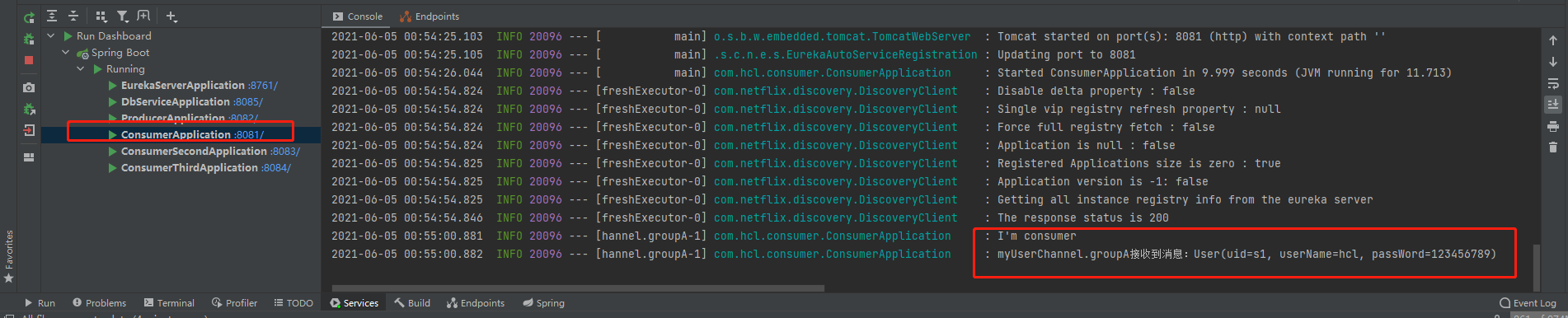

consumer控制台输出

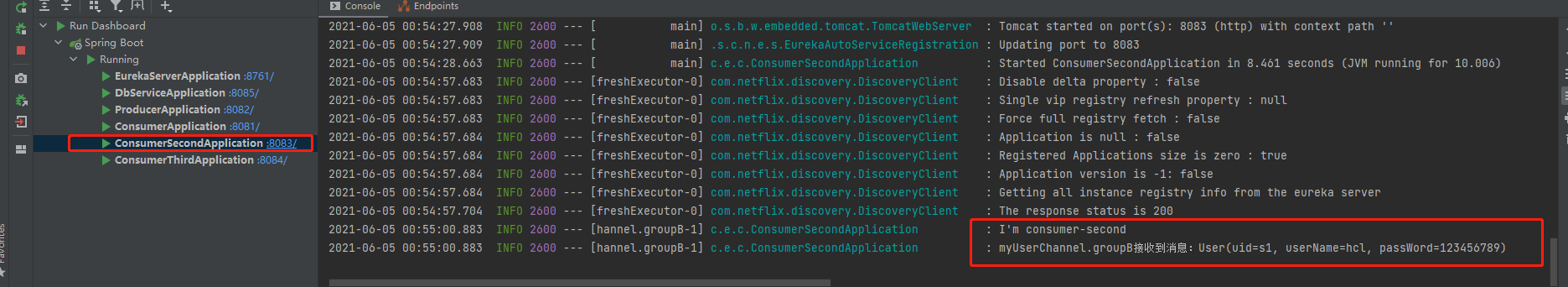

consumer second 控制台输出

consumer third 控制台没有输出消息，原因是被consumer second消费了，这两者通过轮询的方式消费myUserChannel.groupB队列

五. 总结#

本次实验中RibbitMQ使用的Work模式

工作队列(即任务队列)背后的主要思想是避免立即执行资源密集型任务，并且必须等待它完成。相反，我们将任务安排在稍后完成。

我们将任务封装为消息并将其发送到队列。后台运行的工作进程将获取任务并最终执行任务。当运行多个消费者时，任务将在它们之间分发。

使用任务队列的一个优点是能够轻松地并行工作。如果我们正在积压工作任务，我们可以添加更多工作进程，这样就可以轻松扩展消费者，但是只能有一个消费者获得消息！竞争消费者模式。

posted @ 2021-06-06 12:22 碼上跑阅读(219) 评论(2) 编辑收藏举报

刷新页面返回顶部

登录后才能查看或发表评论，立即登录或者逛逛博客园首页

公告

昵称：碼上跑
园龄： 6年
粉丝： 1
关注： 2

+加关注

2025年3月

日

一

二

三

四

五

六

Spring cloud微服务与RibbitMQ简单应用

一. 系统架构#

二. 运行环境#

三. 编码实现#

1. 创建注册中心-eurekaServer#

2. 创建共有模块-common#

3. 创建数据库访问服务-DBService#

4. 创建生产者服务-producer#

5. 创建消费者-consumer#

四. 运行结果#

五. 总结#

公告

搜索

常用链接

我的标签

随笔档案

相册

阅读排行榜

评论排行榜

推荐排行榜

最新评论
