N63050 第八周运维作业

就业需掌握的进度：

十五、加密安全2
1、实现私有CA和证书申请(56分钟)
2、证书管理和ssh服务工作原理(62分钟)
3、ssh客户端使用(44分钟)
4、ssh基于key验证(52分钟)
5、ssh高级用法及自动运维工具(49分钟)
6、sudo进行权限委派(55分钟)
7、cobbler实现系统自动化部署(67分钟)

十六、时间同步及自动化部署
1、pam实现资源限制和google的MFA验证(55分钟)
2、时间同步服务和SELinux安全管理(78分钟)
3、自动化运维和光盘启动文件(27分钟)
4、系统的自动化安装应答文件制作(49分钟)
5、dhcp和tftp服务管理(62分钟)
6、基于PXE实现自动化的系统安装(42分钟)
7、cobbler实现系统自动化部署(67分钟)

第八周就业应完成的作业：

1、创建私有CA并进行证书申请。

1.1创建CA相关目录和文件

[root@centos8 ~]#mkdir /etc/pki/CA/{certs,crl,newcerts,private} -p
[root@centos8 ~]#tree /etc/pki/CA
/etc/pki/CA
├── certs
├── crl
├── newcerts
└── private

4 directories, 0 files
[root@centos8 ~]#cd /etc/pki/CA
[root@centos8 CA]#touch /etc/pki/CA/index.txt
[root@centos8 CA]#ls
certs  crl  index.txt  newcerts  private
[root@centos8 CA]#echo 01 > /etc/pki/CA/serial
[root@centos8 CA]#ls
certs  crl  index.txt  newcerts  private  serial

1.2生成私钥并给CA颁发自签名证书

#生成私钥
[root@centos8 CA]#openssl genrsa -out private/cakey.pem 2048
Generating RSA private key, 2048 bit long modulus (2 primes)
...........+++++
...........................................+++++
e is 65537 (0x010001)
[root@centos8 CA]#ls
certs  crl  index.txt  newcerts  private  serial
[root@centos8 CA]#ll ./private/cakey.pem
-rw------- 1 root root 1675 Aug  8 17:04 ./private/cakey.pem
[root@centos8 CA]#openssl req -new -x509 -key /etc/pki/CA/private/cakey.pem -days 3650 -out /etc/pki/CA/cacert.pem
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:sichuan
Locality Name (eg, city) [Default City]:chengdu
Organization Name (eg, company) [Default Company Ltd]:magedu
Organizational Unit Name (eg, section) []:it
Common Name (eg, your name or your server's hostname) []:www.magedu.com
Email Address []:admin@mage.com
[root@centos8 CA]#openssl x509 -in cacert.pem -noout -text
Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number:
            15:c1:49:fc:fe:85:45:24:0d:55:fe:7e:8b:b6:f1:d7:6c:18:e1:a4
        Signature Algorithm: sha256WithRSAEncryption
        Issuer: C = CN, ST = sichuan, L = chengdu, O = magedu, OU = it, CN = www.magedu.com, emailAddress = admin@mage.com
        Validity
            Not Before: Aug  8 09:11:42 2022 GMT
            Not After : Aug  5 09:11:42 2032 GMT
        Subject: C = CN, ST = sichuan, L = chengdu, O = magedu, OU = it, CN = www.magedu.com, emailAddress = admin@mage.com
        Subject Public Key Info:
            Public Key Algorithm: rsaEncryption
                RSA Public-Key: (2048 bit)
                Modulus:
                    00:c0:46:2b:1f:4a:3b:cc:bc:00:47:22:45:42:03:
                    f5:f3:47:17:b4:ff:63:02:77:6a:6e:65:97:12:51:
                    ce:0b:2f:03:c8:5a:ad:02:0f:f4:87:fb:bc:69:e7:
                    03:2d:ea:5c:6f:d1:5e:a7:b0:e9:9c:e4:24:c5:81:
                    af:0d:eb:bf:b7:74:ac:e2:0d:86:ac:e1:c8:3f:7c:
                    ef:77:cc:49:73:5e:c7:db:d0:95:1f:b4:e6:d3:d1:
                    ac:ed:24:a8:86:c2:3a:ab:d5:2d:78:33:f5:80:bc:
                    ec:9c:b8:53:8e:89:3a:86:ca:06:97:3d:9b:d1:9c:
                    a9:f9:c6:d4:36:ea:07:46:98:b1:67:67:19:20:2c:
                    00:0b:84:89:fc:75:21:79:78:20:a3:85:dd:68:e3:
                    65:f6:22:22:22:90:c6:80:d0:2d:40:ea:90:22:47:
                    76:2c:b9:93:5e:e4:00:3a:92:de:5d:31:4e:17:19:
                    0d:9f:f0:c2:b4:1f:f9:30:48:9c:3d:eb:38:83:64:
                    cd:40:cf:34:87:25:8a:87:7b:b0:59:44:b4:9a:56:
                    24:0b:71:57:d9:48:45:b3:d8:58:67:ab:ff:93:0b:
                    60:09:27:af:18:37:09:25:54:d8:86:d3:7c:24:16:
                    c3:9f:53:a7:c0:e7:80:2d:cf:3c:a0:67:23:7b:ba:
                    ec:f9
                Exponent: 65537 (0x10001)
        X509v3 extensions:
            X509v3 Subject Key Identifier:
                AA:50:FF:1B:B1:63:0F:75:D4:30:EB:AC:E6:E6:70:50:F0:A7:B2:FF
            X509v3 Authority Key Identifier:
                keyid:AA:50:FF:1B:B1:63:0F:75:D4:30:EB:AC:E6:E6:70:50:F0:A7:B2:FF

            X509v3 Basic Constraints: critical
                CA:TRUE
    Signature Algorithm: sha256WithRSAEncryption

1.3用户生成私钥和证书申请

[root@centos8 CA]#midir /data/app1
bash: midir: command not found...
[root@centos8 CA]#mkdir /data/app1
[root@centos8 CA]#ls
cacert.pem  certs  crl  index.txt  newcerts  private  serial
[root@centos8 CA]#tree
.
├── cacert.pem
├── certs
├── crl
├── index.txt
├── newcerts
├── private
│   └── cakey.pem
└── serial

4 directories, 4 files

#用户生成私钥
[root@centos8 CA]#(umask 066; openssl genrsa -out /data/app1/app1.key 2048)
Generating RSA private key, 2048 bit long modulus (2 primes)
............................................................+++++
............................+++++
e is 65537 (0x010001)
[root@centos8 CA]#cat /data/app1/app1.key
-----BEGIN RSA PRIVATE KEY-----
MIIEowIBAAKCAQEA1Z3lSRMKyNr4BgrF6ZddYD9stVXAPVoaSaMD33objIJYBQSl
AUgezyaA2TdmR4LnU+MkIw1+WXyv+6KOJSyIZHjtZnv73J3N9Hrdjp/0e/Unk1yv
EdOvLTlyc+Rr4t280rL8AD+9HhX6f6b/ZdjCaBBb12ifziOjOogiDKH78VHuVGok
W3V0ji3zISc17keWQCpm2JVFUWvdDL0yF2u2b/Mdws5CauFWk4hyL1NdiFCoGoW/
gCjBq9Ta7WQPSncvSHW5dPeL5BoVex5SdN45M0IB75cPNjdjjwKIoKlQEoYCtizw
TSfdpNePHSlGgJ1nzp3+HLWdiuAsolZk4tjWGwIDAQABAoIBACRNBcbKPp3tYBKe
yA0vFMYjYRTbsqR6aFc1JZZXiNDy4YRQyr2SBPJM576CBJaIb0k5I031oBAS+VD4
ydEVZUQ1rJoq3Z0bEAHI01fGZOSfv47yRCnyYCV+Sq3ZFmBiMBFaKyrbqgav03bX
6TTkhfzrMsBDXkzIj5eFxMuCx261nyCZeo/w4BUJymLtFpvkIaTFYDbEl/GBZyFj
PH/b/SYnIYPZXWZZzTjz7lC0hbvSpWj5K3JPVJBl9S8pgCyAU5+cprcCn/okYB7p
shf1eIkf0/2QhVYsJ17ESda6oZfqXohvieJkuB3CH3CueHP+VZv1nmSLPH2gMu7B
WzIRtHkCgYEA6wroglpamrhr4yBotWR8ThBbHXntOIDTi+8VhoFGLf3YwwakavGa
ZsdoWn0lnpqG/FNjNMOCfxMDsRYfvgsjCdGg8Ekv/yJAR9j5g6HwNRELlms2HjIG
A2Wxh+kfiQbYxNElfMddL8QNtEXiMf1JqROueiefi1S9ovVLc46HEQUCgYEA6Knr
qmJ9BoXKiOUmRgnJ3hVl2R+nsFxvwRCLVKBpC0IfseZqUBz1e4mfP1U/jNtAgWwv
7vJft7gW79flDcg5dMqz0NVR1iiF63CuYbE3+aNdcsWUV2ewnbiNgx5eZQq2T6UI
gFPf0KVFZwRJg3saVYO3iQ5+qJ1rjYnprrRzdJ8CgYAGKVULBb9WSvtZCuJzztyL
V1ZsIWQclRP2mR/hVMY4Mm1aP3RT8V1w0E1mAd3YmIhtWOpC2dUz65WvMLtIShZz
DXHAmsqNT6KLv55a2wXm/jllig3zILCTqjjLLUtMVkeccTcgXEGPHP6W+TYCxXcG
3aM3RI6kImaOPQvrTZMw2QKBgQDdISKrPhA2MtLcaW6HAqaqPQwf4MYwCKruhBro
w80StjYJj0Vb/yoR0CtatltANOKKH5kvMY1nv7+NFVTOVI7HQiDFSvoM4Vbm/qG+
mADrcylN/BuRNyvVu6JEDIkK37OG3wPFc/I1C996mciE/mt4+0dlLDGVcIjYbUt8
kGVrYQKBgBvTCoIA1Bep6iYx+TSsr+DE1U333epFZfwlhslXecoXqdxSp+0b+sGG
NkpqpoKhm+4GNQTfCTfjJz1FFQlf5V0/vIfhIlvMjsIem8eZl5eIbfWzoFrtrXY4
drbMrp77nsOtUMmAyby9D1RgclGFOPJdtUtSdsj0qql3xnXyP38N
-----END RSA PRIVATE KEY-----

#用户证书申请
[root@centos8 CA]#openssl req -new -key /data/app1/app1.key -out /data/app1/app1.csr
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:sichuan
Locality Name (eg, city) [Default City]:chengdu
Organization Name (eg, company) [Default Company Ltd]:magedu
Organizational Unit Name (eg, section) []:sale
Common Name (eg, your name or your server's hostname) []:www.mage.org
Email Address []:

Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:12345
An optional company name []:magedu
[root@centos8 CA]#ll /data/app1
total 8
-rw-r--r-- 1 root root 1066 Aug  8 17:31 app1.csr
-rw------- 1 root root 1675 Aug  8 17:27 app1.key
#CA证书颁发
[root@centos8 CA]#openssl ca -in /data/app1/app1.csr -out /etc/pki/CA/certs/app1.crt -days 1000
Using configuration from /etc/pki/tls/openssl.cnf
Check that the request matches the signature
Signature ok
Certificate Details:
        Serial Number: 1 (0x1)
        Validity
            Not Before: Aug  8 09:33:22 2022 GMT
            Not After : May  4 09:33:22 2025 GMT
        Subject:
            countryName               = CN
            stateOrProvinceName       = sichuan
            organizationName          = magedu
            organizationalUnitName    = sale
            commonName                = www.mage.org
        X509v3 extensions:
            X509v3 Basic Constraints:
                CA:FALSE
            Netscape Comment:
                OpenSSL Generated Certificate
            X509v3 Subject Key Identifier:
                A1:43:BB:7A:84:8F:1D:C9:3F:BC:40:1F:65:B0:6B:86:FD:FE:7E:E1
            X509v3 Authority Key Identifier:
                keyid:AA:50:FF:1B:B1:63:0F:75:D4:30:EB:AC:E6:E6:70:50:F0:A7:B2:FF

Certificate is to be certified until May  4 09:33:22 2025 GMT (1000 days)
Sign the certificate? [y/n]:y


1 out of 1 certificate requests certified, commit? [y/n]y
Write out database with 1 new entries
Data Base Updated

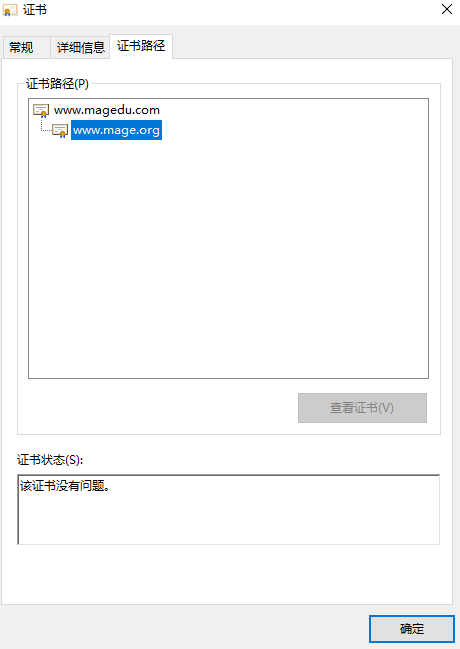

1.4证书的导入

把导出到win的文件名后缀改成cer或是crt，然后生成证书即可

1.5证书吊销

[root@centos8 CA]#openssl ca -revoke /etc/pki/CA/newcerts/02.pem
Using configuration from /etc/pki/tls/openssl.cnf
Revoking Certificate 02.
Data Base Updated
[root@centos8 CA]#openssl ca -status 02
Using configuration from /etc/pki/tls/openssl.cnf
02=Revoked (R)
[root@centos8 CA]#cat /etc/pki/CA/index.txt
V	250504093322Z		01	unknown	/C=CN/ST=sichuan/O=magedu/OU=sale/CN=www.mage.org
R	250504102651Z	220808102900Z	02	unknown	/C=CN/ST=sichuan/O=magedu/OU=salell/CN=www.mage.com.cn

2、总结ssh常用参数、用法

ssh命令是ssh客户端，允许实现对远程系统经验证地加密安全访问。

格式：

ssh [user@]host [COMMAND]
ssh [-l user] host [COMMAND]

常见选项：

-p port  #远程服务器监听的端口
-b  #指定连接的源IP
-v  #调试模式
-C  #压缩方式
-X  #支持x11转发
-t  #强制伪tty分配，如：ssh -t remoteserver1 ssh -t remoteserver2 ssh
remoteserver3
-o  option 如：-o StrictHostKeyChecking=no
-i <file>  #指定私钥文件路径，实现基于key验证，默认使用文件： ~/.ssh/id_dsa,
~/.ssh/id_ecdsa, ~/.ssh/id_ed25519，~/.ssh/id_rsa等

3、总结sshd服务常用参数。

服务器端：sshd

服务器端的配置文件: /etc/ssh/sshd_config

服务器端的配置文件帮助：man 5 sshd_config

常用参数：

Port     					#生产建议修改
ListenAddress ip
LoginGraceTime 2m
PermitRootLogin yes 		#默认ubuntu不允许root远程ssh登录
StrictModes yes  			#检查.ssh/文件的所有者，权限等
MaxAuthTries  6   			#pecifies the maximum number of authentication
attempts permitted per connection. Once the number of failures reaches half this
value, additional failures are logged. The default is 6.
MaxSessions  10     		#同一个连接最大会话
PubkeyAuthentication yes   	#基于key验证
PermitEmptyPasswords no    	#空密码连接
PasswordAuthentication yes  #基于用户名和密码连接
GatewayPorts no
ClientAliveInterval 10 		#单位:秒
ClientAliveCountMax 3 		#默认3
UseDNS yes 					#提高速度可改为no
GSSAPIAuthentication yes 	#提高速度可改为no
MaxStartups   				#未认证连接最大值，默认值10
Banner /path/file

#以下可以限制可登录用户的办法：
AllowUsers user1 user2 user3
DenyUsers user1 user2 user3
AllowGroups g1 g2
DenyGroups g1 g2

范例：设置 ssh 空闲60s 自动注销

Vim /etc/ssh/sshd_config
ClientAliveInterval  60
ClientAliveCountMax  0

Service sshd restart
#注意：新开一个连接才有效

范例：解决ssh登录缓慢的问题

vim /etc/ssh/sshd_config
UseDNS no
GSSAPIAuthentication no

systemctl restart sshd

ssh服务的最佳实践

  • 建议使用非默认端口
  • 禁止使用protocol version 1
  • 限制可登录用户
  • 设定空闲会话超时时长
  • 利用防火墙设置ssh访问策略
  • 仅监听特定的IP地址
  • 基于口令认证时，使用强密码策略，比如：tr -dc A-Za-z0-9_ < /dev/urandom | head -c 12| xargs
  • 使用基于密钥的认证
  • 禁止使用空密码
  • 禁止root用户直接登录
  • 限制ssh的访问频度和并发在线数
  • 经常分析日志

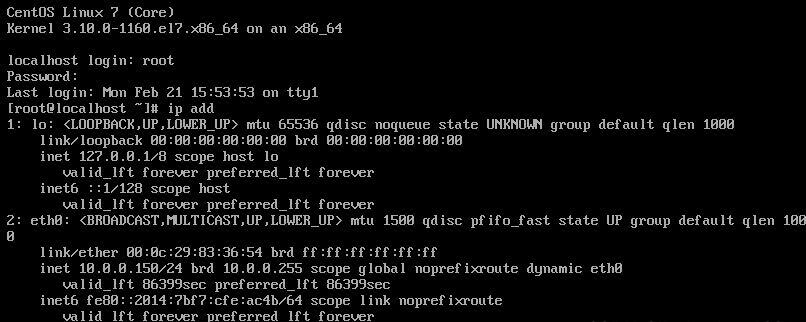

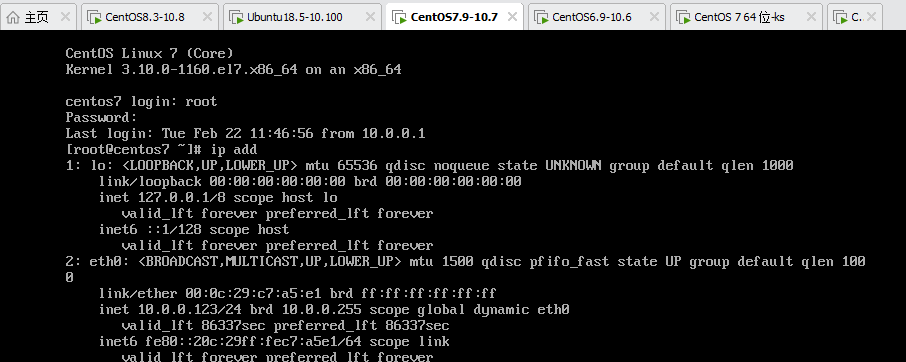

4、搭建dhcp服务，实现ip地址申请分发

#安装dhcp服务
[root@centos8 ~]# yum install -y dhcp-server

#查看包文件
[root@centos8 ~]# rpm -ql dhcp-server
/etc/NetworkManager
/etc/NetworkManager/dispatcher.d
/etc/NetworkManager/dispatcher.d/12-dhcpd
/etc/dhcp
/etc/dhcp/dhcpd.conf
/etc/dhcp/dhcpd6.conf
/etc/openldap/schema
/etc/openldap/schema/dhcp.schema
/etc/sysconfig/dhcpd
/usr/bin/omshell
/usr/lib/.build-id
/usr/lib/.build-id/6e
/usr/lib/.build-id/6e/cf67a6508de791165d10349bd963b97f2b89b3
/usr/lib/.build-id/ae
/usr/lib/.build-id/ae/2810922a9be73ff0b4843ab30fc5c3fc77ff86
/usr/lib/systemd/system/dhcpd.service
/usr/lib/systemd/system/dhcpd6.service
/usr/sbin/dhcpd
/usr/share/doc/dhcp-server
/usr/share/doc/dhcp-server/dhcp-lease-list.pl
/usr/share/doc/dhcp-server/dhcpd.conf.example
/usr/share/doc/dhcp-server/dhcpd6.conf.example
/usr/share/doc/dhcp-server/ldap
/usr/share/doc/dhcp-server/ldap/README.ldap
/usr/share/doc/dhcp-server/ldap/dhcp.schema
/usr/share/doc/dhcp-server/ldap/dhcpd-conf-to-ldap
/usr/share/man/man1/omshell.1.gz
/usr/share/man/man5/dhcpd.conf.5.gz
/usr/share/man/man5/dhcpd.leases.5.gz
/usr/share/man/man8/dhcpd.8.gz
/var/lib/dhcpd
/var/lib/dhcpd/dhcpd.leases
/var/lib/dhcpd/dhcpd6.leases

#默认dhcp服务启动文件无法启动，需要拷贝范例，并修改配置


#拷贝范例，覆盖原有配置文件
[root@centos8 ~]# cp /usr/share/doc/dhcp-server/dhcpd.conf.example /etc/dhcp/dhcpd.conf
cp: overwrite '/etc/dhcp/dhcpd.conf'? y


#修改配置文件子网
[root@centos8 ~]# vim /etc/dhcp/dhcpd.conf
#subnet 10.152.187.0 netmask 255.255.255.0 {
subnet 10.0.0.0 netmask 255.255.255.0 {

#已经启动了
[root@centos8 ~]# systemctl start dhcpd

#服务已启动
[root@centos8 ~]# systemctl status dhcpd
● dhcpd.service - DHCPv4 Server Daemon
   Loaded: loaded (/usr/lib/systemd/system/dhcpd.service; enabled; vendor preset: disabled)
   Active: active (running) since Tue 2022-02-22 12:35:59 CST; 55s ago
     Docs: man:dhcpd(8)
           man:dhcpd.conf(5)
 Main PID: 5300 (dhcpd)
   Status: "Dispatching packets..."
    Tasks: 1 (limit: 12241)
   Memory: 5.4M
   CGroup: /system.slice/dhcpd.service
           └─5300 /usr/sbin/dhcpd -f -cf /etc/dhcp/dhcpd.conf -user dhcpd -group dhcpd --no-pid

Feb 22 12:35:59 centos8.magedu.org dhcpd[5300]: Source compiled to use binary-leases
Feb 22 12:35:59 centos8.magedu.org dhcpd[5300]: Wrote 0 class decls to leases file.
Feb 22 12:35:59 centos8.magedu.org dhcpd[5300]: Wrote 0 deleted host decls to leases file.
Feb 22 12:35:59 centos8.magedu.org dhcpd[5300]: Wrote 0 new dynamic host decls to leases file.
Feb 22 12:35:59 centos8.magedu.org dhcpd[5300]: Wrote 0 leases to leases file.
Feb 22 12:35:59 centos8.magedu.org dhcpd[5300]: Listening on LPF/eth0/00:0c:29:5e:b6:6f/10.0.0.0/24
Feb 22 12:35:59 centos8.magedu.org dhcpd[5300]: Sending on   LPF/eth0/00:0c:29:5e:b6:6f/10.0.0.0/24
Feb 22 12:35:59 centos8.magedu.org dhcpd[5300]: Sending on   Socket/fallback/fallback-net
Feb 22 12:35:59 centos8.magedu.org dhcpd[5300]: Server starting service.
Feb 22 12:35:59 centos8.magedu.org systemd[1]: Started DHCPv4 Server Daemon.

#监听udp 67端口
[root@centos8 ~]# ss -ntul
Netid        State         Recv-Q        Send-Q                 Local Address:Port                 Peer Address:Port
udp          UNCONN        0             0                            0.0.0.0:67                        0.0.0.0:*

#修改IP地址获取范围或租期、网关等信息
[root@centos8 ~]# cat /etc/dhcp/dhcpd.conf
#option domain-name-servers ns1.example.org, ns2.example.org;
option domain-name-servers 180.76.76.76, 223.5.5.5;   	#修改DNS

default-lease-time 86400;								#租期
max-lease-time 106400;									#最大租期

#subnet 10.152.187.0 netmask 255.255.255.0 {
subnet 10.0.0.0 netmask 255.255.255.0 {
	range 10.0.0.150 10.0.0.180;						#dhcp范围
	option routers 10.0.0.2;							#dhcp网关
}

#重启服务
[root@centos8 ~]# systemctl restart dhcpd


#使用centos7主机测试，需重启centos7主机，如下图，可看到租期时间为86399sec，不是静态获取显示为forever！

image-20230306223241879

#查看分配出去的IP地址
[root@centos8 ~]# cd /var/lib/dhcpd/
[root@centos8 dhcpd]# ll
total 8
-rw-r--r--. 1 dhcpd dhcpd   0 Jun  2  2020 dhcpd6.leases
-rw-r--r--. 1 dhcpd dhcpd 509 Feb 22 12:52 dhcpd.leases
-rw-r--r--. 1 dhcpd dhcpd 509 Feb 22 12:49 dhcpd.leases~
[root@centos8 dhcpd]# cat dhcpd.leases
# The format of this file is documented in the dhcpd.leases(5) manual page.
# This lease file was written by isc-dhcp-4.3.6

# authoring-byte-order entry is generated, DO NOT DELETE
authoring-byte-order little-endian;

server-duid "\000\001\000\001)\247$\257\000\014)^\266o";

lease 10.0.0.150 {
  starts 2 2022/02/22 04:52:22;			#UTC时间，需加8小时
  ends 3 2022/02/23 04:52:22;
  cltt 2 2022/02/22 04:52:22;
  binding state active;
  next binding state free;
  rewind binding state free;
  hardware ethernet 00:0c:29:83:36:54;	#MAC地址
}




#前台执行，查看DHCP获取过程
[root@centos7 ~]# dhclient -d
Internet Systems Consortium DHCP Client 4.2.5
Copyright 2004-2013 Internet Systems Consortium.
All rights reserved.
For info, please visit https://www.isc.org/software/dhcp/

Listening on LPF/eth0/00:0c:29:c7:a5:e1
Sending on   LPF/eth0/00:0c:29:c7:a5:e1
Sending on   Socket/fallback
DHCPDISCOVER on eth0 to 255.255.255.255 port 67 interval 8 (xid=0x5df1045e) #四个过程
DHCPREQUEST on eth0 to 255.255.255.255 port 67 (xid=0x5df1045e)
DHCPOFFER from 10.0.0.8
DHCPACK from 10.0.0.8 (xid=0x5df1045e)
bound to 10.0.0.152 -- renewal in 36573 seconds.  #获取到10.0.0.152 IP地址

#此时主机有一个静态IP和一个动态IP
[root@centos7 ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:0c:29:c7:a5:e1 brd ff:ff:ff:ff:ff:ff
    inet 10.0.0.7/24 brd 10.0.0.255 scope global noprefixroute eth0
       valid_lft forever preferred_lft forever
    inet 10.0.0.152/24 brd 10.0.0.255 scope global secondary dynamic eth0
       valid_lft 86211sec preferred_lft 86211sec
    inet6 fe80::20c:29ff:fec7:a5e1/64 scope link
       valid_lft forever preferred_lft forever

#编辑配置文件，分配固定IP地址
[root@centos8 ~]# vim /etc/dhcp/dhcpd.conf
host test {
        hardware ethernet 00:0c:29:c7:a5:e1;
        fixed-address 10.0.0.123;
}
host passacaglia {
  hardware ethernet 0:0:c0:5d:bd:95;
  filename "vmunix.passacaglia";
  server-name "toccata.example.com";
}

#重启服务
[root@centos8 ~]# systemctl restart dhcpd

#重新获取IP地址，此时网络会中断
[root@centos7 ~]# dhclient -d
Internet Systems Consortium DHCP Client 4.2.5
Copyright 2004-2013 Internet Systems Consortium.
All rights reserved.
For info, please visit https://www.isc.org/software/dhcp/

Listening on LPF/eth0/00:0c:29:c7:a5:e1
Sending on   LPF/eth0/00:0c:29:c7:a5:e1
Sending on   Socket/fallback
DHCPREQUEST on eth0 to 255.255.255.255 port 67 (xid=0x15cf2d77)
DHCPNAK from 10.0.0.8 (xid=0x15cf2d77)

#进虚拟机查看获取到的IP地址

image-20230306223510725

posted @   BruceLebron  阅读(268)  评论(0)  编辑  收藏  举报
相关博文：
·  N63050 第十周运维作业
·  N63050第九周运维作业
·  第八周作业
·  第八周--作业
·  第八周作业
阅读排行：
· TypeScript + Deepseek 打造卜卦网站：技术与玄学的结合
· 阿里巴巴 QwQ-32B真的超越了 DeepSeek R-1吗？
· 【译】Visual Studio 中新的强大生产力特性
· 【设计模式】告别冗长if-else语句：使用策略模式优化代码结构
· 10年+ .NET Coder 心语 ── 封装的思维：从隐藏、稳定开始理解其本质意义
点击右上角即可分享
微信分享提示
SQL AI 助手
