Shiro集成Spring

本篇博客主要讲述的是两者的集成。不涉及到各自的详细细节和功能。

因为官方给出的文档不够具体，对新手而言通过官方文档还不可以非常快的搭建出SpringShiro的webproject。本博客将通过实际的案例提供具体的教程。

案例分析：



项目名称：假期系统

组织机构：部门 > 小组

角色：Admin, SeniorManager,TeamLeader,Developer

资源：假期Leave

权限：申请Apply，审核Review， 复核ReReview。查看View

角色级别：Admin > Senior Manager >Team Leader > Developer

角色权限：



Admin

Senior Manager

Team Leader

Developer

Apply

Y

Y

Y

Y

Review

Y

Y

Y

N

ReReview

Y

Y

N

N

View

Y

Y

Y

Y



特殊需求：

1. 角色能够绑定到不同的组织机构级别，比方SeniorManager 是基于部门的，TeamLeader则是基于小组的

2. 角色的级别关系仅仅能在同样的部门中，不同部门之间的角色没有关联

3. 审核仅仅能是自己上级角色审核，复核必须是审核者的上级角色复核，即Developer提出的请假申请仅仅能TeamLeader来审核，而且由SeniorManager复核。



数据库设计



最简单的数据库设计例如以下：

表名

列名

描写叙述

类型

t_dept

部门表

id

部门编号

Int

name

部门名称

Varchar



t_team

小组表

id

小组编号

Int

name

小组名称

Varchar



t_user

用户表

id

用户编号

Int

username

username称

Varchar

password

用户加密password

Varchar

salt

用户加密盐

Varchar

manager_id

用户上级领导id

Int



t_role

角色表

id

角色编号

Int

name

角色名称

Varchar

dept_flag

角色是否关联部门

Bool

team_flag

角色是否关联小组

Bool



t_user_role

用户所属角色表

Id

用户角色编号

Int

user_id

用户编号

Int

dept_id

部门编号

Int

team_id

小组编号

Int

role_id

角色编号

Int



t_resource

资源表

id

资源编号

Int

name

资源名称

Varchar



t_permission

权限表

id

权限编号

Int

name

权限名称

Varchar



t_role_resource_permission

角色拥有的资源权限表

id

编号

Int

role_id

角色编号

Int

resource_id

资源编号

Int

permission_id

权限编号

Int









t_leave

请假申请表

id

请假申请编号

Int

user_id

请假者编号

Int

days

请假时长

Int

fromDate

開始日期

Date

toDate

结束日期

Date

remark

请假说明

Varchar

flag

请假状态

Int

apply_date

申请的时间

Datetime

review_user_id

审核人编号

Int

review_date

审核日期

Date

review_remark

审核说明

Varchar

rereview_user_id

复核人编号

Int

rereview_date

复核日期

Date

rereview_remark

复核说明

Varchar

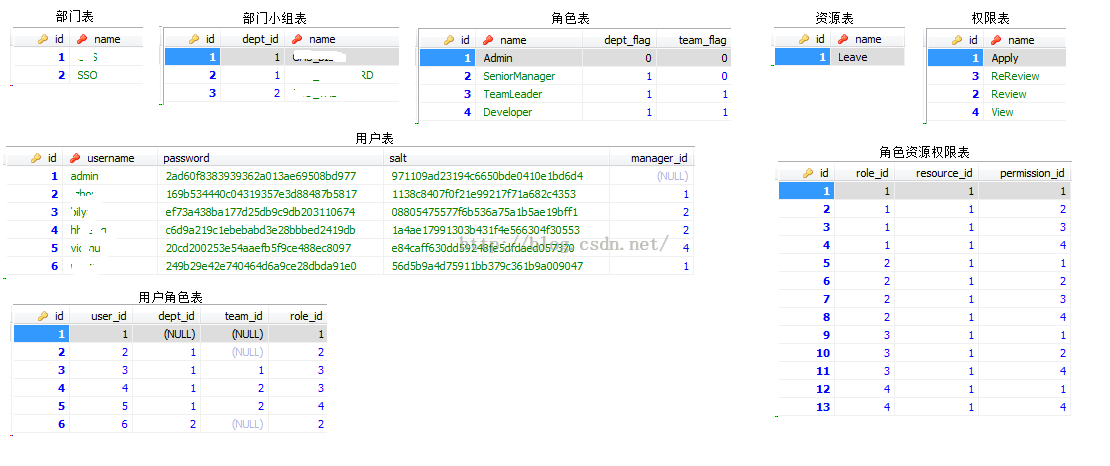

加入測试数据：


项目搭建

Maven Project: pom.xml

新建一个maven项目，packaging设定为war，设定Spring和Shiro的版本号为3.1.4.RELEASE和1.2.3。并加入必要的依赖。

详细例如以下：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.xx.shiro</groupId>
	<artifactId>demo</artifactId>
	<version>1.0.0</version>
	<packaging>war</packaging>

	<properties>
		<java-version>1.7</java-version>
		<org.springframework-version>3.1.4.RELEASE</org.springframework-version>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<org.shiro-version>1.2.3</org.shiro-version>
	</properties>

	<dependencies>
		<!-- Java EE 6 API java enterprise edition -->
		<dependency>
			<groupId>javax</groupId>
			<artifactId>javaee-api</artifactId>
			<version>6.0</version>
			<scope>provided</scope>
		</dependency>

		<!-- spring-context [annotation...] -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${org.springframework-version}</version>
			<exclusions>
				<!-- Exclude Commons Logging in favor of SLF4j -->
				<exclusion>
					<groupId>commons-logging</groupId>
					<artifactId>commons-logging</artifactId>
				</exclusion>
			</exclusions>
		</dependency>

		<!-- spring modules start -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-core</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-aop</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-tx</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>

		<!-- apache shiro start -->
		<dependency>
			<groupId>org.apache.shiro</groupId>
			<artifactId>shiro-core</artifactId>
			<version>${org.shiro-version}</version>
		</dependency>
		<dependency>
			<groupId>org.apache.shiro</groupId>
			<artifactId>shiro-ehcache</artifactId>
			<version>${org.shiro-version}</version>
		</dependency>
		<dependency>
			<groupId>org.apache.shiro</groupId>
			<artifactId>shiro-web</artifactId>
			<version>${org.shiro-version}</version>
		</dependency>
		<dependency>
			<groupId>org.apache.shiro</groupId>
			<artifactId>shiro-quartz</artifactId>
			<version>${org.shiro-version}</version>
		</dependency>
		<dependency>
			<groupId>org.apache.shiro</groupId>
			<artifactId>shiro-spring</artifactId>
			<version>${org.shiro-version}</version>
		</dependency>
		<!-- apache shiro end -->

		<!-- jackson -->
		<dependency>
			<groupId>org.codehaus.jackson</groupId>
			<artifactId>jackson-core-asl</artifactId>
			<version>1.8.8</version>
		</dependency>
		<dependency>
			<groupId>org.codehaus.jackson</groupId>
			<artifactId>jackson-mapper-asl</artifactId>
			<version>1.8.8</version>
		</dependency>

		<!-- java.lang.* Extension -->
		<dependency>
			<groupId>commons-lang</groupId>
			<artifactId>commons-lang</artifactId>
			<version>2.6</version>
		</dependency>

		<!-- java.io.InputStream and Reader Extension -->
		<dependency>
			<groupId>commons-io</groupId>
			<artifactId>commons-io</artifactId>
			<version>2.4</version>
		</dependency>

		<!-- JavaServer Pages Standard Tag Library -->
		<dependency>
			<groupId>jstl</groupId>
			<artifactId>jstl</artifactId>
			<version>1.2</version>
		</dependency>

		<!-- slf4j -->
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>1.6.6</version>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-log4j12</artifactId>
			<version>1.6.6</version>
		</dependency>

		<!-- log4j -->
		<dependency>
			<groupId>log4j</groupId>
			<artifactId>log4j</artifactId>
			<version>1.2.15</version>
			<exclusions>
				<exclusion>
					<groupId>com.sun.jmx</groupId>
					<artifactId>jmxri</artifactId>
				</exclusion>
				<exclusion>
					<groupId>com.sun.jdmk</groupId>
					<artifactId>jmxtools</artifactId>
				</exclusion>
				<exclusion>
					<groupId>javax.jms</groupId>
					<artifactId>jms</artifactId>
				</exclusion>
			</exclusions>
		</dependency>

		<!-- encode -->
		<dependency>
			<groupId>commons-codec</groupId>
			<artifactId>commons-codec</artifactId>
			<version>1.6</version>
		</dependency>
		<dependency>
			<groupId>com.xx.rtpc.shared.utils</groupId>
			<artifactId>rtpc-crypt</artifactId>
			<version>3.1.0</version>
		</dependency>

		<dependency>
			<groupId>c3p0</groupId>
			<artifactId>c3p0</artifactId>
			<version>0.9.1</version>
		</dependency>

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>5.1.4</version>
		</dependency>

		<dependency>
			<groupId>cglib</groupId>
			<artifactId>cglib</artifactId>
			<version>2.2</version>
		</dependency>
	</dependencies>

	<build>
		<finalName>demo</finalName>
	</build>
</project>

配置web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app
        xmlns="http://java.sun.com/xml/ns/javaee"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
        version="3.0"
        metadata-complete="false">

    <display-name>shiro-example</display-name>

    <!-- Spring配置文件開始  -->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>
            /WEB-INF/dispatcher-servlet.xml
        </param-value>
    </context-param>

	<!-- listener -->
	<listener>
		<listener-class>org.springframework.web.context.request.RequestContextListener</listener-class>
	</listener>
	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>

    <!-- shiro 安全过滤器 -->
    <filter>
        <filter-name>shiroFilter</filter-name>
        <filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
        <async-supported>true</async-supported>
        <init-param>
            <param-name>targetFilterLifecycle</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>

    <filter-mapping>
        <filter-name>shiroFilter</filter-name>
        <url-pattern>/*</url-pattern>
        <dispatcher>REQUEST</dispatcher>
    </filter-mapping>

   	<servlet>
		<servlet-name>dispatcher</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<load-on-startup>1</load-on-startup>
	</servlet>
	<servlet-mapping>
		<servlet-name>dispatcher</servlet-name>
		<url-pattern>*.spring</url-pattern>
	</servlet-mapping>

	<welcome-file-list>
		<welcome-file>/home.spring</welcome-file>
	</welcome-file-list>
</web-app>

Spring Configure: dispatcher-servlet.xml

在src/main/webapp/WEB-INF以下新建Spring的配置文件。命名为dispatcher-servlet.xml.详细设定例如以下：

<?xml version="1.0" encoding="UTF-8"?
>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:util="http://www.springframework.org/schema/util" xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="
       http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util.xsd
       http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
       http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">

	<mvc:resources location="/resources/" mapping="/resources/**" />

	<context:component-scan base-package="com.xx.shiro.demo"></context:component-scan>

	<mvc:annotation-driven>
		<mvc:message-converters>
			<bean class="org.springframework.http.converter.StringHttpMessageConverter">
				<property name="supportedMediaTypes">
					<list>
						<value>text/html;charset=UTF-8</value>
						<value>text/plain;charset=UTF-8</value>
					</list>
				</property>
			</bean>
			<bean id="jsonHttpMessageConverter"
				class="org.springframework.http.converter.json.MappingJacksonHttpMessageConverter">
				<property name="supportedMediaTypes">
					<list>
						<value>application/json</value>
						<value>text/json</value>
					</list>
				</property>
			</bean>
		</mvc:message-converters>
	</mvc:annotation-driven>

	<!-- 凭证匹配器 -->
    <bean id="credentialsMatcher" class="com.xx.shiro.demo.credentials.DemoCredentialsMatcher">
    	<property name="retry" value="3"/>
        <property name="hashAlgorithmName" value="md5"/>
        <property name="hashIterations" value="2"/>
        <property name="storedCredentialsHexEncoded" value="true"/>
    </bean>

	<!-- Realm实现 -->
	<bean id="xxDemoRealm" class="com.xx.shiro.demo.realm.XxDemoRealm">
		<property name="credentialsMatcher" ref="credentialsMatcher"/>
		<property name="userService" ref="userService" />
	</bean>


	<!-- 安全管理器 -->
	<bean id="securityManager" class="org.apache.shiro.web.mgt.DefaultWebSecurityManager">
		<property name="realm" ref="xxDemoRealm" />
	</bean>

	<!-- 相当于调用SecurityUtils.setSecurityManager(securityManager) -->
	<bean
		class="org.springframework.beans.factory.config.MethodInvokingFactoryBean">
		<property name="staticMethod"
			value="org.apache.shiro.SecurityUtils.setSecurityManager" />
		<property name="arguments" ref="securityManager" />
	</bean>

	<!-- Shiro的Web过滤器 -->
	<bean id="shiroFilter" class="org.apache.shiro.spring.web.ShiroFilterFactoryBean">
		<property name="securityManager" ref="securityManager" />
		<property name="loginUrl" value="/login.spring" />
		<property name="successUrl" value="/home.spring" />
		<property name="filterChainDefinitions">
			<value>
				/login.sping = anon
				/resources/** = anon
				/** = user
			</value>
		</property>
	</bean>

	<!-- Shiro生命周期处理器 -->
	<bean id="lifecycleBeanPostProcessor" class="org.apache.shiro.spring.LifecycleBeanPostProcessor" />

	<!-- Enable shiro annotations -->
	<bean
		class="org.springframework.aop.framework.autoproxy.DefaultAdvisorAutoProxyCreator"
		depends-on="lifecycleBeanPostProcessor" />
	<bean
		class="org.apache.shiro.spring.security.interceptor.AuthorizationAttributeSourceAdvisor">
		<property name="securityManager" ref="securityManager" />
	</bean>

	<!-- 数据库连接 -->
	<bean id="jdbcTemplate" class="org.springframework.jdbc.core.JdbcTemplate">
		<property name="dataSource" ref="dataSource" />
	</bean>

	<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
		<property name="driverClass" value="com.mysql.jdbc.Driver" />
		<property name="jdbcUrl" value="jdbc:mysql://localhost:3306/shiro" />
		<property name="user" value="root" />
		<property name="password" value="admin" />
		<property name="maxPoolSize" value="100" />
		<property name="minPoolSize" value="10" />
		<property name="initialPoolSize" value="10" />
		<property name="maxIdleTime" value="1800" />
		<property name="acquireIncrement" value="10" />
		<property name="idleConnectionTestPeriod" value="600" />
		<property name="acquireRetryAttempts" value="30" />
		<property name="breakAfterAcquireFailure" value="false" />
		<property name="preferredTestQuery" value="SELECT 1" />
	</bean>

	<!-- User service and dao -->
	<bean id="userDao" class="com.xx.shiro.demo.dao.impl.UserDaoImpl">
		<property name="jdbcTemplate" ref="jdbcTemplate" />
	</bean>

	<bean id="userService" class="com.xx.shiro.demo.service.impl.UserServiceImpl">
		<property name="userDao" ref="userDao" />
	</bean>

	<bean
		class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="prefix" value="/WEB-INF/pages/"></property>
		<property name="suffix" value=".jsp"></property>
	</bean>
</beans>

从配置文件能够看出我们要实现两个重要的模块。一个是CredentialsMatcher, 另外一个叫做Realm。CredentialsMatcher是用来验证password的正确性，Realm则是来获取用户授权和认证的信息。

<!-- 凭证匹配器 -->
    <bean id="credentialsMatcher" class="com.xx.shiro.demo.credentials.DemoCredentialsMatcher">
    	<property name="retry" value="3"/>
        <property name="hashAlgorithmName" value="md5"/>
        <property name="hashIterations" value="2"/>
        <property name="storedCredentialsHexEncoded" value="true"/>
    </bean>

	<!-- Realm实现 -->
	<bean id="xxDemoRealm" class="com.xx.shiro.demo.realm.XxDemoRealm">
		<property name="credentialsMatcher" ref="credentialsMatcher"/>
		<property name="userService" ref="userService" />
	</bean>

首先来看一下自己定义的Realm，



它继承了抽象类AuthorizingRealm，同一时候AuthorizingRealm又继承了抽象类AuthenticatingRealm，所以自己定义的Realm中要实现两个抽象方法。一个是获取认证信息。另外一个是获取授权信息。详细例如以下：

public class XxDemoRealm extends AuthorizingRealm {

  UserService userService;
  @Override
  protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principals) {
    if (principals == null) {
      throw new AuthorizationException("PrincipalCollection method argument cannot be null.");
    }

    String username = (String)principals.getPrimaryPrincipal();

    SimpleAuthorizationInfo authorizationInfo = new SimpleAuthorizationInfo();
    authorizationInfo.setRoles(userService.findRoles(username));
    authorizationInfo.setStringPermissions(userService.findPermissions(username));
    return authorizationInfo;
  }
  @Override
  protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token)
      throws AuthenticationException {
    UsernamePasswordToken upToken = (UsernamePasswordToken) token;
    String username = upToken.getUsername();

    if (username == null) {
      throw new AccountException("Null usernames are not allowed by this realm.");
    }

    String[] pwdSalt = userService.getUserPasswordAndSalt(username);
    if (pwdSalt == null) {
      throw new AccountException("No account found for user [" + username + "]");
    }

    return new SimpleAuthenticationInfo(username, pwdSalt[0].toCharArray(),
        ByteSource.Util.bytes(username + pwdSalt[1]), getName());

  }
  public void setUserService(UserService userService) {
    this.userService = userService;
  }
}

这里我们分别返回SimpleAuthenticationInfo和SimpleAuthorizationInfo。SimpleAuthenticationInfo是由username，登录password，password盐以及realm名称组成，而SimpleAuthorizationInfo继承与SimpleAuthenticationInfo。同一时候又包括了角色和权限的集合。

在spring的配置中我们定义自己定义realm的时候指定了凭证匹配器：

<bean id="xxDemoRealm" class="com.xx.shiro.demo.realm.XxDemoRealm">
	<property name="credentialsMatcher" ref="credentialsMatcher"/>
	<property name="userService" ref="userService" />
</bean>

凭证匹配器就是用来验证用户输入的帐号password和数据库中的password是否匹配。

public class DemoCredentialsMatcher extends HashedCredentialsMatcher {

  // 这里应该用cache来做， 不要用Map
  private static Map<String, AtomicInteger> cache = new HashMap<String, AtomicInteger>();

  private int retry = 5;

  @Override
  public boolean doCredentialsMatch(AuthenticationToken token, AuthenticationInfo info) {
    String username = (String) token.getPrincipal();
    AtomicInteger retryCount = cache.get(username);
    if (retryCount == null) {
      retryCount = new AtomicInteger(0);
      cache.put(username, retryCount);
    }
    if (retryCount.incrementAndGet() > retry) {
      throw new ExcessiveAttemptsException();
    }
    boolean matches = super.doCredentialsMatch(token, info);
    if (matches) {
      cache.remove(username);
    }
    return matches;
  }

  public void setRetry(int retry) {
    this.retry = retry;
  }

}

我们这里使用的是HashedCredentialsMatcher，另外加入了重试最大次数的机制。失败几次之后就不能登录了，解锁这里没有涉及到。

官方文档地址：http://shiro.apache.org/spring.html


未完待续。。

。。。

。


posted on 2017-08-16 08:32  blfbuaa  阅读(211)  评论(0)  编辑  收藏  举报

Powered by: 博客园 Copyright © 2024 blfbuaa
Powered by .NET 8.0 on Kubernetes
