ViewFlow增强onItemClick功能及ViewFlow AbsListView源代码分析

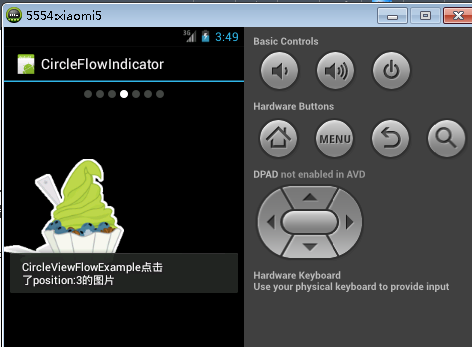

先看实现效果，上图：
ViewFlow是一个非常好用的，用于不确定item个数的水平滑动切换的开源项目。
可是从github上下载的ViewFlow事实上是不支持onItemClick功能的，touch事件中并没有处理click。
那么怎样去支持onItemClick功能呢？
一、在实现前，先带着三个问题:
| 序号 | 问题 |
|---|---|
| 1 | ViewFlow须要OnItemClickListener接口吗? |
| 2 | ListView又是怎样实现OnItemClick的呢? |
| 3 | OnItemClick又是怎样被调用的呢? |
1.1、问题一
从源代码中能够看出ViewFlow是继承extends AdapterView 的。而AdapterView就是通常ListView、GridView等继承的且已经定义过OnItemClickListener了。
1.2、问题二
分析ListView源代码知道其继承extends AbsListView。而AbsListView又是继承extends AdapterView。
在AbsListView中事实上是实现了OnItemClickListener了。那么接下来的步骤仅仅要变化，仿AbsListView实现OnItemClick就可以。
1.3、问题三
分析AbsListView源代码。能够发现有个方法performItemClick方法。此方法一运行，自然就运行到了OnItemClick，不多说上源代码看：
/**
* Call the OnItemClickListener, if it is defined.
*
* @param view The view within the AdapterView that was clicked.
* @param position The position of the view in the adapter.
* @param id The row id of the item that was clicked.
* @return True if there was an assigned OnItemClickListener that was
* called, false otherwise is returned.
*/
public boolean performItemClick(View view, int position, long id) {
if (mOnItemClickListener != null) {
playSoundEffect(SoundEffectConstants.CLICK);
if (view != null) {
view.sendAccessibilityEvent(AccessibilityEvent.TYPE_VIEW_CLICKED);
}
mOnItemClickListener.onItemClick(this, view, position, id);
return true;
}
return false;
}那么仅仅要我们想办法在ViewFlow中运行performItemClick就OK了。
二、AbsListView是怎样运行performItemClick?
一般用onItemClick中比較重要的是方法入參的postion。那么怎样获取postion呢?
2.1、postion的获取
2.1.1 在AbsListView的onTouchEvent中，在MotionEvent.ACTION_DOWN时evnet.getX与event.getY，获取出x与y坐标，再依据pointToPosition方法计算出点击item的position下标。截取片断代码例如以下：
@Override
public boolean onTouchEvent(MotionEvent ev) {
if (!isEnabled()) {
// A disabled view that is clickable still consumes the touch
// events, it just doesn't respond to them.
return isClickable() || isLongClickable();
}
....
switch (action & MotionEvent.ACTION_MASK) {
case MotionEvent.ACTION_DOWN: {
switch (mTouchMode) {
case TOUCH_MODE_OVERFLING: {
...
break;
}
default: {
mActivePointerId = ev.getPointerId(0);
final int x = (int) ev.getX();
final int y = (int) ev.getY();
int motionPosition = pointToPosition(x, y);//计算出down的是哪个item的postion
}
2.1.2 pointToPosition方法例如以下：
/**
* Maps a point to a position in the list.
*
* @param x X in local coordinate
* @param y Y in local coordinate
* @return The position of the item which contains the specified point, or
* {@link #INVALID_POSITION} if the point does not intersect an item.
*/
public int pointToPosition(int x, int y) {
Rect frame = mTouchFrame;
if (frame == null) {//仅仅是为了避免反复new Rect
mTouchFrame = new Rect();
frame = mTouchFrame;
}
final int count = getChildCount();
for (int i = count - 1; i >= 0; i--) {
final View child = getChildAt(i);
if (child.getVisibility() == View.VISIBLE) {
child.getHitRect(frame);//获取子控件在父控件坐标系中的矩形坐标
if (frame.contains(x, y)) {
return mFirstPosition + i;
}
}
}
return INVALID_POSITION;
}2.2、PerformClick的运行
2.2.1 点击也是在touch里处理的。那么直接看onTouchEvent中怎样将点击关联运行的。
case MotionEvent.ACTION_UP: {
switch (mTouchMode) {
case TOUCH_MODE_DOWN:
case TOUCH_MODE_TAP:
case TOUCH_MODE_DONE_WAITING:
final int motionPosition = mMotionPosition;
final View child = getChildAt(motionPosition - mFirstPosition);
....
//构造了PerformClick内部来用于运行点击事件
if (mPerformClick == null) {
mPerformClick = new PerformClick();
}
final AbsListView.PerformClick performClick = mPerformClick;
performClick.mClickMotionPosition = motionPosition;
performClick.rememberWindowAttachCount();
....
if (mTouchMode == TOUCH_MODE_DOWN || mTouchMode == TOUCH_MODE_TAP) {
...
mLayoutMode = LAYOUT_NORMAL;
if (!mDataChanged && mAdapter.isEnabled(motionPosition)) {
....
if (mTouchModeReset != null) {
removeCallbacks(mTouchModeReset);
}
mTouchModeReset = new Runnable() {
@Override
public void run() {
mTouchMode = TOUCH_MODE_REST;
child.setPressed(false);
setPressed(false);
if (!mDataChanged) {
performClick.run();//直接运行run方法
}
}
};
postDelayed(mTouchModeReset,
ViewConfiguration.getPressedStateDuration());
} else {
mTouchMode = TOUCH_MODE_REST;
updateSelectorState();
}
return true;
} else if (!mDataChanged && mAdapter.isEnabled(motionPosition)) {
performClick.run();//直接运行run方法
...2.2.2 再看看PerformClick是怎样实现的
/**
* A base class for Runnables that will check that their view is still attached to
* the original window as when the Runnable was created.
*
*/
private class WindowRunnnable { //只用于推断当前即将要运行click时window是否是同一窗体，有没有由于异常情况新开的窗体了
private int mOriginalAttachCount;
public void rememberWindowAttachCount() {
mOriginalAttachCount = getWindowAttachCount();
}
public boolean sameWindow() {
return hasWindowFocus() && getWindowAttachCount() == mOriginalAttachCount;
}
}
private class PerformClick extends WindowRunnnable implements Runnable {
int mClickMotionPosition;
public void run() {
// The data has changed since we posted this action in the event queue,
// bail out before bad things happen
if (mDataChanged) return;
final ListAdapter adapter = mAdapter;
final int motionPosition = mClickMotionPosition;
if (adapter != null && mItemCount > 0 &&
motionPosition != INVALID_POSITION &&
motionPosition < adapter.getCount() && sameWindow()) {
final View view = getChildAt(motionPosition - mFirstPosition);
// If there is no view, something bad happened (the view scrolled off the
// screen, etc.) and we should cancel the click
if (view != null) {//performItemClick被运行，至此AbsListView实现了onItemClick了
performItemClick(view, motionPosition, adapter.getItemId(motionPosition));
}
}
}
}
三、ViewFlow运行performItemClick?
3.1、postion的获取
ViewFlow的postion事实上和AbsListView的postion获取有点差别。由于ViewFlow是水平滑动而AbsListView是竖向的。
item会不在同一屏幕宽中。使用x与y坐标再遍历ChildView的矩形坐标系并不能适用。
那么怎样来获取postion呢?
翻看源代码有ViewFlow有个ViewSwitchListener，onSwitched中有对应的postion与View。
仅仅须要查看onSwitched在何处被调用，postion与view是怎样被斌值就可以。
private void postViewSwitched(int direction) {
if (direction == 0)
return;
if (direction > 0) { // to the right
mCurrentAdapterIndex++;
mCurrentBufferIndex++;
...
} else { // to the left
mCurrentAdapterIndex--;
mCurrentBufferIndex--;
...
}
...
if (mViewSwitchListener != null) { //通过在构造方法mLoadedViews(List<View>)初始化,mCurrentAdapterIndex当前显示的adapter中position位置
mViewSwitchListener
.onSwitched(mLoadedViews.get(mCurrentBufferIndex),
mCurrentAdapterIndex);
}
logBuffer();
}
3.2、PerformClick的运行
同AbsListView的PerformClick运行是同理，这里也是通过在0nTouchEvent的up中运行的。
@Override
public boolean onTouchEvent(MotionEvent ev) {
....
final int action = ev.getAction();
final float x = ev.getX();
//---------add start 获取Y坐标
final float y = ev.getY();
//---------add end
switch (action) {
case MotionEvent.ACTION_DOWN:
...
// Remember where the motion event started
mLastMotionX = x;
//---------add start
mLastMotionY = y;
//---------add start
mTouchState = mScroller.isFinished() ? TOUCH_STATE_REST
: TOUCH_STATE_SCROLLING;
mIsClick = true; //每次down是默认是一次点击事件，在move中有x轴或y轴的偏移时则取消是click
break;
case MotionEvent.ACTION_MOVE:
final int deltaX = (int) (mLastMotionX - x);
boolean xMoved = Math.abs(deltaX) > mTouchSlop;
//---------add start 计算y移动偏移量 推断y轴是否有移动过及本次down下，是否是一次click事件
float tempDeltaX = mLastMotionX - ev.getX();
float tempdeltaY = mLastMotionY - ev.getY();
boolean isXMoved = Math.abs(tempDeltaX) > MOVE_TOUCHSLOP;
boolean isYMoved = Math.abs(tempdeltaY) > MOVE_TOUCHSLOP;
boolean tempIsMoved = isXMoved || isYMoved ; //xy有点偏移都觉得不是点击事件
mIsClick = !tempIsMoved; //若x与y偏移量都过小，则觉得是一次click事件
//Log.e("------->", "ACTION_MOVE tempDeltaX:"+tempDeltaX+" tempdeltaY: "+tempdeltaY+" mTouchSlop:"+mTouchSlop+" isXMoved:"+isXMoved+" isYMoved:"+isYMoved+" isClick:"+mIsClick);
//---------add start
...
break;
case MotionEvent.ACTION_UP:
....
//------------------若是一次click。则运行点击。这里仿AbsListView 採用PerformClick
//Log.e("------->", "ACTION_UP isClick:"+mIsClick);
if(mIsClick){
if (mPerformClick == null) {
mPerformClick = new PerformClick();
}
final ViewFlow.PerformClick performClick = mPerformClick;
performClick.mClickMotionPosition = mCurrentAdapterIndex;
performClick.rememberWindowAttachCount(); //记录点击时的连接窗体次数
performClick.run();
}
//------------------
.....
break;
....
}
return true;
}
而PerformClick的实现例如以下：
/**
* A base class for Runnables that will check that their view is still attached to
* the original window as when the Runnable was created.
*
*/
private class WindowRunnnable {
private int mOriginalAttachCount;
public void rememberWindowAttachCount() {
mOriginalAttachCount = getWindowAttachCount(); //getWindowAttachCount 获取控件绑在窗体上的次数
}
public boolean sameWindow() { //推断是否是同一个窗体，异常情况时界面attachWindowCount会是+1，那么此时就不是同一个窗体了。
return hasWindowFocus() && getWindowAttachCount() == mOriginalAttachCount;
}
}
private class PerformClick extends WindowRunnnable implements Runnable {
int mClickMotionPosition;
public void run() {
// The data has changed since we posted this action in the event queue,
// bail out before bad things happen
//if (mDataChanged) return;
final Adapter adapter = mAdapter;
final int motionPosition = mClickMotionPosition;
if (adapter != null && mAdapter.getCount() > 0 &&
motionPosition != INVALID_POSITION &&
motionPosition < adapter.getCount() && sameWindow()) {
//final View view = getChildAt(motionPosition - mFirstPosition); // mFirstPosition不关注
final View view = mLoadedViews.get(mCurrentBufferIndex); //position及view的获取借鉴onSwitched方法
// If there is no view, something bad happened (the view scrolled off the
// screen, etc.) and we should cancel the click
if (view != null) {
performItemClick(view, motionPosition, adapter.getItemId(motionPosition));
}
}
}
}至此搞定了ViewFlow的onItemClick了。
附
最后上个ViewFlow的使用演示样例Demo
public class CircleViewFlowExample extends Activity {
private ViewFlow viewFlow;
/** Called when the activity is first created. */
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setTitle(R.string.circle_title);
setContentView(R.layout.circle_layout);
viewFlow = (ViewFlow) findViewById(R.id.viewflow);
viewFlow.setOnItemClickListener(new OnItemClickListener() {
@Override
public void onItemClick(AdapterView<?> parent, View view,
int position, long id) {
Toast.makeText(CircleViewFlowExample.this, "CircleViewFlowExample点击了position:"+position+"的图片", 1).show();
Log.e("-----", "CircleViewFlowExample点击了position:"+position+"的图片");
}
});
viewFlow.setAdapter(new ImageAdapter(this), 5);
CircleFlowIndicator indic = (CircleFlowIndicator) findViewById(R.id.viewflowindic);
viewFlow.setFlowIndicator(indic);
Log.e("-----", "CircleViewFlowExample onCreate");
}
/* If your min SDK version is < 8 you need to trigger the onConfigurationChanged in ViewFlow manually, like this */
@Override
public void onConfigurationChanged(Configuration newConfig) {
super.onConfigurationChanged(newConfig);
viewFlow.onConfigurationChanged(newConfig);
}
}
总结
先吐槽一两句：CSDN的markdown编辑的时候感觉好爽，但最后保存公布时。老是出问题。
不是timeout，就是服务异常，公布不了。
保存在草稿箱中也能够正常预览。就是不能正常公布。
无奈仅仅好转成普通模式。代码都一块一块贴进来。郁闷....
