LCT——Link Cut Tree

胡扯

LCT 运用实链剖分,对于一个父亲来说,只有一个儿子对应实边,其它的对应虚边,一堆的实边连在一起就变成了实链,我们用 Splay 维护。

其中实边指的是一条连通父亲儿子的双向边,而虚边则指的是儿子到父亲的单向边。在 LCT 中,实边组成的实链被 Splay 储存,而虚边则是 Splay 的根节点连到父亲的边,所以 LCT 其实可以看做一堆 Splay 通过虚边相连。

性质:

  1. 任何结点包含且仅包含于一个 Splay
  2. Splay 中的结点的深度在原树中按中序遍历递增

注意 LCT 维护的是森林。

)

接下来讲 LCT 的基本操作。

Access

最重要的操作,将 x 到树根结点之间拉一条实链,以下记 y 为上一次操作的 Splay 的根,y 初始为 0

首先我们把 x 转到它所处的 Splay 的根,然后把它的右儿子(y 深度大,由操作二替换到右儿子)改为 y,然后 pushup 一下 x,最后令 x=fa[x]

这样子起到了什么效果呢?显然原来的右实儿子变成了虚儿子,而右儿子的地方被替换为了上一个 Splay 的根,并且连的是实边。我们的目标是将最初的 x 与根结点之间打通实链,那么 Access 的过程相当于在不断地将两个 Splay 连接起来,形成实链。

放几个图:

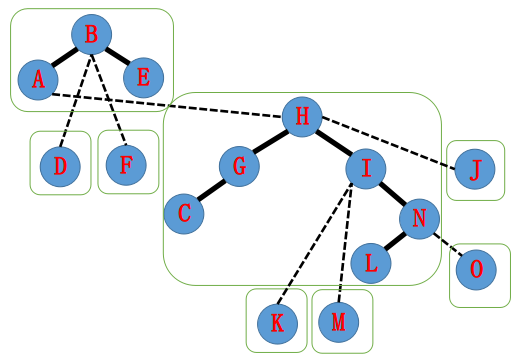

先是 Splay(N)

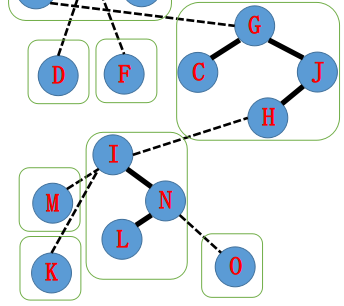

然后 Splay(I)

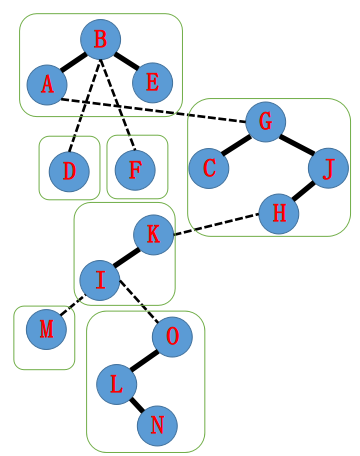

然后 Splay(H)

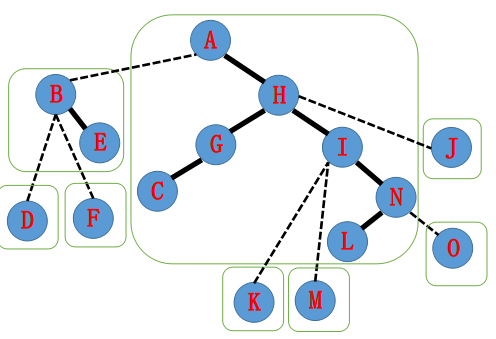

最后 Splay(A)

如此 AN 的路径便在一个 Splay 里了。

inline void access(int x) {
    for (int y = 0; x; y = x, x = tr[x].p)
        splay(x), tr[x].s[1] = y, pushup(x);
}

Makeroot

LCT 的根换为 x

首先 access(x),然后 splay(x),最后翻转一整棵 Splay

由于 access 一直是往右儿子挂,所以最后 x 会在整棵 Splay 的最右下(即中序遍历最后的点)。所以 splayx 没有右儿子,这时再将整棵 Splay 翻转,这样 x 的左子树就去了右边,x 就成了深度最小的点。

inline void reverse(int x) {
    swap(tr[x].s[0], tr[x].s[1]);
    tr[x].flag ^= 1;
}
inline void makeroot(int x) {
    access(x); splay(x); pushdown(x);
}

代码中的 pushdown 就是文艺平衡树中的懒标记下传。

Findroot

x 所在树的根节点。

同样 access(x),然后 splay(x),接着找到最左边的,它就是 x 所在树的根节点。

为了防止卡链,最后还要再 splay()

inline void pushdown(int x) {
    if (tr[x].flag) {
        if (tr[x].s[0]) reverse(tr[x].s[0]);
        if (tr[x].s[1]) reverse(tr[x].s[1]);
    }
    tr[x].flag = 0; // 这里一定是等于 0,不能 ^1
}
inline int findroot(int x) {
    access(x); splay(x);
    while (tr[x].s[0]) {
        pushdown(x); // 记得下传懒标记
        x = tr[x].s[0];
    }
    splay(x);
    return x;
}

xy 连边。

首先 makeroot(x),然后判断一下 findroot(y) 如果等于 x就不连,否则将 x 的父亲置为 y 连一条虚边。

findroot(y)=x 时不连是因为如果别人已经在一条链上了,你再连就会出现双向边或环。

inline void link(int x, int y) {
    makeroot(x);
    if (findroot(y) == x) return;
    tr[x].p = y;
}

Cut

砍掉 xy 的边。

首先还是 makeroot(x),接着考虑什么时候连边不合法。明显当 findroot(y)!=x 时不合法,说明两者不在一棵 Splay 中。那在同一棵树中的情况呢?

你想,Splay 维护的是中序遍历,并且我们已经使 x 成为了根,所以如果 y 还有左子结点,则二者一定在原树上不相邻。同时,我们在 findroot 中已经 access(y),所以如果 xy 在同一 Splay 中却还没有连边,这条路径上一定还会有其它的点,所以如果 fa[y]!=x 也是不合法的。

判完后令 x 的右儿子和 y 的父亲置为 NULL

最后因为记得 pushdown

为什么 link 不需要 pushdown?因为它连的是虚边。

inline void cut(int x, int y) {
    makeroot(x);
    if (findroot(y) != x || tr[y].p != x || tr[y].s[0]) return;
    tr[x].s[1] = tr[y].p = 0;
    pushup(x);
}

一个很重要的点:在使用 cut 时无论边是否一定合法都不能直接去掉判断行,因为 findroot 操作会对 y 进行操作,去掉答案会发生错误!!!!

Split

xy 拆成一棵方便操作的 Splay

因为 Access(y) 会使得 y 到根节点拉出一条实链,所以只要事先 makeroot(x) 就可以拉出一条 xy 的实链。

最后为了方便瞎搞,可以 splay(y)y 转到根节点,原因是这样子 y 只有左儿子。

inline void split(int x, int y) {
    makeroot(x); access(y); splay(y);
}

Splay

由于 LCT 引入了虚实边的概念,所以 Splay 的代码也要稍加变化。

rotate 中,由于 y 可能是 Splay 的根,这样 yz 就是虚边了,所以旋转时 xz 只能单向连边。

splay 中,由于每次都是转到根,splay 中就只传入一个变量,循环的判断条件也要改变。

inline void rotate(int x) {
    int y = tr[x].p, z = tr[y].p;
    int k = tr[y].s[1] == x;
    tr[x].p = z;
    if (ntroot(y)) tr[z].s[tr[z].s[1] == y] = x;
    tr[y].s[k] = tr[x].s[k ^ 1], tr[tr[x].s[k ^ 1]].p = y;
    tr[y].p = x, tr[x].s[k ^ 1] = y;
    pushup(y); pushup(x);
}

inline void splay(int x) {
    pushall(x);
    while (ntroot(x)) {
        int y = tr[x].p, z = tr[y].p;
        if (ntroot(y)) {
            if ((tr[y].s[1] == x) ^ (tr[z].s[1] == y)) rotate(x);
            else rotate(y);
        }
        rotate(x);
    }
}

模板

瞎扯了那么多,现在放个模板。

// 洛谷 P3690
#include <bits/stdc++.h>
#define rep(i, a, b) for (int i = (a); i <= (b); i ++)
#define fro(i, a, b) for (int i = (a); i >= b; i --)
#define INF 0x3f3f3f3f
#define eps 1e-6
#define lowbit(x) (x & (-x))
#define initrand srand((unsigned)time(0))
#define random(x) ((LL)rand() * rand() % (x))
#define eb emplace_back
using namespace std;
typedef long long LL;
typedef pair<int, int> PII;
typedef pair<double, int> PDI;
inline int read() {
    int x = 0, f = 1;
    char ch = getchar();
    while (ch < '0' || ch > '9') { if (ch == '-') f = -1; ch = getchar(); }
    while (ch >= '0' && ch <= '9') { x = (x << 1) + (x << 3) + (ch ^ 48); ch = getchar(); }
    return x * f;
}

const int N = 100010;
int n, m;

struct Splay {
    int s[2], p, val, res, flag;
} tr[N];

inline bool ntroot(int x) {
    return tr[tr[x].p].s[0] == x || tr[tr[x].p].s[1] == x;
}

inline void reverse(int x) {
    swap(tr[x].s[0], tr[x].s[1]);
    tr[x].flag ^= 1;
}

inline void pushdown(int x) {
    if (tr[x].flag) {
        if (tr[x].s[0]) reverse(tr[x].s[0]);
        if (tr[x].s[1]) reverse(tr[x].s[1]);
    }
    tr[x].flag = 0;
}

inline void pushall(int x) {
    if (ntroot(x)) pushall(tr[x].p);
    pushdown(x);
}

inline void pushup(int x) {
    tr[x].res = tr[tr[x].s[0]].res ^ tr[tr[x].s[1]].res ^ tr[x].val;
}

inline void rotate(int x) {
    int y = tr[x].p, z = tr[y].p;
    int k = tr[y].s[1] == x;
    tr[x].p = z;
    if (ntroot(y)) tr[z].s[tr[z].s[1] == y] = x;
    tr[y].s[k] = tr[x].s[k ^ 1], tr[tr[x].s[k ^ 1]].p = y;
    tr[y].p = x, tr[x].s[k ^ 1] = y;
    pushup(y); pushup(x);
}

inline void splay(int x) {
    pushall(x);
    while (ntroot(x)) {
        int y = tr[x].p, z = tr[y].p;
        if (ntroot(y)) {
            if ((tr[y].s[1] == x) ^ (tr[z].s[1] == y)) rotate(x);
            else rotate(y);
        }
        rotate(x);
    }
}

inline void access(int x) {
    for (int y = 0; x; y = x, x = tr[x].p)
        splay(x), tr[x].s[1] = y, pushup(x);
}

inline void makeroot(int x) {
    access(x); splay(x); reverse(x);
}

inline int findroot(int x) {
    access(x); splay(x);
    while (tr[x].s[0]) {
        pushdown(x);
        x = tr[x].s[0];
    }
    splay(x);
    return x;
}

inline void link(int x, int y) {
    makeroot(x);
    if (findroot(y) == x) return;
    tr[x].p = y;
}

inline void cut(int x, int y) {
    makeroot(x);
    if (findroot(y) != x || tr[y].p != x || tr[y].s[0]) return;
    tr[x].s[1] = tr[y].p = 0;
    pushup(x);
}

inline void split(int x, int y) {
    makeroot(x); access(y); splay(y);
}

int main() {
    n = read(), m = read();
    rep(i, 1, n) tr[i].val = read();
    while (m --) {
        int op = read(), x = read(), y = read();
        if (!op) {
            split(x, y);
            printf("%d\n", tr[y].res);
        } else if (op == 1) {
            link(x, y);
        } else if (op == 2) {
            cut(x, y);
        } else {
            splay(x);
            tr[x].val = y;
        }
    }
    return 0;
}

模板题

P3690 【模板】动态树(LCT)

代码在上面

P1501 [国家集训队] Tree II

考虑运用线段树打懒标记的思路,对于每个 Splay 结点维护 val,mul,add,sum,flag,sz,其中 val 为结点的值,mul 为乘的懒标记,add 为加的懒标记,sum 为子树的和,flag 是翻转的懒标记,sz 是子树的大小。

维护懒标记时先 muladd,原因可以自己列个式子算一算。

代码

自我感觉马蜂挺良好的?

P4219 [BJOI2014] 大融合

A 操作就是 LinkQ 操作我们可以维护每个子树的 szsplit(x,y) 后答案就是 sz[x](sz[y]sz[x]),这样就做完了,吗?

由于 LCT 有虚边和实边的分别,所以我们不能单纯地维护实边的 sz,我们还要加上虚边,所以我们可以再维护一个 sz2 代表虚边的大小。然后 pushup 要修改,并且会改变边的虚实关系的 accesslink 中都要维护 sz2

注意到 link 中进行了修改增加了 makeroot(y),因为如果直接连 y 的祖先就爆了。

inline void pushup(int x) {
    tr[x].sz = tr[tr[x].s[0]].sz + tr[tr[x].s[1]].sz + 1 + tr[x].sz2;
}
inline void access(int x) {
    for (int y = 0; x; y = x, x = tr[x].p)
        splay(x), tr[x].sz2 += tr[tr[x].s[1]].sz - tr[y].sz, tr[x].s[1] = y, pushup(x);
}
inline void link(int x, int y) {
    makeroot(x); makeroot(y);
    tr[y].sz2 += tr[x].sz, tr[y].sz += tr[x].sz;
    tr[x].p = y;
}

其实解决这个问题的方式还有一种就是 link 当不需要判断数据合法性时还有另一种写法,直接 split(x,y) 然后这时 x,y 相当于一个在链首,一个在链尾,这时候直接搞就不会出问题了。

inline void link(int x, int y) {
    split(x, y);
    tr[x].p = y;
}

完整代码

在更
