2022/4/2 更新FlowDroid环境配置-windows

环境变量

电脑上有adnroid studio自带的sdk platforms工具
作者写的很明白
EXPORT ANDROID_JARS=Android JAR folder #windows路径\AppData\Local\Android\Sdk\platforms\android-32\android.jar
EXPORT DROIDBENCH=DroidBench folder #不想编译测试官方样本的话不用配置
安装 maven，配置好本地仓库和settings.xml,我安的3.8.5，就改了本地仓库位置，源没动，公司网不错。

命令行工具

最简单，直接就能运行
java -jar soot-infoflow-cmd/target/soot-infoflow-cmd-jar-with-dependencies.jar \ -a <APK File> \ -p <Android JAR folder platforms路径\AppData\Local\Android\Sdk\platforms\> \ -s <SourcesSinks file>

例如：
java -jar soot-infoflow-cmd-2.9.0-jar-with-dependencies.jar \ -a enriched1.apk \ -p C:\Users\silver\AppData\Local\Android\Sdk\platforms \ -s SourcesAndSinks.txt

使用maven构建

ida创建好maven工程后，在pom.xml中添加下面的仓库就行。

    <dependency>
        <groupId>de.fraunhofer.sit.sse.flowdroid</groupId>
        <artifactId>soot-infoflow</artifactId>
        <version>2.10.0</version>
    </dependency>
    <dependency>
        <groupId>de.fraunhofer.sit.sse.flowdroid</groupId>
        <artifactId>soot-infoflow-summaries</artifactId>
        <version>2.10.0</version>
    </dependency>
    <dependency>
        <groupId>de.fraunhofer.sit.sse.flowdroid</groupId>
        <artifactId>soot-infoflow-android</artifactId>
        <version>2.10.0</version>
    </dependency>
</dependencies>

提示缺少junit加上就行

<dependency>
  <groupId>junit</groupId>
  <artifactId>junit</artifactId>
  <version>4.11</version>
  <scope>test</scope>
</dependency>
  <dependency>
    <groupId>de.fraunhofer.sit.sse.flowdroid</groupId>
    <artifactId>soot-infoflow</artifactId>
    <version>2.10.0</version>
  </dependency>
  <dependency>
    <groupId>de.fraunhofer.sit.sse.flowdroid</groupId>
    <artifactId>soot-infoflow-summaries</artifactId>
    <version>2.10.0</version>
  </dependency>
  <dependency>
    <groupId>de.fraunhofer.sit.sse.flowdroid</groupId>
    <artifactId>soot-infoflow-android</artifactId>
    <version>2.10.0</version>
  </dependency>

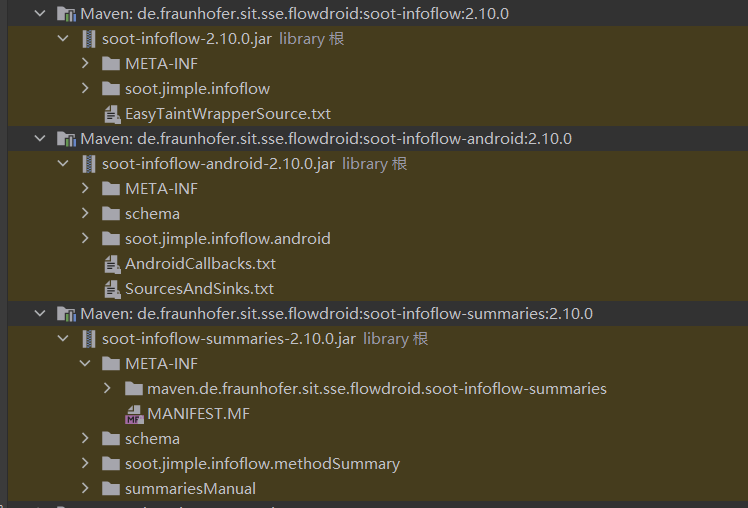

重新刷新下载，没有问题，外部库加载上了

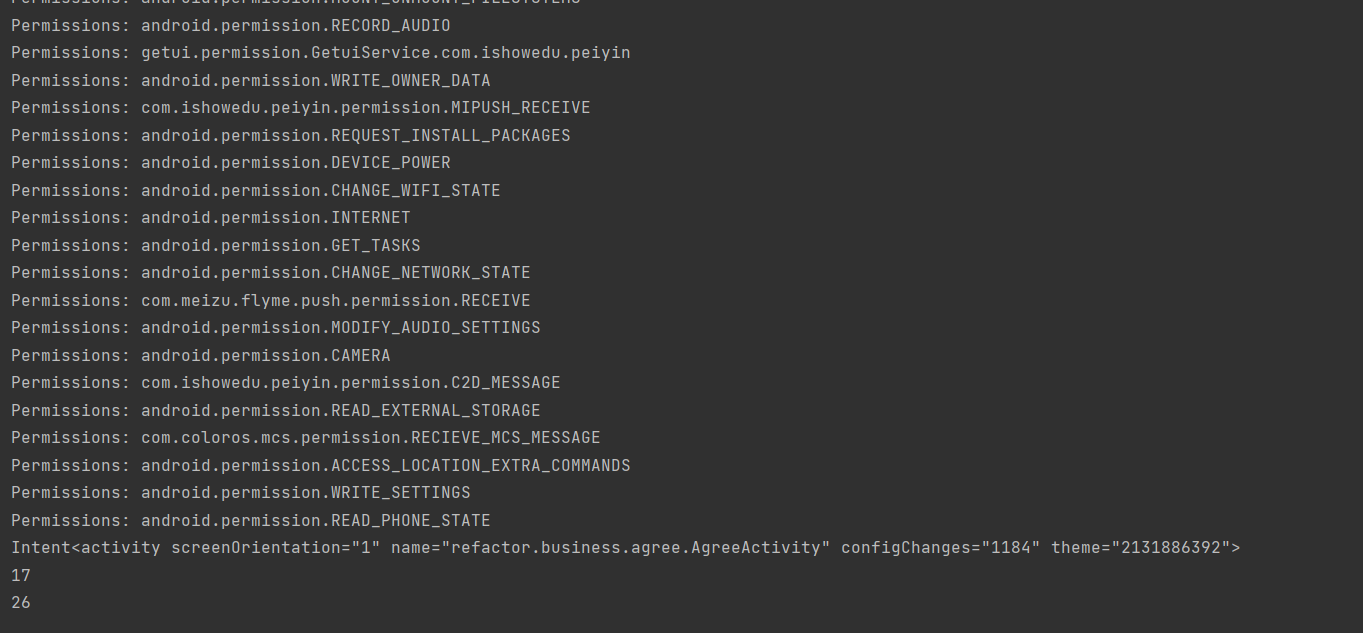

编写一个检测apk基本信息的程序

点击查看代码

public class App
{


    private static String apkPath = "G:\\TEST\\11.apk";

    public static void main(String[] args) throws IOException, XmlPullParserException {
        ProcessManifest processManifest = new ProcessManifest(apkPath);
        //获取包名
        System.out.println("packagename:" + processManifest.getManifest().getAttribute("package"));
        Iterator<BinaryManifestActivity> itact = processManifest.getActivities().iterator();
        while (itact.hasNext()) {
            String name = itact.next().getNameString();
            System.out.println("activity: " + name);
        }
        Iterator<BinaryManifestService> itser = processManifest.getServices().iterator();
        while (itser.hasNext()) {
            String name = itser.next().getNameString();
            System.out.println("services: " + name);
        }
        Iterator<BinaryManifestBroadcastReceiver> itrec = processManifest.getBroadcastReceivers().iterator();
        while (itrec.hasNext()) {
            String name = itrec.next().getNameString();
            System.out.println("receives: " + name);
        }
        Iterator<BinaryManifestContentProvider> itpro = processManifest.getContentProviders().iterator();
        while (itpro.hasNext()) {
            String name = itpro.next().getNameString();
            System.out.println("providers: " + name);
        }
        Iterator<String> itper = processManifest.getPermissions().iterator();
        while (itper.hasNext()) {
            String name = itper.next();
            System.out.println("Permissions: " + name);
        }
        Iterator<AXmlNode> itInt = processManifest.getLaunchableActivityNodes().iterator();
        while (itInt.hasNext()) {
            String name = itInt.next().toString();
            System.out.println("Intent" + name);
        }
        System.out.println(processManifest.getMinSdkVersion());
        System.out.println(processManifest.getTargetSdkVersion());


    }
}
