10.编译安装 HAProxy

编译安装HAProxy 2.0 LTS版本，更多源码包下载地址：http://www.haproxy.org/download/

10.1 解决 lua 环境

HAProxy 支持基于lua实现功能扩展，lua是一种小巧的脚本语言，于1993年由巴西里约热内卢天主教大 学（Pontifical Catholic University of Rio de Janeiro）里的一个研究小组开发，其设计目的是为了嵌入 应用程序中，从而为应用程序提供灵活的扩展和定制功能。



10.1.1 CentOS 基础环境

由于CentOS7 之前版本自带的lua版本比较低并不符合HAProxy要求的lua最低版本(5.3)的要求，因此需要编译安装较新版本的lua环境，然后才能编译安装HAProxy，过程如下：

[root@centos7 ~]# lua -v

Lua 5.1.4  Copyright (C) 1994-2008 Lua.org, PUC-Rio

[root@centos7 ~]# yum install gcc readline-devel -y

[root@centos7 ~]# wget http://www.lua.org/ftp/lua-5.3.5.tar.gz

[root@centos7 ~]# tar xvf lua-5.3.5.tar.gz -C /usr/local/src

[root@centos7 ~]# cd /usr/local/src/lua-5.3.5/

[root@centos7 lua-5.3.5]# ls

doc  Makefile  README  src

[root@centos7 lua-5.3.5]# make linux test







#查看编译安装的版本

[root@centos7 lua-5.3.5]# src/lua -v

Lua 5.3.5  Copyright (C) 1994-2018 Lua.org, PUC-Rio



10.2 编译安装HAProxy

#HAProxy 1.8及1.9版本编译参数：

make  ARCH=x86_64 TARGET=linux2628 USE_PCRE=1 USE_OPENSSL=1 USE_ZLIB=1

USE_SYSTEMD=1  USE_CPU_AFFINITY=1  PREFIX=/usr/local/haproxy



#HAProxy 2.0以上版本编译参数：

[root@centos7 ~]#yum -y install gcc openssl-devel pcre-devel systemd-devel

[root@centos7 ~]#tar xvf haproxy-2.1.3.tar.gz -C /usr/local/src

[root@centos7 ~]#cd /usr/local/src/haproxy-2.1.3/

[root@centos7 haproxy-2.1.3]# ls

BRANCHES   CONTRIBUTING  examples  LICENSE      README     scripts  tests

CHANGELOG  doc           include   MAINTAINERS  reg-tests  src      VERDATE

contrib    ebtree        INSTALL   Makefile     ROADMAP    SUBVERS  VERSION



#查看安装方法

[root@centos7 haproxy-2.1.3]#ll Makefile

-rw-rw-r-- 1 root root 40812 Feb 12 23:18 Makefile

[root@centos7 haproxy-2.1.3]#cat README

[root@centos7 haproxy-2.1.3]#cat INSTALL



#参考INSTALL文件进行编译安装

[root@centos7 haproxy-2.1.3]#make ARCH=x86_64 TARGET=linux-glibc USE_PCRE=1

USE_OPENSSL=1 USE_ZLIB=1 USE_SYSTEMD=1 USE_LUA=1 LUA_INC=/usr/local/src/lua-

5.3.5/src/ LUA_LIB=/usr/local/src/lua-5.3.5/src/

[root@centos7 haproxy-2.1.3]# make install PREFIX=/apps/haproxy

[root@centos7 haproxy-2.1.3]#ln -s /apps/haproxy/sbin/haproxy /usr/sbin/













#查看生成的文件

[root@centos7 haproxy-2.1.3]# tree /apps/haproxy/

/apps/haproxy/

├── doc

│   └── haproxy

│       ├── 51Degrees-device-detection.txt

│       ├── architecture.txt

│       ├── close-options.txt

│       ├── configuration.txt

│       ├── cookie-options.txt

│       ├── DeviceAtlas-device-detection.txt

│       ├── intro.txt

│       ├── linux-syn-cookies.txt

│       ├── lua.txt

│       ├── management.txt

│       ├── netscaler-client-ip-insertion-protocol.txt

│       ├── network-namespaces.txt

│       ├── peers.txt

│       ├── peers-v2.0.txt

│       ├── proxy-protocol.txt

│       ├── regression-testing.txt

│       ├── seamless_reload.txt

│       ├── SOCKS4.protocol.txt

│       ├── SPOE.txt

│       └── WURFL-device-detection.txt

├── sbin

│   └── haproxy

└── share

    └── man

        └── man1

            └── haproxy.1



6 directories, 22 files



10.3 验证HAProxy版本

#验证HAProxy版本：

[root@centos7 haproxy-2.1.3]# which haproxy

/usr/sbin/haprox



[root@centos7 haproxy-2.1.3]# haproxy -v

HA-Proxy version 2.1.3 2020/02/12 - https://haproxy.org/

Status: stable branch - will stop receiving fixes around Q1 2021.

Known bugs: http://www.haproxy.org/bugs/bugs-2.1.3.html

[root@centos7 haproxy-2.1.3]# haproxy -V

HA-Proxy version 2.1.3 2020/02/12 - https://haproxy.org/

Status: stable branch - will stop receiving fixes around Q1 2021.

Known bugs: http://www.haproxy.org/bugs/bugs-2.1.3.html

Usage : haproxy [-f <cfgfile|cfgdir>]* [ -vdVD ] [ -n <maxconn> ] [ -N <maxpconn> ]

        [ -p <pidfile> ] [ -m <max megs> ] [ -C <dir> ] [-- <cfgfile>*]

        -v displays version ; -vv shows known build options.

        -d enters debug mode ; -db only disables background mode.

        -dM[<byte>] poisons memory with <byte> (defaults to 0x50)

        -V enters verbose mode (disables quiet mode)

        -D goes daemon ; -C changes to <dir> before loading files.

        -W master-worker mode.

        -Ws master-worker mode with systemd notify support.

        -q quiet mode : don't display messages

        -c check mode : only check config files and exit

        -n sets the maximum total # of connections (uses ulimit -n)

        -m limits the usable amount of memory (in MB)

        -N sets the default, per-proxy maximum # of connections (0)

        -L set local peer name (default to hostname)

        -p writes pids of all children to this file

        -de disables epoll() usage even when available

        -dp disables poll() usage even when available

        -dS disables splice usage (broken on old kernels)

        -dG disables getaddrinfo() usage

        -dR disables SO_REUSEPORT usage

        -dr ignores server address resolution failures

        -dV disables SSL verify on servers side

        -sf/-st [pid ]* finishes/terminates old pids.

        -x <unix_socket> get listening sockets from a unix socket

        -S <bind>[,<bind options>...] new master CLI





[root@centos7 haproxy-2.1.3]# haproxy -vv

HA-Proxy version 2.1.3 2020/02/12 - https://haproxy.org/

Status: stable branch - will stop receiving fixes around Q1 2021.

Known bugs: http://www.haproxy.org/bugs/bugs-2.1.3.html

Build options :

  TARGET  = linux-glibc

  CPU     = generic

  CC      = gcc

  CFLAGS  = -m64 -march=x86-64 -O2 -g -fno-strict-aliasing -Wdeclaration-after-statement -fwrapv -Wno-unused-label -Wno-sign-compare -Wno-unused-parameter -Wno-old-style-declaration -Wno-ignored-qualifiers -Wno-clobbered -Wno-missing-field-initializers -Wtype-limits

  OPTIONS = USE_PCRE=1 USE_OPENSSL=1 USE_LUA=1 USE_ZLIB=1 USE_SYSTEMD=1



Feature list : +EPOLL -KQUEUE -MY_EPOLL -MY_SPLICE +NETFILTER +PCRE -PCRE_JIT -PCRE2 -PCRE2_JIT +POLL -PRIVATE_CACHE +THREAD -PTHREAD_PSHARED -REGPARM -STATIC_PCRE -STATIC_PCRE2 +TPROXY +LINUX_TPROXY +LINUX_SPLICE +LIBCRYPT +CRYPT_H -VSYSCALL +GETADDRINFO +OPENSSL +LUA +FUTEX +ACCEPT4 -MY_ACCEPT4 +ZLIB -SLZ +CPU_AFFINITY +TFO +NS +DL +RT -DEVICEATLAS -51DEGREES -WURFL +SYSTEMD -OBSOLETE_LINKER +PRCTL +THREAD_DUMP -EVPORTS



Default settings :

  bufsize = 16384, maxrewrite = 1024, maxpollevents = 200



Built with multi-threading support (MAX_THREADS=64, default=1).

Built with OpenSSL version : OpenSSL 1.0.2k-fips  26 Jan 2017

Running on OpenSSL version : OpenSSL 1.0.2k-fips  26 Jan 2017

OpenSSL library supports TLS extensions : yes

OpenSSL library supports SNI : yes

OpenSSL library supports : SSLv3 TLSv1.0 TLSv1.1 TLSv1.2

Built with Lua version : Lua 5.3.5

Built with network namespace support.

Built with transparent proxy support using: IP_TRANSPARENT IPV6_TRANSPARENT IP_FREEBIND

Built with PCRE version : 8.32 2012-11-30

Running on PCRE version : 8.32 2012-11-30

PCRE library supports JIT : no (USE_PCRE_JIT not set)

Encrypted password support via crypt(3): yes

Built with zlib version : 1.2.7

Running on zlib version : 1.2.7

Compression algorithms supported : identity("identity"), deflate("deflate"), raw-deflate("deflate"), gzip("gzip")



Available polling systems :

      epoll : pref=300,  test result OK

       poll : pref=200,  test result OK

     select : pref=150,  test result OK

Total: 3 (3 usable), will use epoll.



Available multiplexer protocols :

(protocols marked as <default> cannot be specified using 'proto' keyword)

              h2 : mode=HTTP       side=FE|BE     mux=H2

            fcgi : mode=HTTP       side=BE        mux=FCGI

       <default> : mode=HTTP       side=FE|BE     mux=H1

       <default> : mode=TCP        side=FE|BE     mux=PASS



Available services : none



Available filters :

[SPOE] spoe

[CACHE] cache

[FCGI] fcgi-app

[TRACE] trace

[COMP] compression







10.4 准备HAProxy启动文件



#默认缺少配置文件，无法启动



[root@centos7 ~]#systemctl daemon-reload

[root@centos7 ~]#systemctl start haproxy

[root@centos7 haproxy-2.1.3]# systemctl start haproxy

Failed to start haproxy.service: Unit not found.



Job for haproxy.service failed because the control process exited with error

code. See "systemctl status haproxy.service" and "journalctl -xe" for details.



[root@centos7 ~]#tail /var/log/messages









































#创建service文件

[root@centos7 ~]#vim /usr/lib/systemd/system/haproxy.service

[Unit]

Description=HAProxy Load Balancer

After=syslog.target network.target

[Service]

ExecStartPre=/usr/sbin/haproxy -f /etc/haproxy/haproxy.cfg  -c -q

ExecStart=/usr/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -p /var/lib/haproxy/haproxy.pid

ExecReload=/bin/kill -USR2 $MAINPID

LimitNOFILE=100000

[Install]

WantedBy=multi-user.target









10.5 配置文件

#查看配置文件范例

[root@centos7 haproxy-2.1.3]# tree /usr/local/src/haproxy-2.1.3/examples/

/usr/local/src/haproxy-2.1.3/examples/

├── acl-content-sw.cfg

......

└── wurfl-example.cfg

1 directory, 15 files





#创建自定义的配置文件

[root@centos7 haproxy-2.1.3]# vim /etc/haproxy/haproxy.cfg

global

   maxconn 100000

    chroot /apps/haproxy

   stats socket /var/lib/haproxy/haproxy.sock mode 600 level admin

    #uid 99

    #gid 99

   user haproxy

   group haproxy

   daemon

    #nbproc 4

    #cpu-map 1 0

    #cpu-map 2 1

    #cpu-map 3 2

    #cpu-map 4 3

   pidfile /var/lib/haproxy/haproxy.pid

   log 127.0.0.1 local2 info

defaults

   option http-keep-alive

   option forwardfor

   maxconn 100000

   mode http

   timeout connect 300000ms

   timeout client 300000ms

   timeout server 300000ms

listen stats

   mode http

   bind 0.0.0.0:9999

   stats enable

   log global

   stats uri     /haproxy-status

   stats auth   haadmin:123456

listen web_port

   bind 10.0.0.7:80

   mode http

   log global

   server web1  127.0.0.1:8080 check inter 3000 fall 2 rise 5



10.6 启动 haproxy

#准备socket文件目录

[root@centos7 ~]# mkdir /var/lib/haproxy

#设置用户和目录权限

[root@centos7 ~]# useradd -r -s /sbin/nologin -d /var/lib/haproxy haproxy

启动报错，主要是service文件问题

[root@centos7 ~]# systemctl enable --now haproxy

Failed to execute operation: Bad message



查看日志，少写了个=

[root@centos7 log]# tail messages  -f

Aug 16 20:27:02 centos7 systemd: [/usr/lib/systemd/system/haproxy.service:8] Missing '='.



启动还是报错。

[root@centos7 ~]# systemctl enable --now haproxy

Job for haproxy.service failed because the control process exited with error code. See "systemctl status haproxy.service" and "journalctl -xe" for details.



查看日志，配置文件出错

[root@centos7 log]# tail messages  -f

Aug 16 20:31:30 centos7 systemd: Reloading.

Aug 16 20:31:30 centos7 systemd: Starting HAProxy Load Balancer...

Aug 16 20:31:30 centos7 haproxy: [ALERT] 227/203130 (3297) : parsing [/etc/haproxy/haproxy.cfg:39] : 'server web1' : could not resolve address ' 127.0.0.1'.

Aug 16 20:31:30 centos7 haproxy: [ALERT] 227/203130 (3297) : Failed to initialize server(s) addr.







更改下面这行,改为当前主机名

[root@centos7 ~]# vim /etc/haproxy/haproxy.cfg

    server centos7 127.0.0.1:8080 check inter 3000 fall 2 rise 5





[root@centos7 ~]# systemctl enable --now haproxy



10.7 验证 haproxy 状态

haproxy.cfg文件中定义了chroot、pidfile、user、group等参数，如果系统没有相应的资源会导致 haproxy无法启动，具体参考日志文件 /var/log/messages

[root@centos7 ~]# systemctl status haproxy

● haproxy.service - HAProxy Load Balancer

   Loaded: loaded (/usr/lib/systemd/system/haproxy.service; enabled; vendor preset: disabled)

   Active: active (running) since Tue 2022-08-16 20:34:35 CST; 6min ago

 Main PID: 3352 (haproxy)

   CGroup: /system.slice/haproxy.service

           ├─3352 /usr/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -p /var/lib/haproxy/haproxy.pid

           └─3358 /usr/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -p /var/lib/haproxy/haproxy.pid



Aug 16 20:34:35 centos7 systemd[1]: Starting HAProxy Load Balancer...

Aug 16 20:34:35 centos7 systemd[1]: Started HAProxy Load Balancer.

Aug 16 20:34:35 centos7 haproxy[3352]: [NOTICE] 227/203435 (3352) : New worker #1 (3358) forked





[root@centos7 ~]# pstree -p | grep haproxy

           |-haproxy(3352)---haproxy(3358)

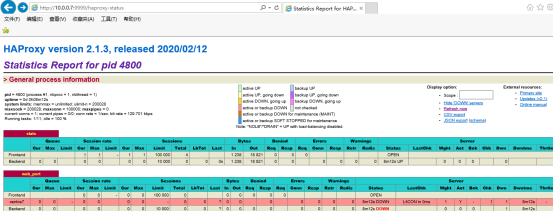

10.8查看haproxy的状态页面

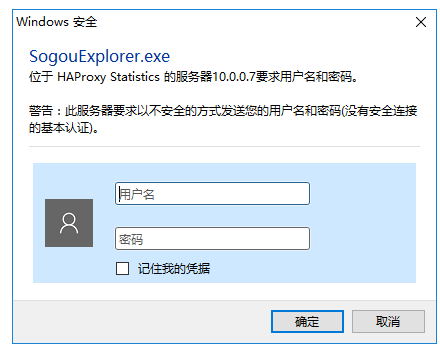

浏览器访问： http://haproxy-server:9999/haproxy-status







[root@centos7 log]# tail messages  -f

Aug 16 20:54:19 centos7 haproxy: [ALERT] 227/205419 (3854) : proxy 'web_port' has no server available!





[root@centos7 ~]# vim /etc/haproxy/haproxy.cfg

......

listen web_port

    bind 10.0.0.7:80

    mode http

    log global

server centos7 127.0.0.1:8080 check inter 3000 fall 2 rise 5

这时配置文件多个空格少个空格都报错，改正一下。

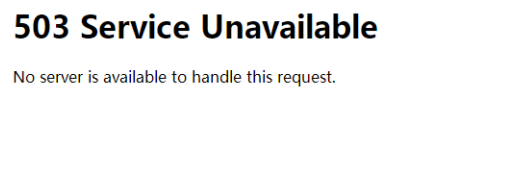

在浏览器刷新几下。
