仪表盘 RBAC 配置

重要：本指南中创建的 admin-user 将在仪表盘中拥有管理权限。

创建以下资源清单文件：

dashboard.admin-user.yml

[root@localhost ~]# cat dashboard.admin-user.yml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kubernetes-dashboard

dashboard.admin-user-role.yml

[root@localhost ~]# cat dashboard.admin-user-role.yml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
  - kind: ServiceAccount
    name: admin-user
    namespace: kubernetes-dashboard

部署admin-user 配置：

sudo k3s kubectl create -f dashboard.admin-user.yml -f dashboard.admin-user-role.yml

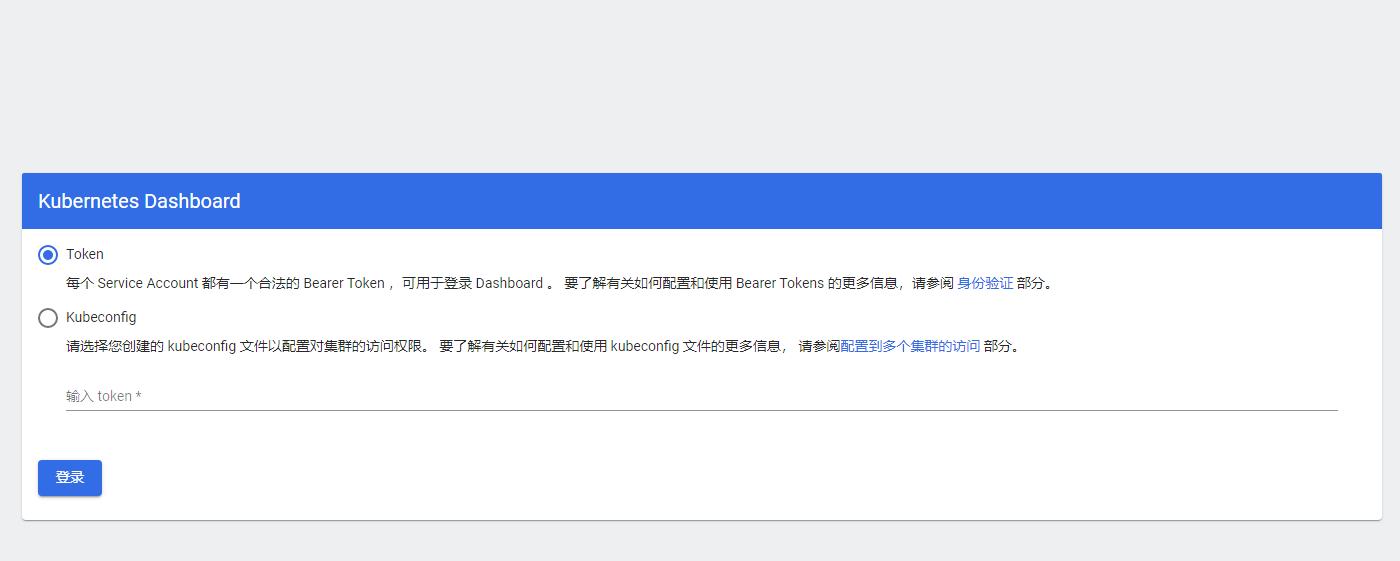

获得 Bearer Token

sudo k3s kubectl -n kubernetes-dashboard describe secret admin-user-token | grep '^token'

token: eyJhbGciOiJSUzI1NiIsImtpZCI6Ik9Hdk5SZlJZMWJzLWVZbm1TbExtMFB4ODd0REJ1b1A4WWFkSXFoMDZTUTAifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLXZic214Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI1ZDY4YmE0OS0yMTIyLTRjOTgtYmE2Ny0wNmI4MjBmZjZkNTQiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.ZhISq0hYC8C8DbVfPYXRfMd5ihKWsbGenwY1Qg6zprHIqbbRbwrJWNEIpyDVYfoqv_u2Y7QFvHlJj7mZSWdPNC99omnlcYH0F7hT83-FwFhDGrH2-VMsHyD00lej6FbIxbCuUqwGJzzrP0IzSYwuXjRkhk-VA8S0aPz4xQx-k3W2DyRTMeW61KiWbqjBY19aPLaNjPaEK2oxhsTT4Qs8zpVHkHFHpoDZflqwumk0yE5sa0kF66xISjYjxwSENu27_oIa8xD23IDOaxdchwY4-NxC92faafotfqqSetzYO_SNH3BgEhOkegAdS3i8nyKKHPlunLiZ7oaxykjtIWMt-w

远程访问仪表盘方法一

1.安装mongodb

kubectl apply -f https://k8s.io/examples/application/mongodb/mongo-deployment.yaml

2.kubectl get pods

[root@localhost ~]# kubectl get pods
NAME READY STATUS RESTARTS AGE
mongo-75f59d57f4-mmp98 1/1 Running 1 (2m55s ago) 6m7s

3.kubectl get deployment

[root@localhost ~]# kubectl get deployment
NAME READY UP-TO-DATE AVAILABLE AGE
mongo 1/1 1 1 6m53s

4.kubectl get replicaset

[root@localhost ~]# kubectl get replicaset
NAME DESIRED CURRENT READY AGE
mongo-75f59d57f4 1

5.Create a Service to expose MongoDB on the network:

kubectl apply -f https://k8s.io/examples/application/mongodb/mongo-service.yaml

6.kubectl get service mongo

[root@localhost ~]# kubectl get service mongo
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
mongo ClusterIP 10.43.159.130 <none> 27017/TCP 27s

7.查看端口

[root@localhost ~]# kubectl get pod mongo-75f59d57f4-mmp98 --template='{{(index (index .spec.containers 0).ports 0).containerPort}}{{"\n"}}'
27017

8.转发端口

Forward a local port to a port on the Pod

kubectl port-forward allows using resource name, such as a pod name, to select a matching pod to port forward to.

# Change mongo-75f59d57f4-4nd6q to the name of the Pod
kubectl port-forward mongo-75f59d57f4-4nd6q 28015:27017

which is the same as

kubectl port-forward pods/mongo-75f59d57f4-4nd6q 28015:27017

kubectl port-forward deployment/mongo 28015:27017

kubectl port-forward replicaset/mongo-75f59d57f4 28015:27017

kubectl port-forward service/mongo 28015:27017

Any of the above commands works. The output is similar to this:

Forwarding from 127.0.0.1:28015 -> 27017
Forwarding from [::1]:28015 -> 27017

https://kubernetes.io/docs/tasks/access-application-cluster/port-forward-access-application-cluster/

kubectl port-forward mongo-75f59d57f4-mmp98 28015:27017

再开一个终端，执行

nc -w 3 -v 127.0.0.1 28015

E0205 13:27:31.100188 106746 portforward.go:400] an error occurred forwarding 28015 -> 27017: error forwarding port 27017 to pod 86430f8070580d1b3fa08fe11aad71766cdb9745c24bf428182860d29f3cc43d, uid : unable to do port forwarding: socat not found

安装socat

yum install socat

kubectl port-forward --address 0.0.0.0 mongo-75f59d57f4-mmp98 28015:27017

kubectl get pod kubernetes-dashboard-576cb95f94-xk8hl --template='{{(index (index .spec.containers 0).ports 0).containerPort}}{{"\n"}}' -n kubernetes-dashboard

8443

kubectl port-forward --address 0.0.0.0 kubernetes-dashboard-576cb95f94-xk8hl -n kubernetes-dashboard 30010:8443

systemctl stop firewalld

远程访问仪表盘方法二

1.修改recommended.yaml，service类型改为NodePort

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

[root@localhost ~]# cat recommended.yaml
# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: Namespace
metadata:
  name: kubernetes-dashboard

---

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  type: NodePort
  ports:
    - port: 443
      targetPort: 8443
      nodePort: 31001
  selector:
    k8s-app: kubernetes-dashboard

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-certs
  namespace: kubernetes-dashboard
type: Opaque

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-csrf
  namespace: kubernetes-dashboard
type: Opaque
data:
  csrf: ""

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-key-holder
  namespace: kubernetes-dashboard
type: Opaque

---

kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-settings
  namespace: kubernetes-dashboard

---

kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
rules:
  # Allow Dashboard to get, update and delete Dashboard exclusive secrets.
  - apiGroups: [""]
    resources: ["secrets"]
    resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
    verbs: ["get", "update", "delete"]
    # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
  - apiGroups: [""]
    resources: ["configmaps"]
    resourceNames: ["kubernetes-dashboard-settings"]
    verbs: ["get", "update"]
    # Allow Dashboard to get metrics.
  - apiGroups: [""]
    resources: ["services"]
    resourceNames: ["heapster", "dashboard-metrics-scraper"]
    verbs: ["proxy"]
  - apiGroups: [""]
    resources: ["services/proxy"]
    resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
    verbs: ["get"]

---

kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
rules:
  # Allow Metrics Scraper to get metrics from the Metrics server
  - apiGroups: ["metrics.k8s.io"]
    resources: ["pods", "nodes"]
    verbs: ["get", "list", "watch"]

---

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: kubernetes-dashboard
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard
    spec:
      containers:
        - name: kubernetes-dashboard
          image: kubernetesui/dashboard:v2.4.0
          imagePullPolicy: Always
          ports:
            - containerPort: 8443
              protocol: TCP
          args:
            - --auto-generate-certificates
            - --namespace=kubernetes-dashboard
            # Uncomment the following line to manually specify Kubernetes API server Host
            # If not specified, Dashboard will attempt to auto discover the API server and connect
            # to it. Uncomment only if the default does not work.
            # - --apiserver-host=http://my-address:port
          volumeMounts:
            - name: kubernetes-dashboard-certs
              mountPath: /certs
              # Create on-disk volume to store exec logs
            - mountPath: /tmp
              name: tmp-volume
          livenessProbe:
            httpGet:
              scheme: HTTPS
              path: /
              port: 8443
            initialDelaySeconds: 30
            timeoutSeconds: 30
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      volumes:
        - name: kubernetes-dashboard-certs
          secret:
            secretName: kubernetes-dashboard-certs
        - name: tmp-volume
          emptyDir: {}
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 8000
      targetPort: 8000
  selector:
    k8s-app: dashboard-metrics-scraper

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: dashboard-metrics-scraper
  template:
    metadata:
      labels:
        k8s-app: dashboard-metrics-scraper
    spec:
      securityContext:
        seccompProfile:
          type: RuntimeDefault
      containers:
        - name: dashboard-metrics-scraper
          image: kubernetesui/metrics-scraper:v1.0.7
          ports:
            - containerPort: 8000
              protocol: TCP
          livenessProbe:
            httpGet:
              scheme: HTTP
              path: /
              port: 8000
            initialDelaySeconds: 30
            timeoutSeconds: 30
          volumeMounts:
          - mountPath: /tmp
            name: tmp-volume
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule
      volumes:
        - name: tmp-volume
          emptyDir: {}

kubectl apply -f recommended.yaml

2.kubectl get service -n kubernetes-dashboard
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes-dashboard NodePort 10.43.195.198 <none> 443:31001/TCP 3h19m
dashboard-metrics-scraper ClusterIP 10.43.32.76 <none> 8000/TCP 3h19m

在浏览器访问 https://192.168.49.102:31001
