二进制安装部署kubernetes

1. 下载安装包
   下载地址：https://github.com/kubernetes/kubernetes/tree/master/CHANGELOG
   cd /data/app
   wget https://dl.k8s.io/v1.22.1/kubernetes-server-linux-amd64.tar.gz
2. 解压
   tar -xf kubernetes-server-linux-amd64.tar.gz  --strip-components=3 -C /usr/local/bin kubernetes/server/bin/kube{let,ctl,-apiserver,-controller-manager,-scheduler,-proxy}
3. 配置系统环境变量
   vim /etc/profile
   export PATH=/usr/local/bin:${PATH}

   source /etc/profile
4. 创建配置目录
   mkdir -p /data/app/kubernetes/ssl
   mkdir -p /data/app/kubernetes/etc
   mkdir -p /data/app/kubernetes/logs

5. 创建 token.csv 文件

   cat > /data/app/kubernetes/etc/token.csv << EOF
   $(head -c 16 /dev/urandom | od -An -t x | tr -d ' '),kubeletbootstrap,10001,"system:kubelet-bootstrap"
   EOF



6. 创建 csr 请求文件

   cat > kube-apiserver-csr.json  << EOF
   {
    "CN": "kubernetes",
    "hosts": [
    "127.0.0.1",
    "172.31.170.15",
    "172.31.170.16",
    "172.31.170.17",
    "172.31.170.200",
    "172.31.24.100",
    "172.31.24.101",
    "172.31.24.102",
    "10.255.0.1",
    "kubernetes",
    "kubernetes.default",
    "kubernetes.default.svc",
    "kubernetes.default.svc.cluster",
    "kubernetes.default.svc.cluster.local"
    ],
    "key": {
    "algo": "rsa",
    "size": 2048
    },
    "names": [
    {
    "C": "CN",
    "ST": "BJ",
    "L": "BJ",
    "O": "k8s",
    "OU": "system"
    }
    ]
   }
   EOF

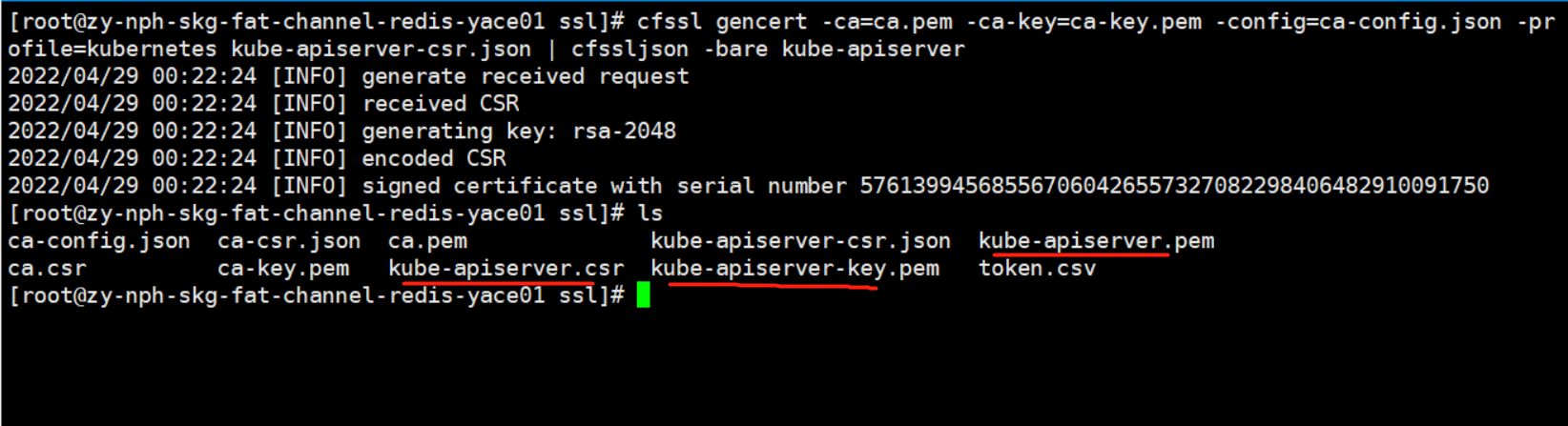

7. 生成证书
   cp /data/app/etcd/ssl/ca* /data/app/kubernetes/ssl/

   cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-apiserver-csr.json | cfssljson -bare kube-apiserver



8. 创建 api-server 的配置文件


   cat > /data/app/kubernetes/etc/kube-apiserver.conf << EOF
   KUBE_APISERVER_OPTS="--enable-admissionplugins=NamespaceLifecycle,NodeRestriction,LimitRanger,ServiceAccount,DefaultStorageClass,ResourceQuota \\
   --anonymous-auth=false \\
   --bind-address=172.31.170.15 \\
   --secure-port=6443 \\
   --advertise-address=172.31.170.15 \\
   --insecure-port=0 \\
   --authorization-mode=Node,RBAC \\
   --runtime-config=api/all=true \\
   --enable-bootstrap-token-auth \\
   --service-cluster-ip-range=10.255.0.0/16 \\
   --token-auth-file=/data/app/kubernetes/etc/token.csv \\
   --service-node-port-range=1-65535 \\
   --tls-cert-file=/data/app/kubernetes/ssl/kube-apiserver.pem \\
   --tls-private-key-file=/data/app/kubernetes/ssl/kube-apiserver-key.pem \\
   --client-ca-file=/data/app/kubernetes/ssl/ca.pem \\
   --kubelet-client-certificate=/data/app/kubernetes/ssl/kube-apiserver.pem \\
   --kubelet-client-key=/data/app/kubernetes/ssl/kube-apiserver-key.pem \\
   --service-account-key-file=/data/app/kubernetes/ssl/ca-key.pem \\
   --service-account-signing-key-file=/data/app/kubernetes/ssl/ca-key.pem \\
   --service-account-issuer=https://kubernetes.default.svc.cluster.local \\
   --etcd-cafile=/data/app/etcd/ssl/ca.pem \\
   --etcd-certfile=/data/app/etcd/ssl/etcd.pem \\
   --etcd-keyfile=/data/app/etcd/ssl/etcd-key.pem \\
   --etcdservers=https://172.31.170.15:2379,https://172.31.170.16:2379,https://172.31.170.17:2379 \\
   --enable-swagger-ui=true \\
   --allow-privileged=true \\
   --apiserver-count=3 \\
   --audit-log-maxage=30 \\
   --audit-log-maxbackup=3 \\
   --audit-log-maxsize=100 \\
   --audit-log-path=/data/app/kubernetes/logs/kube-apiserver-audit.log \\
   --event-ttl=1h \\
   --alsologtostderr=true \\
   --logtostderr=false \\
   --log-dir=/data/app/kubernetes/logs/kubernetes \\
   --v=4"
   EOF

   注解：
   --logtostderr：启用日志
   --v：日志等级
   --log-dir：日志目录
   --etcd-servers：etcd 集群地址
   --bind-address：监听地址
   --secure-port：https 安全端口
   --advertise-address：集群通告地址
   --allow-privileged：启用授权
   --service-cluster-ip-range：Service 虚拟 IP 地址段
   --enable-admission-plugins：准入控制模块
   --authorization-mode：认证授权，启用 RBAC 授权和节点自管理
   --enable-bootstrap-token-auth：启用 TLS bootstrap 机制
   --token-auth-file：bootstrap token 文件
   --service-node-port-range：Service nodeport 类型默认分配端口范围
   --kubelet-client-xxx：apiserver 访问 kubelet 客户端证书
   --tls-xxx-file：apiserver https 证书
   --etcd-xxxfile：连接 Etcd 集群证书
   -audit-log-xxx：审计日志

9. 创建api-serve服务启动文件


   cat > /usr/lib/systemd/system/kube-apiserver.service << EOF
   [Unit]
   Description=Kubernetes API Server
   Documentation=https://github.com/kubernetes/kubernetes
   After=etcd.service
   Wants=etcd.service
   [Service]
   EnvironmentFile=-/data/app/kubernetes/etc/kube-apiserver.conf
   ExecStart=/usr/local/bin/kube-apiserver \$KUBE_APISERVER_OPTS
   Restart=on-failure
   RestartSec=5
   Type=notify
   LimitNOFILE=65536
   [Install]
   WantedBy=multi-user.target
   EOF

10. 启动api-serve服务


    systemctl daemon-reload
    systemctl enable kube-apiserver
    systemctl start kube-apiserver
    systemctl status kube-apiserver

11. 验证api-serve接口
    curl --insecure https://192.168.40.180:6443
