Xhorse Key Tool Max + Obdstar X300 Pro4 Unlock & Add Lexus 570 2012 Key

How to unlock & add smart key for a Lexus 570 2012? This is using Xhorse VVDI Key Tool Max and Obdstar X300 Pro4 to do it.

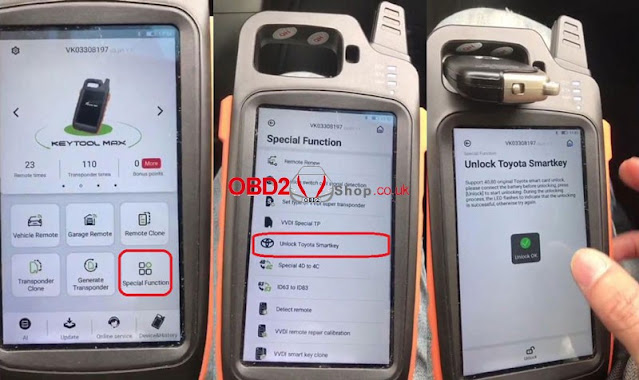

• VVDI Key Tool Max Unlock Lexus 570 Key

Put the new Lexus key into the VVDI Key Tool Max coil slot, press

Special function >> Unlock Toyota smart key >> Unlock

Unlock OK.



• Obdstar X300 Pro4 Program Lexus Key 570 Key

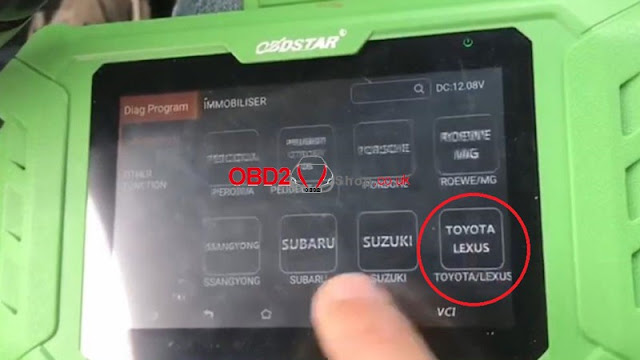

Connect X300 Pro4 with car OBD, press

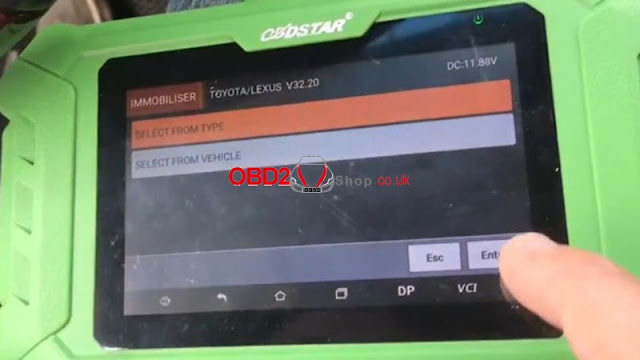

Diag program >> Toyota Lexus >> Toyota/ Lexus V32.20 >> Select from type >> Proximity >> Type 1 >> Program smart key



Note: each procedure has to complete within the specified time.



Put a working key close to ignition switch, and turn it ON till the dashboard is lit on.

You’ll hear buzzer beeps once.

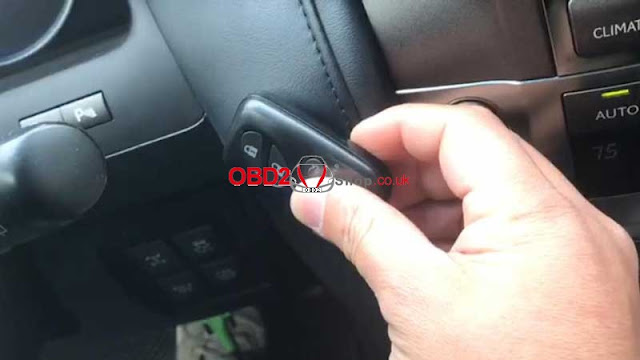

Use a new smart key to contact START button.

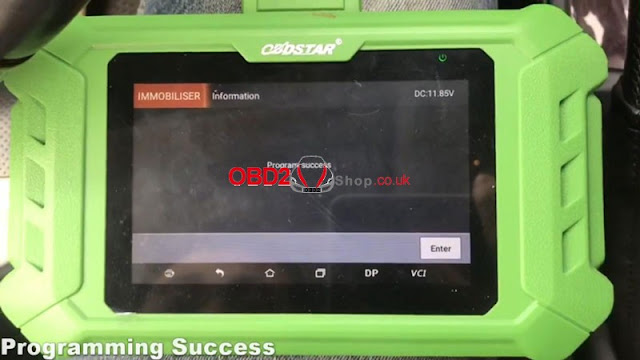

Program success.

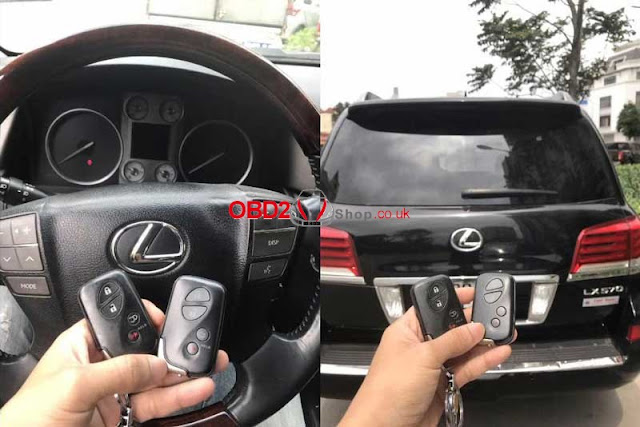

Test the keys, both can work well.

Key programming has done!



Use VVDI Key Tool Max working with Obdstar Key Master 5 to unlock & program a new key for 2012 Lexus 570 successfully.
