How to use Obdstar X300 DP PLUS and 16+32 adapter add 2020 Nissan Sylphy Proximity Keys

With the OBDSTAR Nissan/Renault 16+32 Adapter, Obdstar X300 DP Plus and X300 Pro4 are able to add Nissan Sentra/ Sylphy(B18) 2019 - proximity add keys(free Pincode), all keys lost, mandatory programming of HFMtO
Obdstar X300 DP Plus & 16+32 Cable  Adds 2020 Nissan Sylphy(B18) Key OK 01
In this instruction, OBD2Shop.co.uk will show you a guide on how to use Obdstar X300 DP Plus with Nissan 16+31 Cable to add Proximity for 2020 Nissan Sylphy(B18)
Process

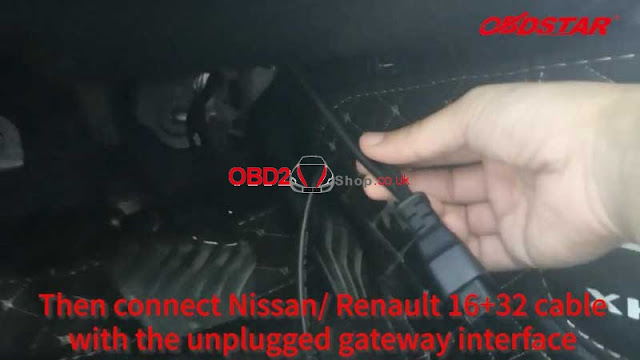

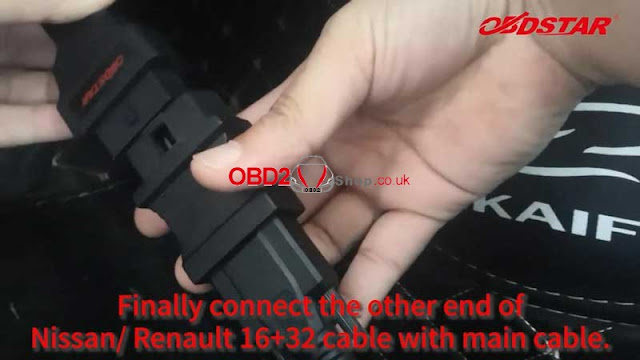

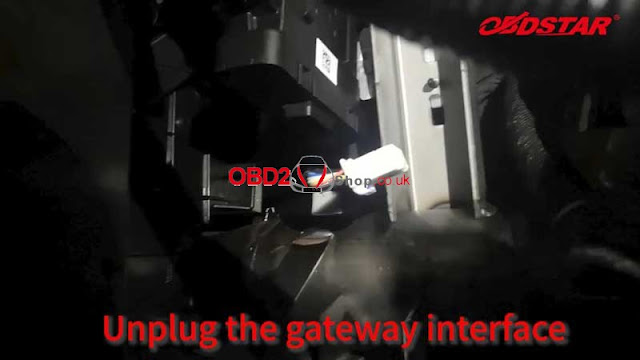

Connect Nissan 16+32 ByPass Cable, main cable with unplugged gateway interface, press

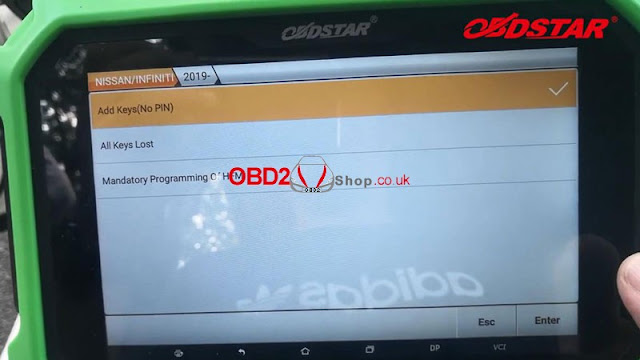

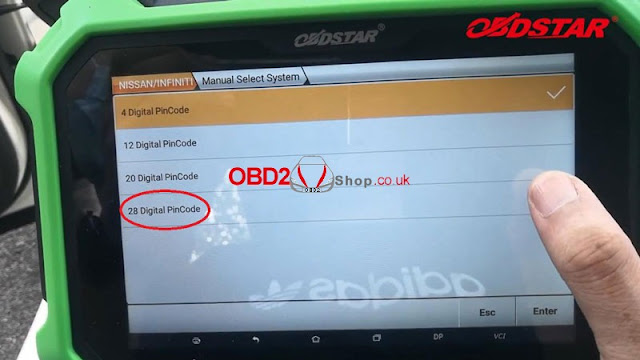

IMMO >> Nissan >> Nissan/Infiniti V32.19 >> Manual select system >> 28 digital pincode >> Sylphy(B18) >> Proximity >> 2019- >> Add keys(no pin)



Obdstar X300 DP Plus & 16+32 Cable  Adds 2020 Nissan Sylphy(B18) Key OK 02

Obdstar X300 DP Plus & 16+32 Cable  Adds 2020 Nissan Sylphy(B18) Key OK 03

Obdstar X300 DP Plus & 16+32 Cable  Adds 2020 Nissan Sylphy(B18) Key OK 04
Obdstar X300 DP Plus & 16+32 Cable  Adds 2020 Nissan Sylphy(B18) Key OK 05
Obdstar X300 DP Plus & 16+32 Cable  Adds 2020 Nissan Sylphy(B18) Key OK 06

Please ensure the Internet connection is normal.

Please ensure the connection is correct.



Note:

1. Executing this function will clear all the keys of the vehicle. The deleted keys must be rematched before they can be used normally;

2. Only 2 new keys can be matched each time. If you need to match more than 3 keys, please divide them into 2 operation;

3. There must be at least one key that can start the vehicle normally.



Warning:

1. To ensure that password is successfully read, please turn on the ignition switch;

2. The device must not be disconnected during the password reading process, otherwise the module will be damaged;

3. Please check the vehicle voltage, line connection and other conditions to prevent the device from connecting abnormally in the middle.



Writing data, it’ll take about 5 minutes, please wait...

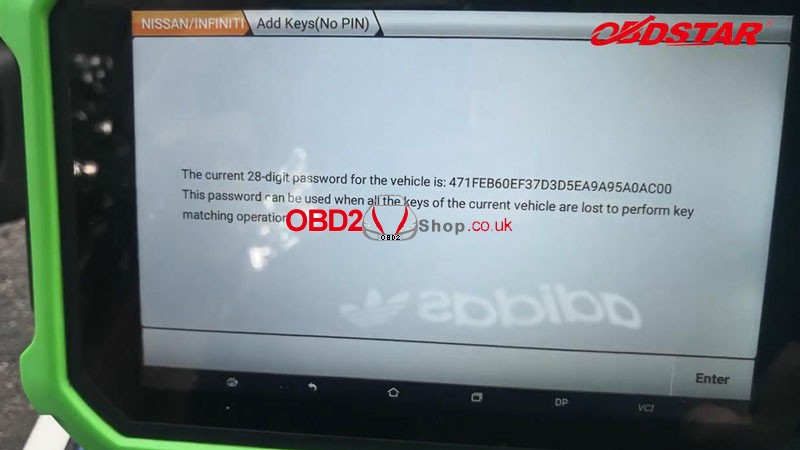

Password was read out, please record it.

It can be used when all keys lost.

Obdstar X300 DP Plus & 16+32 Cable  Adds 2020 Nissan Sylphy(B18) Key OK 06



Turn on the double flash, turn off the ignition switch.

Switch ignition on.

1. Long press the start button to turn off the ignition switch;

2. Turn on the hazard warning lights(double flashing lights);

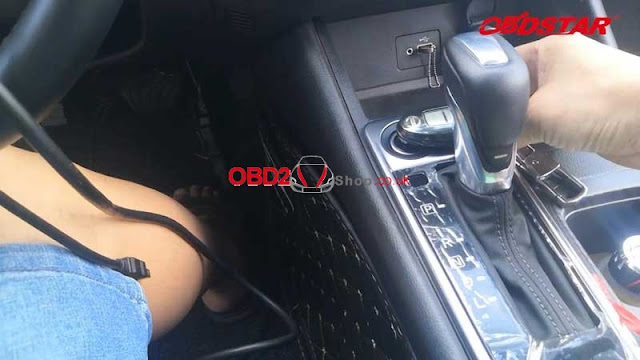

3. The gear position is in P gear or neutral gear;

4. The steering column lock is in the unlocked state.



Start to read the key ID:

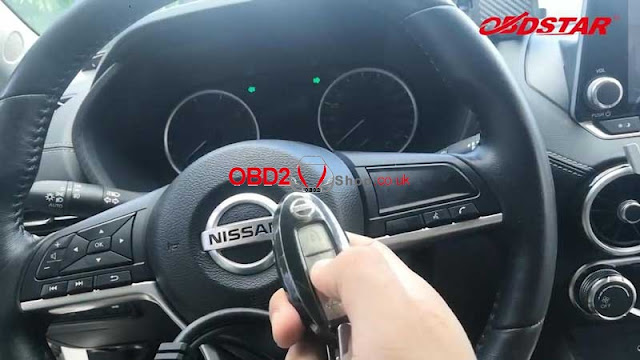

Place the 1st smart key to be matched(with the mark upward) flat above the ignition switch, the key end with the mark is directly above the ignition switch, and other smart keys are far away from the ignition switch.

Special note:

1. Do not move the key on the ignition switch;

2. Do not press any button of the smart key;

3. Do not insert or remove the mechanical key in the smart key.

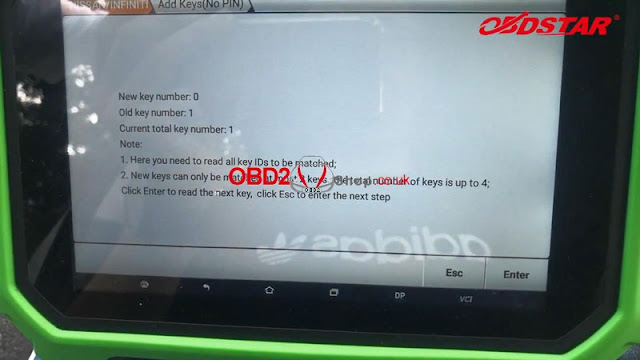

New key number:0

Old key number:1

Current total key number:1

Note:

1. Here you need to read all key IDs to be matched;

2. New keys can only be matched at most 2 keys, the total number of keys is up to

Obdstar X300 DP Plus & 16+32 Cable  Adds 2020 Nissan Sylphy(B18) Key OK 07

Obdstar X300 DP Plus & 16+32 Cable  Adds 2020 Nissan Sylphy(B18) Key OK 08

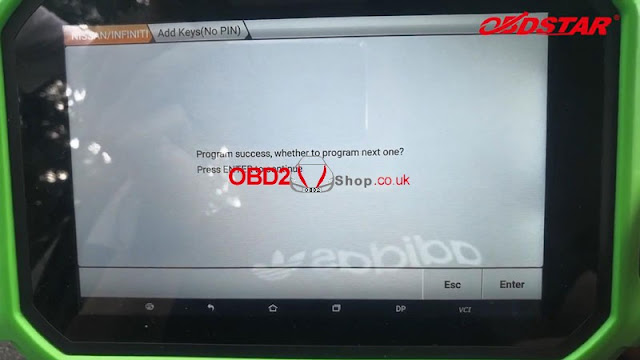

Program success.

Press “Enter” to program next key, otherwise, press “Esc”.

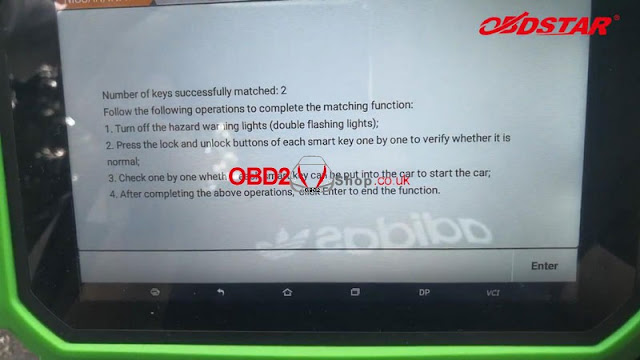

Turn off the hazard warning lights to test keys.

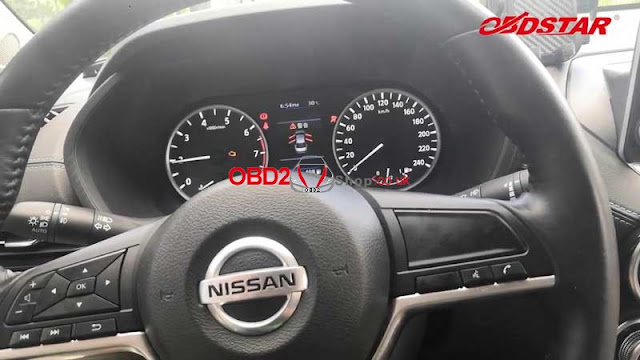

The remote work fine, and all can start the engine.

Press “Enter”.

Obdstar X300 DP Plus & 16+32 Cable  Adds 2020 Nissan Sylphy(B18) Key OK 09
Obdstar X300 DP Plus & 16+32 Cable  Adds 2020 Nissan Sylphy(B18) Key OK 10

Obdstar X300 DP Plus & 16+32 Cable  Adds 2020 Nissan Sylphy(B18) Key OK 11
Obdstar X300 DP Plus & 16+32 Cable  Adds 2020 Nissan Sylphy(B18) Key OK 12

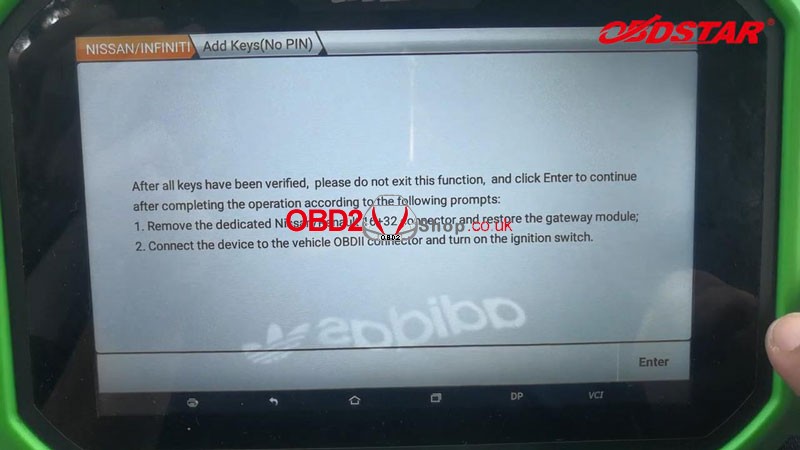

Note:

1. Remember to remove the 16+32 connector and restore the gateway module;

2. Connect the X300 DP Plus to OBDII port and turn on ignition switch.

Done!
Obdstar X300 DP Plus & 16+32 Cable  Adds 2020 Nissan Sylphy(B18) Key OK 13



This is using Obdstar X300 DP Plus to program new keys for 2020 Nissan Sylphy(B18) successfully.
