Servlet

尽管目前没有人会去写Servlet的代码，但明白他的原理依然很有帮助。

抽象角度

Servlet是JavaEE的规范，用来做服务器的表现层。服务器端分为Servlet容器和Servlet组件。容器就是提供运行环境的，比如Tomcat，Jetty，提供运行服务的环境，组件就是我们自己希望实现的业务。
这样设计的好处是程序员只需要考虑自己的业务，其他方面比如实现一个完善的Http服务器要考虑非常多的情况，比如识别正确和错误的Http请求/头，复用线程等，这些问题不需要程序员对每一个项目都实现一遍，因此JavaEE规定了Servlet容器来实现这些功能。另一个好处就是在按照规范实现好业务之后容器是可以随便更换的，因为业务代码遵循了javaEE的规范，Tomcat，jetty也遵循了JavaEE关于容器的规范。

大致的流程就是客户端与容器建立连接，发送HttpRequest到容器，容器接受请求进行处理，把http报文转化成HttpRequest对象，根据配置文件调用对应的Servlet实现需求（主要是Servlet的service方法），产生HttpResponse，返回给客户端。

代码角度

对于Servlet组件，JavaEE规范定义了Servlet接口，你实现的业务都是要基于Servlet接口的

package javax.servlet;

import java.io.IOException;

public interface Servlet {
    void init(ServletConfig var1) throws ServletException;

    ServletConfig getServletConfig();

    void service(ServletRequest var1, ServletResponse var2) throws ServletException, IOException;

    String getServletInfo();

    void destroy();
}

public abstract class GenericServlet implements Servlet, ServletConfig, Serializable {
    private static final String LSTRING_FILE = "javax.servlet.LocalStrings";
    private static ResourceBundle lStrings = ResourceBundle.getBundle("javax.servlet.LocalStrings");
    private transient ServletConfig config;

    public GenericServlet() {
    }

    public void destroy() {
    }

    public String getInitParameter(String name) {
        ServletConfig sc = this.getServletConfig();
        if (sc == null) {
            throw new IllegalStateException(lStrings.getString("err.servlet_config_not_initialized"));
        } else {
            return sc.getInitParameter(name);
        }
    }

    public Enumeration<String> getInitParameterNames() {
        ServletConfig sc = this.getServletConfig();
        if (sc == null) {
            throw new IllegalStateException(lStrings.getString("err.servlet_config_not_initialized"));
        } else {
            return sc.getInitParameterNames();
        }
    }

    public ServletConfig getServletConfig() {
        return this.config;
    }

    public ServletContext getServletContext() {
        ServletConfig sc = this.getServletConfig();
        if (sc == null) {
            throw new IllegalStateException(lStrings.getString("err.servlet_config_not_initialized"));
        } else {
            return sc.getServletContext();
        }
    }

    public String getServletInfo() {
        return "";
    }

    public void init(ServletConfig config) throws ServletException {
        this.config = config;
        this.init();
    }

    public void init() throws ServletException {
    }

    public void log(String msg) {
        this.getServletContext().log(this.getServletName() + ": " + msg);
    }

    public void log(String message, Throwable t) {
        this.getServletContext().log(this.getServletName() + ": " + message, t);
    }

    public abstract void service(ServletRequest var1, ServletResponse var2) throws ServletException, IOException;

    public String getServletName() {
        ServletConfig sc = this.getServletConfig();
        if (sc == null) {
            throw new IllegalStateException(lStrings.getString("err.servlet_config_not_initialized"));
        } else {
            return sc.getServletName();
        }
    }
}

public abstract class HttpServlet extends GenericServlet {
    private static final String METHOD_DELETE = "DELETE";
    private static final String METHOD_HEAD = "HEAD";
    private static final String METHOD_GET = "GET";
    private static final String METHOD_OPTIONS = "OPTIONS";
    private static final String METHOD_POST = "POST";
    private static final String METHOD_PUT = "PUT";
    private static final String METHOD_TRACE = "TRACE";
    private static final String HEADER_IFMODSINCE = "If-Modified-Since";
    private static final String HEADER_LASTMOD = "Last-Modified";
    private static final String LSTRING_FILE = "javax.servlet.http.LocalStrings";
    private static ResourceBundle lStrings = ResourceBundle.getBundle("javax.servlet.http.LocalStrings");

    public HttpServlet() {
    }

    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        String protocol = req.getProtocol();
        String msg = lStrings.getString("http.method_get_not_supported");
        if (protocol.endsWith("1.1")) {
            resp.sendError(405, msg);
        } else {
            resp.sendError(400, msg);
        }

    }

    protected long getLastModified(HttpServletRequest req) {
        return -1L;
    }

    protected void doHead(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        NoBodyResponse response = new NoBodyResponse(resp);
        this.doGet(req, response);
        response.setContentLength();
    }

    protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        String protocol = req.getProtocol();
        String msg = lStrings.getString("http.method_post_not_supported");
        if (protocol.endsWith("1.1")) {
            resp.sendError(405, msg);
        } else {
            resp.sendError(400, msg);
        }

    }

    protected void doPut(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        String protocol = req.getProtocol();
        String msg = lStrings.getString("http.method_put_not_supported");
        if (protocol.endsWith("1.1")) {
            resp.sendError(405, msg);
        } else {
            resp.sendError(400, msg);
        }

    }

    protected void doDelete(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        String protocol = req.getProtocol();
        String msg = lStrings.getString("http.method_delete_not_supported");
        if (protocol.endsWith("1.1")) {
            resp.sendError(405, msg);
        } else {
            resp.sendError(400, msg);
        }

    }

    private Method[] getAllDeclaredMethods(Class<? extends HttpServlet> c) {
        Class<?> clazz = c;

        Method[] allMethods;
        for(allMethods = null; !clazz.equals(HttpServlet.class); clazz = clazz.getSuperclass()) {
            Method[] thisMethods = clazz.getDeclaredMethods();
            if (allMethods != null && allMethods.length > 0) {
                Method[] subClassMethods = allMethods;
                allMethods = new Method[thisMethods.length + allMethods.length];
                System.arraycopy(thisMethods, 0, allMethods, 0, thisMethods.length);
                System.arraycopy(subClassMethods, 0, allMethods, thisMethods.length, subClassMethods.length);
            } else {
                allMethods = thisMethods;
            }
        }

        return allMethods != null ? allMethods : new Method[0];
    }

    protected void doOptions(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        Method[] methods = this.getAllDeclaredMethods(this.getClass());
        boolean ALLOW_GET = false;
        boolean ALLOW_HEAD = false;
        boolean ALLOW_POST = false;
        boolean ALLOW_PUT = false;
        boolean ALLOW_DELETE = false;
        boolean ALLOW_TRACE = true;
        boolean ALLOW_OPTIONS = true;

        for(int i = 0; i < methods.length; ++i) {
            String methodName = methods[i].getName();
            if (methodName.equals("doGet")) {
                ALLOW_GET = true;
                ALLOW_HEAD = true;
            } else if (methodName.equals("doPost")) {
                ALLOW_POST = true;
            } else if (methodName.equals("doPut")) {
                ALLOW_PUT = true;
            } else if (methodName.equals("doDelete")) {
                ALLOW_DELETE = true;
            }
        }

        StringBuilder allow = new StringBuilder();
        if (ALLOW_GET) {
            allow.append("GET");
        }

        if (ALLOW_HEAD) {
            if (allow.length() > 0) {
                allow.append(", ");
            }

            allow.append("HEAD");
        }

        if (ALLOW_POST) {
            if (allow.length() > 0) {
                allow.append(", ");
            }

            allow.append("POST");
        }

        if (ALLOW_PUT) {
            if (allow.length() > 0) {
                allow.append(", ");
            }

            allow.append("PUT");
        }

        if (ALLOW_DELETE) {
            if (allow.length() > 0) {
                allow.append(", ");
            }

            allow.append("DELETE");
        }

        if (ALLOW_TRACE) {
            if (allow.length() > 0) {
                allow.append(", ");
            }

            allow.append("TRACE");
        }

        if (ALLOW_OPTIONS) {
            if (allow.length() > 0) {
                allow.append(", ");
            }

            allow.append("OPTIONS");
        }

        resp.setHeader("Allow", allow.toString());
    }

    protected void doTrace(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        String CRLF = "\r\n";
        StringBuilder buffer = (new StringBuilder("TRACE ")).append(req.getRequestURI()).append(" ").append(req.getProtocol());
        Enumeration reqHeaderEnum = req.getHeaderNames();

        while(reqHeaderEnum.hasMoreElements()) {
            String headerName = (String)reqHeaderEnum.nextElement();
            buffer.append(CRLF).append(headerName).append(": ").append(req.getHeader(headerName));
        }

        buffer.append(CRLF);
        int responseLength = buffer.length();
        resp.setContentType("message/http");
        resp.setContentLength(responseLength);
        ServletOutputStream out = resp.getOutputStream();
        out.print(buffer.toString());
    }

    protected void service(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        String method = req.getMethod();
        long lastModified;
        if (method.equals("GET")) {
            lastModified = this.getLastModified(req);
            if (lastModified == -1L) {
                this.doGet(req, resp);
            } else {
                long ifModifiedSince = req.getDateHeader("If-Modified-Since");
                if (ifModifiedSince < lastModified) {
                    this.maybeSetLastModified(resp, lastModified);
                    this.doGet(req, resp);
                } else {
                    resp.setStatus(304);
                }
            }
        } else if (method.equals("HEAD")) {
            lastModified = this.getLastModified(req);
            this.maybeSetLastModified(resp, lastModified);
            this.doHead(req, resp);
        } else if (method.equals("POST")) {
            this.doPost(req, resp);
        } else if (method.equals("PUT")) {
            this.doPut(req, resp);
        } else if (method.equals("DELETE")) {
            this.doDelete(req, resp);
        } else if (method.equals("OPTIONS")) {
            this.doOptions(req, resp);
        } else if (method.equals("TRACE")) {
            this.doTrace(req, resp);
        } else {
            String errMsg = lStrings.getString("http.method_not_implemented");
            Object[] errArgs = new Object[]{method};
            errMsg = MessageFormat.format(errMsg, errArgs);
            resp.sendError(501, errMsg);
        }

    }

    private void maybeSetLastModified(HttpServletResponse resp, long lastModified) {
        if (!resp.containsHeader("Last-Modified")) {
            if (lastModified >= 0L) {
                resp.setDateHeader("Last-Modified", lastModified);
            }

        }
    }

    public void service(ServletRequest req, ServletResponse res) throws ServletException, IOException {
        if (req instanceof HttpServletRequest && res instanceof HttpServletResponse) {
            HttpServletRequest request = (HttpServletRequest)req;
            HttpServletResponse response = (HttpServletResponse)res;
            this.service(request, response);
        } else {
            throw new ServletException("non-HTTP request or response");
        }
    }
}

import java.io.*;
import javax.servlet.http.*;
import javax.servlet.annotation.*;

@WebServlet(name = "helloServlet", value = "/hello-servlet")
public class HelloServlet extends HttpServlet {
    private String message;

    public void init() {
        message = "Hello World!";
    }

    public void doGet(HttpServletRequest request, HttpServletResponse response) throws IOException {
        response.setContentType("text/html");

        // Hello
        PrintWriter out = response.getWriter();
        out.println("<html><body>");
        out.println("<h1>" + message + "</h1>");
        out.println("</body></html>");
    }

    public void destroy() {
    }
}

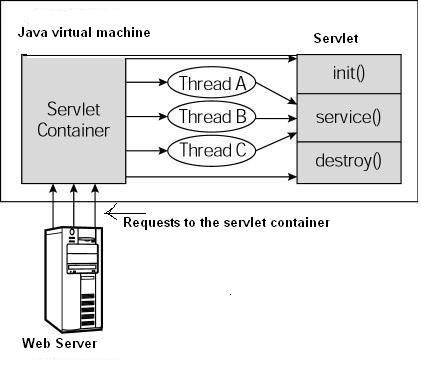

在Servlet容器中运行的Servlet具有如下特点：

• 无法在代码中直接通过new创建Servlet实例，必须由Servlet容器自动创建Servlet实例；
• Servlet容器只会给每个Servlet类创建唯一实例；
• Servlet容器会使用多线程执行doGet()或doPost()方法。
