WPF 加载框

加载框代码：

<UserControl x:Class="WpfApp1.LoadingForm"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:local="clr-namespace:WpfApp1"
             mc:Ignorable="d"
              Background="Transparent" Height="80" Width="125" BorderThickness="0">
    <Grid>
        <Border CornerRadius="6" Background="#D7D9DB" BorderThickness="1" BorderBrush="#f6f5ec">
        </Border>
        <TextBlock  HorizontalAlignment="Center" Foreground="#4DA4FF" FontSize="16" Canvas.Top="69" Canvas.Left="33" Height="23" VerticalAlignment="Bottom" Width="100" Margin="12,0,13,5"><Run Text="   "/><Run Text=" "/><Run Text="Loading"/></TextBlock>
        <Grid x:Name="LayoutRoot"
              HorizontalAlignment="Center" VerticalAlignment="Center" Margin="32,8,33,12">
            <Grid.RenderTransform>
                <ScaleTransform x:Name="SpinnerScale"
                                ScaleX="1.0" ScaleY="1.0" />
            </Grid.RenderTransform>
            <Canvas RenderTransformOrigin="0.5,0.5"
                    HorizontalAlignment="Center"
                    VerticalAlignment="Center"
                    Width="60" Height="60" Margin="0,-9,0,9" >
                <Ellipse Width="3" Height="14"
                         Canvas.Left="20"
                         Canvas.Top="15"
                         Stretch="Fill" Fill="#4DA4FF"
                         Opacity="1.0" RenderTransformOrigin="0.5,0.5">
                    <Ellipse.RenderTransform>
                        <TransformGroup>
                            <ScaleTransform/>
                            <SkewTransform/>
                            <RotateTransform Angle="-46.602"/>
                            <TranslateTransform/>
                        </TransformGroup>
                    </Ellipse.RenderTransform>
                </Ellipse>
                <Ellipse Width="3" Height="14"
                         Canvas.Left="17"
                         Canvas.Top="23" Stretch="Fill"
                         Fill="#4DA4FF" Opacity="1" RenderTransformOrigin="0.5,0.5">
                    <Ellipse.RenderTransform>
                        <TransformGroup>
                            <ScaleTransform/>
                            <SkewTransform/>
                            <RotateTransform Angle="90.301"/>
                            <TranslateTransform/>
                        </TransformGroup>
                    </Ellipse.RenderTransform>
                </Ellipse>
                <Ellipse Width="3" Height="14"
                         Canvas.Left="38"
                         Canvas.Top="32" Stretch="Fill"
                         Fill="#4DA4FF" Opacity="1" RenderTransformOrigin="0.5,0.5">
                    <Ellipse.RenderTransform>
                        <TransformGroup>
                            <ScaleTransform/>
                            <SkewTransform/>
                            <RotateTransform Angle="-47.324"/>
                            <TranslateTransform/>
                        </TransformGroup>
                    </Ellipse.RenderTransform>
                </Ellipse>
                <Ellipse Width="3" Height="14"
                         Canvas.Left="20"
                         Canvas.Top="32" Stretch="Fill"
                         Fill="#4DA4FF" Opacity="1" RenderTransformOrigin="0.5,0.5">
                    <Ellipse.RenderTransform>
                        <TransformGroup>
                            <ScaleTransform/>
                            <SkewTransform/>
                            <RotateTransform Angle="46.473"/>
                            <TranslateTransform/>
                        </TransformGroup>
                    </Ellipse.RenderTransform>
                </Ellipse>
                <Ellipse Width="3" Height="14"
                         Canvas.Left="29"
                         Canvas.Top="35" Stretch="Fill"
                         Fill="#4DA4FF" Opacity="1" RenderTransformOrigin="0.5,0.5">
                    <Ellipse.RenderTransform>
                        <TransformGroup>
                            <ScaleTransform/>
                            <SkewTransform/>
                            <RotateTransform Angle="-0.32"/>
                            <TranslateTransform/>
                        </TransformGroup>
                    </Ellipse.RenderTransform>
                </Ellipse>
                <Ellipse Width="3" Height="14"
                         Canvas.Left="40"
                         Canvas.Top="23" Stretch="Fill"
                         Fill="#4DA4FF" Opacity="1" RenderTransformOrigin="0.5,0.5">
                    <Ellipse.RenderTransform>
                        <TransformGroup>
                            <ScaleTransform/>
                            <SkewTransform/>
                            <RotateTransform Angle="89.639"/>
                            <TranslateTransform/>
                        </TransformGroup>
                    </Ellipse.RenderTransform>
                </Ellipse>
                <Ellipse Width="3" Height="14"
                         Canvas.Left="29"
                         Canvas.Top="12" Stretch="Fill"
                         Fill="#4DA4FF" Opacity="1"/>
                <Ellipse Width="3" Height="14"
                    Canvas.Left="38"
                    Canvas.Top="15" Stretch="Fill"
                    Fill="#4DA4FF" Opacity="1" RenderTransformOrigin="0.5,0.5">
                    <Ellipse.RenderTransform>
                        <TransformGroup>
                            <ScaleTransform/>
                            <SkewTransform/>
                            <RotateTransform Angle="-132.963"/>
                            <TranslateTransform/>
                        </TransformGroup>
                    </Ellipse.RenderTransform>
                </Ellipse>
                <Canvas.RenderTransform>
                    <RotateTransform x:Name="SpinnerRotate"
                                     Angle="0" />
                </Canvas.RenderTransform>
                <Canvas.Triggers>
                    <EventTrigger RoutedEvent="ContentControl.Loaded">
                        <BeginStoryboard>
                            <Storyboard>
                                <DoubleAnimation
                                    Storyboard.TargetName
                                        ="SpinnerRotate"
                                     Storyboard.TargetProperty
                                        ="(RotateTransform.Angle)"
                                     From="0" To="360"
                                     Duration="0:0:01"
                                     RepeatBehavior="Forever" />
                            </Storyboard>
                        </BeginStoryboard>
                    </EventTrigger>
                </Canvas.Triggers>
            </Canvas>
        </Grid>
    </Grid>
</UserControl>

 后台

namespace WpfApp1
{
    /// <summary>
    /// LoadingForm.xaml 的交互逻辑
    /// </summary>
    public partial class LoadingForm : UserControl
    {
        private readonly DispatcherTimer animationTimer;
        public LoadingForm()
        {
            InitializeComponent();
            animationTimer = new DispatcherTimer(DispatcherPriority.ContextIdle, Dispatcher);
            animationTimer.Interval = new TimeSpan(0, 0, 0, 0, 75); //指定时间间隔
        }
    }
}

使用示例：

前端代码

<Window x:Class="WpfApp1.PageWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:ribbon="clr-namespace:Microsoft.Windows.Controls.Ribbon;assembly=RibbonControlsLibrary"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:CustomSystemWindow.CustomWindow"
        xmlns:ss="clr-namespace:WpfApp1"
        mc:Ignorable="d" Title="PageWindow" WindowState="Maximized"   Height="802" Width="1279" Background="AliceBlue">
    <Grid>
        <Grid.ColumnDefinitions>
            <ColumnDefinition/>
            <ColumnDefinition Width="10"/>
            <ColumnDefinition/>
        </Grid.ColumnDefinitions>
        <TextBlock Background="Gray"  Grid.Column="0" Text="左侧测试"/>
        <GridSplitter Grid.Row="0" Grid.Column="1" Width="10" HorizontalAlignment="Center" VerticalAlignment="Stretch" Background="Gray"  />

        <Grid Grid.Column="2"  VerticalAlignment="Bottom"  >
            <Grid.RowDefinitions>
                <RowDefinition Height="10"  />
                <RowDefinition Height="200" />
            </Grid.RowDefinitions>

            <Button Height="100" Grid.Row="1" Click="Button_Click"  Width="100" Content="右下测试"/>
            <GridSplitter  Grid.Row="0"  Height="10"  HorizontalAlignment="Stretch" VerticalAlignment="Bottom" Background="Red"/>
        </Grid>
        <Grid Grid.ColumnSpan="3" HorizontalAlignment="Center" VerticalAlignment="Center" Width="125" Height="80" >
            <ss:LoadingForm x:Name="LoadingForm" Visibility="Hidden"/>
        </Grid>
    </Grid>
</Window>

后台：

namespace WpfApp1
{
    /// <summary>
    /// PageWindow.xaml 的交互逻辑
    /// </summary>
    public partial class PageWindow : Window
    {
        LoadingForm loadingForm;
        public PageWindow()
        {
            InitializeComponent();
        }

        private void Button_Click(object sender, RoutedEventArgs e)
        {

            var task = Task.Factory.StartNew(() =>
            {
                Dispatcher.Invoke(DispatcherPriority.Normal, new Action(() =>
                {
                    LoadingForm.Visibility = Visibility.Visible;
                }));
                // 相关业务逻辑

            }, TaskCreationOptions.LongRunning);
            task.ContinueWith((t) => { test(); });
        }

        private void test()
        {
            Thread.Sleep(2000);
            Action action = () =>
            {
                MessageBox.Show("sss");

                LoadingForm.Visibility = Visibility.Hidden;
            };

            this.Dispatcher.Invoke(action);
        }
    }
}

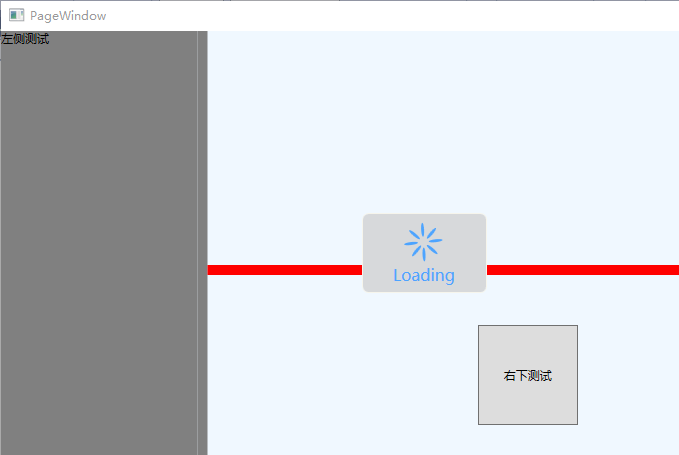

 结果：
