Spring Cloud入门系列(十八)- Spring Cloud Alibaba之服务注册与配置中心Nacos
新建模块 cloud-alibaba-provider-payment9001
(服务提供者)
pox.xml
添加 spring-cloud-starter-alibaba-nacos-discovery
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>cloud201230</artifactId>
<groupId>com.banana</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>cloud-alibaba-provider-payment9001</artifactId>
<dependencies>
<!-- SpringCloud alibaba nacos -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
</dependencies>
</project>
application.yml
server:
port: 9001
spring:
application:
name: nacos-payment-provider
cloud:
nacos:
discovery:
server-addr: localhost:8848 #配置nacos地址
management:
endpoints:
web:
exposure:
include: "*"
AlibabaProvider9001 主启动类
添加 @EnableDiscoveryClient 注解
package com.banana.springcloud;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
/**
* @author layman
* @date 2021/1/21
*/
@SpringBootApplication
@EnableDiscoveryClient
public class AlibabaProvider9001 {
public static void main(String[] args) {
SpringApplication.run(AlibabaProvider9001.class,args);
}
}
AlibabaProviderController .java
package com.banana.springcloud.controller;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;
/**
* @author layman
* @date 2021/1/21
*/
@RestController
public class AlibabaProviderController {
@Value("${server.port}")
private String serverPort;
@GetMapping(value = "/payment/nacos/{id}")
public String getPayment(@PathVariable("id") Integer id) {
return "nacos registry, serverPort: " + serverPort + " id:" + id;
}
}

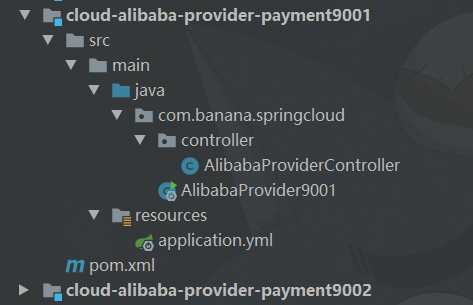

将以上的 cloud-alibaba-provider-payment9001
复制一份,端口设置为 9002

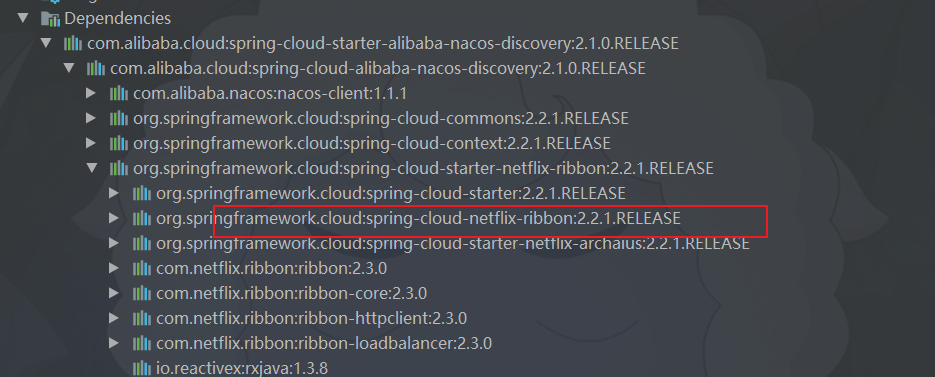

nacos实现了负载均衡,因为它 本身集成了ribbon

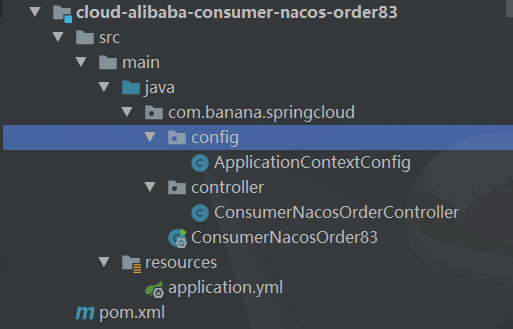

新建模块 cloud-alibaba-consumer-nacos-order83
(服务消费者)
pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<artifactId>cloud201230</artifactId>
<groupId>com.banana</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>cloud-alibaba-consumer-nacos-order83</artifactId>
<dependencies>
<!-- SpringCloud alibaba nacos -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
<!--引入自定义的api通用包-->
<dependency>
<groupId>com.banana</groupId>
<artifactId>cloud-api-commons</artifactId>
<version>1.0-SNAPSHOT</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
</dependencies>
</project>
application.yml
server:
port: 83
spring:
application:
name: nacos-order-consumer
cloud:
nacos:
discovery:
server-addr: localhost:8848
# 消费者将要去访问微服务名称(注册成功进nacos的微服务提供者)
service-url:
nacos-user-service: http://nacos-payment-provider
ConsumerNacosOrder83
package com.banana.springcloud;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
/**
* Nacos消费端
* @author layman
* @date 2021/1/22
*/
@SpringBootApplication
@EnableDiscoveryClient
public class ConsumerNacosOrder83 {
public static void main(String[] args) {
SpringApplication.run(ConsumerNacosOrder83.class,args);
}
}
ConsumerNacosOrderController
package com.banana.springcloud.controller;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;
import javax.annotation.Resource;
/**
* @author layman
* @date 2021/1/22
*/
@RestController
public class ConsumerNacosOrderController {
@Resource
private RestTemplate restTemplate;
@Value("${service-url.nacos-user-service}")
private String serverURL;
@GetMapping("/consumer/payment/nacos/{id}")
public String paymentInfo(@PathVariable("id") Long id) {
return restTemplate.getForObject(serverURL + "/payment/nacos/" + id, String.class);
}
}
ConsumerNacosOrderController
package com.banana.springcloud.controller;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;
import javax.annotation.Resource;
/**
* @author layman
* @date 2021/1/22
*/
@RestController
public class ConsumerNacosOrderController {
@Resource
private RestTemplate restTemplate;
@Value("${service-url.nacos-user-service}")
private String serverURL;
@GetMapping("/consumer/payment/nacos/{id}")
public String paymentInfo(@PathVariable("id") Long id) {
return restTemplate.getForObject(serverURL + "/payment/nacos/" + id, String.class);
}
}
ApplicationContextConfig
package com.banana.springcloud.config;
import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;
/**
* @author layman
* @date 2021/1/22
*/
@Configuration
public class ApplicationContextConfig {
@Bean
@LoadBalanced
public RestTemplate getRestTemplate() {
return new RestTemplate();
}
}
