Three.js实战项目 商场漫游
概述
如有不明白的可以加QQ:2354528292;wx: aichitudousien
更多教学视频请访问:https://space.bilibili.com/236087412
源码获取: https://item.taobao.com/item.htm?spm=a21dvs.23580594.0.0.3c3a645e0gQUWL&ft=t&id=714963839769
开发了一个Three.js 商场漫游demo,先看视频效果
three.js 室内漫游项目demo
创建场景
创建渲染器,灯光,相机,控制器和以前的智慧城市项目一样,从那边照抄过来即可,调用方式如下
app = new ZThree("screen");
app.initThree();
// app.initHelper();
app.initOrbitControls();
light = app.initLight();
// stats = app.initStatus();
selectObj = app.initRaycaster();
window.app = app;
camera = app.camera;
// bloomComposer = app.bloomComposer();
camera.position.set(...this.cameraPosition);
scene = app.scene;
renderer = app.renderer;
renderer.logarithmicDepthBuffer = true;
renderer.autoClear = false;
controls = app.controls;
controls.target.set(...this.target);
controls.maxDistance = 2000;
controls.maxPolarAngle = Math.PI / 2.2;
clock = new THREE.Clock();
创建天空
export function loaderSky(app, water) {
return new Promise(resolve => {
let sky = new Sky();
sky.scale.setScalar(10000);
app.scene.add(sky);
let skyUniforms = sky.material.uniforms;
skyUniforms['turbidity'].value = 1;
skyUniforms['rayleigh'].value = 3;
skyUniforms['mieCoefficient'].value = 0.005;
skyUniforms['mieDirectionalG'].value = 0.8;
let parameters = {
inclination: 0.49,
azimuth: 0.205
};
let pmremGenerator = new THREE.PMREMGenerator(app.renderer);
let sun = new THREE.Vector3();
let theta = Math.PI * (parameters.inclination - 0.5);
let phi = 2 * Math.PI * (parameters.azimuth - 0.5);
sun.x = Math.cos(phi);
sun.y = Math.sin(phi) * Math.sin(theta);
sun.z = Math.sin(phi) * Math.cos(theta);
sky.material.uniforms['sunPosition'].value.copy(sun);
water.material.uniforms['sunDirection'].value.copy(sun).normalize();
app.scene.environment = pmremGenerator.fromScene(sky).texture;
resolve(sky);
})
}
创建水面
创建一个平面然后加上调用水面的材质就好,很简单
export function loaderWater(app) {
return new Promise(resolve => {
let waterGeometry = new THREE.PlaneGeometry(10000, 10000);
let water = new Water(
waterGeometry, {
textureWidth: 512,
textureHeight: 512,
waterNormals: new THREE.TextureLoader().load('texture/waternormals.jpg', function (texture) {
texture.wrapS = texture.wrapT = THREE.RepeatWrapping;
}),
alpha: 1.0,
sunDirection: new THREE.Vector3(),
sunColor: 0xffffff,
waterColor: 0x001e0f,
distortionScale: 3.7,
fog: app.scene.fog !== undefined
}
);
water.rotation.x = -Math.PI / 2;
app.scene.add(water);
resolve(water);
})
}

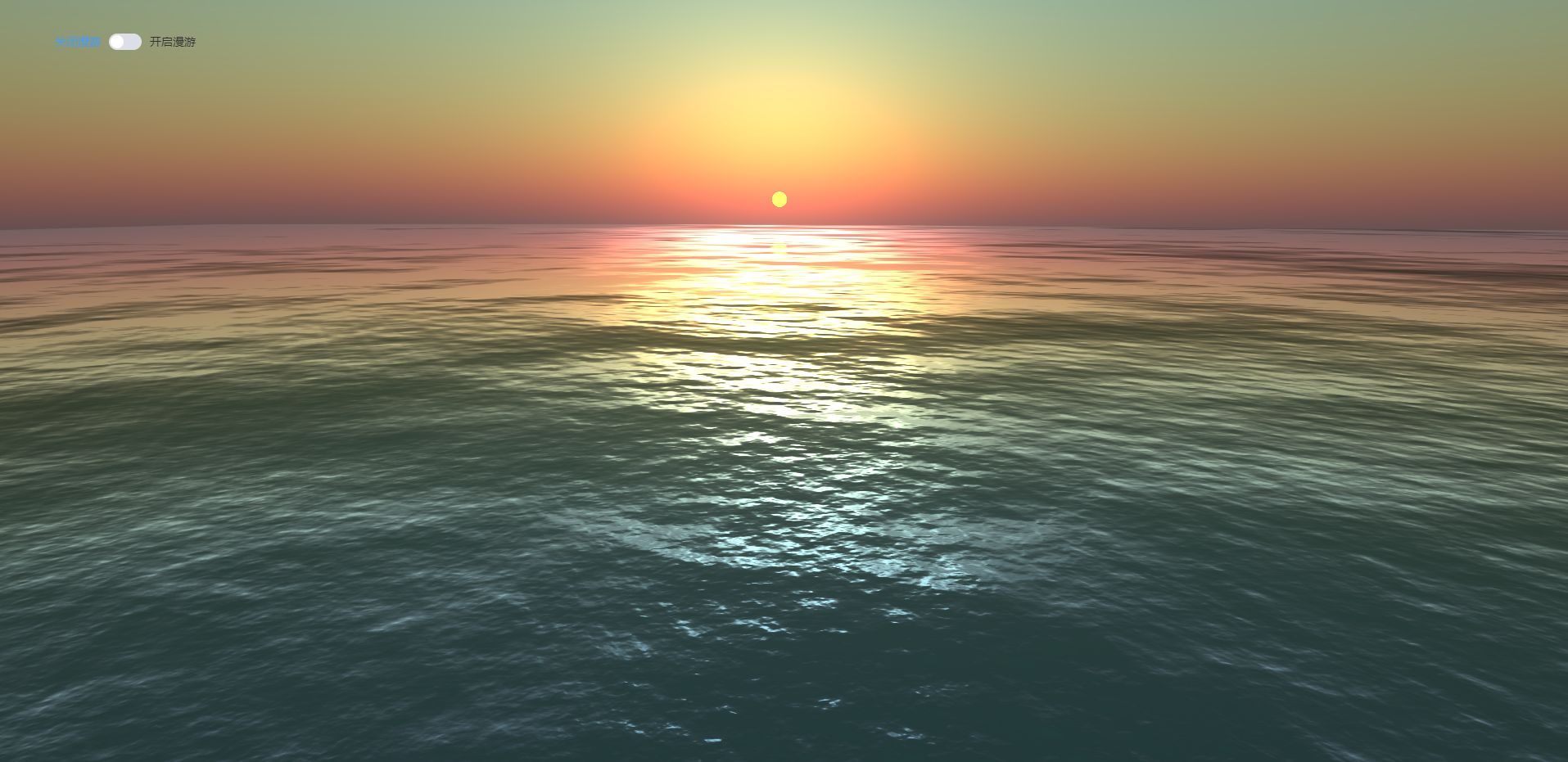

此时我们看到的效果是

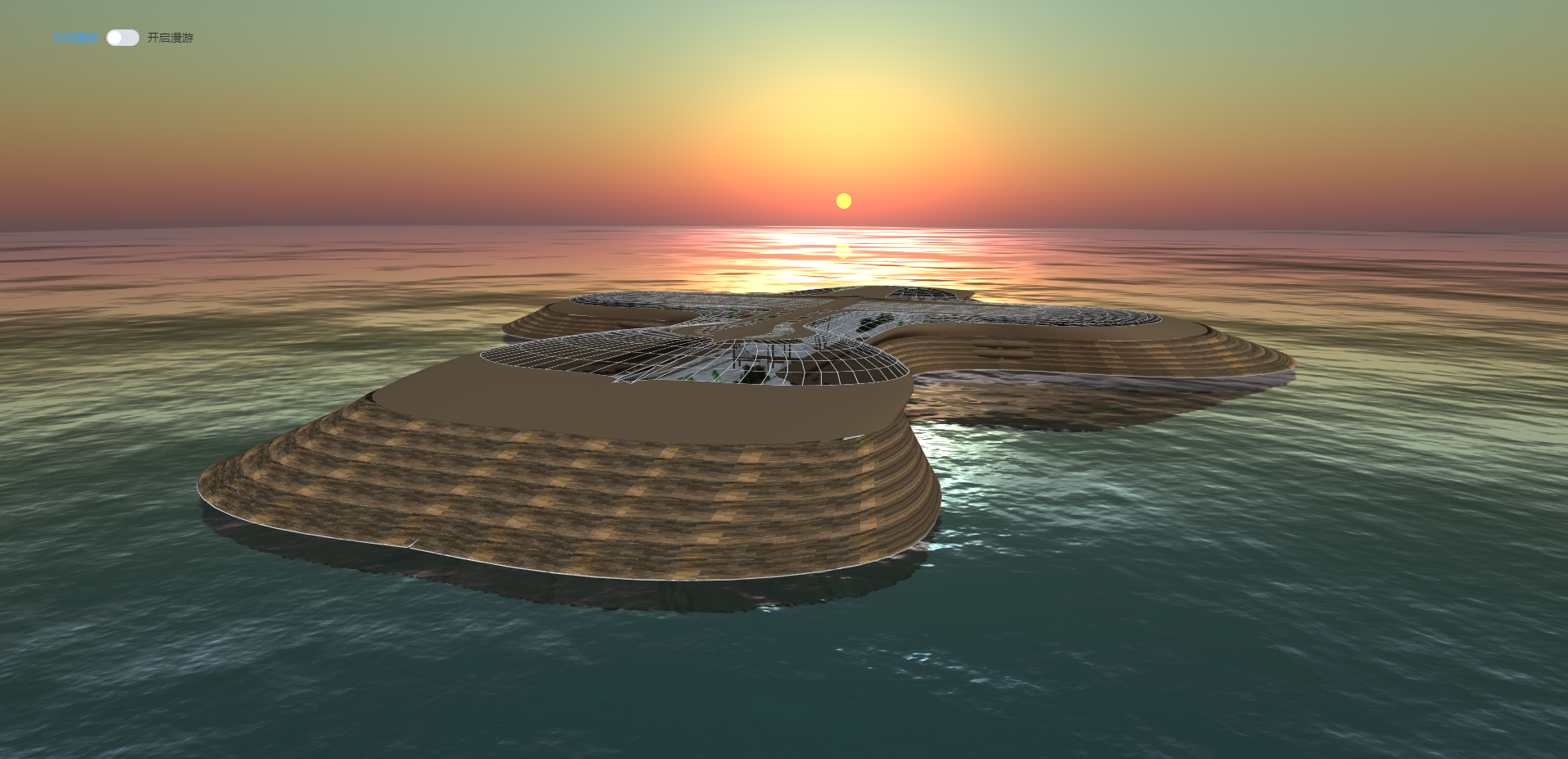

创建模型
export async function loaderShop(app) {
return new Promise(async resolve => {
let model = await app.loaderGltfDracoModel('model/', 'Fantasy_Mall');
let allModel = [];
model.traverse(obj => {
if (obj.isMesh) {
let s = 0.05;
obj.scale.set(s, s, s);
obj.material.side = THREE.DoubleSide;
obj.material.needsUpdate = true;
allModel.push(obj);
}
})
model.position.y = 12;
app.scene.add(model);
resolve({
model,
allModel
});
})
}
室内漫游

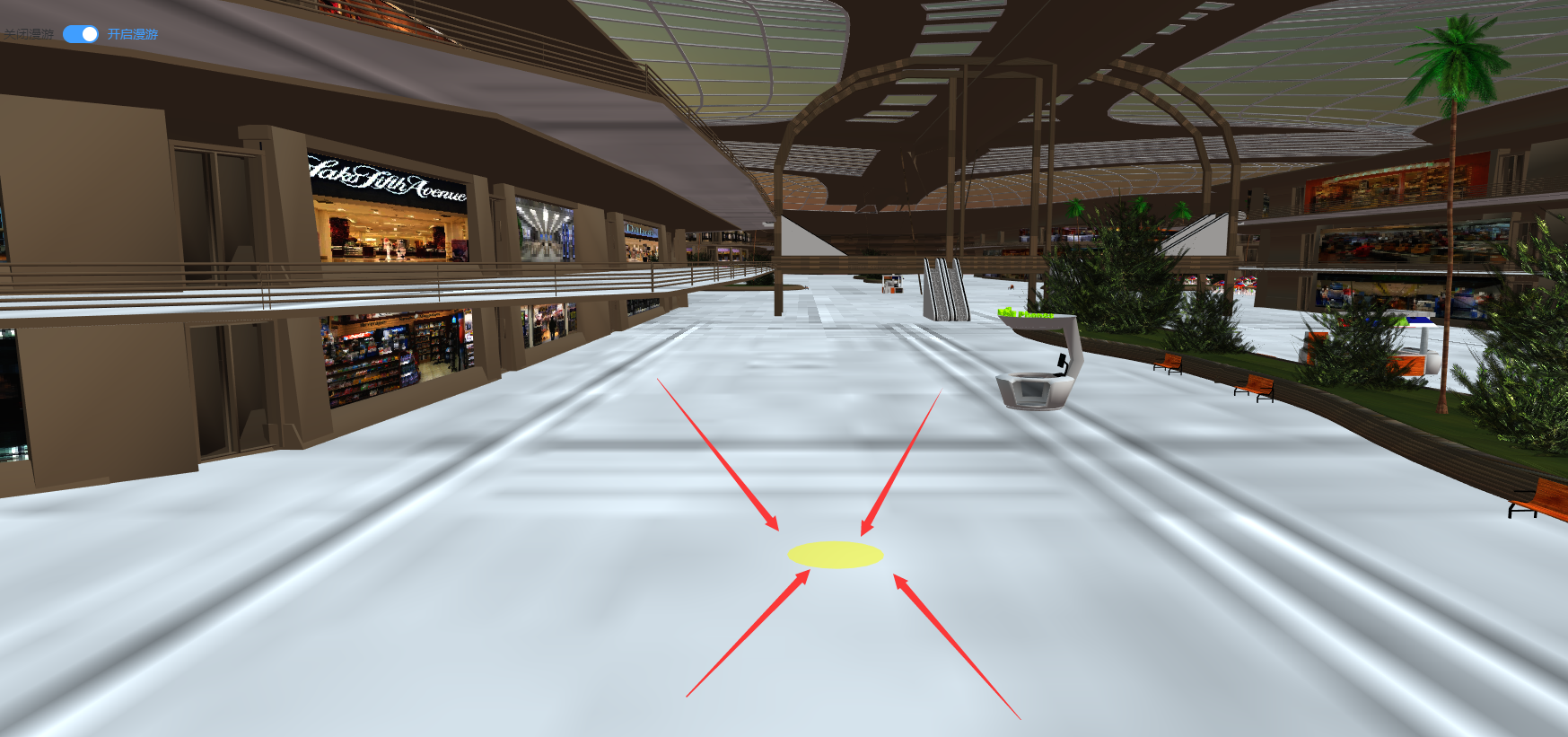

思路,首先我们先创建一个CircleGeometry,作用是显示要移动到的地点,我们在鼠标移动的时候更新这个点的定位即可
let circleMat = new THREE.MeshBasicMaterial({
color: 'yellow'
})
let circleGeo = new THREE.CircleGeometry(1.5, 20)
let circle = new THREE.Mesh(circleGeo, circleMat)
circle.rotation.x = -Math.PI / 2
circle.position.set(10000, 10000, 10000)
circle.material.transparent = true
circle.material.opacity = 0.5
circle.name = 'circle'
第二步我们创建一个box来绑定我们的相机
let targetGeo = new THREE.BoxGeometry(4, 17, 4)
let camTarget = new THREE.Mesh(targetGeo, targetMat)
camTarget.position.set(...orientation)
camTarget.name = 'camTarget'
camTarget.visible = false
第三步将控制器绑定到box上,我们移动box实际就是移动控制器
controls.target
.copy(camTarget.position)
.add(new THREE.Vector3(0, 5, 0));
第四步我们在鼠标移动的时候获取到当前的坐标,np就是我们获取到的坐标,此时在将坐标给绑定到circle上既可以更新circle的位置,这样我们就完成了鼠标移动的时候circle也跟随移动的效果
if (selectObj && names.indexOf(selectObj.object.name) > -1) {
let op = selectObj.point
let nx = op.x
let ny = op.y + 0.1
let nz = op.z
let np = new THREE.Vector3(nx, ny, nz)
circle.position.copy(np)
}
第五步我们在点击的时候更新我们的box的位置即可,这样我们差不多就完成了室内漫游的这个功能
,更新位置使用tween来做动画即可
movingTarget = app.modelMove({
fromPosition: [camTarget.position.x, camTarget.position.y, camTarget.position.z],
toPosition: [upPoint.x, upPoint.y, upPoint.z]
}, camTarget)
ok,此时我们就完成了这个漫游的功能!
