WPF应用程序（.NET Core）列表显示+分页+查询

一、列表显示+查询

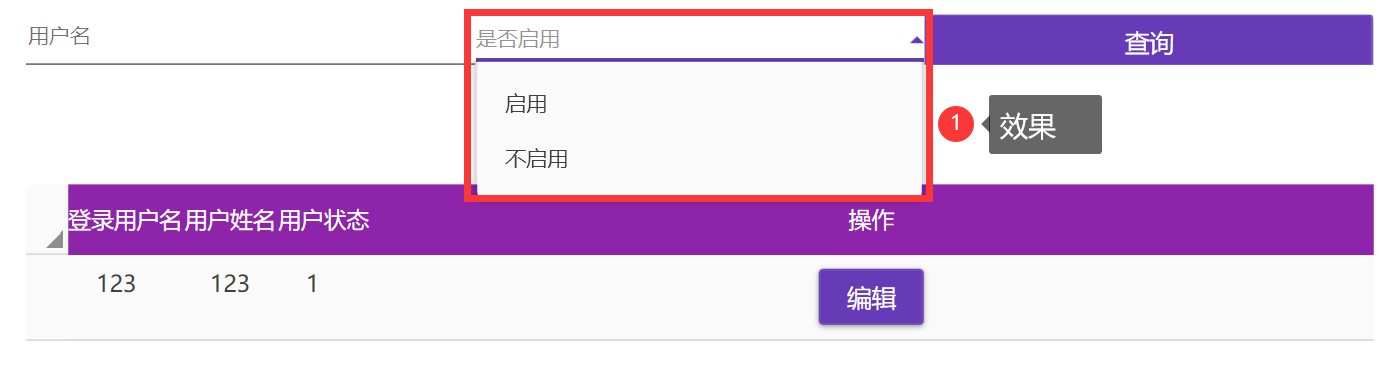

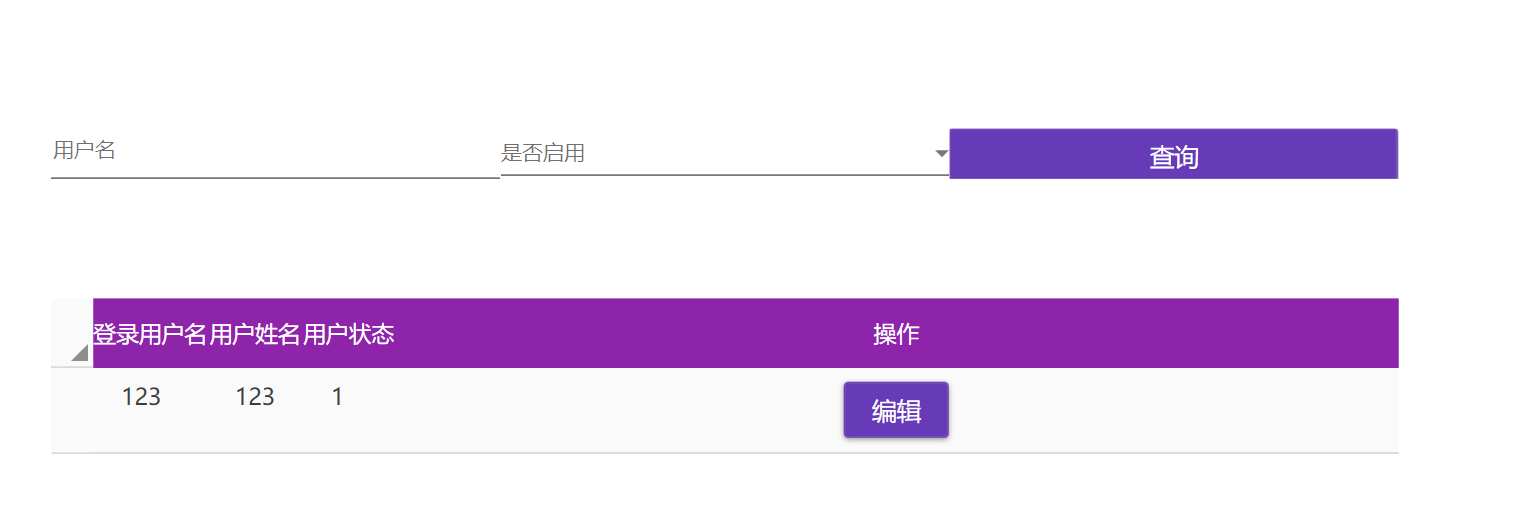

效果：

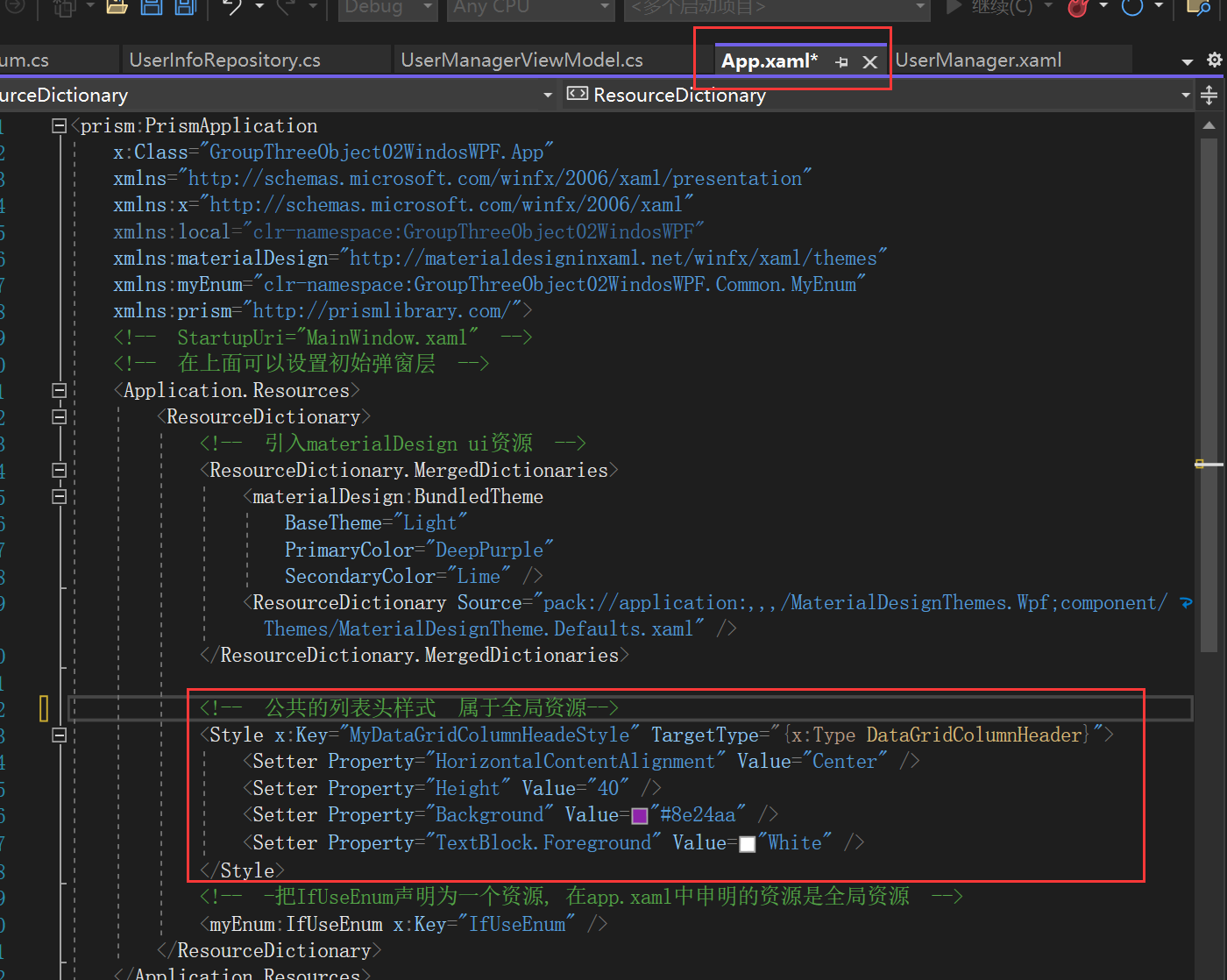

1、启动页(App.xaml)中设置一个公共的列表头样式

1  <!--  公共的列表头样式  属于全局资源-->
2             <Style x:Key="MyDataGridColumnHeadeStyle" TargetType="{x:Type DataGridColumnHeader}">
3                 <Setter Property="HorizontalContentAlignment" Value="Center" />
4                 <Setter Property="Height" Value="40" />
5                 <Setter Property="Background" Value="#8e24aa" />
6                 <Setter Property="TextBlock.Foreground" Value="White" />
7             </Style>

App.xaml

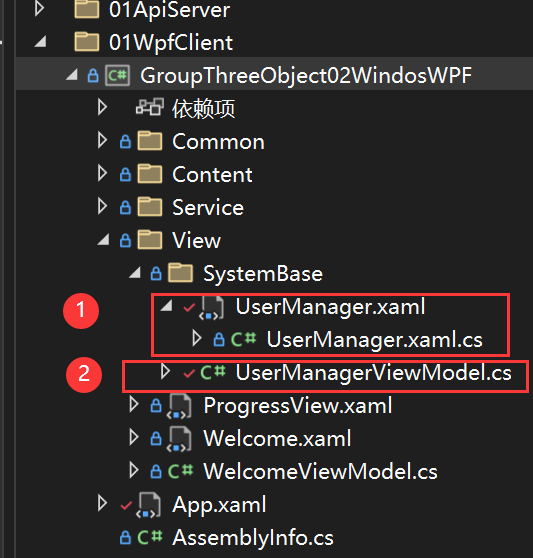

建立文件--- 右键=》添加 =》用户控件 =》生成窗体

2、.xaml文件

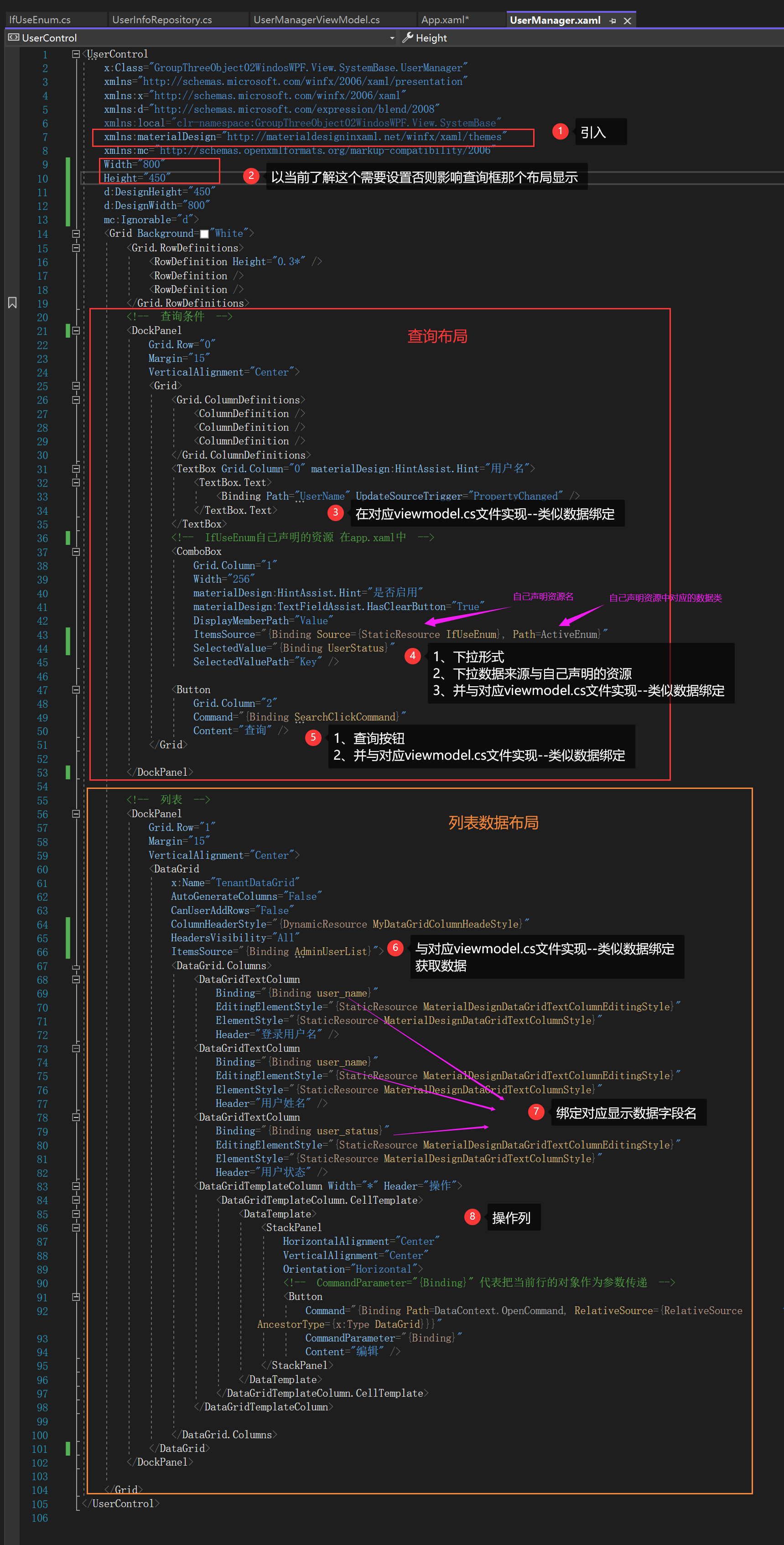

　　2-1 .xaml文件编辑布局

 列表中ColumnHeaderStyle="{DynamicResource MyDataGridColumnHeadeStyle}"处使用了上面设置一个公共的列表头样式

 1  xmlns:materialDesign="http://materialdesigninxaml.net/winfx/xaml/themes"
 2
 3
 4  Width="800"
 5     Height="450"
 6
 7
 8
 9 <Grid Background="White">
10         <Grid.RowDefinitions>
11             <RowDefinition Height="0.3*" />
12             <RowDefinition />
13             <RowDefinition />
14         </Grid.RowDefinitions>
15         <!--  查询条件  -->
16         <DockPanel
17             Grid.Row="0"
18             Margin="15"
19             VerticalAlignment="Center">
20             <Grid>
21                 <Grid.ColumnDefinitions>
22                     <ColumnDefinition />
23                     <ColumnDefinition />
24                     <ColumnDefinition />
25                 </Grid.ColumnDefinitions>
26                 <TextBox Grid.Column="0" materialDesign:HintAssist.Hint="用户名">
27                     <TextBox.Text>
28                         <Binding Path="UserName" UpdateSourceTrigger="PropertyChanged" />
29                     </TextBox.Text>
30                 </TextBox>
31                 <!--  IfUseEnum自己声明的资源 在app.xaml中  -->
32                 <ComboBox
33                     Grid.Column="1"
34                     Width="256"
35                     materialDesign:HintAssist.Hint="是否启用"
36                     materialDesign:TextFieldAssist.HasClearButton="True"
37                     DisplayMemberPath="Value"
38                     ItemsSource="{Binding Source={StaticResource IfUseEnum}, Path=ActiveEnum}"
39                     SelectedValue="{Binding UserStatus}"
40                     SelectedValuePath="Key" />
41
42                 <Button
43                     Grid.Column="2"
44                     Command="{Binding SearchClickCommand}"
45                     Content="查询" />
46             </Grid>
47
48         </DockPanel>
49
50         <!--  列表  -->
51         <DockPanel
52             Grid.Row="1"
53             Margin="15"
54             VerticalAlignment="Center">
55             <DataGrid
56                 x:Name="TenantDataGrid"
57                 AutoGenerateColumns="False"
58                 CanUserAddRows="False"
59                 ColumnHeaderStyle="{DynamicResource MyDataGridColumnHeadeStyle}"
60                 HeadersVisibility="All"
61                 ItemsSource="{Binding AdminUserList}">
62                 <DataGrid.Columns>
63                     <DataGridTextColumn
64                         Binding="{Binding user_name}"
65                         EditingElementStyle="{StaticResource MaterialDesignDataGridTextColumnEditingStyle}"
66                         ElementStyle="{StaticResource MaterialDesignDataGridTextColumnStyle}"
67                         Header="登录用户名" />
68                     <DataGridTextColumn
69                         Binding="{Binding user_name}"
70                         EditingElementStyle="{StaticResource MaterialDesignDataGridTextColumnEditingStyle}"
71                         ElementStyle="{StaticResource MaterialDesignDataGridTextColumnStyle}"
72                         Header="用户姓名" />
73                     <DataGridTextColumn
74                         Binding="{Binding user_status}"
75                         EditingElementStyle="{StaticResource MaterialDesignDataGridTextColumnEditingStyle}"
76                         ElementStyle="{StaticResource MaterialDesignDataGridTextColumnStyle}"
77                         Header="用户状态" />
78                     <DataGridTemplateColumn Width="*" Header="操作">
79                         <DataGridTemplateColumn.CellTemplate>
80                             <DataTemplate>
81                                 <StackPanel
82                                     HorizontalAlignment="Center"
83                                     VerticalAlignment="Center"
84                                     Orientation="Horizontal">
85                                     <!--  CommandParameter="{Binding}" 代表把当前行的对象作为参数传递  -->
86                                     <Button
87                                         Command="{Binding Path=DataContext.OpenCommand, RelativeSource={RelativeSource AncestorType={x:Type DataGrid}}}"
88                                         CommandParameter="{Binding}"
89                                         Content="编辑" />
90                                 </StackPanel>
91                             </DataTemplate>
92                         </DataGridTemplateColumn.CellTemplate>
93                     </DataGridTemplateColumn>
94
95                 </DataGrid.Columns>
96             </DataGrid>
97         </DockPanel>
98
99     </Grid>

.Xmal

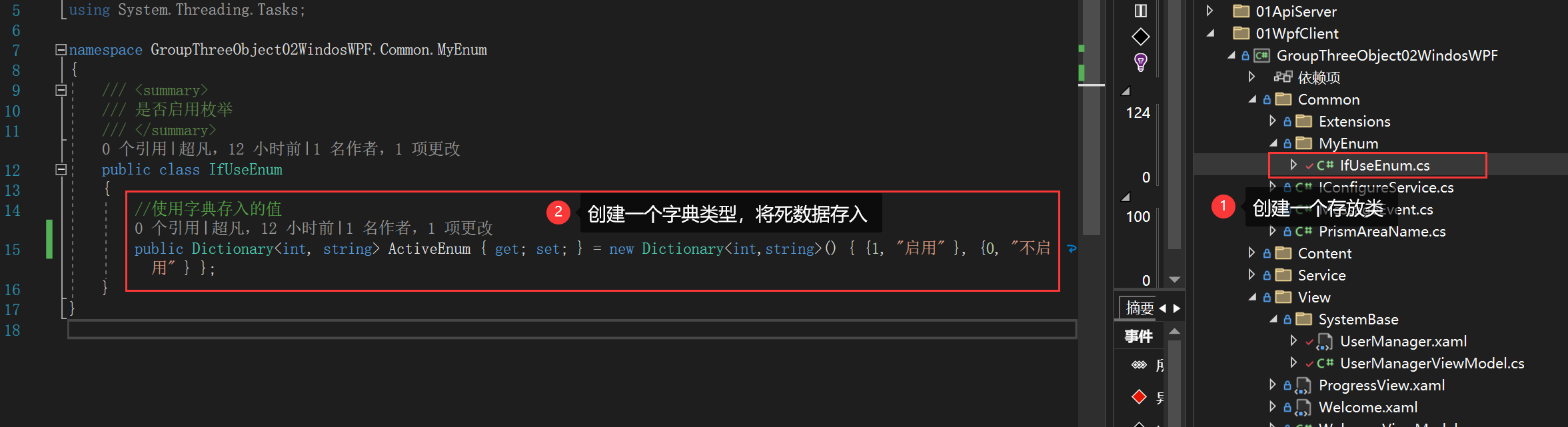

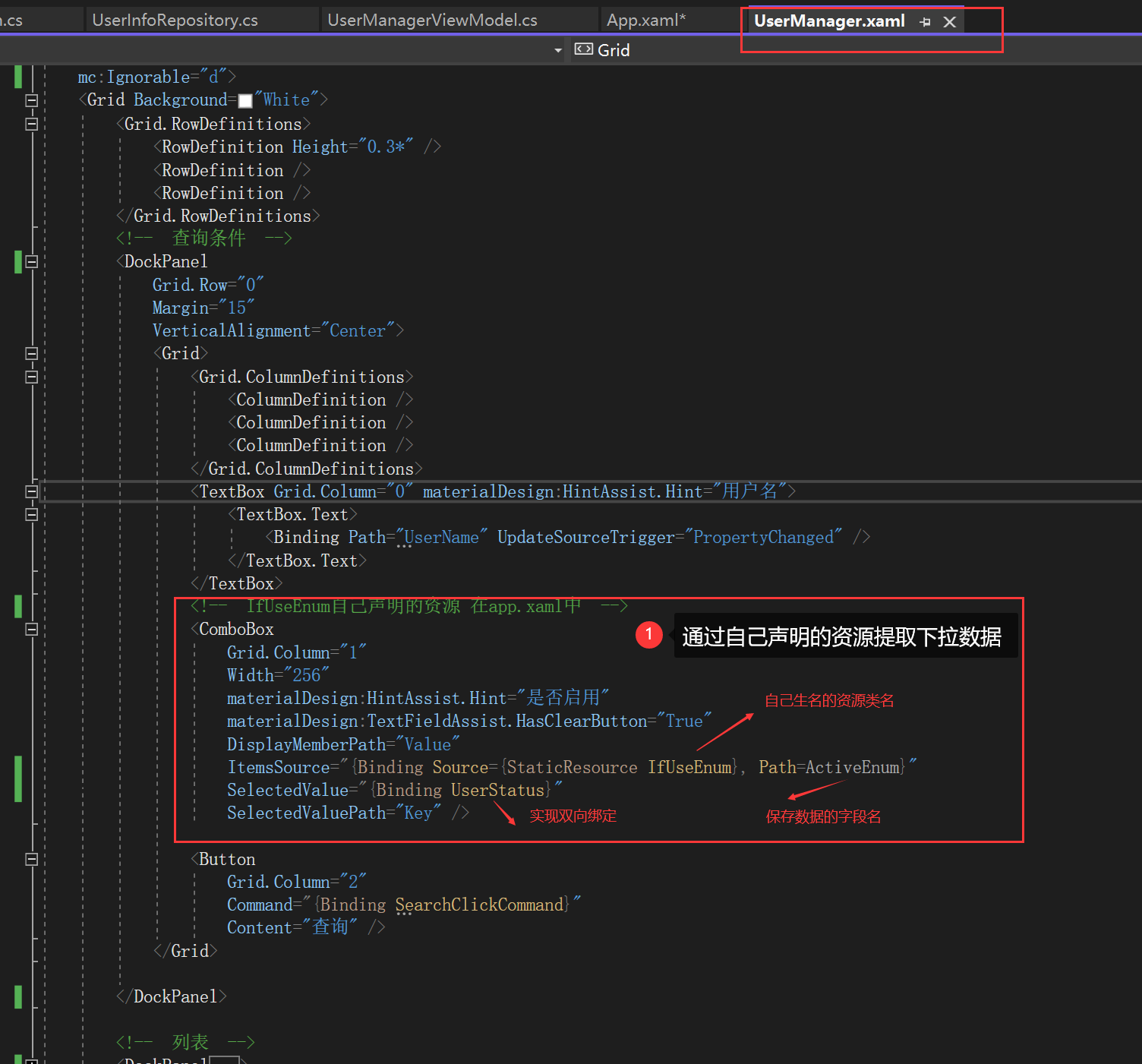

　　2-2 上述中搜索条件下拉实现详述：自己声明的资源，用于提供搜索下拉数据（当前例子为枚举型）

1  /// <summary>
2     /// 是否启用枚举
3     /// </summary>
4     public class IfUseEnum
5     {
6         //使用字典存入的值
7         public Dictionary<int, string> ActiveEnum { get; set; } = new Dictionary<int,string>() { {1, "启用" }, {0, "不启用" } };
8     }

IfUseEnum.cs

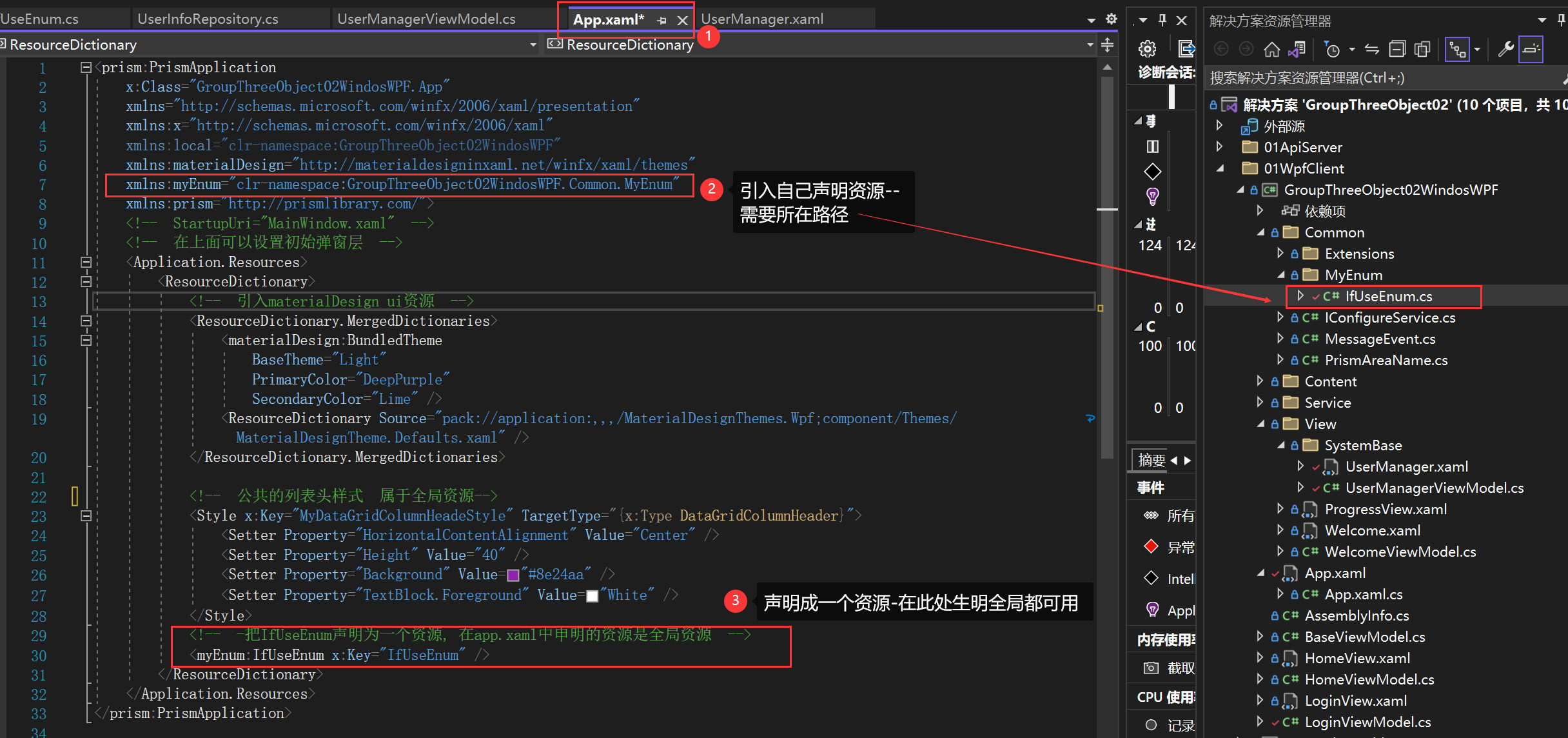

　　2-2-1 启动窗口(App.xaml)声明下，可以全局使用

　　2-2-2 xaml窗体页面中使用

　　完成下拉显示

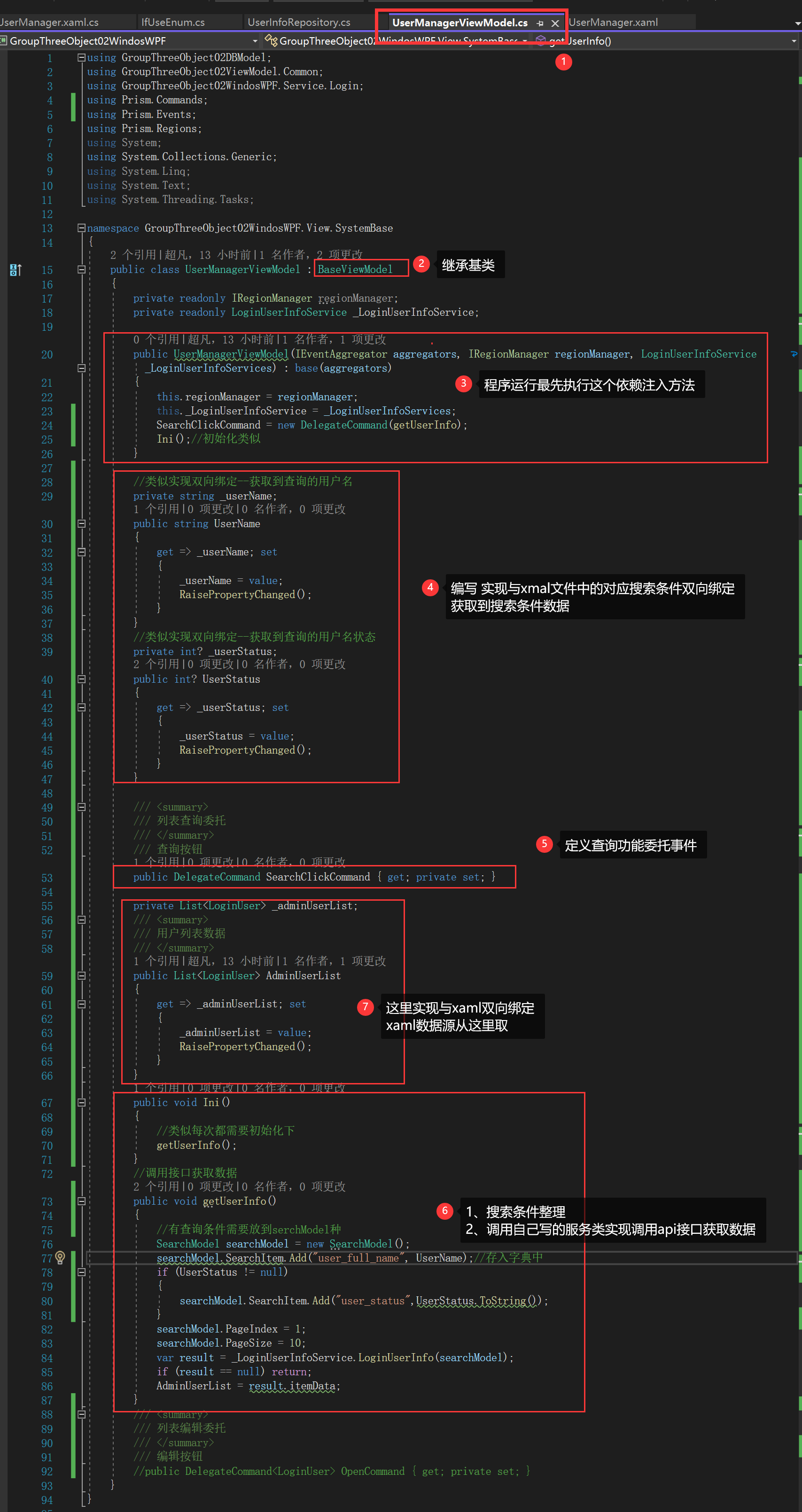

2、对应.cs文件

 1  public class UserManagerViewModel : BaseViewModel
 2     {
 3         private readonly IRegionManager regionManager;
 4         private readonly LoginUserInfoService _LoginUserInfoService;
 5
 6         public UserManagerViewModel(IEventAggregator aggregators, IRegionManager regionManager, LoginUserInfoService _LoginUserInfoServices) : base(aggregators)
 7         {
 8             this.regionManager = regionManager;
 9             this._LoginUserInfoService = _LoginUserInfoServices;
10             SearchClickCommand = new DelegateCommand(getUserInfo);
11             Ini();//初始化类似
12         }
13
14         //类似实现双向绑定--获取到查询的用户名
15         private string _userName;
16         public string UserName
17         {
18             get => _userName; set
19             {
20                 _userName = value;
21                 RaisePropertyChanged();
22             }
23         }
24         //类似实现双向绑定--获取到查询的用户名状态
25         private int? _userStatus;
26         public int? UserStatus
27         {
28             get => _userStatus; set
29             {
30                 _userStatus = value;
31                 RaisePropertyChanged();
32             }
33         }
34
35         /// <summary>
36         /// 列表查询委托
37         /// </summary>
38         /// 查询按钮
39         public DelegateCommand SearchClickCommand { get; private set; }
40
41         private List<LoginUser> _adminUserList;
42         /// <summary>
43         /// 用户列表数据
44         /// </summary>
45         public List<LoginUser> AdminUserList
46         {
47             get => _adminUserList; set
48             {
49                 _adminUserList = value;
50                 RaisePropertyChanged();
51             }
52         }
53         public void Ini()
54         {
55             //类似每次都需要初始化下
56             getUserInfo();
57         }
58         //调用接口获取数据
59         public void getUserInfo()
60         {
61             //有查询条件需要放到serchModel种
62             SearchModel searchModel = new SearchModel();
63             searchModel.SearchItem.Add("user_full_name", UserName);//存入字典中
64             if (UserStatus != null)
65             {
66                 searchModel.SearchItem.Add("user_status",UserStatus.ToString());
67             }
68             searchModel.PageIndex = 1;
69             searchModel.PageSize = 10;
70             var result = _LoginUserInfoService.LoginUserInfo(searchModel);
71             if (result == null) return;
72             AdminUserList = result.itemData;
73         }
74         /// <summary>
75         /// 列表编辑委托
76         /// </summary>
77         /// 编辑按钮
78         //public DelegateCommand<LoginUser> OpenCommand { get; private set; }
79     }

ViewModel.cs

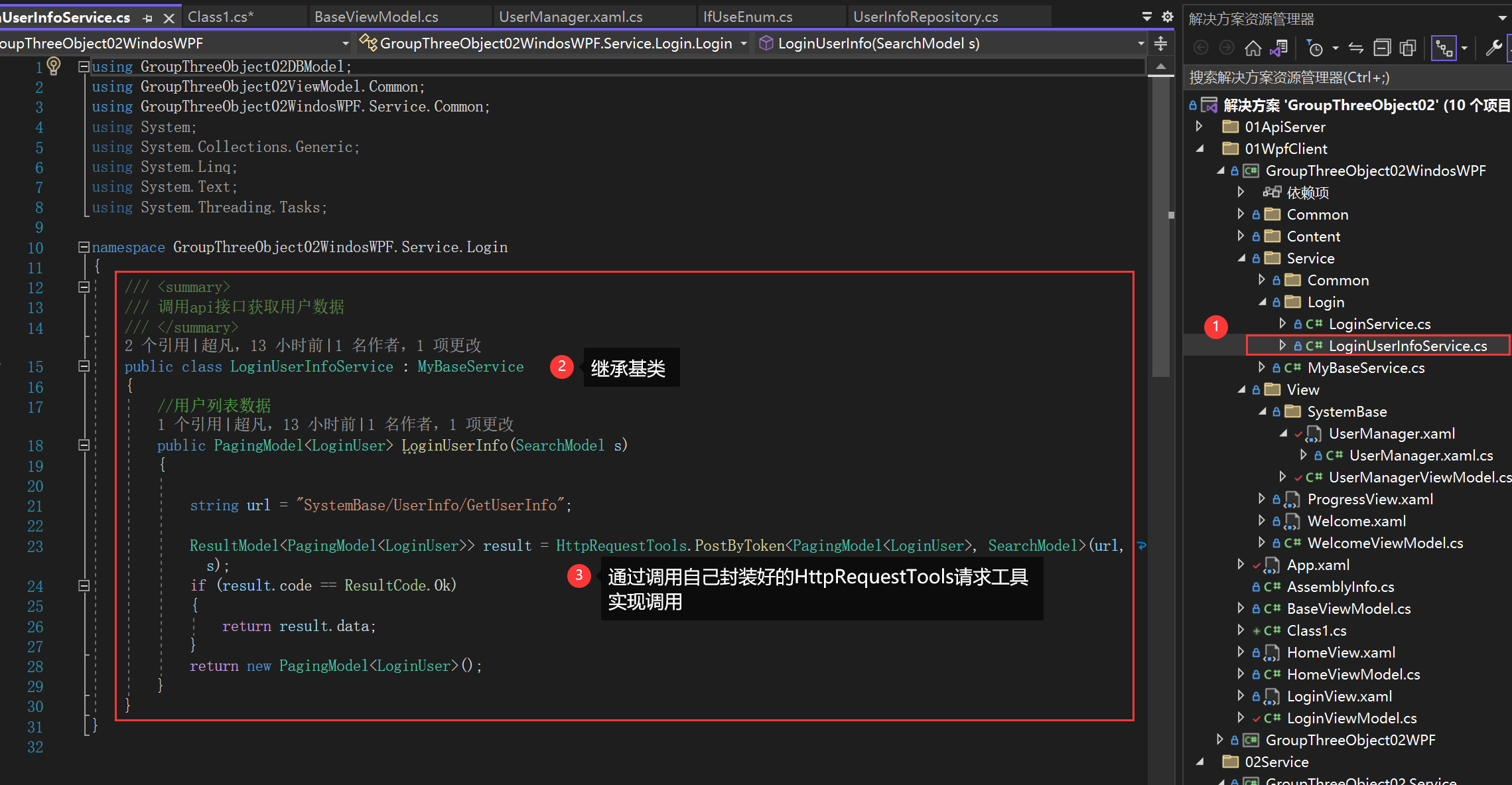

3、对应服务类编辑--实现调用api接口获取数据（调用HttpRequestTools工具）

 1  /// <summary>
 2     /// 调用api接口获取用户数据
 3     /// </summary>
 4     public class LoginUserInfoService : MyBaseService
 5     {
 6         //用户列表数据
 7         public PagingModel<LoginUser> LoginUserInfo(SearchModel s)
 8         {
 9
10             string url = "SystemBase/UserInfo/GetUserInfo";
11
12             ResultModel<PagingModel<LoginUser>> result = HttpRequestTools.PostByToken<PagingModel<LoginUser>, SearchModel>(url, s);
13             if (result.code == ResultCode.Ok)
14             {
15                 return result.data;
16             }
17             return new PagingModel<LoginUser>();
18         }
19     }

Service

至此完成显示分页效果--api层当下没有编辑案例 ↑

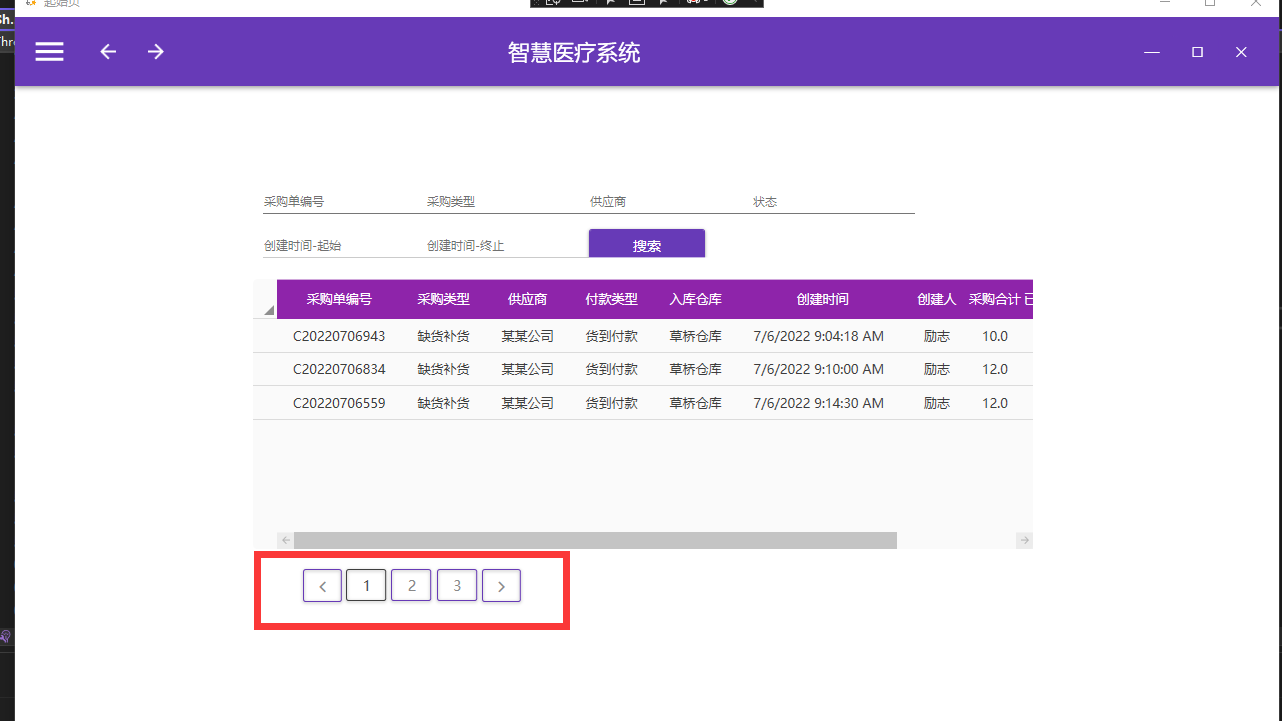

二、列表分页

---用了另外一套框架（PanuonUI.Silver）的一个控件

PanuonUI.Silver框架

源码：https://github.com/Panuon/PanuonUI.Silver

文档：

https://github.com/Mochengvia/Panuon.Documents/blob/master/Documents/PanuonUI.Silver/zh-cn.md#step-1-%E5%B0%86panuonuisilver%E5%BC%95%E5%85%A5%E5%88%B0%E4%BD%A0%E7%9A%84%E9%A1%B9%E7%9B%AE%E4%B8%AD

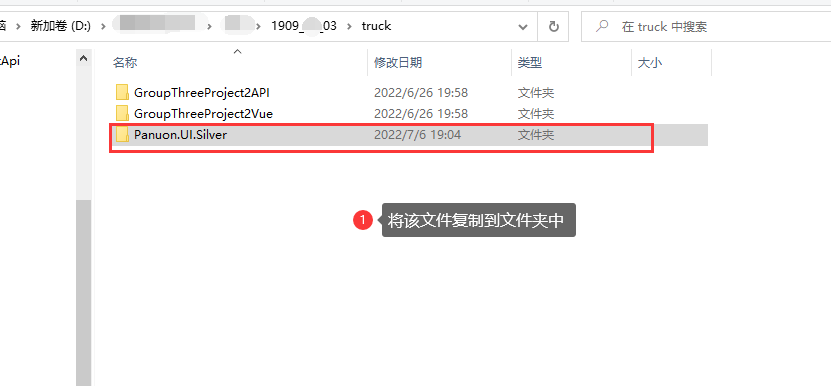

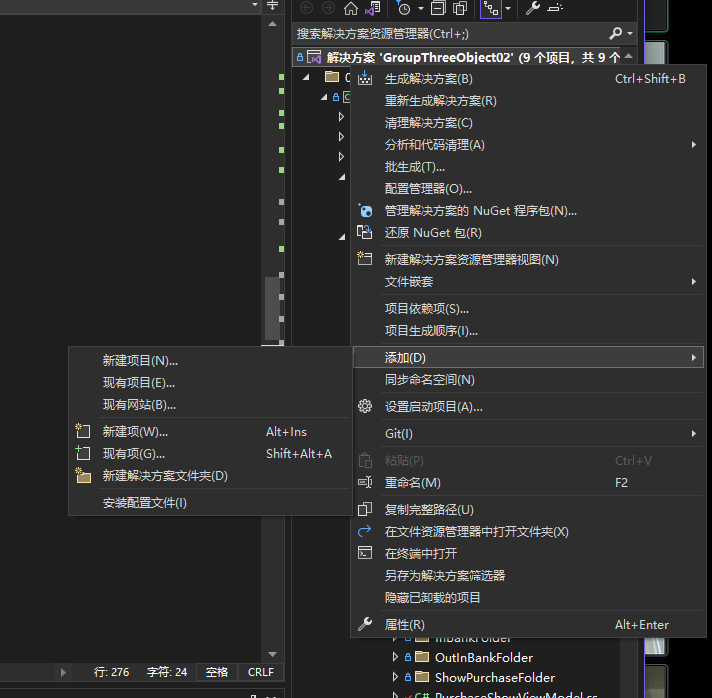

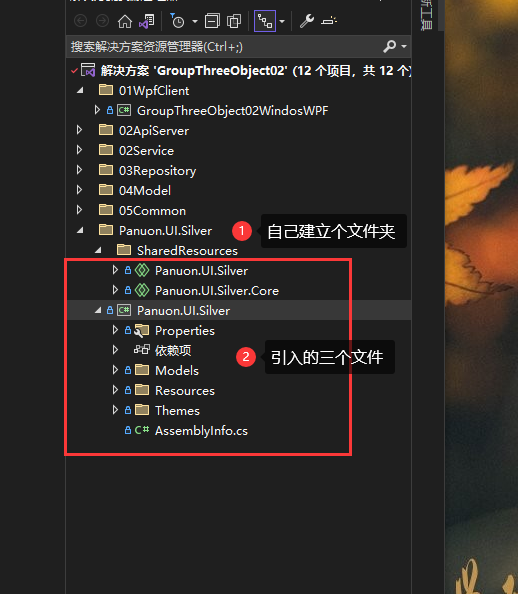

1、将Panuon.UI.Sliver文件放入项目所在文件夹（这个文件没有在项目API的那个文件夹下）解决方案里--添加----现有项目--将其文件引入

下载文件： Panuon.UI.Silver（.netCoreWPF）分页文件-C#文档类资源-CSDN文库

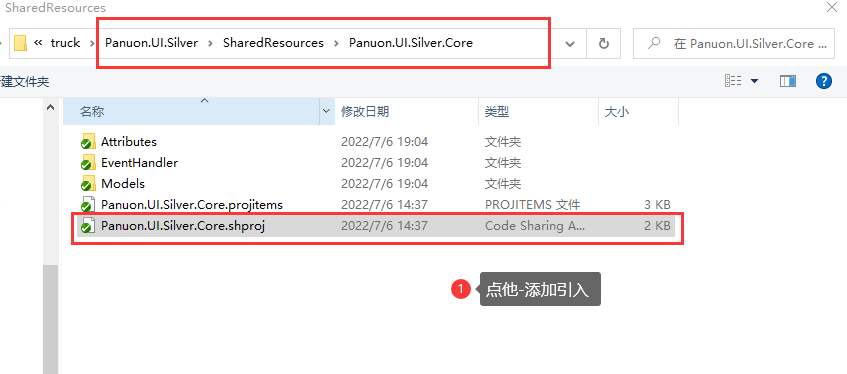

2、下载下来Panuon.UI.silver文件夹--依次用图2方式将其项目引用

--点shproj后缀文件添加就可：　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　引入后效果：

3、WPF项目使用

　　3-1、wpFx层添加项目引用--并在对应分页页添加命名空间引用

 xmlns:pu="clr-namespace:Panuon.UI.Silver;assembly=Panuon.UI.Silver"

引入

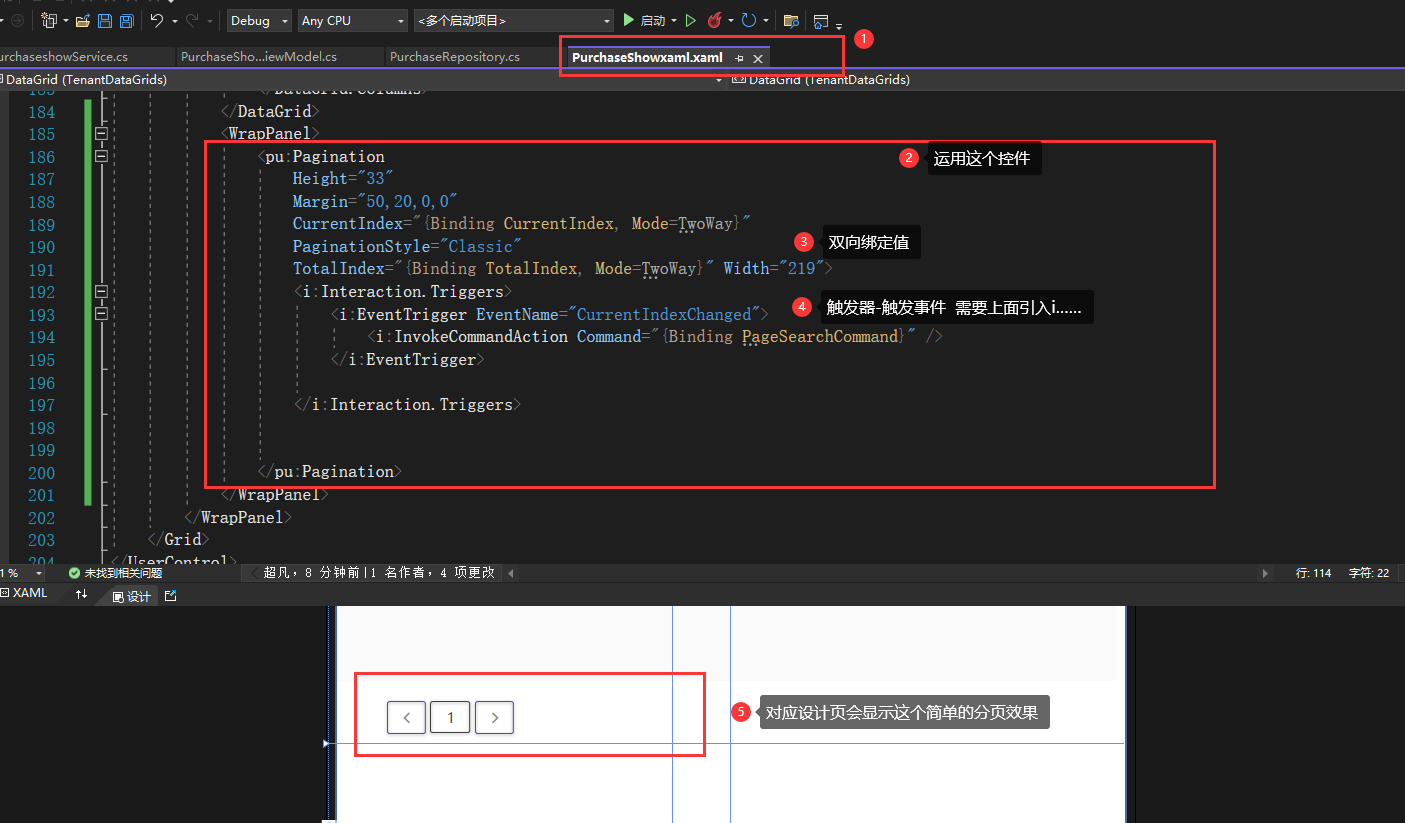

3-2、XAML布局设计


 xmlns:i="http://schemas.microsoft.com/xaml/behaviors"




<pu:Pagination
                    Height="33"
                    Margin="50,20,0,0"
                    CurrentIndex="{Binding CurrentIndex, Mode=TwoWay}"
                    PaginationStyle="Classic"
                    TotalIndex="{Binding TotalIndex, Mode=TwoWay}" Width="219">
                    <i:Interaction.Triggers>
                        <i:EventTrigger EventName="CurrentIndexChanged">
                            <i:InvokeCommandAction Command="{Binding PageSearchCommand}" />
                        </i:EventTrigger>

                    </i:Interaction.Triggers>


                </pu:Pagination>

Pagination

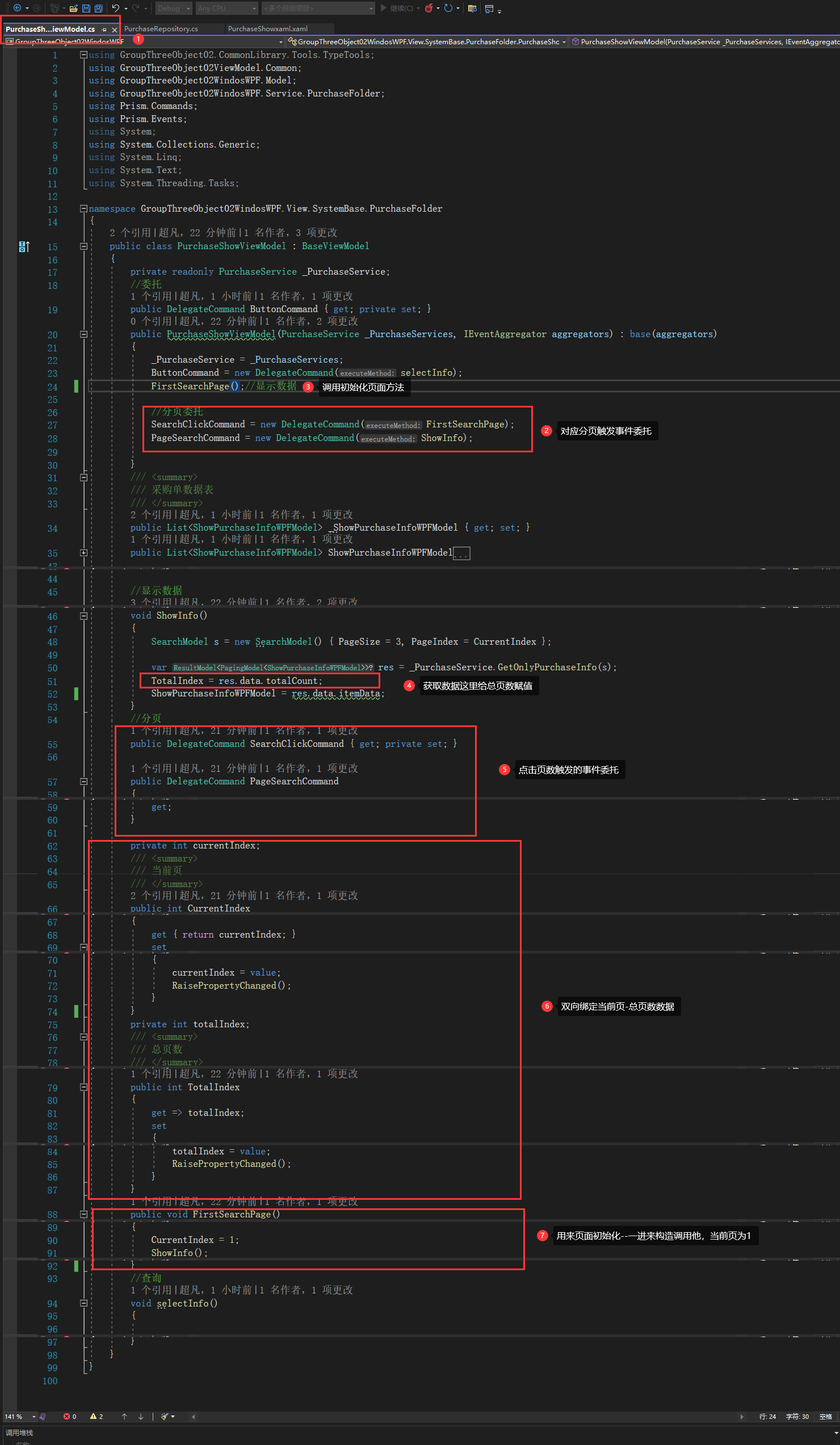

3-3、cs文件编写对应属性--实现双向绑定

 public class PurchaseShowViewModel : BaseViewModel
    {
        private readonly PurchaseService _PurchaseService;
        //委托
        public DelegateCommand ButtonCommand { get; private set; }
        public PurchaseShowViewModel(PurchaseService _PurchaseServices, IEventAggregator aggregators) : base(aggregators)
        {
            _PurchaseService = _PurchaseServices;
            ButtonCommand = new DelegateCommand(selectInfo);
            FirstSearchPage();//显示数据

            //分页委托
            SearchClickCommand = new DelegateCommand(FirstSearchPage);
            PageSearchCommand = new DelegateCommand(ShowInfo);

        }
        /// <summary>
        /// 采购单数据表
        /// </summary>
        public List<ShowPurchaseInfoWPFModel> _ShowPurchaseInfoWPFModel { get; set; }
        public List<ShowPurchaseInfoWPFModel> ShowPurchaseInfoWPFModel
        {
            get => _ShowPurchaseInfoWPFModel; set
            {
                _ShowPurchaseInfoWPFModel = value;
                RaisePropertyChanged();
            }
        }


        //显示数据
        void ShowInfo()
        {
            SearchModel s = new SearchModel() { PageSize = 3, PageIndex = CurrentIndex };

            var res = _PurchaseService.GetOnlyPurchaseInfo(s);
            TotalIndex = res.data.totalCount;
            ShowPurchaseInfoWPFModel = res.data.itemData;
        }
        //分页
        public DelegateCommand SearchClickCommand { get; private set; }

        public DelegateCommand PageSearchCommand
        {
            get;
        }

        private int currentIndex;
        /// <summary>
        /// 当前页
        /// </summary>
        public int CurrentIndex
        {
            get { return currentIndex; }
            set
            {
                currentIndex = value;
                RaisePropertyChanged();
            }
        }
        private int totalIndex;
        /// <summary>
        /// 总页数
        /// </summary>
        public int TotalIndex
        {
            get => totalIndex;
            set
            {
                totalIndex = value;
                RaisePropertyChanged();
            }
        }
        public void FirstSearchPage()
        {
            CurrentIndex = 1;
            ShowInfo();
        }
        //查询
        void selectInfo()
        {

        }
    }
