GC日志分析

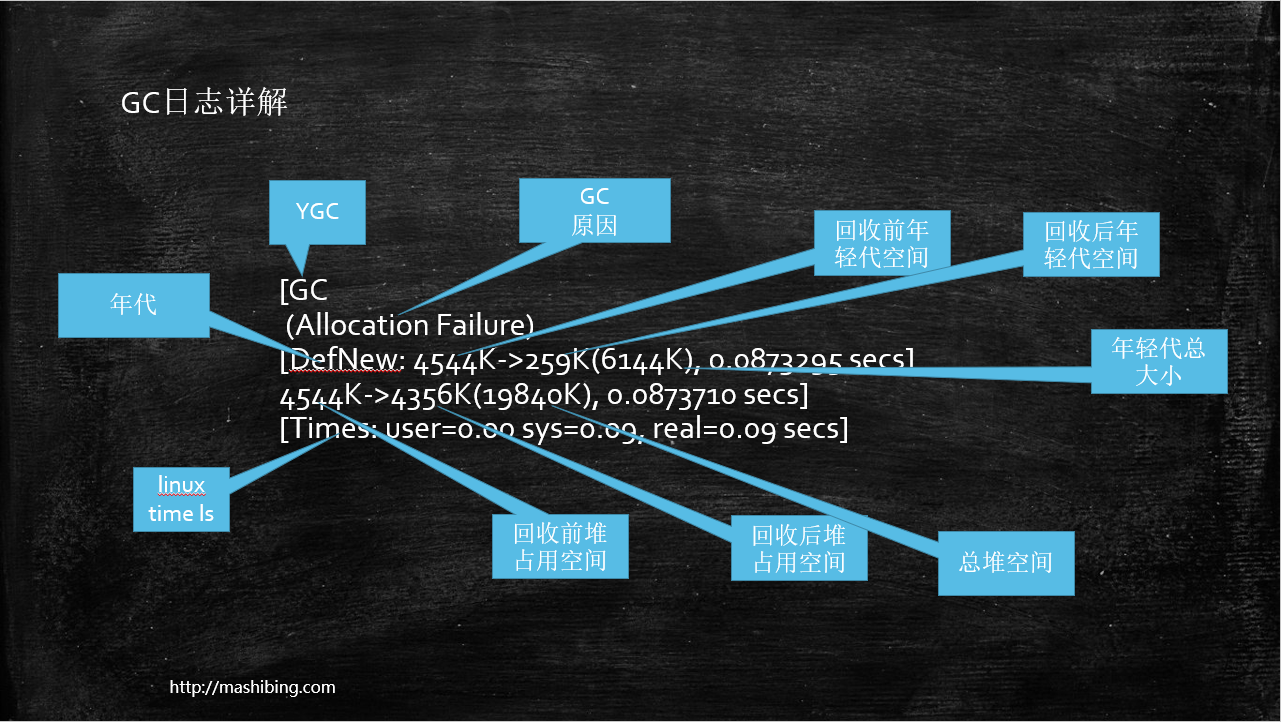

1.PS GC日志详解#

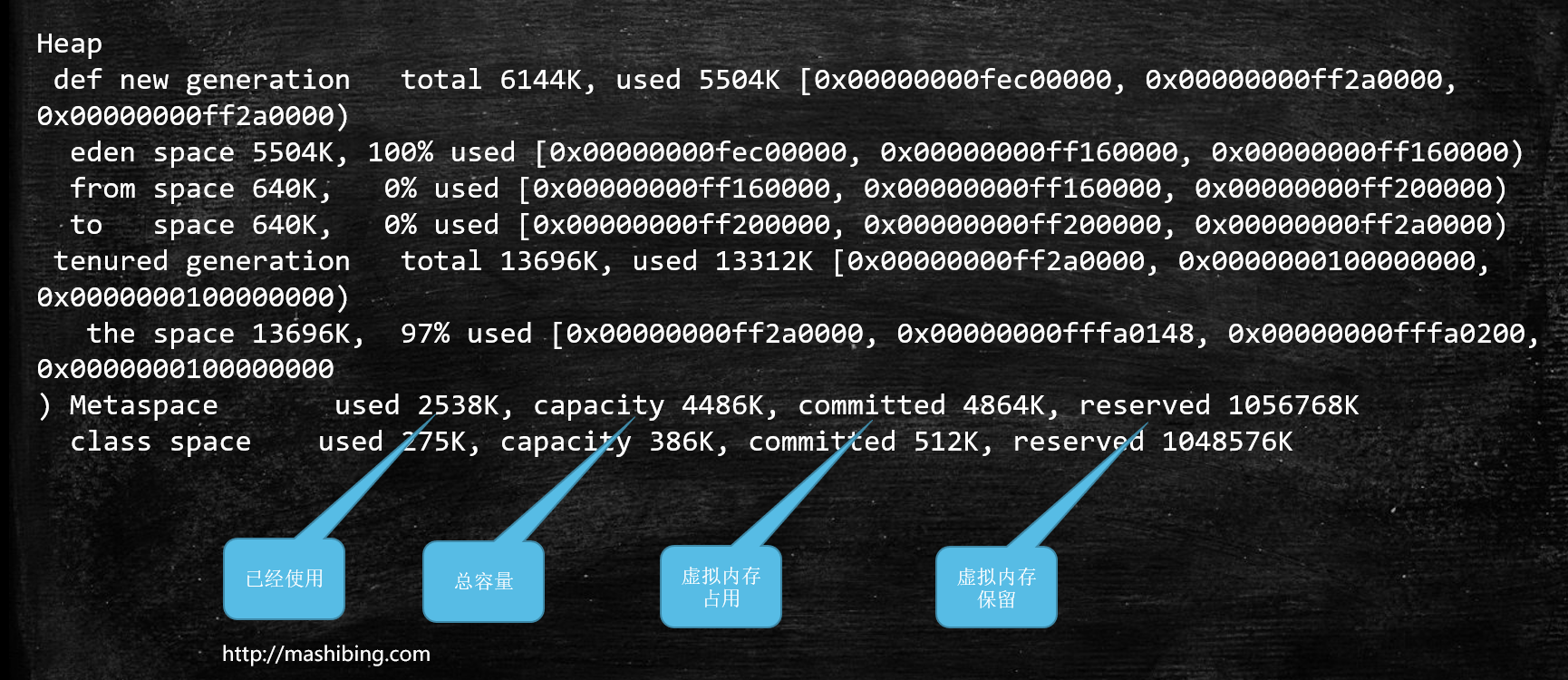

total = eden + 1个survivor

eden space 5632K, 94% used [0x00000000ff980000,0x00000000ffeb3e28,0x00000000fff00000)
后面的内存地址指的是，起始地址，使用空间结束地址，整体空间结束地址

2.CMS日志详解#

执行命令：java -Xms20M -Xmx20M -XX:+PrintGCDetails -XX:+UseConcMarkSweepGC 要执行的类

[GC (Allocation Failure) [ParNew: 6144K->640K(6144K), 0.0265885 secs] 6585K->2770K(19840K), 0.0268035 secs] [Times: user=0.02 sys=0.00, real=0.02 secs]

ParNew：年轻代收集器

6144->640：收集前后的对比

（6144）：整个年轻代容量

6585 -> 2770：整个堆的情况

（19840）：整个堆大小

[GC (CMS Initial Mark) [1 CMS-initial-mark: 8511K(13696K)] 9866K(19840K), 0.0040321 secs] [Times: user=0.01 sys=0.00, real=0.00 secs]
	//8511 (13696) : 老年代使用（最大）
	//9866 (19840) : 整个堆使用（最大）
[CMS-concurrent-mark-start]
[CMS-concurrent-mark: 0.018/0.018 secs] [Times: user=0.01 sys=0.00, real=0.02 secs]
	//这里的时间意义不大，因为是并发执行
[CMS-concurrent-preclean-start]
[CMS-concurrent-preclean: 0.000/0.000 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
	//标记Card为Dirty，也称为Card Marking
[GC (CMS Final Remark) [YG occupancy: 1597 K (6144 K)][Rescan (parallel) , 0.0008396 secs][weak refs processing, 0.0000138 secs][class unloading, 0.0005404 secs][scrub symbol table, 0.0006169 secs][scrub string table, 0.0004903 secs][1 CMS-remark: 8511K(13696K)] 10108K(19840K), 0.0039567 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
	//STW阶段，YG occupancy:年轻代占用及容量
	//[Rescan (parallel)：STW下的存活对象标记
	//weak refs processing: 弱引用处理
	//class unloading: 卸载用不到的class
	//scrub symbol(string) table:
		//cleaning up symbol and string tables which hold class-level metadata and
		//internalized string respectively
	//CMS-remark: 8511K(13696K): 阶段过后的老年代占用及容量
	//10108K(19840K): 阶段过后的堆占用及容量

[CMS-concurrent-sweep-start]
[CMS-concurrent-sweep: 0.005/0.005 secs] [Times: user=0.00 sys=0.00, real=0.01 secs]
	//标记已经完成，进行并发清理
[CMS-concurrent-reset-start]
[CMS-concurrent-reset: 0.000/0.000 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
	//重置内部结构，为下次GC做准备

3.G1日志详解#

[GC pause (G1 Evacuation Pause) (young) (initial-mark), 0.0015790 secs]
//young -> 年轻代 Evacuation-> 复制存活对象
//initial-mark 混合回收的阶段，这里是YGC混合老年代回收
   [Parallel Time: 1.5 ms, GC Workers: 1] //一个GC线程
      [GC Worker Start (ms):  92635.7]
      [Ext Root Scanning (ms):  1.1]
      [Update RS (ms):  0.0]
         [Processed Buffers:  1]
      [Scan RS (ms):  0.0]
      [Code Root Scanning (ms):  0.0]
      [Object Copy (ms):  0.1]
      [Termination (ms):  0.0]
         [Termination Attempts:  1]
      [GC Worker Other (ms):  0.0]
      [GC Worker Total (ms):  1.2]
      [GC Worker End (ms):  92636.9]
   [Code Root Fixup: 0.0 ms]
   [Code Root Purge: 0.0 ms]
   [Clear CT: 0.0 ms]
   [Other: 0.1 ms]
      [Choose CSet: 0.0 ms]
      [Ref Proc: 0.0 ms]
      [Ref Enq: 0.0 ms]
      [Redirty Cards: 0.0 ms]
      [Humongous Register: 0.0 ms]
      [Humongous Reclaim: 0.0 ms]
      [Free CSet: 0.0 ms]
   [Eden: 0.0B(1024.0K)->0.0B(1024.0K) Survivors: 0.0B->0.0B Heap: 18.8M(20.0M)->18.8M(20.0M)]
 [Times: user=0.00 sys=0.00, real=0.00 secs]
//以下是混合回收其他阶段
[GC concurrent-root-region-scan-start]
[GC concurrent-root-region-scan-end, 0.0000078 secs]
[GC concurrent-mark-start]
//无法evacuation，进行FGC
[Full GC (Allocation Failure)  18M->18M(20M), 0.0719656 secs]
   [Eden: 0.0B(1024.0K)->0.0B(1024.0K) Survivors: 0.0B->0.0B Heap: 18.8M(20.0M)->18.8M(20.0M)], [Metaspace: 38
76K->3876K(1056768K)] [Times: user=0.07 sys=0.00, real=0.07 secs]
