大数据分析第四周作业（热销商品数据分析）

第一部分：读取并分析数据

#查看数据特征
import numpy as np
import pandas as pd

inputfile='D:\大三下大数据分析\课堂练习第四周\\GoodsOrder.csv'
data=pd.read_csv(inputfile,encoding='gbk')

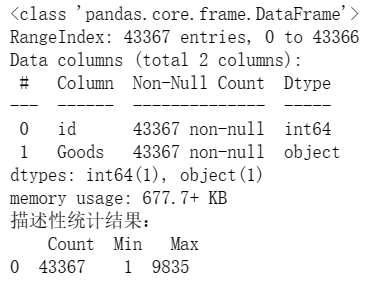

data.info()#查看数据属性

data=data['id']
description=[data.count(),data.min(),data.max()]
description=pd.DataFrame(description,index=['Count','Min','Max']).T
print('描述性统计结果：\n',np.round(description))





第二部分：分析热销商品

import pandas as pd
inputfile='D:\大三下大数据分析\课堂练习第四周\\GoodsOrder.csv'
data=pd.read_csv(inputfile,encoding='gbk')
group=data.groupby(['Goods']).count().reset_index()#对商品进行分类汇总
sorted=group.sort_values('id',ascending=False)
print('销量排行前10商品的销量：\n',sorted[:10])

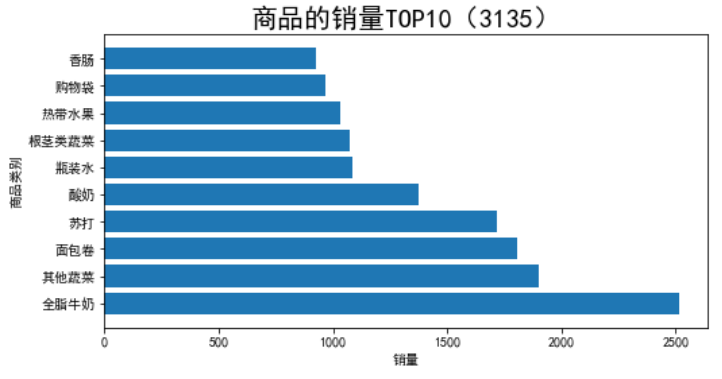

#画条形图展示销量排行前10的商品
import matplotlib.pyplot as plt
x=sorted[:10]['Goods']
y=sorted[:10]['id']
plt.figure(figsize=(8,4))
plt.barh(x,y)
plt.rcParams['font.sans-serif']='SimHei'
plt.xlabel('销量')
plt.ylabel('商品类别')
plt.title('商品的销量TOP10（3135）',fontsize=20)
plt.savefig('D:\大三下大数据分析\课堂练习第四周\\top10.png')
plt.show()

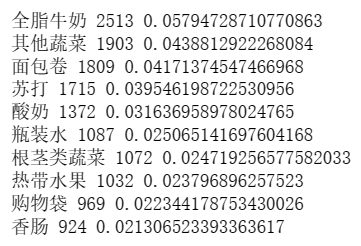

#销量前10的商品销量占比
data_nums=data.shape[0]
for idnex,row in sorted[:10].iterrows():
print(row['Goods'],row['id'],row['id']/data_nums)















第三部分：每类商品销量数据分析

import pandas as pd
inputfile1 = 'D:\大三下大数据分析\课堂练习第四周\\GoodsOrder.csv'
inputfile2='D:\大三下大数据分析\课堂练习第四周\\GoodsTypes.csv'
data = pd.read_csv(inputfile1,encoding = 'gbk')
types = pd.read_csv(inputfile2,encoding = 'gbk') # 读入数据

group = data.groupby(['Goods']).count().reset_index()
sort = group.sort_values('id',ascending = False).reset_index()
data_nums = data.shape[0] # 总量
del sort['index']

sort_links = pd.merge(sort,types) # 合并两个datafreame 根据type
# 根据类别求和，每个商品类别的总量，并排序
sort_link = sort_links.groupby(['Types']).sum().reset_index()
sort_link = sort_link.sort_values('id',ascending = False).reset_index()
del sort_link['index'] # 删除“index”列

# 求百分比，然后更换列名，最后输出到文件
sort_link['count'] = sort_link.apply(lambda line: line['id']/data_nums,axis=1)
sort_link.rename(columns = {'count':'percent'},inplace = True)
print('各类别商品的销量及其占比:\n',sort_link)
outfile1 ='D:\大三下大数据分析\课堂练习第四周\\percent.csv'
sort_link.to_csv(outfile1,index = False,header = True,encoding='gbk') # 保存结果

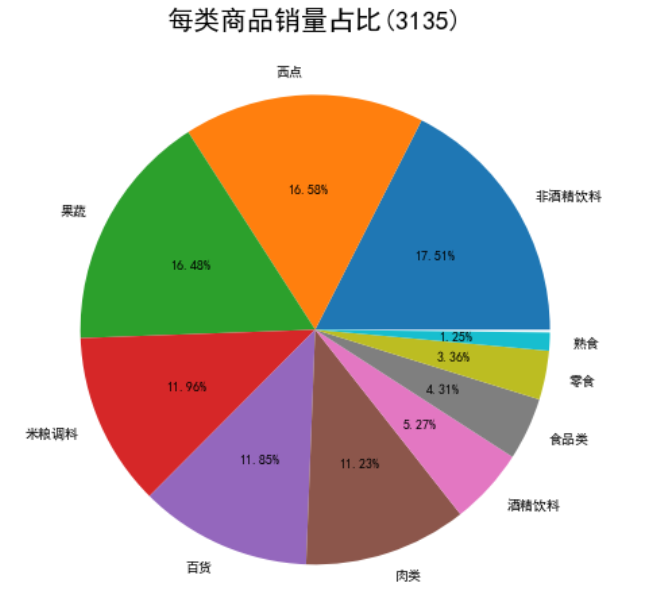

# 画饼图展示每类商品销量占比
import matplotlib.pyplot as plt
data = sort_link['percent']
labels = sort_link['Types']
plt.figure(figsize=(10, 8)) # 设置画布大小
plt.pie(data,labels=labels,autopct='%1.2f%%')
plt.rcParams['font.sans-serif'] = 'SimHei'
plt.title('每类商品销量占比(3135)',fontsize=20) # 设置标题
plt.savefig('D:\大三下大数据分析\课堂练习第四周\\persent.png') # 把图片以.png格式保存
plt.show()











第四部分：非酒精饮料内部商品的销量及其占比

# 先筛选“非酒精饮料”类型的商品，然后求百分比，然后输出结果到文件。
selected = sort_links.loc[sort_links['Types'] == '非酒精饮料'] # 挑选商品类别为“非酒精饮料”并排序
child_nums = selected['id'].sum() # 对所有的“非酒精饮料”求和
selected['child_percent'] = selected.apply(lambda line: line['id']/child_nums,axis = 1) # 求百分比
selected.rename(columns = {'id':'count'},inplace = True)

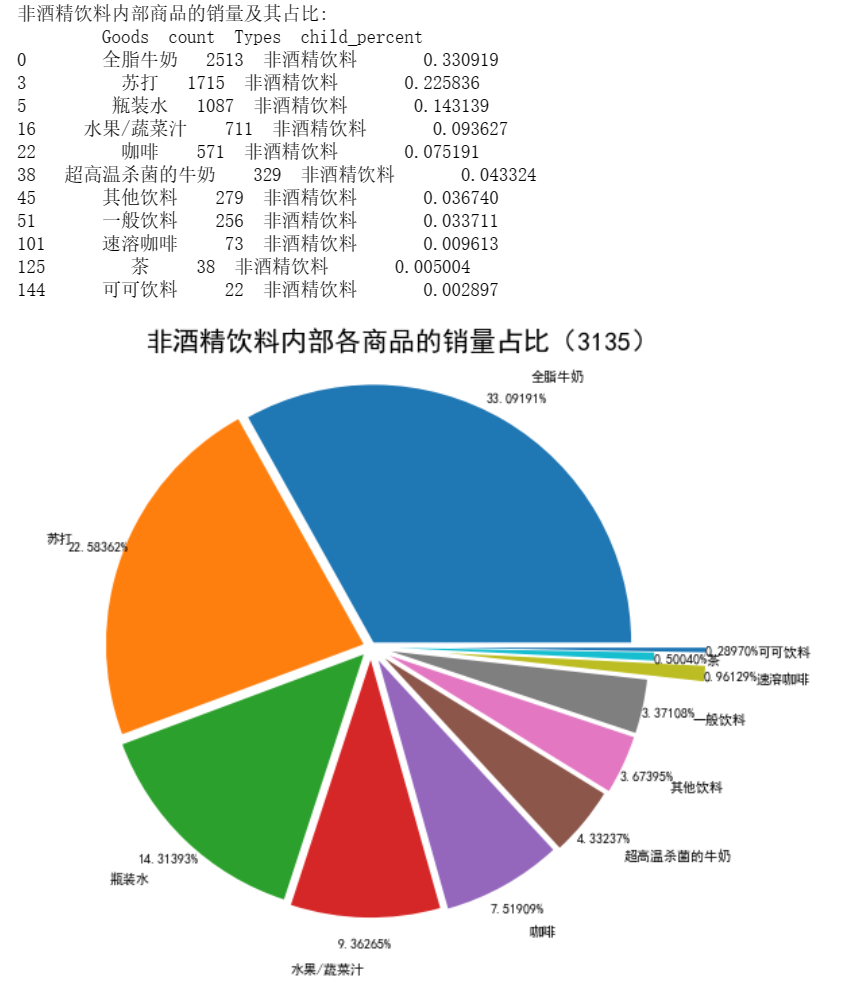

print('非酒精饮料内部商品的销量及其占比:\n',selected)
outfile2 = 'D:\大三下大数据分析\课堂练习第四周\\child_percent.csv'
sort_link.to_csv(outfile2,index = False,header = True,encoding='gbk') # 输出结果

# 画饼图展示非酒精饮品内部各商品的销量占比
import matplotlib.pyplot as plt
data = selected['child_percent']
labels = selected['Goods']
plt.figure(figsize = (10,8)) # 设置画布大小
explode = (0.02,0.03,0.04,0.05,0.06,0.07,0.08,0.08,0.3,0.1,0.3) # 设置每一块分割出的间隙大小
plt.pie(data,explode = explode,labels = labels,autopct = '%1.5f%%',
pctdistance = 1.1,labeldistance = 1.2)
plt.rcParams['font.sans-serif'] = 'SimHei'
plt.title("非酒精饮料内部各商品的销量占比（3135）",fontsize=20) # 设置标题
plt.axis('equal')
plt.savefig('D:\大三下大数据分析\课堂练习第四周\\child_persent.png') # 保存图形
plt.show() # 展示图形







第五部分：西点内部商品的销量及其占比

# 先筛选“西点”类型的商品，然后求百分比，然后输出结果到文件。
selected = sort_links.loc[sort_links['Types'] == '西点'] # 挑选商品类别为“西点”并排序
child_nums = selected['id'].sum() # 对所有的“西点”求和
selected['child_percent'] = selected.apply(lambda line: line['id']/child_nums,axis = 1) # 求百分比
selected.rename(columns = {'id':'count'},inplace = True)

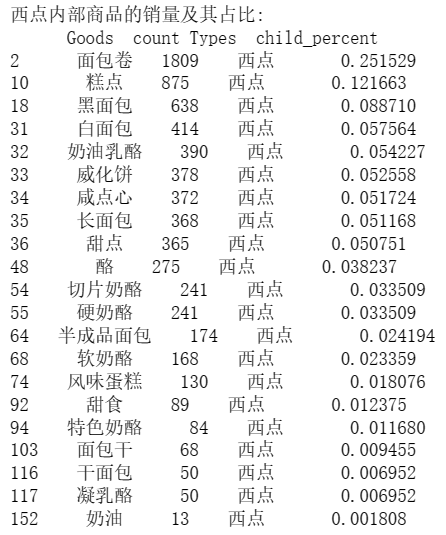

print('西点内部商品的销量及其占比:\n',selected)
outfile2 = 'D:\大三下大数据分析\课堂练习第四周\\child_percent2.csv'
sort_link.to_csv(outfile2,index = False,header = True,encoding='gbk') # 输出结果

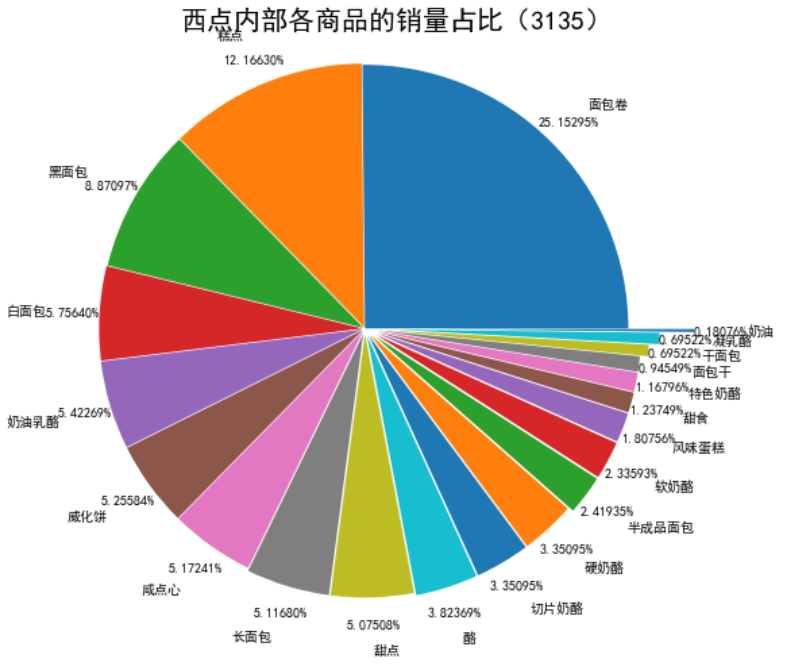

# 画饼图展示非酒精饮品内部各商品的销量占比
import matplotlib.pyplot as plt
data = selected['child_percent']
labels = selected['Goods']
plt.figure(figsize = (10,8)) # 设置画布大小
explode = (0.001,0.006,0.006,0.009,
0.01,0.01,0.01,0.02,0.02,
0.03,0.03,0.03,0.05,0.05,
0.05,0.05,0.05,0.05,0.08,
0.12,0.25) # 设置每一块分割出的间隙大小
plt.pie(data,explode = explode,labels = labels,autopct = '%1.5f%%',
pctdistance = 1.1,labeldistance = 1.2)
plt.rcParams['font.sans-serif'] = 'SimHei'
plt.title("西点内部各商品的销量占比（3135）",fontsize=20) # 设置标题
plt.axis('equal')
plt.savefig('D:\大三下大数据分析\课堂练习第四周\\child_persent2.png') # 保存图形
plt.show() # 展示图形









第六部分：数据转换格式

import pandas as pd
inputfile='D:\大三下大数据分析\课堂练习第四周\\GoodsOrder.csv'
data = pd.read_csv(inputfile,encoding = 'gbk')

# 根据id对“Goods”列合并，并使用“，”将各商品隔开
data['Goods'] = data['Goods'].apply(lambda x:','+x)
data = data.groupby('id').sum().reset_index()

# 对合并的商品列转换数据格式
data['Goods'] = data['Goods'].apply(lambda x :[x[1:]])
data_list = list(data['Goods'])

# 分割商品名为每个元素
data_translation = []
for i in data_list:
p = i[0].split(',')
data_translation.append(p)
print('数据转换结果的前5个元素：\n', data_translation[0:5])





第六部分：用apriori算法探索商品之间的关联关系

from numpy import *

def loadDataSet():
return [['a', 'c', 'e'], ['b', 'd'], ['b', 'c'], ['a', 'b', 'c', 'd'], ['a', 'b'], ['b', 'c'], ['a', 'b'],
['a', 'b', 'c', 'e'], ['a', 'b', 'c'], ['a', 'c', 'e']]

def createC1(dataSet):
C1 = []
for transaction in dataSet:
for item in transaction:
if not [item] in C1:
C1.append([item])
C1.sort()
# 映射为frozenset唯一性的，可使用其构造字典
return list(map(frozenset, C1))

# 从候选K项集到频繁K项集（支持度计算）
def scanD(D, Ck, minSupport):
ssCnt = {}
for tid in D: # 遍历数据集
for can in Ck: # 遍历候选项
if can.issubset(tid): # 判断候选项中是否含数据集的各项
if not can in ssCnt:
ssCnt[can] = 1 # 不含设为1
else:
ssCnt[can] += 1 # 有则计数加1
numItems = float(len(D)) # 数据集大小
retList = [] # L1初始化
supportData = {} # 记录候选项中各个数据的支持度
for key in ssCnt:
support = ssCnt[key] / numItems # 计算支持度
if support >= minSupport:
retList.insert(0, key) # 满足条件加入L1中
supportData[key] = support
return retList, supportData

def calSupport(D, Ck, min_support):
dict_sup = {}
for i in D:
for j in Ck:
if j.issubset(i):
if not j in dict_sup:
dict_sup[j] = 1
else:
dict_sup[j] += 1
sumCount = float(len(D))
supportData = {}
relist = []
for i in dict_sup:
temp_sup = dict_sup[i] / sumCount
if temp_sup >= min_support:
relist.append(i)
# 此处可设置返回全部的支持度数据（或者频繁项集的支持度数据）
supportData[i] = temp_sup
return relist, supportData

# 改进剪枝算法
def aprioriGen(Lk, k):
retList = []
lenLk = len(Lk)
for i in range(lenLk):
for j in range(i + 1, lenLk): # 两两组合遍历
L1 = list(Lk[i])[:k - 2]
L2 = list(Lk[j])[:k - 2]
L1.sort()
L2.sort()
if L1 == L2: # 前k-1项相等，则可相乘，这样可防止重复项出现
# 进行剪枝（a1为k项集中的一个元素，b为它的所有k-1项子集）
a = Lk[i] | Lk[j] # a为frozenset()集合
a1 = list(a)
b = []
# 遍历取出每一个元素，转换为set，依次从a1中剔除该元素，并加入到b中
for q in range(len(a1)):
t = [a1[q]]
tt = frozenset(set(a1) - set(t))
b.append(tt)
t = 0
for w in b:
# 当b（即所有k-1项子集）都是Lk（频繁的）的子集，则保留，否则删除。
if w in Lk:
t += 1
if t == len(b):
retList.append(b[0] | b[1])
return retList

def apriori(dataSet, minSupport=0.2):
# 前3条语句是对计算查找单个元素中的频繁项集
C1 = createC1(dataSet)
D = list(map(set, dataSet)) # 使用list()转换为列表
L1, supportData = calSupport(D, C1, minSupport)
L = [L1] # 加列表框，使得1项集为一个单独元素
k = 2
while (len(L[k - 2]) > 0): # 是否还有候选集
Ck = aprioriGen(L[k - 2], k)
Lk, supK = scanD(D, Ck, minSupport) # scan DB to get Lk
supportData.update(supK) # 把supk的键值对添加到supportData里
L.append(Lk) # L最后一个值为空集
k += 1
del L[-1] # 删除最后一个空集
return L, supportData # L为频繁项集，为一个列表，1，2，3项集分别为一个元素

# 生成集合的所有子集
def getSubset(fromList, toList):
for i in range(len(fromList)):
t = [fromList[i]]
tt = frozenset(set(fromList) - set(t))
if not tt in toList:
toList.append(tt)
tt = list(tt)
if len(tt) > 1:
getSubset(tt, toList)
#
def calcConf(freqSet, H, supportData, ruleList, minConf=0.7):
for conseq in H: #遍历H中的所有项集并计算它们的可信度值
conf = supportData[freqSet] / supportData[freqSet - conseq] # 可信度计算，结合支持度数据
# 提升度lift计算lift = p(a & b) / p(a)*p(b)
lift = supportData[freqSet] / (supportData[conseq] * supportData[freqSet - conseq])

if conf >= minConf and lift > 1:

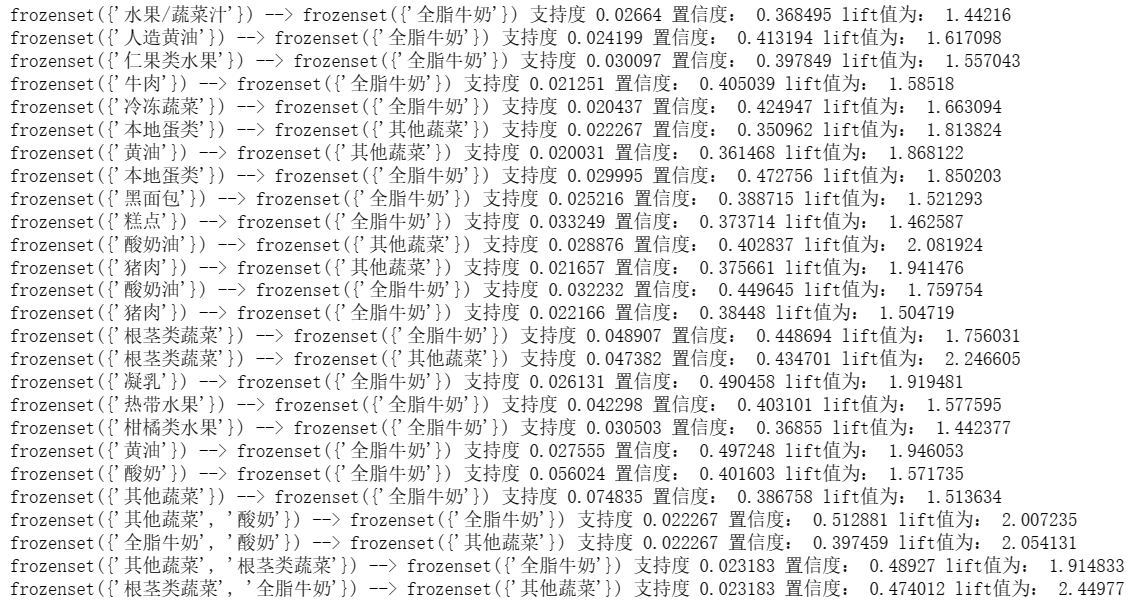

print(freqSet - conseq, '-->', conseq, '支持度', round(supportData[freqSet], 6), '置信度：', round(conf, 6),
'lift值为：', round(lift, 6))
ruleList.append((freqSet - conseq, conseq, conf))

#生成规则
def gen_rule(L, supportData, minConf = 0.7):
bigRuleList = []
for i in range(1, len(L)): # 从二项集开始计算
for freqSet in L[i]: # freqSet为所有的k项集
# 求该三项集的所有非空子集，1项集，2项集，直到k-1项集，用H1表示，为list类型,里面为frozenset类型，
H1 = list(freqSet)
all_subset = []
getSubset(H1, all_subset) # 生成所有的子集
calcConf(freqSet, all_subset, supportData, bigRuleList, minConf)
return bigRuleList

if __name__ == '__main__':
dataSet = data_translation
L, supportData = apriori(dataSet, minSupport = 0.02)
rule = gen_rule(L, supportData, minConf = 0.35)
