VS2010下配置OpenMesh

1. 从www.openmesh.org下载最新版的安装包或者源代码，注意下载与自己系统匹配的版本，我下的是VS2010预编译版的，下载源码自己编译是一样的。安装好Visual Studio。

2. 安装OpenMesh，预编译版的是一个安装包，直接打开下一步安装就行。

3. 配置VS，以VS2010为例，打开 项目 —> 项目属性 —> 配置属性 —> VC++目录，在包含目录和库目录中依次添加 C:\Program Files (x86)\OpenMesh 3.2\include 和 C:\Program Files (x86)\OpenMesh 3.2\lib 目录，具体由自己的OpenMesh安装目录决定。

4. 在 配置属性下，打开 C/C++ —> 预处理器定义，添加_USE_MATH_DEFINES，再打开链接器 —> 输入， 在附加依赖项中输入OpenMeshCored.lib 和 OpenMeshToolsd.lib。

5. 从OpenMesh官网提供的code examples （First Steps-Building a cube） 中拷贝cube的测试代码，如下，放到工程中编译执行即可。

6. 运行后会在当前目录下生成一个 output.off 文件。说明执行成功，用OpenMesh目录下自带的 QTviewer 可以打开生成的off文件。

//=============================================================================
//
//                               OpenMesh
//      Copyright (C) 2001-2005 by Computer Graphics Group, RWTH Aachen
//                           www.openmesh.org
//
//-----------------------------------------------------------------------------
//
//                                License
//
//   This library is free software; you can redistribute it and/or modify it
//   under the terms of the GNU Library General Public License as published
//   by the Free Software Foundation, version 2.
//
//   This library is distributed in the hope that it will be useful, but
//   WITHOUT ANY WARRANTY; without even the implied warranty of
//   MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the GNU
//   Library General Public License for more details.
//
//   You should have received a copy of the GNU Library General Public
//   License along with this library; if not, write to the Free Software
//   Foundation, Inc., 675 Mass Ave, Cambridge, MA 02139, USA.
//
//-----------------------------------------------------------------------------
//
//   $Revision: 83 $
//   $Date: 2009-02-27 17:31:45 +0100 (Fri, 27 Feb 2009) $
//
//=============================================================================
#include <iostream>
// -------------------- OpenMesh
#include <OpenMesh/Core/IO/MeshIO.hh>
#include <OpenMesh/Core/Mesh/PolyMesh_ArrayKernelT.hh>
// ----------------------------------------------------------------------------
typedef OpenMesh::PolyMesh_ArrayKernelT<>  MyMesh;
// ----------------------------------------------------------------------------
// Build a simple cube and write it to std::cout

int main()
{
    MyMesh mesh;
    // generate vertices
    MyMesh::VertexHandle vhandle[8];
    vhandle[0] = mesh.add_vertex(MyMesh::Point(-1, -1,  1));
    vhandle[1] = mesh.add_vertex(MyMesh::Point( 1, -1,  1));
    vhandle[2] = mesh.add_vertex(MyMesh::Point( 1,  1,  1));
    vhandle[3] = mesh.add_vertex(MyMesh::Point(-1,  1,  1));
    vhandle[4] = mesh.add_vertex(MyMesh::Point(-1, -1, -1));
    vhandle[5] = mesh.add_vertex(MyMesh::Point( 1, -1, -1));
    vhandle[6] = mesh.add_vertex(MyMesh::Point( 1,  1, -1));
    vhandle[7] = mesh.add_vertex(MyMesh::Point(-1,  1, -1));
    // generate (quadrilateral) faces
    std::vector<MyMesh::VertexHandle>  face_vhandles;
    face_vhandles.clear();
    face_vhandles.push_back(vhandle[0]);
    face_vhandles.push_back(vhandle[1]);
    face_vhandles.push_back(vhandle[2]);
    face_vhandles.push_back(vhandle[3]);
    mesh.add_face(face_vhandles);

    face_vhandles.clear();
    face_vhandles.push_back(vhandle[7]);
    face_vhandles.push_back(vhandle[6]);
    face_vhandles.push_back(vhandle[5]);
    face_vhandles.push_back(vhandle[4]);
    mesh.add_face(face_vhandles);
    face_vhandles.clear();
    face_vhandles.push_back(vhandle[1]);
    face_vhandles.push_back(vhandle[0]);
    face_vhandles.push_back(vhandle[4]);
    face_vhandles.push_back(vhandle[5]);
    mesh.add_face(face_vhandles);
    face_vhandles.clear();
    face_vhandles.push_back(vhandle[2]);
    face_vhandles.push_back(vhandle[1]);
    face_vhandles.push_back(vhandle[5]);
    face_vhandles.push_back(vhandle[6]);
    mesh.add_face(face_vhandles);
    face_vhandles.clear();
    face_vhandles.push_back(vhandle[3]);
    face_vhandles.push_back(vhandle[2]);
    face_vhandles.push_back(vhandle[6]);
    face_vhandles.push_back(vhandle[7]);
    mesh.add_face(face_vhandles);
    face_vhandles.clear();
    face_vhandles.push_back(vhandle[0]);
    face_vhandles.push_back(vhandle[3]);
    face_vhandles.push_back(vhandle[7]);
    face_vhandles.push_back(vhandle[4]);
    mesh.add_face(face_vhandles);
    // write mesh to output.obj
    try
    {
        if ( !OpenMesh::IO::write_mesh(mesh, "output.off") )
        {
            std::cerr << "Cannot write mesh to file 'output.off'" << std::endl;
            return 1;
        }
    }
    catch( std::exception& x )
    {
        std::cerr << x.what() << std::endl;
        return 1;
    }
    return 0;
}

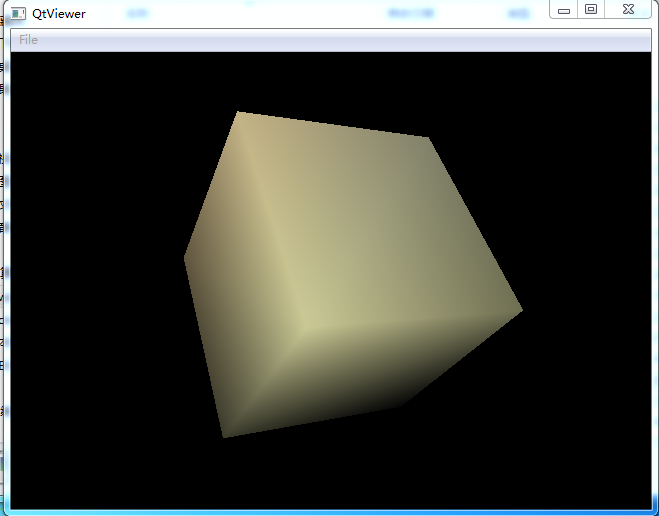

运行结果（经QTviewer打开）

文章修改自 leomass 的文档。
