(二)简单元素操作、方法、鼠标操作
WebElement findElement(By by):定位元素用webelement,返回的是webelement;对元素的操作依然是webelement

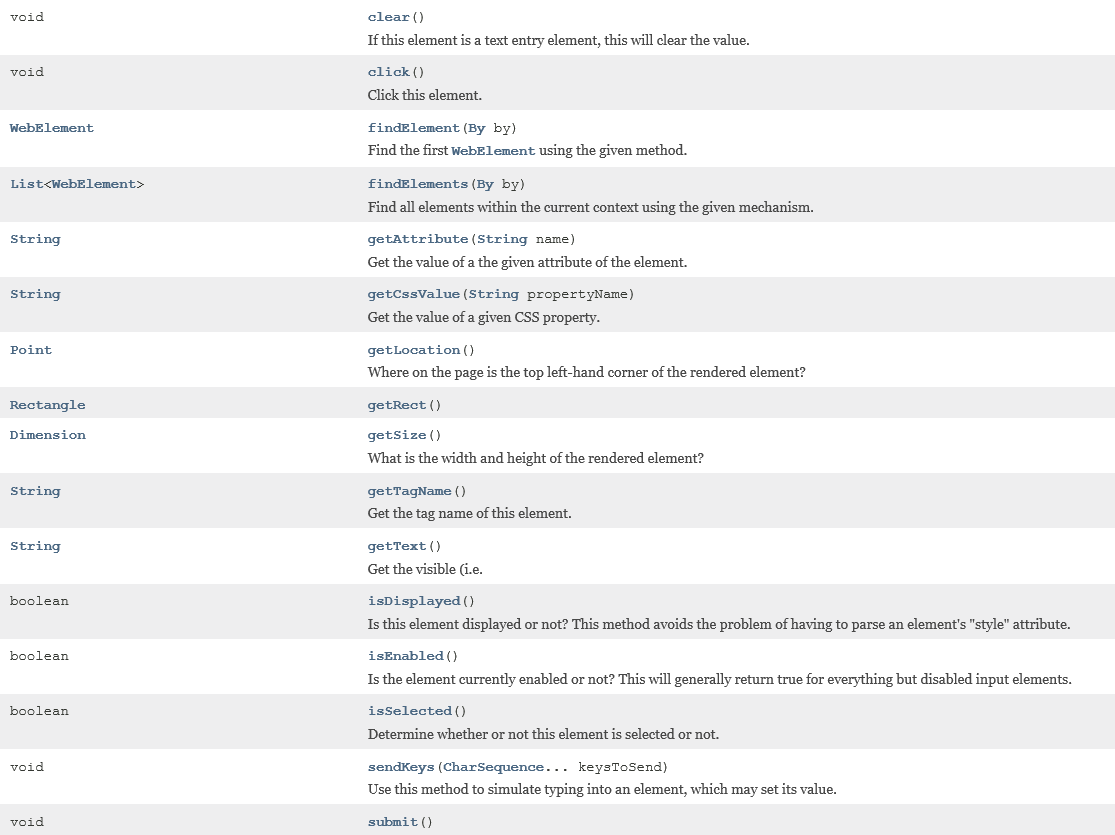

在WebDriver中,大多简单有效的页面交互的方法都是通过WebElement接口提供,最常用的操作页面元素方法有如下几个:
clear() --清除文本,如果是一个文本框
sendKeys(*value)--在元素上模拟键盘输入
click() -- 单击元素
System.setProperty("webdriver.firefox.bin", "D:/Program Files (x86)/Mozilla Firefox/firefox.exe");
System.setProperty("webdriver.gecko.driver", "E://selenium//geckodriver-v0.24.0-win64//geckodriver.exe");
WebDriver driver=new FirefoxDriver();
driver.get("http://www.baidu.com/");//向浏览器发送网址
WebElement txtbox=driver.findElement(By.id("kw")); //根据属性id找到百度输入框
CharSequence[] str={"selenium java"};
txtbox.sendKeys(str);//文本框输入内容
txtbox.clear();
CharSequence[] str1={"selenium python"};
txtbox.sendKeys(str1);
WebElement btn=driver.findElement(By.id("su")); //根据属性id=su找到百度一下搜索按钮
btn.click();//点击
CSDN新建文章为草稿
driver.get("https://mp.csdn.net/");
driver.findElement(By.linkText("富文本编辑器")).click();
driver.findElement(By.id("txtTitle")).click();
driver.findElement(By.id("txtTitle")).clear();
driver.findElement(By.id("txtTitle")).sendKeys("(一)草稿");
driver.findElement(By.id("7090333")).click();
driver.findElement(By.id("7173582")).click();//复选框
driver.findElement(By.id("selType")).click();
new Select(driver.findElement(By.id("selType"))).selectByVisibleText("原创");//select下拉菜单
driver.findElement(By.id("radChl")).click();
new Select(driver.findElement(By.id("radChl"))).selectByVisibleText("编程语言");
driver.findElement(By.id("btnDraft")).click();
driver.findElement(By.linkText("文章管理")).click();
driver.findElement(By.linkText("(一)草稿")).click();
二、常用方法
submit():用于提交表单,这里特别用于没有提交按钮的情况,例如搜索框输入关键字之后的“回车”操作,就可以通过submit()来提交搜索框的内容,与上面找到按钮进行对比
WebDriver driver=new FirefoxDriver();
driver.get("http://www.baidu.com/");//向浏览器发送网址
WebElement txtbox=driver.findElement(By.id("kw")); //根据属性id找到百度输入框
CharSequence[] str={"selenium java"};
txtbox.sendKeys(str);//文本框输入内容
txtbox.submit();
getSize() :返回元素的尺寸
getAttribute(name):获得属性值
isDisplayed():设置该元素是否用户可见
WebDriver driver=new FirefoxDriver();
driver.get("http://www.baidu.com/");//向浏览器发送网址
WebElement txtbox=driver.findElement(By.id("kw"));
System.out.println(txtbox.getAttribute("maxlength")); //获取元素的属性
System.out.println(txtbox.getSize()); //返回元素的尺寸
System.out.println(txtbox.isDisplayed());
三、鼠标操作
import org.openqa.selenium.interactions.Actions;
Actions类 右击、双击、悬停、指针拖动等操作
contextClick():右击
clickAndHold():鼠标悬停
move_to_element():鼠标悬停
doubleClick():双击
release():释放鼠标
perform():执行所有Actions中存储的行为
WebDriver driver=new FirefoxDriver();
driver.get("http://www.baidu.com/");
Actions action=new Actions(driver);
//hold鼠标
//clickAndHold:Clicks (without releasing) at the current mouse location.
action.clickAndHold(driver.findElement(By.name("tj_briicon"))).perform();
Thread.sleep(10000);
//释放鼠标
action.release(driver.findElement(By.name("tj_briicon"))).perform();
/*
WebDriver driver=new FirefoxDriver();
driver.get("http://www.baidu.com/");
Actions action=new Actions(driver);
//鼠标右键点击指定的元素
//perform:执行所有Actions中存储的行为,可以理解为对整个操作事件的提交操作
//action.contextClick(driver.findElement(By.id("su"))).perform();
//clickAndHold:Clicks (without releasing) at the current mouse location.
//action.clickAndHold(driver.findElement(By.name("tj_briicon"))).perform();
//鼠标移动 因为悬浮操作,和上面的效果一致
action.moveToElement(driver.findElement(By.name("tj_briicon"))).perform();
若要操作悬浮下拉菜单中选项,则要先move_to_element()再操作;否则,提示unable to locate xxxx

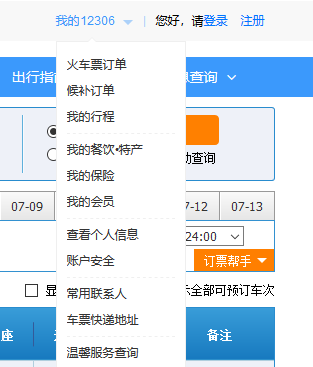

@Test //鼠标操作
public void testUntitledTestCase() throws Exception {
driver.get("https://kyfw.12306.cn/otn/leftTicket/init?linktypeid=dc&fs=北京,TSP&ts=呼和浩特,HHC&date=2019-06-24&flag=N,N,Y");
Actions action=new Actions(driver);
//点击并保持
WebElement element=driver.findElement(By.linkText("我的12306"));
action.moveToElement(element).perform();
WebElement element1=driver.findElement(By.linkText("温馨服务查询"));
action.click(element1).perform();
}
报错:WebDriverException: Message: TypeError: rect is undefined
原因:存在两个相同符合条件的元素
