【Deep Learning】SML部分代码阅读

SML中的边界抑制以及高斯平滑

边界平滑抑制类

class BoundarySuppressionWithSmoothing(nn.Module):
    """
    Apply boundary suppression and dilated smoothing  边界抑制，扩张平滑
    """

初始化

 def __init__(self, boundary_suppression=True, boundary_width=4, boundary_iteration=4,
                 dilated_smoothing=True, kernel_size=7, dilation=6):

定义一些参数

super(BoundarySuppressionWithSmoothing, self).__init__()
self.kernel_size = kernel_size						# 卷积核大小
self.dilation = dilation                            # 扩张
self.boundary_suppression = boundary_suppression    # 边界抑制
self.boundary_width = boundary_width               	# 边界宽度
self.boundary_iteration = boundary_iteration       	# 边界迭代

创建高斯核

sigma = 1.0
size = 7
# function为二维高斯分布的概率密度函数
gaussian_kernel = np.fromfunction(lambda x, y:
                           (1/(2*math.pi*sigma**2)) * math.e ** ((-1*((x-(size-1)/2)**2+(y-(size-1)/2)**2))/(2*sigma**2)),
                           (size, size))	# 构造高斯核 (7,7)    3 * sigma + 1
gaussian_kernel /= np.sum(gaussian_kernel)	# 除以高斯核中所有元素之和（加权平均，避免图像像素溢出）
gaussian_kernel = torch.Tensor(gaussian_kernel).unsqueeze(0).unsqueeze(0)
self.dilated_smoothing = dilated_smoothing	# 扩张平滑

\[lambda(x,y) = \frac{1}{2 * \pi * \sigma^2} exp(-\frac{(x - \frac{size-1}{2})^2 + (y - \frac{size-1}{2})^2}{2 * \sigma^2}) \]

numpy库中的 fromfunction：通过自定义的函数fun，形状shape，数据格式dtype -> 根据数组下标(x,y)生成每个位置的值，构成一个数组

• 函数参数 np.fromfunction(function, shape, dtype)

  • function：根据坐标变换成一个具体的值的函数

    def  function(x,y):
      	函数内部
    (x,y) 分别是以左上角为原点的坐标，x为行坐标，y为列坐标，表示第x行y列。


  • shape(a,b)：表示数组array的大小，a行b列。

  • dtype: 表示数组的数类型

定义两层卷积 (in_channel, out_channel, k, s)

• (1, 1, 3, 1) 权重矩阵是全1矩阵
• (1, 1, 7, 1) 权重矩阵是高斯核

self.first_conv = nn.Conv2d(1, 1, kernel_size=3, stride=1, bias=False)
self.first_conv.weight = torch.nn.Parameter(torch.ones_like((self.first_conv.weight)))

self.second_conv = nn.Conv2d(
    1, 1, kernel_size=self.kernel_size, stride=1, dilation=self.dilation, bias=False)
self.second_conv.weight = torch.nn.Parameter(gaussian_kernel)

前向传播

def forward(self, x, prediction=None):

if len(x.shape) == 3:
    x = x.unsqueeze(1)	# 如果是3维，扩充1维
x_size = x.size()
# B x 1 x H x W
assert len(x.shape) == 4
out = x

分支1：需要边界抑制

if self.boundary_suppression:
    # obtain the boundary map of width 2 by default 默认获取宽度为2的边界图
    # this can be calculated by the difference of dilation and erosion 这可以通过膨胀和腐蚀的差异来计算
    boundaries = find_boundaries(prediction.unsqueeze(1))	# 寻找边界
    expanded_boundaries = None
    if self.boundary_iteration != 0:
        assert self.boundary_width % self.boundary_iteration == 0	# 边界宽度要被迭代次数整除
        diff = self.boundary_width // self.boundary_iteration		# 每次增加的宽度

边界抑制主要过程

for iteration in range(self.boundary_iteration):
    if len(out.shape) != 4:
        out = out.unsqueeze(1)
    prev_out = out

1. 得到边界

   # if it is the last iteration or boundary width is zero 最后一次迭代或者边界宽度为0后，停止扩展宽度
   if self.boundary_width == 0 or iteration == self.boundary_iteration - 1:
       expansion_width = 0
   # reduce the expansion width for each iteration	否则就在每个迭代不断货站宽度
   else:
       expansion_width = self.boundary_width - diff * iteration - 1
       # expand the boundary obtained from the prediction (width of 2) by expansion rate
       expanded_boundaries = expand_boundaries(boundaries, r=expansion_width)	# 根据扩展宽度扩展边界，具体方法在后面的函数详细解释中


2. 反转边界 -> 获得非边界掩码

   # invert it so that we can obtain non-boundary mask
   non_boundary_mask = 1. * (expanded_boundaries == 0)	# 反转边界，得到非边界掩码。非边界为1，边界为0


3. 使得边界区域 to 0

   f_size = 1
   num_pad = f_size

   # making boundary regions to 0
   x_masked = out * non_boundary_mask	# 输入图像 * 非边界掩码 -> 得到非边界区域(1)
   x_padded = nn.ReplicationPad2d(num_pad)(x_masked)
   non_boundary_mask_padded = nn.ReplicationPad2d(num_pad)(non_boundary_mask)


   class torch.nn.ReplicationPad2d(padding)

   padding（int ，tuple）填充的大小。如果为 int ，则在所有边界中使用相同的填充。
   如果是4 tuple ，则使用（padding_left, padding_right, padding_top, padding_bottom)

4. 求和感受野中的值

   # sum up the values in the receptive field
   y = self.first_conv(x_padded)
   # count non-boundary elements in the receptive field
   num_calced_elements = self.first_conv(non_boundary_mask_padded)
   num_calced_elements = num_calced_elements.long()


5. 求平均

   # take an average by dividing y by count
   # if there is no non-boundary element in the receptive field,
   # keep the original value
   avg_y = torch.where((num_calced_elements == 0), prev_out, y / num_calced_elements)
   out = avg_y


6. 更新边界

   # update boundaries only
   out = torch.where((non_boundary_mask == 0), out, prev_out)
   del expanded_boundaries, non_boundary_mask


第二步骤：扩张平滑

# second stage; apply dilated smoothing
if self.dilated_smoothing == True:
    out = nn.ReplicationPad2d(self.dilation * 3)(out)
    out = self.second_conv(out)

return out.squeeze(1)

分支1:不需要边界抑制

else:
    if self.dilated_smoothing == True:	# 扩张平滑
        out = nn.ReplicationPad2d(self.dilation * 3)(out)
        out = self.second_conv(out)
    else:
        out = x

return out.squeeze(1)

find_boundaries

def find_boundaries(label):
    """
    Calculate boundary mask by getting diff of dilated and eroded prediction maps
    """
    assert len(label.shape) == 4
    boundaries = (dilation(label.float(), selem_dilation) != erosion(label.float(), selem)).float()
    ### save_image(boundaries, f'boundaries_{boundaries.float().mean():.2f}.png', normalize=True)

    return boundaries

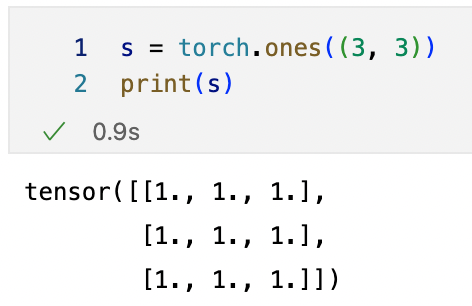

selem = torch.ones((3, 3)).cuda() # 是一个(3,3)大小的全1的张量，腐蚀卷集核
selem_dilation = torch.FloatTensor(ndi.generate_binary_structure(2, 1)).cuda() # 膨胀卷积核

腐蚀：

膨胀：

膨胀(dilation) & 腐蚀(erosion)

这是两种基本的形态学运算，主要用来寻找图像中的极大区域和极小区域。

• 膨胀类似与 '领域扩张' ，将图像的高亮区域或白色部分进行扩张，其运行结果图比原图的高亮区域更大。
• 腐蚀类似 '领域被蚕食' ，将图像中的高亮区域或白色部分进行缩减细化，其运行结果图比原图的高亮区域更小。

具体过程：定义一个卷积核，对图片进行卷积。膨胀做“或”操作，扩大1的范围；腐蚀做“与”操作，减少1的数量

dilation(image, kernel) # 图像，卷积核

erosion(image, kernel）

对标签图分别做膨胀腐蚀后，不一样的位置，就是边界。用1表示

expand_boundaries

def expand_boundaries(boundaries, r=0):
    """
    Expand boundary maps with the rate of r
    """
    if r == 0:
        return boundaries
    expanded_boundaries = dilation(boundaries, d_ks[r])	# 做膨胀操作
    ### save_image(expanded_boundaries, f'expanded_boundaries_{r}_{boundaries.float().mean():.2f}.png', normalize=True)
    return expanded_boundaries

关于d_ks[]:

d_k1 = torch.zeros((1, 1, 2 * 1 + 1, 2 * 1 + 1)).cuda()
d_k2 = torch.zeros((1, 1, 2 * 2 + 1, 2 * 2 + 1)).cuda()
d_k3 = torch.zeros((1, 1, 2 * 3 + 1, 2 * 3 + 1)).cuda()
d_k4 = torch.zeros((1, 1, 2 * 4 + 1, 2 * 4 + 1)).cuda()
d_k5 = torch.zeros((1, 1, 2 * 5 + 1, 2 * 5 + 1)).cuda()
d_k6 = torch.zeros((1, 1, 2 * 6 + 1, 2 * 6 + 1)).cuda()
d_k7 = torch.zeros((1, 1, 2 * 7 + 1, 2 * 7 + 1)).cuda()
d_k8 = torch.zeros((1, 1, 2 * 8 + 1, 2 * 8 + 1)).cuda()
d_k9 = torch.zeros((1, 1, 2 * 9 + 1, 2 * 9 + 1)).cuda()

d_ks = {1: d_k1, 2: d_k2, 3: d_k3, 4: d_k4,
        5: d_k5, 6: d_k6, 7: d_k7, 8: d_k8, 9: d_k9}


for k, v in d_ks.items():
    v[:, :, k, k] = 1
    for i in range(k):
        v = dilation(v, selem_dilation)
    d_ks[k] = v.squeeze(0).squeeze(0)

    print(f'dilation kernel at {k}:\n\n{d_ks[k]}')

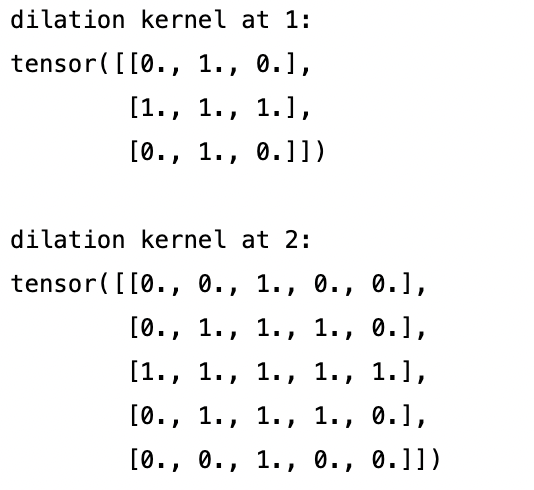

这些卷积核的样子大致如下，以此类推
