Keepalived+Nginx实现高可用负载均衡

最近刚学习了负载均衡的知识，昨天实战了一下，但是遇到了一些奇怪的问题，查找无方之后，自己探索摸出了原因，所以今天就带大家实战一遍，避免走坑。

提前准备
VMware、 CentOS7(两台)

方案规划

VIP	IP	Nginx port	主从
192.168.100.241	192.168.100.70	80	master
192.168.100.241	192.168.100.3	80	backup

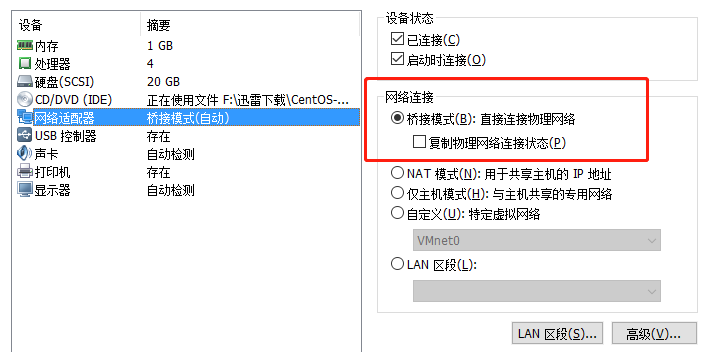

一、虚拟机的网络适配器修改为桥接模式

二、更新yum

Copy
$ yum upgrade

三、安装依赖

Copy
$ yum install gcc gcc-c++ make automake autoconf libtool pcre pcre-devel zlib zlib-devel openssl openssl-devel

四、安装wget

Copy
$ yum install -y wget

五、下载Nginx、Keepalived

Copy
$ cd /home
$ wget http://nginx.org/download/nginx-1.13.0.tar.gz
$ wget https://www.keepalived.org/software/keepalived-2.0.20.tar.gz

六、解压

Copy
$ tar -zxvf nginx-1.13.0.tar.gz
$ tar -zxvf keepalived-2.0.20.tar.gz

七、安装Nginx
① 创建Nginx目录

Copy
$ mkdir /usr/local/nginx

② 进入Nginx解压文件目录，配置安装路径

Copy
$ cd /home/nginx-1.13.0
$ ./configure --prefix=/usr/local/nginx
# 编译，执行配置: 考虑到后续安装ssl证书，可以添加下面两个模块
$ ./configure --prefix=/usr/local/nginx --with-http_stub_status_module --with-http_ssl_module

③ 编译安装

Copy
$ make && make install

④ 设置Nginx开机自启

Copy
$ vi /etc/rc.local

#末尾加入
/usr/local/nginx/sbin/nginx

⑤ 修改页面标识

Copy
$ cd /usr/local/nginx/html
$ vi /index.html

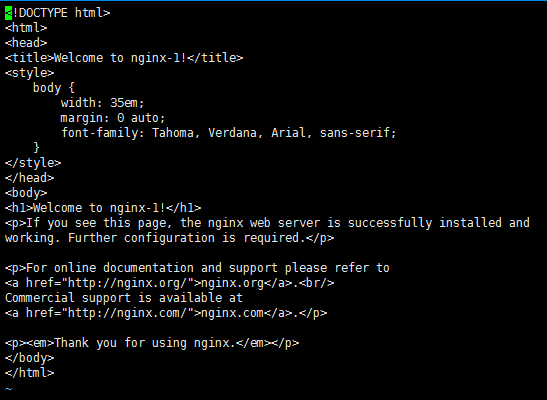

如图，在h1标签中的nginx后加上-1，另一台的加上-2

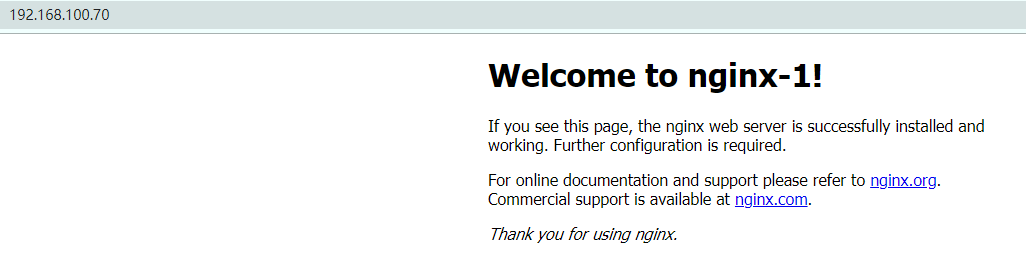

⑥ 启动nignx

Copy
$ ./usr/local/nginx/sbin/nginx

八、安装Keepalived
① 创建keepalived目录

Copy
$ mkdir /usr/local/keepalived

② 进入keepalived解压目录，配置安装路径

Copy
$ cd /home/keepalived-2.0.20
$ ./configure --prefix=/usr/local/keepalived

③ 编译安装

Copy
$ make && make install

④ 创建目录，复制keepalived的配置到该目录

Copy
$ mkdir /etc/keepalived
$ cp /usr/local/keepalived/etc/keepalived/keepalived.conf /etc/keepalived/

⑤ 将keepalived安装service服务

Copy
$ cp /home/keepalived-2.0.20/keepalived/etc/init.d/keepalived /etc/init.d/
$ cp /usr/local/keepalived/etc/sysconfig/keepalived /etc/sysconfig/
# 以下两步如果提示已存在则忽略
$ ln -s /usr/local/sbin/keepalived /usr/sbin/
$ ln -s /usr/local/keepalived/sbin/keepalived /sbin/

⑥ 设置keepalived服务开机启动

Copy
$ chkconfig keepalived on

⑦ 编辑keepalived配置(192.168.100.70)

Copy
$ vi /etc/keepalived.conf

! Configuration File for keepalived

global_defs {
   router_id nginx_master
}

vrrp_script chk_nginx {
    script "/etc/keepalived/nginx_check.sh"
    interval 2 ## 检测时间间隔
    weight -20 ## 如果条件成立，权重 -20
}

vrrp_instance VI_1 {
    state MASTER
    interface ens33
    virtual_router_id 58
    mcast_src_ip 192.168.100.70
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    track_script {
        chk_nginx
    }
    virtual_ipaddress {
        192.168.100.241
    }
}

⑧ 编辑keepalived配置(192.168.100.3)

Copy
$ vi /etc/keepalived.conf

! Configuration File for keepalived

global_defs {
   router_id nginx_backup_01
}

vrrp_script chk_nginx {
    script "/etc/keepalived/nginx_check.sh"
    interval 2
    weight -20
}

vrrp_instance VI_1 {
    state BACKUP
    interface ens33
    virtual_router_id 58
    mcast_src_ip 192.168.100.3
    priority 90
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    track_script {
        chk_nginx
    }
    virtual_ipaddress {
        192.168.100.241
    }
}

特别注意interface的值要跟你的网卡（外网）名称一样, ip addr 可查看到名称
⑨ 编写Nginx状态检测脚本

Copy
$ touch /etc/keepalived/nginx_check.sh
$ vi /etc/keepalived/nginx_check.sh

#!/bin/bash
A=`ps -C nginx –no-header |wc -l`
if [ $A -eq 0 ];then
/usr/local/nginx/sbin/nginx
sleep 2
if [ `ps -C nginx --no-header |wc -l` -eq 0 ];then
        killall keepalived
fi
fi

⑩ 给nginx_check.sh加上执行权限

Copy
$ chmod +x /etc/keepalived/nginx_check.sh

⑪ 启动keepalived

Copy
$ service keepalived start
Starting keepalived (via systemctl):                       [  确定  ]

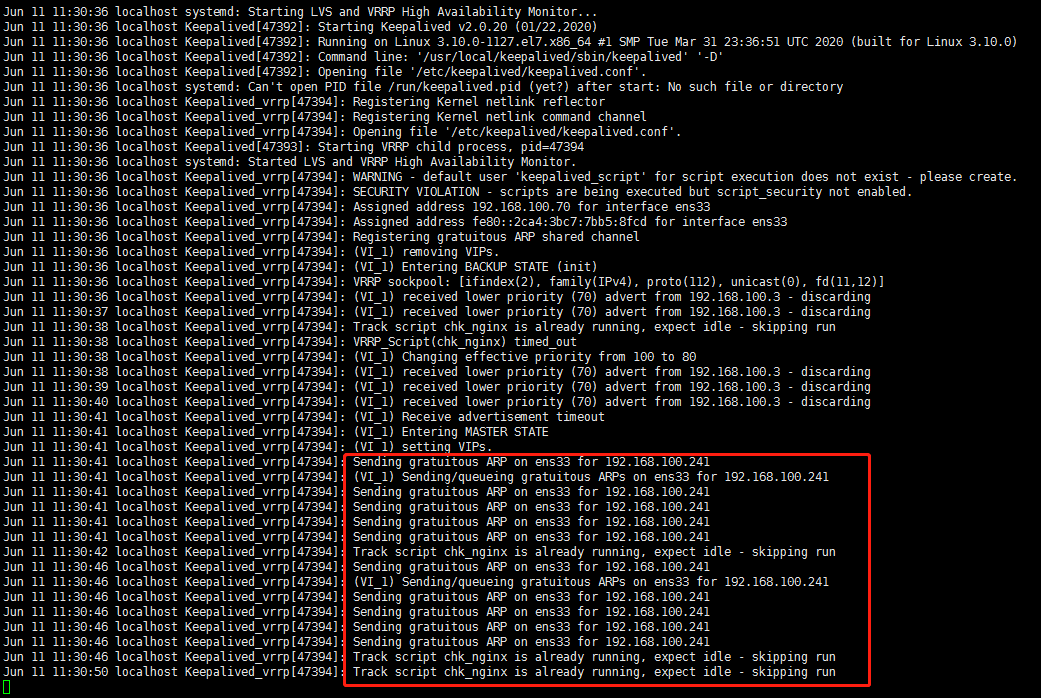

⑫ 查看日志

Copy
$ tail -fn 200 /var/log/messages

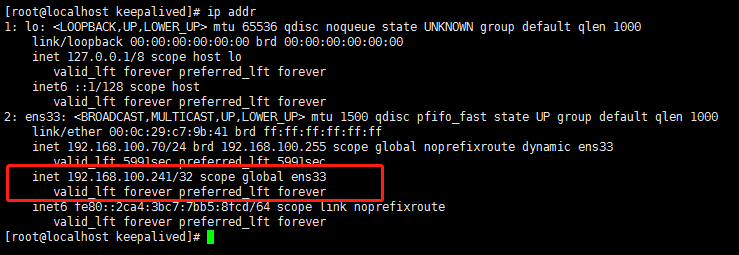

⑬ 查看网卡信息

Copy
$ ip addr

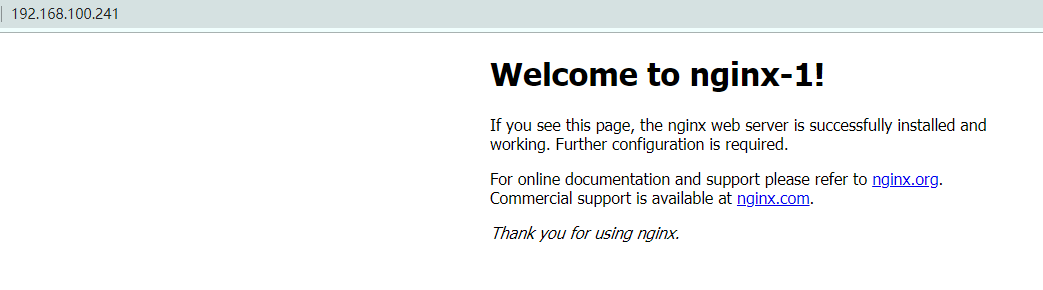

⑭ 在浏览器上输入VIP地址

⑮ 关闭master(192.168.100.70)的Keepalived和Nginx

Copy
$ service keepalived stop
$ /usr/local/nginx/sbin/nginx -s stop

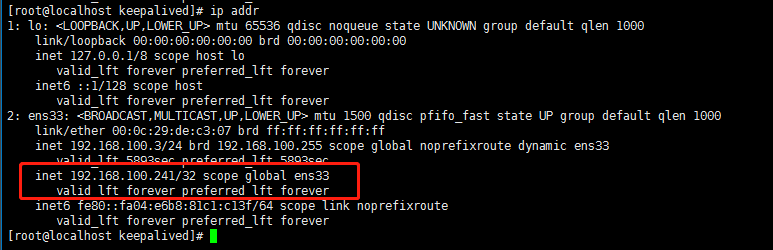

⑯ 查看backup(192.168.100.3)的网卡信息

Copy
$ ip addr

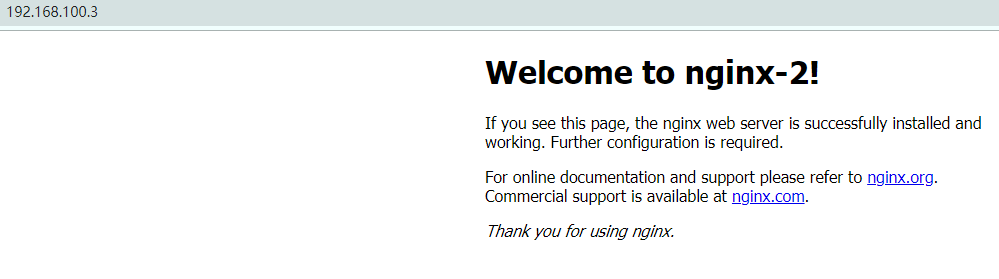

⑰ 刷新浏览器
