12_线性层及其他层

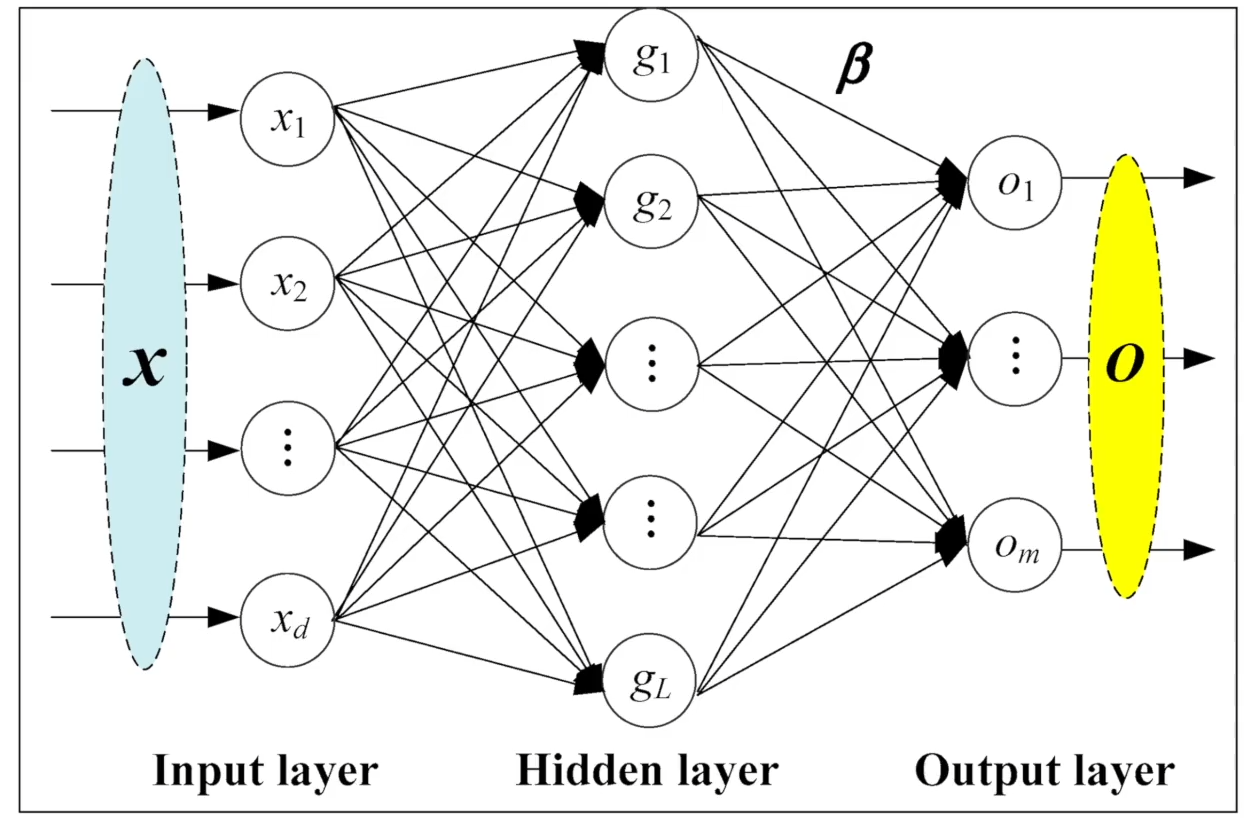

1. 神经网络

① 线性神经网络计算Z=Wx+b,神经网络训练的就是权重W与偏置b

2. 线性拉平

import torch
import torchvision
from torch import nn
from torch.nn import ReLU
from torch.nn import Sigmoid
from torch.utils.data import DataLoader
from torch.utils.tensorboard import SummaryWriter

dataset = torchvision.datasets.CIFAR10("./dataset",train=False,transform=torchvision.transforms.ToTensor(),download=True)
dataloader = DataLoader(dataset, batch_size=64)

for data in dataloader:
    imgs, targets = data
    print(imgs.shape)
    output = torch.reshape(imgs,(1,1,1,-1)) # 将元素变为torch.Size([1, 1, 1, 196608])
    print(output.shape)

3. 线性层

import torch
import torchvision
from torch import nn
from torch.nn import Linear
from torch.utils.data import DataLoader
from torch.utils.tensorboard import SummaryWriter

dataset = torchvision.datasets.CIFAR10("./dataset",train=False,transform=torchvision.transforms.ToTensor(),download=True)
dataloader = DataLoader(dataset, batch_size=64,drop_last=True)

class Tudui(nn.Module):
    def __init__(self):
        super(Tudui, self).__init__()

        # Linear说明
        # def __init__(self, in_features: int, 输入元素个数
        #               out_features: int, 输出元素个数
        #               bias: bool = True, 是否加偏置
        #               device=None,
        #               dtype=None ) 设置数据类型整形或浮点
        self.linear1 = Linear(196608,10)

    def forward(self, input):
        output = self.linear1(input)
        return output

tudui = Tudui()
writer = SummaryWriter("logs")
step = 0

for data in dataloader:
    imgs, targets = data
    print(imgs.shape)
    writer.add_images("input", imgs, step)
    output = torch.reshape(imgs,(1,1,1,-1)) # 方法一：拉平
    print(output.shape)
    output = tudui(output)
    print(output.shape)
    writer.add_images("output", output, step)
    step = step + 1

① 在 Anaconda 终端里面，激活py3.6.3环境，再输入 tensorboard --logdir=C:\Users\wangy\Desktop\03CV\logs 命令，将网址赋值浏览器的网址栏，回车，即可查看tensorboard显示日志情况。

import torch
import torchvision
from torch import nn
from torch.nn import Linear
from torch.utils.data import DataLoader
from torch.utils.tensorboard import SummaryWriter

dataset = torchvision.datasets.CIFAR10("./dataset",train=False,transform=torchvision.transforms.ToTensor(),download=True)
dataloader = DataLoader(dataset, batch_size=64,drop_last=True)

class Tudui(nn.Module):
    def __init__(self):
        super(Tudui, self).__init__()

        # Linear说明
        # def __init__(self, in_features: int, 输入元素个数
        #               out_features: int, 输出元素个数
        #               bias: bool = True, 是否加偏置
        #               device=None,
        #               dtype=None) 设置数据类型整形或浮点
        self.linear1 = Linear(196608,10)

    def forward(self, input):
        output = self.linear1(input)
        return output

tudui = Tudui()
writer = SummaryWriter("logs")
step = 0

for data in dataloader:
    imgs, targets = data
    print(imgs.shape)
    writer.add_images("input", imgs, step)

    output = torch.flatten(imgs)  # 方法二：拉平。展开为一维
    print(output.shape)
    output = tudui(output)
    print(output.shape)
    step = step + 1
