数据可视化之二手房数据实战（一）

1、导包

import pandas as pd
from pyecharts.charts import Bar, Pie, Map, Line, Scatter
from pyecharts import options as opts
from pyecharts.render import make_snapshot
from snapshot_selenium import snapshot
from pyecharts.globals import CurrentConfig

2、读取数据

df = pd.read_excel("./xlsx/二手房数据.xlsx")

3、数据清洗

# 查看数据前5列
print(df.head())
# 查看数据表结构
print(df.describe())
# 查看数据为空值的总数
print(df.isnull().sum())
# 将电梯这一列有空值的数据填充为未知，inplace=True在原数据进行修改
print(df["电梯"].fillna("未知", inplace=True))
# 在次查看是否有空值
print(df.isnull().sum())

4、数据可视化

可视化展示-北京各城区二手房数量地图分布

# 根据市区进行分组后计算小区的数量
nums = df.groupby("市区")["小区"].agg("count")
# 将这市区转换为list的列表
citys = nums.index.tolist()
# 每个值加上区
city = [i + "区" for i in citys]
# 小区的数量转换为tolist()
xqnum = nums.values.tolist()


map = (
    Map(init_opts=opts.InitOpts(bg_color="white"))
        .add("", [list(z) for z in zip(city, xqnum)], "北京")
        .set_global_opts(title_opts=opts.TitleOpts(title="北京市二手房区分布"),
                         visualmap_opts=opts.VisualMapOpts(is_show=True, max_=3000))
)
# 如果只需要HTML5代码不要图片选第一个，要图片选第二个
# map.render("beiJingMap.html")
make_snapshot(snapshot, map.render("beiJingMap.html"), "./beiJingMap.png")

可视化展示-北京各城区二手房数量-平均价格柱状图

prices = df.groupby("市区")["价格(万元)"].agg("mean")
prices = prices.round(2) #只要两位小数
price = prices.values.tolist()

bar = (
    Bar(init_opts=opts.InitOpts(bg_color="white"))
        .add_xaxis(citys)
        .add_yaxis("数量", xqnum)
        .extend_axis(yaxis=opts.AxisOpts(is_show=True, max_=900, min_=200, name="价格(万元)"))
        .set_global_opts(yaxis_opts=opts.AxisOpts(name="数量"),
                         title_opts=opts.TitleOpts(title="各城区二手房数量-平均价格柱状图"),
                         tooltip_opts=opts.TooltipOpts(is_show=True, trigger="axis", axis_pointer_type="cross"),
                         xaxis_opts=opts.AxisOpts(axispointer_opts=opts.AxisPointerOpts(is_show=True, type_="shadow")))
)

line = (
    Line()
        .add_xaxis(citys)
        .add_yaxis("价格", price, z=10, yaxis_index=1)
)
bar.overlap(line)

make_snapshot(snapshot, bar.render("./Mean房价数量.html"), "./Mean房价数量.png")

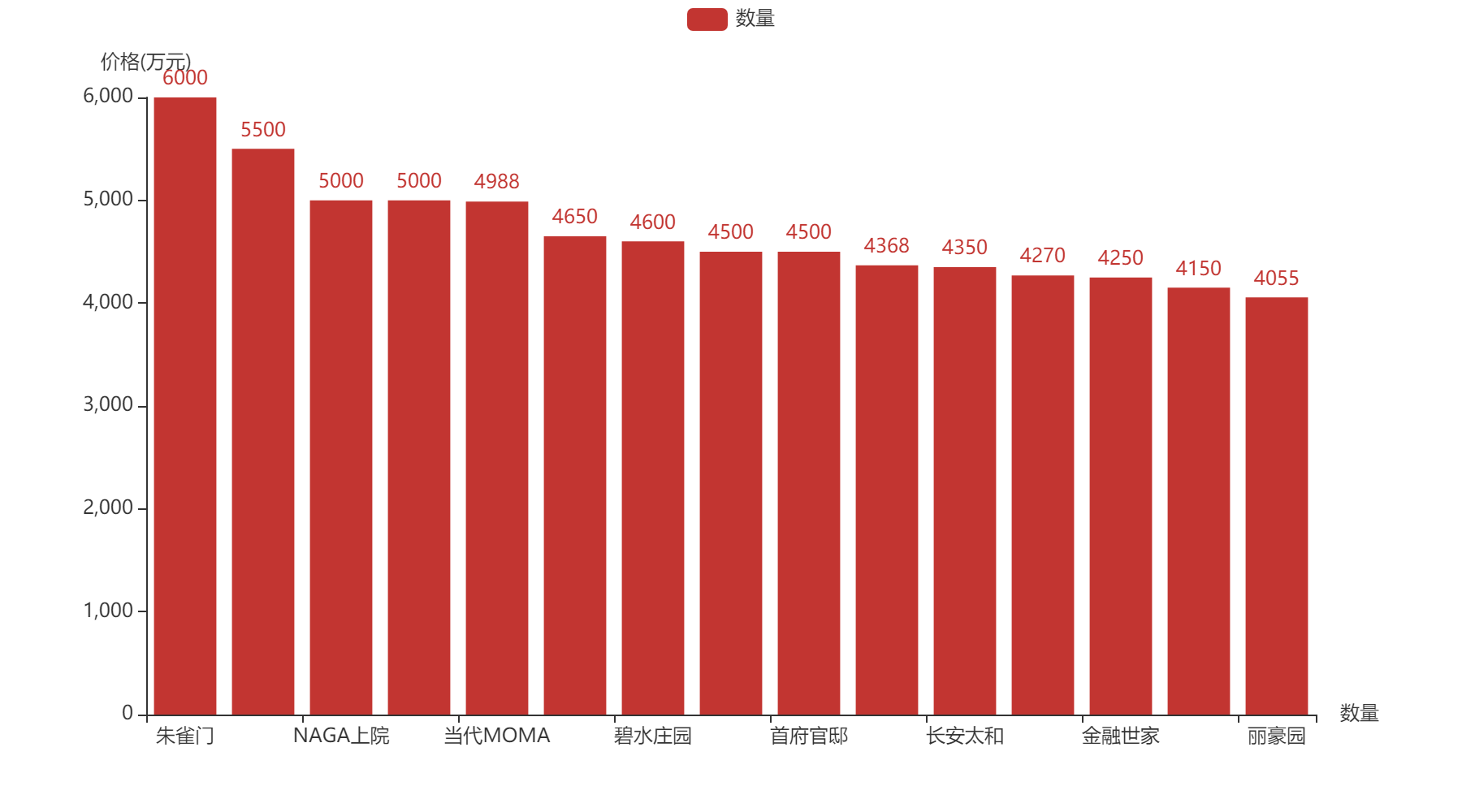

可视化展示-二手房价格最高的TOP15

df.sort_values(by="价格(万元)", ascending=False, inplace=True)
top_price = df["价格(万元)"].apply("{0:.0f}".format).head(15).tolist()
xiaoqu = df["小区"].head(15).tolist()

top_bar = (
    Bar(init_opts=opts.InitOpts(bg_color="white"))
        .add_xaxis(xiaoqu)
        .add_yaxis("数量", top_price)
        .set_global_opts(xaxis_opts=opts.AxisOpts(name="数量"),
                         yaxis_opts=opts.AxisOpts(name="价格(万元)"))
)

make_snapshot(snapshot,top_bar.render("./TOP15房价最高.html"),"./TOP15房价最高.png")

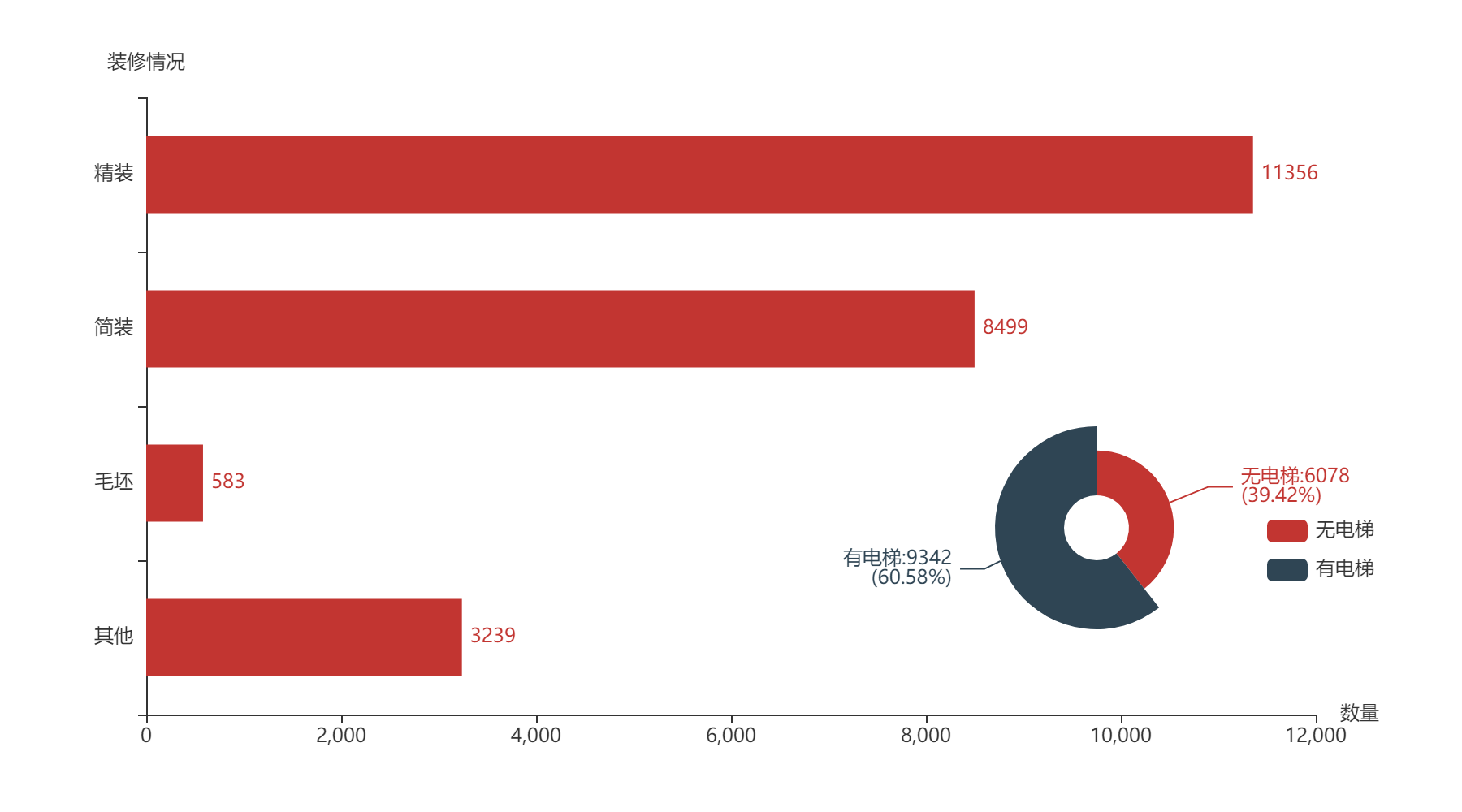

装修情况-有无电梯（玫瑰图）

# 计算Bar数据
zhuangxiu = df.groupby("装修情况")["装修情况"].agg("count")
x_zx = zhuangxiu.index.tolist()
y_num = zhuangxiu.values.tolist()

# 计算圆数据
dianti = df.groupby("电梯")["电梯"].agg("count")
youdt = dianti.index.tolist()
dt_num = dianti.values.tolist()
youdt.pop()
dt_num.pop()
zx_bar = (
    Bar(init_opts=opts.InitOpts(bg_color="white"))
        .add_xaxis(x_zx)
        .add_yaxis("", y_num, category_gap="50%")
        .set_global_opts(legend_opts=opts.LegendOpts(pos_left='85%', pos_top="63%", orient="scroll"),
                         yaxis_opts=opts.AxisOpts(name="装修情况"),
                         xaxis_opts=opts.AxisOpts(name="数量"))
        .set_series_opts(label_opts=opts.LabelOpts(position="right"))

        .reversal_axis()
)
zx_pie = (
    Pie()
        .add("", [list(z) for z in zip(youdt, dt_num)], radius=["8%", "25%"], rosetype="radius", center=["75%", "65%"])
        .set_series_opts(label_opts=opts.LabelOpts(formatter="{b}:{c}\n({d}%)"))
)
zx_bar.overlap(zx_pie)

make_snapshot(snapshot, zx_bar.render("./装修情况.html"), "./装修情况.png")

二手房总价与面积（散点图）

jg = df["价格(万元)"].tolist()
mj = df["面积(㎡)"].tolist()

scatter = (
    Scatter(init_opts=opts.InitOpts(bg_color="white"))
        .add_xaxis(mj)
        .add_yaxis("", jg)
        .set_global_opts(xaxis_opts=opts.AxisOpts(type_="value", name="面积(㎡)"),
                         yaxis_opts=opts.AxisOpts(name="价格(万元)"))

)

make_snapshot(snapshot,scatter.render("./散点图.html"),"./散点图.png")
