【万里征程——Windows App开发】ListView&GridView之分组

本文承接【万里征程——Windows App开发】ListView&GridView之添加数据。

在上一篇中我们已经了解了怎样将数据绑定到ListView或GridView，但既然要用到这两个控件往往是因为数据繁多，那么几乎就不可避免的要让其能够分组。我们所绑定的数据源可能是项列表，其中的每个项甚至还有其自己的项，那么问题就来了。

一时不会也想不出什么宏伟的例子，就做一个简单的闹钟的时间表的ListView和GridView吧。那么先在项目中添加一个类，最好在Shared下。内容都是很简易的，闹钟的标题、时间、备注等，为了增加一级目录就加了一个AlarmMode，就算作学习和生活吧，学习生活两不误……

public class Alarm
{
    public string Title { get; set; }
    public DateTime AlarmClockTime { get; set; }
    public string Description { get; set; }
    public string AlarmMode { get; set; }
}

public class AlarmMode
{
   public AlarmMode()
   {
       alarmMode = new ObservableCollection<Alarm>();
   }
   public string Name { get; set; }
   public ObservableCollection<Alarm> alarmMode { get; private set; }
}

首先嘛，先来定义一个全局的时间，然后在页面加载时加载两个函数（将在下一步定义）。

    DateTime globalTime;

protected override void OnNavigatedTo(NavigationEventArgs e)
{
    DateTime.TryParse("1/1/2115", out globalTime);
    AddAlarm();
    AddAlarmMode();
}

一大波数据正在靠近！

        private void AddAlarm()
        {
            List<Alarm> listAlarm = new List<Alarm>();

            listAlarm.Add(new Alarm()
            {
                Title = "Alarm1",
                Description = "First Alarm",
                AlarmClockTime = globalTime.AddHours(1),
                AlarmMode = "Alarm In Life"
            });
            listAlarm.Add(new Alarm()
            {
                Title = "Alarm2",
                Description = "Second Alarm",
                AlarmClockTime = globalTime.AddHours(11),
                AlarmMode = "Alarm In Life"
            });
            listAlarm.Add(new Alarm()
            {
                Title = "Alarm3",
                Description = "Third Alarm",
                AlarmClockTime = globalTime.AddDays(1),
                AlarmMode = "Alarm In Life"
            });

            listAlarm.Add(new Alarm()
            {
                Title = "Alarm1",
                Description = "First Alarm",
                AlarmClockTime = globalTime.AddHours(12),
                AlarmMode = "Alarm In Study"
            });
            listAlarm.Add(new Alarm()
            {
                Title = "Alarm2",
                Description = "Second Alarm",
                AlarmClockTime = globalTime.AddHours(15),
                AlarmMode = "Alarm In Study"
            });
            listAlarm.Add(new Alarm()
            {
                Title = "Alarm3",
                Description = "Third Alarm",
                AlarmClockTime = globalTime.AddMonths(1),
                AlarmMode = "Alarm In Study"
            });

            ar alarmSetting = from ala in listAlarm
                               group ala
                               by ala.AlarmMode
                               into alaSetting
                               orderby alaSetting.Key
                               select alaSetting;
            collectionVSAlarm.Source = alarmSetting;
        }

        private void AddAlarmMode()
        {
            List<AlarmMode> listAlarmMode = new List<AlarmMode>();

            AlarmMode am1 = new AlarmMode();
            am1.Name = "Alarm In Life";
            am1.alarmMode.Add(new Alarm()
            {
                Title = "Alarm1",
                Description = "First Alarm",
                AlarmClockTime = globalTime.AddHours(1),
            });
            am1.alarmMode.Add(new Alarm()
            {

                Title = "Alarm2",
                Description = "Second Alarm",
                AlarmClockTime = globalTime.AddHours(11),
            });
            am1.alarmMode.Add(new Alarm()
            {
                Title = "Alarm3",
                Description = "Third Alarm",
                AlarmClockTime = globalTime.AddDays(1),
            });
            listAlarmMode.Add(am1);

            AlarmMode am2 = new AlarmMode();
            am2.Name = "Alarm In Study";
            am2.alarmMode.Add(new Alarm()
            {
                Title = "Alarm1",
                Description = "First Alarm",
                AlarmClockTime = globalTime.AddHours(12),
            });
            am2.alarmMode.Add(new Alarm()
            {
                Title = "Alarm2",
                Description = "Second Alarm",
                AlarmClockTime = globalTime.AddHours(15),
            });
            am2.alarmMode.Add(new Alarm()
            {
                Title = "Alarm3",
                Description = "Third Alarm",
                AlarmClockTime = globalTime.AddMonths(1),
            });
            listAlarmMode.Add(am2);

            collectionVSAlarmMode.Source = listAlarmMode;
        }

这些数据都是乱七八糟啦，大家凑合着看啦。这是两个函数，数据我都是用List<>来定义的，将数据通过Add函数添加到listAlarm和listAlarmMode中即可。最后再从listAlarm中根据AlarmMode挑出数据到alaSetting，同时还要根据Key值进行排序最后选出并连接到collectionVSAlarm的Source属性中。这个是需要在MainPage.xaml中定义的哦，就像

    <UserControl.Resources>
        <CollectionViewSource x:Name="collectionVSAlarm"     IsSourceGrouped="True"/>
        <CollectionViewSource x:Name="collectionVSAlarmMode"     IsSourceGrouped="True" ItemsPath="alarmMode"/>
    </UserControl.Resources>

然后我们还需要创建一个ListGridGroupStyle类来继承GroupStyleSelector，重载它的SelectGroupStyleCore方法，并且返回ListGridGroupStyleResource资源，这个资源在博客后文中有定义，其定义在App.xaml中。相应的代码如下咯：

    public class ListGridGroupStyle : GroupStyleSelector
    {
        protected override GroupStyle SelectGroupStyleCore(object group, uint level)
        {
            return (GroupStyle)App.Current.Resources["ListGridGroupStyleResource"];
        }
    }

方法重载好之后就需要在前面的UserControl.Resources中加上以下这条代码啦。

    <local:ListGridGroupStyle x:Key="ListGridGroupStyleResource"/>

然后我们来一系列的基本样式到App.xaml中就好啦，关于资源文件的使用我们在后面会系统的来学习。这里的DataTemplate和GroupStyle都在资源字典中，前者是Template模板，后者是Style风格。内容的排版大家都随意啦，记得设置好Key值。

    <Application.Resources>
        <ResourceDictionary>
            <DataTemplate x:Key="dataTemplateListView">
                <StackPanel Width="700" Margin="10">
                    <StackPanel Orientation="Horizontal">
                        <TextBlock Text="{Binding Title}" FontWeight="Bold" Margin="12"/>
                        <TextBlock Text="{Binding AlarmClockTime}" TextWrapping="NoWrap" Margin="12"/>
                        <TextBlock Text="{Binding Description}" TextWrapping="NoWrap" Margin="12"/>
                    </StackPanel>

                </StackPanel>
            </DataTemplate>

            <GroupStyle x:Key="ListGridGroupStyleResource">
                <GroupStyle.HeaderTemplate>
                    <DataTemplate>
                        <Grid Background="LightGray"  >
                            <TextBlock Text='{Binding Key}' Foreground="CornflowerBlue" Margin="12"  />
                        </Grid>
                    </DataTemplate>
                </GroupStyle.HeaderTemplate>
            </GroupStyle>
        </ResourceDictionary>
    </Application.Resources>

那么这些各种资源都定义好了之后就在MainPage.xaml把下面这些敲进去。各种资源的调用在这里尤其需要注意，其实对于稍微复杂一丁点的程序而言，名称就已经变得让人崩溃了。所以拥有一个良好的命名习惯很重要。

    <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="auto"/>
            <ColumnDefinition Width="auto"/>
        </Grid.ColumnDefinitions>

        <GridView Grid.Column="0" ItemsSource="{Binding Source={StaticResource collectionVSAlarmMode}}"
                  Margin="12,120,12,12" MaxHeight="600" >
            <GridView.ItemTemplate>
                <DataTemplate>
                    <StackPanel Margin="18">
                        <TextBlock Text="{Binding Title}" FontWeight="ExtraBold"   />
                        <TextBlock Text="{Binding AlarmClockTime}"  FontWeight="Light" TextWrapping="NoWrap"  />
                        <TextBlock Text="{Binding Description}" TextWrapping="NoWrap"  />
                    </StackPanel>
                </DataTemplate>
            </GridView.ItemTemplate>
            <GridView.ItemsPanel>
                <ItemsPanelTemplate>
                    <ItemsWrapGrid MaximumRowsOrColumns="2"/>
                </ItemsPanelTemplate>
            </GridView.ItemsPanel>

            <GridView.GroupStyle>
                <GroupStyle>
                    <GroupStyle.HeaderTemplate>
                        <DataTemplate>
                            <Grid Background="Green" Margin="12">
                                <TextBlock Text='{Binding Name}'
                                           Foreground="Bisque" Margin="36"/>
                            </Grid>
                        </DataTemplate>
                    </GroupStyle.HeaderTemplate>
                </GroupStyle>
            </GridView.GroupStyle>
        </GridView>

        <ListView Grid.Column="1" ItemsSource="{Binding Source={StaticResource collectionVSAlarm}}"
                  ItemTemplate="{StaticResource dataTemplateListView}"
                  GroupStyleSelector="{StaticResource ListGridGroupStyleResource}"
                  Margin="120" />
    </Grid>

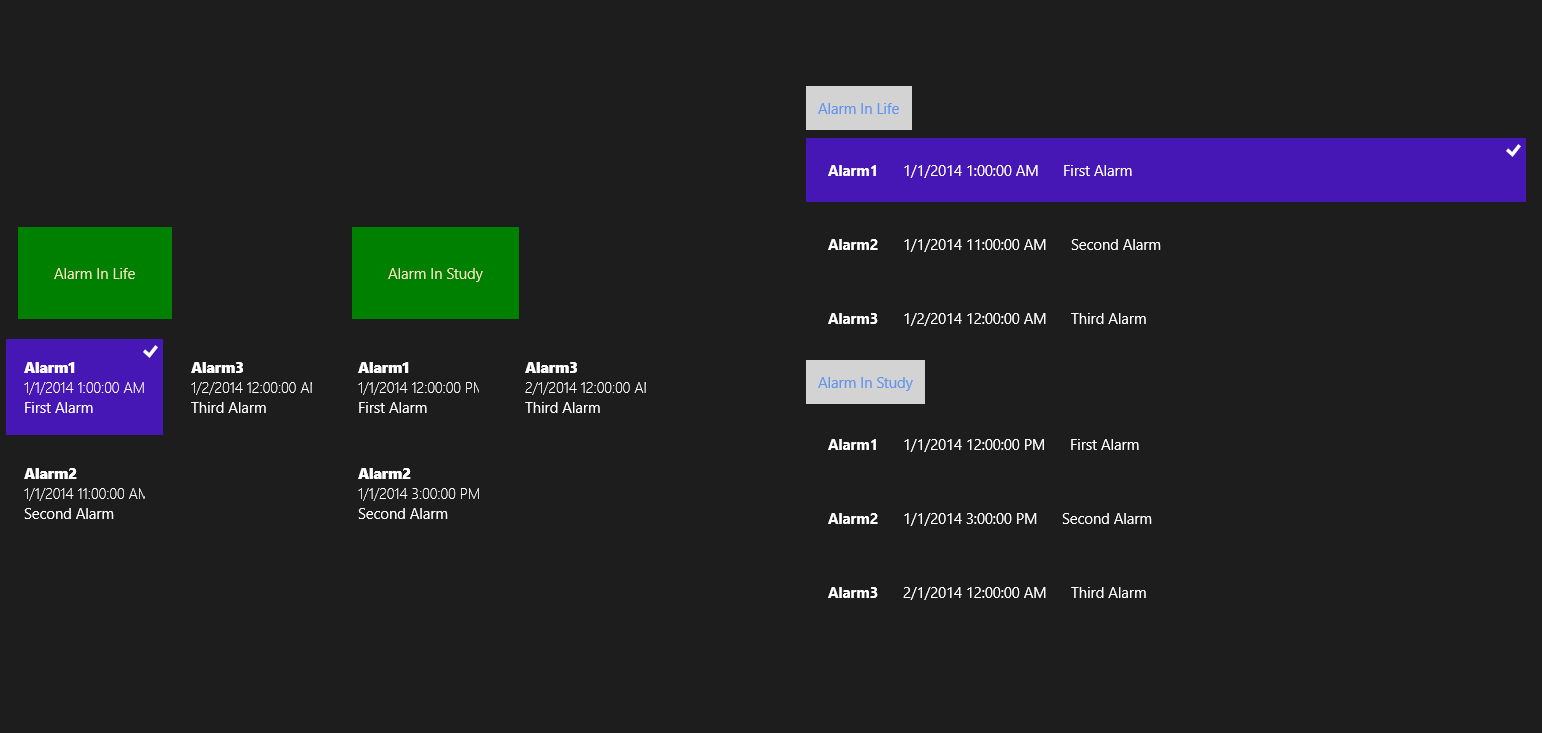

我这写的真是太丑了哎，做App的时候可得好好调调了，为了不伤了大家的眼睛最后我还是来张漂亮的壁纸吧……下一篇再见咯！
